SEATS

8G–11

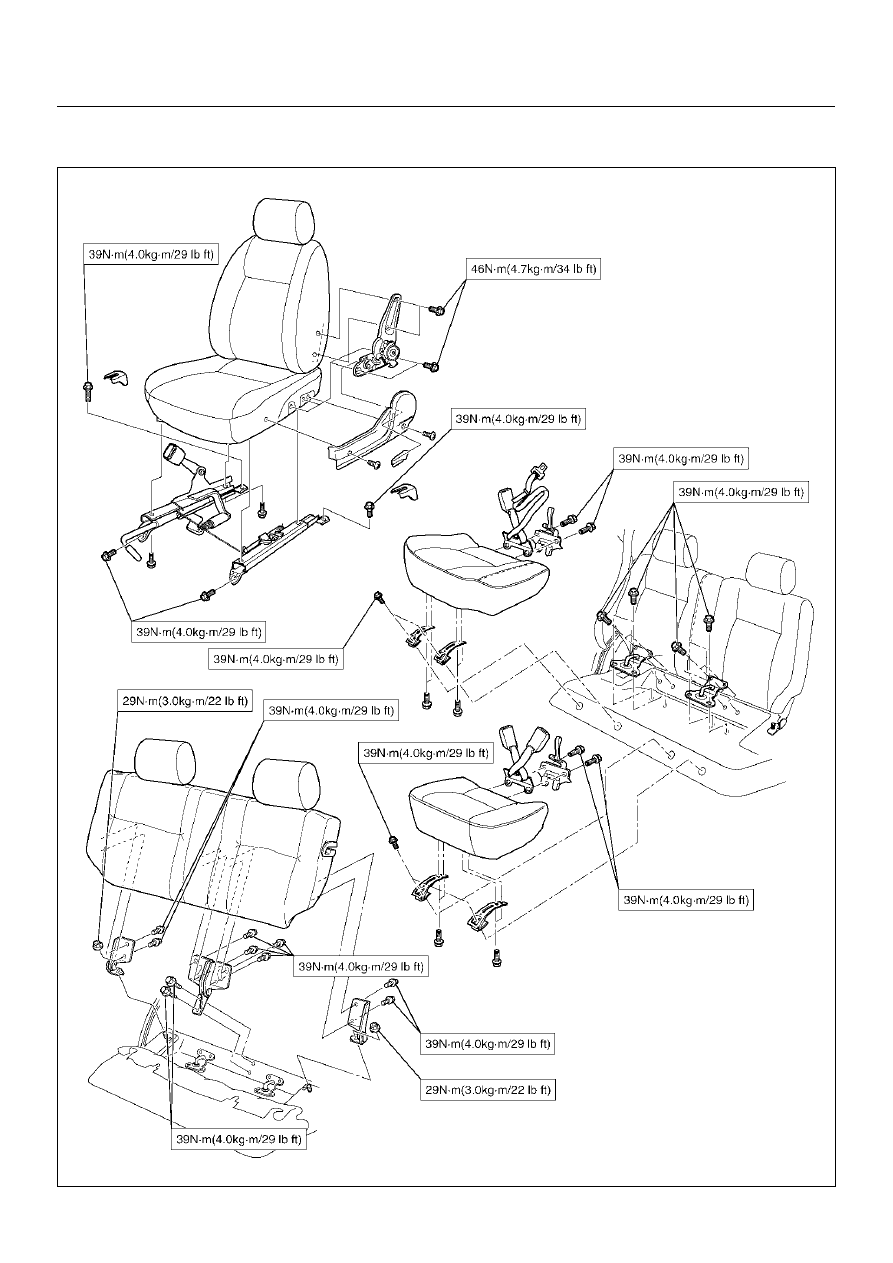

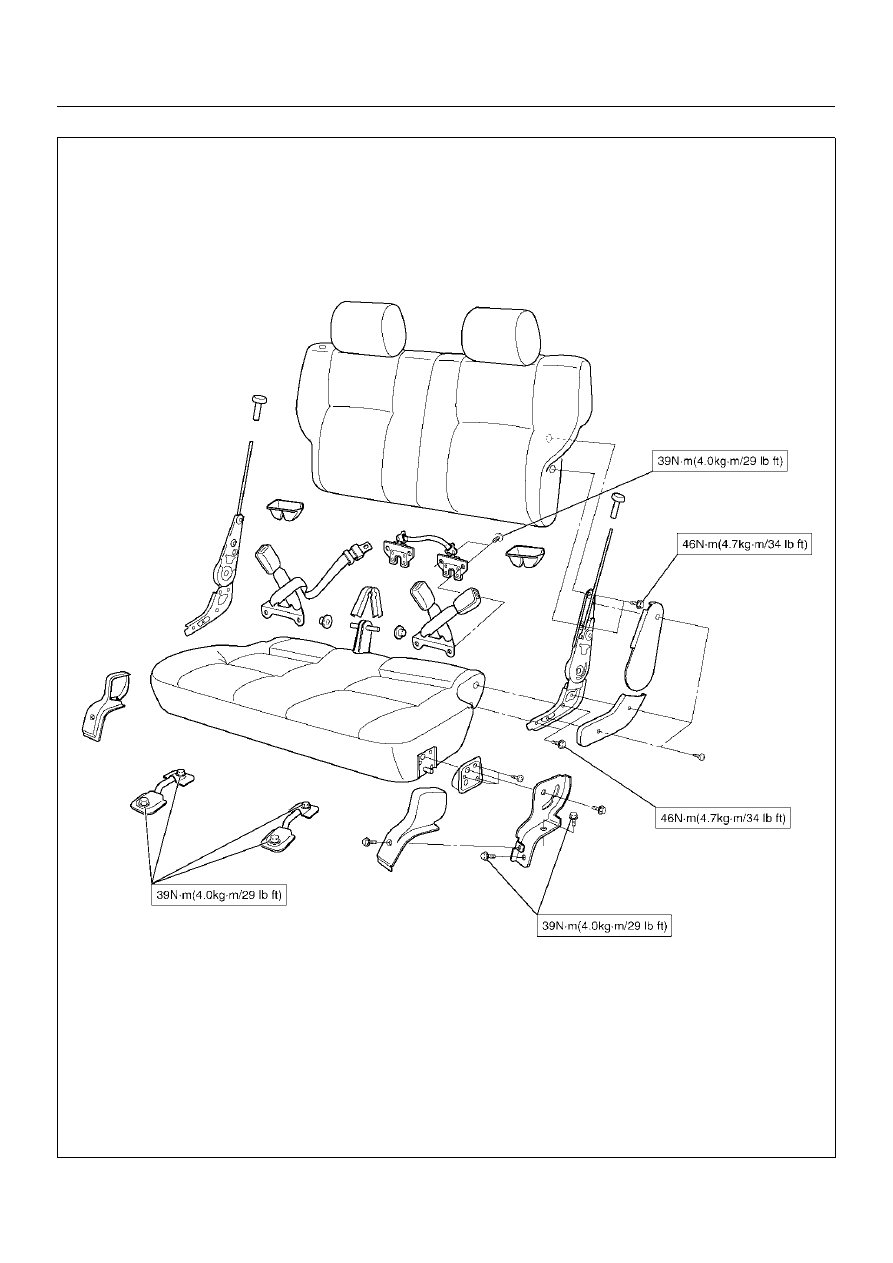

Main Data and Specifications

Torque Specifications

750RY00282

8G–12

SEATS

755RY00018

SECURITY AND LOCKS

8H–1

BODY AND ACCESSORIES

SECURITY AND LOCKS

CONTENTS

Service Precaution......................................... 8H - 1

Front Door Lock Assembly............................ 8H - 2

Front Door Lock Assembly and

Associated Parts ..................................... 8H - 2

Removal ..................................................... 8H - 3
Installation .................................................. 8H - 4

Front Outside Handle .................................... 8H - 5

Front Outside Handle and

Associated Parts ..................................... 8H - 5

Removal ..................................................... 8H - 5
Installation .................................................. 8H - 5

Rear Door Lock Assembly ............................ 8H - 6

Rear Door Lock Assembly and

Associated Parts ..................................... 8H - 6

Removal ..................................................... 8H - 7
Installation .................................................. 8H - 7

Rear Outside Handle..................................... 8H - 8

Rear Outside Handle and

Associated Parts ..................................... 8H - 8

Removal ..................................................... 8H - 8
Installation .................................................. 8H - 8

Tailgate Lock and Hatchgate Lock (LWB)..... 8H - 9

Tailgate Lock, Hatchgate Lock and

Associated Parts ..................................... 8H - 9

Removal ..................................................... 8H - 10
Installation .................................................. 8H - 11

Tailgate Lock (SWB) ..................................... 8H - 12

Tailgate Lock and Associated Parts ........... 8H - 12
Removal...................................................... 8H - 12
Installation................................................... 8H - 13

Fuel Filler Door Lock ..................................... 8H - 14

Fuel Filler Door Lock and

Associated Parts ..................................... 8H - 14

Removal...................................................... 8H - 14
Installation................................................... 8H - 15

Key ................................................................ 8H - 16

Key Coding ................................................. 8H - 16
Key Styles................................................... 8H - 16

Power Door Lock System.............................. 8H - 17

General Description .................................... 8H - 17
Door Lock Key Switch................................. 8H - 17
Front Door Lock Actuator............................ 8H - 17
Rear Door Lock Actuator ............................ 8H - 17
Tailgate Lock Actuator ................................ 8H - 17
Fuel Filler Door Lock Actuator .................... 8H - 17

Keyless Entry System ................................... 8H - 18

General Description .................................... 8H - 18
Keyless Entry Control Unit.......................... 8H - 18
Keyless Entry Control Unit/Transmitter

Replacement ........................................... 8H - 18

Main Data and Specifications ........................ 8H - 19

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8H–2

SECURITY AND LOCKS

Front Door Lock Assembly

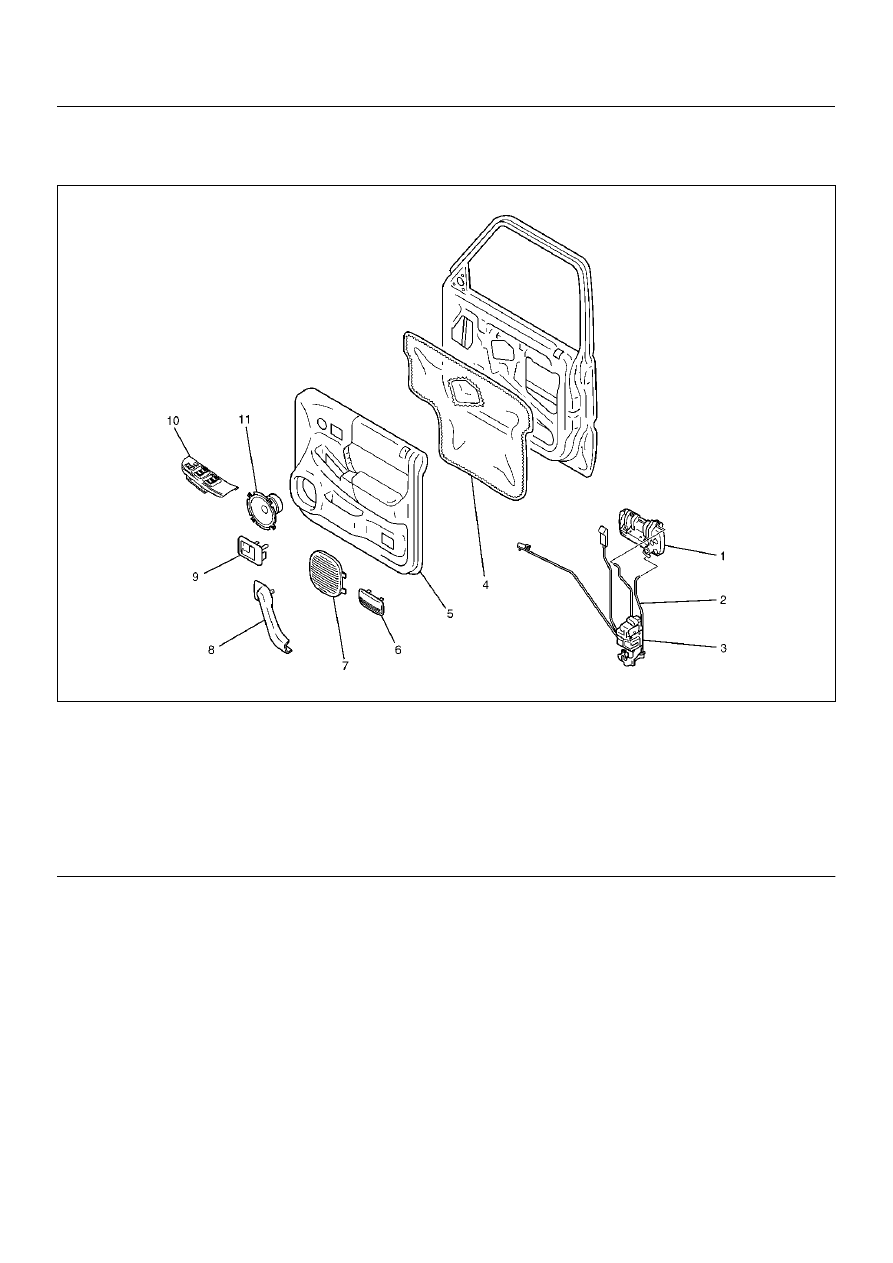

Front Door Lock Assembly and Associated Parts

635RY00005

Legend

EndOFCallout

(1) Outside Handle
(2) Door Locking Link
(3) Door Lock Assembly
(4) Waterproof Sheet
(5) Door Trim Panel
(6) Courtesy Light Lens

(7) Speaker Grille
(8) Grip Cover
(9) Inside Handle

(10) Power Window Switch
(11) Speaker Assembly
