SEATS

8G–7

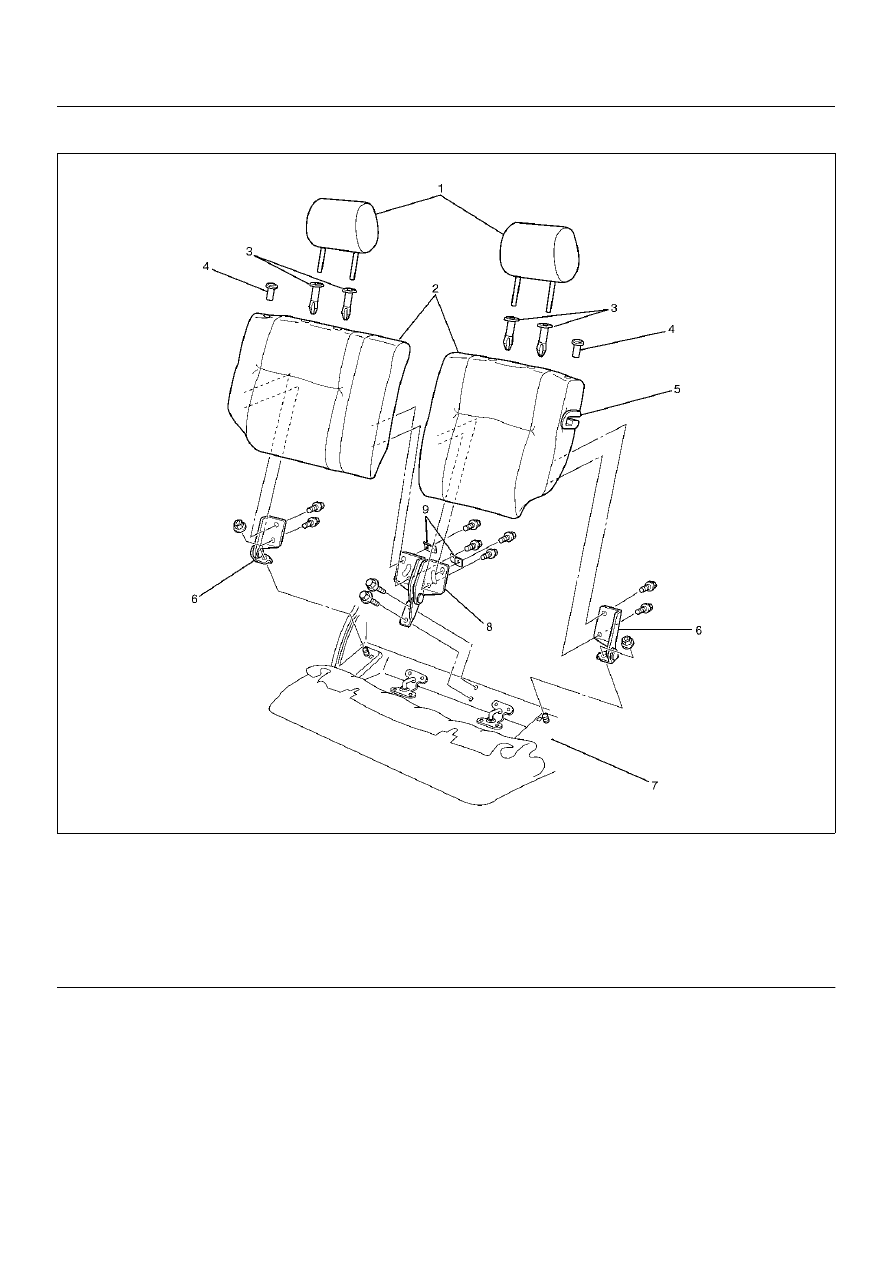

Rear Seat Back Assembly and Associated Parts

755RY00020

Legend

EndOFCallout

Removal

1. Pull on the release knob and fold the seat back

assembly forward.

2. Remove the luggage floor carpets.

• Remove the carpet fixing nine clips at each from

the backside of the seat back assembly.

3. Remove the seat back assembly.

• Remove the four fixing bolts at each seat back.

4. Remove the seat lock covers.

5. Remove the headrests.

6. Remove the release knobs.

• Turn the knob counterclockwise to remove it.

7. Remove the trim covers.

8. Remove the guide holders.

(1) Headrest
(2) Seat Back Assembly
(3) Guide Holder
(4) Release Knob
(5) Seat Lock Cover

(6) Side Hinge
(7) Body Floor Panel
(8) Center Hinge
(9) Bracket

8G–8

SEATS

9. Remove the side hinges.

• Remove the one fixing nut at each side hinge.

10. Remove the center hinge.

• Remove the two fixing bolts.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the center hinge fiixng bolts to the specified

torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the side hinge fixing nuts to the specified

torque.

Torque: 29 N·m (3.0 kg·m/22 lbft)

SEATS

8G–9

Rear Seat Assembly (SWB)

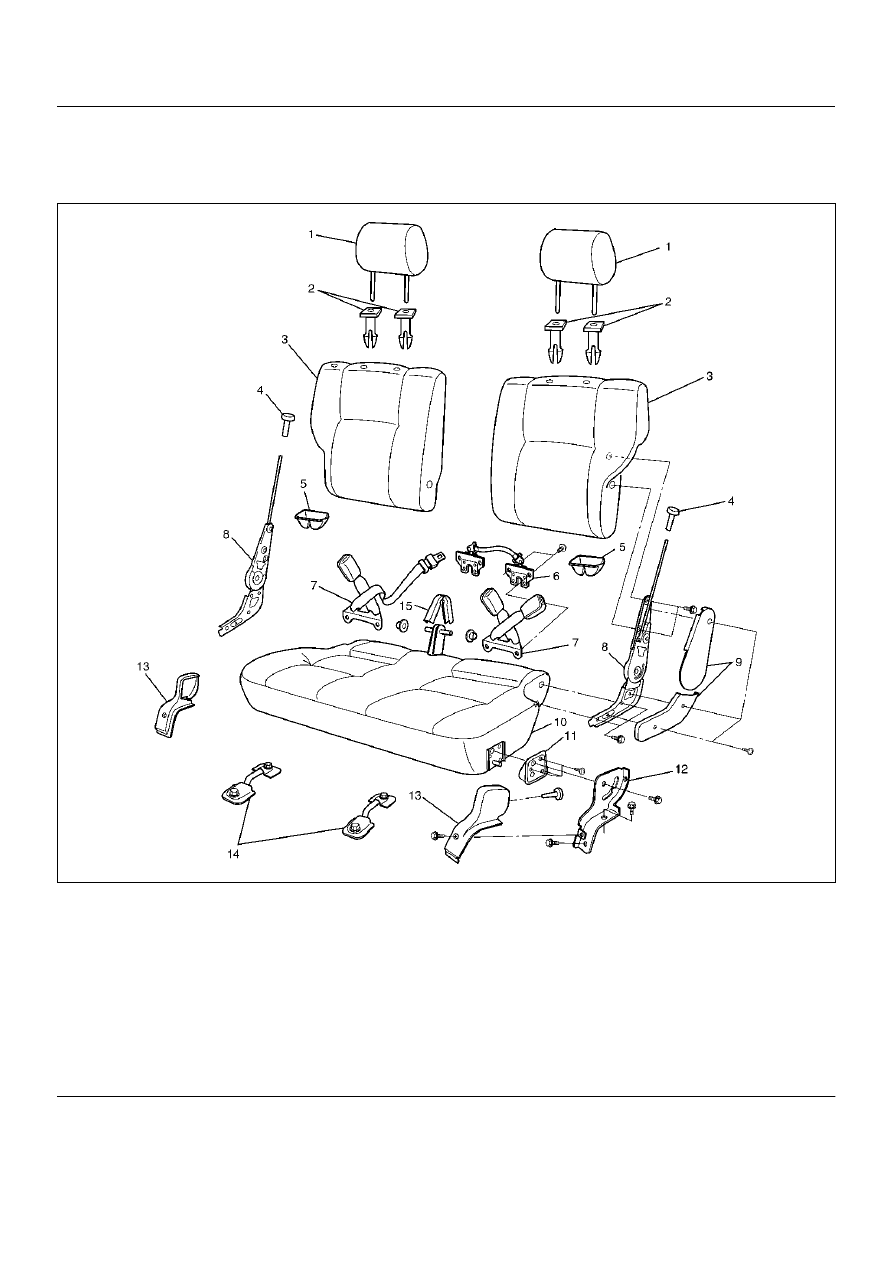

Rear Seat Assembly and Associated Parts

755RY00010

Legend

EndOFCallout

(1) Headrest
(2) Guide Holder
(3) Rear Seat Back Assembly
(4) Release Knob
(5) Seat Lock Cover
(6) Seat Lock Assembly
(7) Rear Seat Belt Buckle Assembly
(8) Reclining Device

(9) Device Cover

(10) Rear Seat Cushion Assembly
(11) Support Cover
(12) Rear Seat Leg
(13) Rear Seat Leg Cover
(14) Rear Floor Lock Striker
(15) Free Hinge Cover

8G–10

SEATS

Removal

1. Fold the rear seat backs forward.

• Pull up on the left and right release knobs.

2. Remove the rear seat leg covers.

• Remove the one screw and clip from each.

3. Remove the rear seat assembly.

•  Remove the two sets of two fixing bolts from left

and right sides, then pull on the seat lock strap to
release the seat lock.

4. Remove the device covers.

• Remove the three screws from each.

5. Remove the release knobs.

6. Remove the rear seat back assembly.

• Remove the two sets of two reclining device fixing

bolts from the sides of the seat backs.

7. Remove the headrests.

8. Remove the trim covers.

9. Remove the guide holders.

10. Remove the reclining devices.

• Remove the two sets of two fixing bolts from the

sides of the seat cushions.

11. Remove the rear seat legs.

12. Remove the support covers.

• Remove the three screws from each.

13. Remove the seat lock covers.

14. Remove the seat lock assembly and the rear seat

belt buckle assembly.

• Remove the two sets of two fixing bolts.

15. Remove the free hinge cover.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the seat lock assemblies and the rear

seatbelt buckle assemblies to the specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the reclining devices to the specified torque.

Torque: 46 N·m (4.7 kg·m/34 lbft)

3. Tighten the rear seat assembly fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)
