SEATS

8G–3

4. Pull out the reclining knob.

5. Remove the side cover.

• Remove the two screws.

6. Remove the headrest.

7. Remove the reclining device.

• Turn up the seat back trim cover in order to

remove the reclining device fixing bolts (LWB).

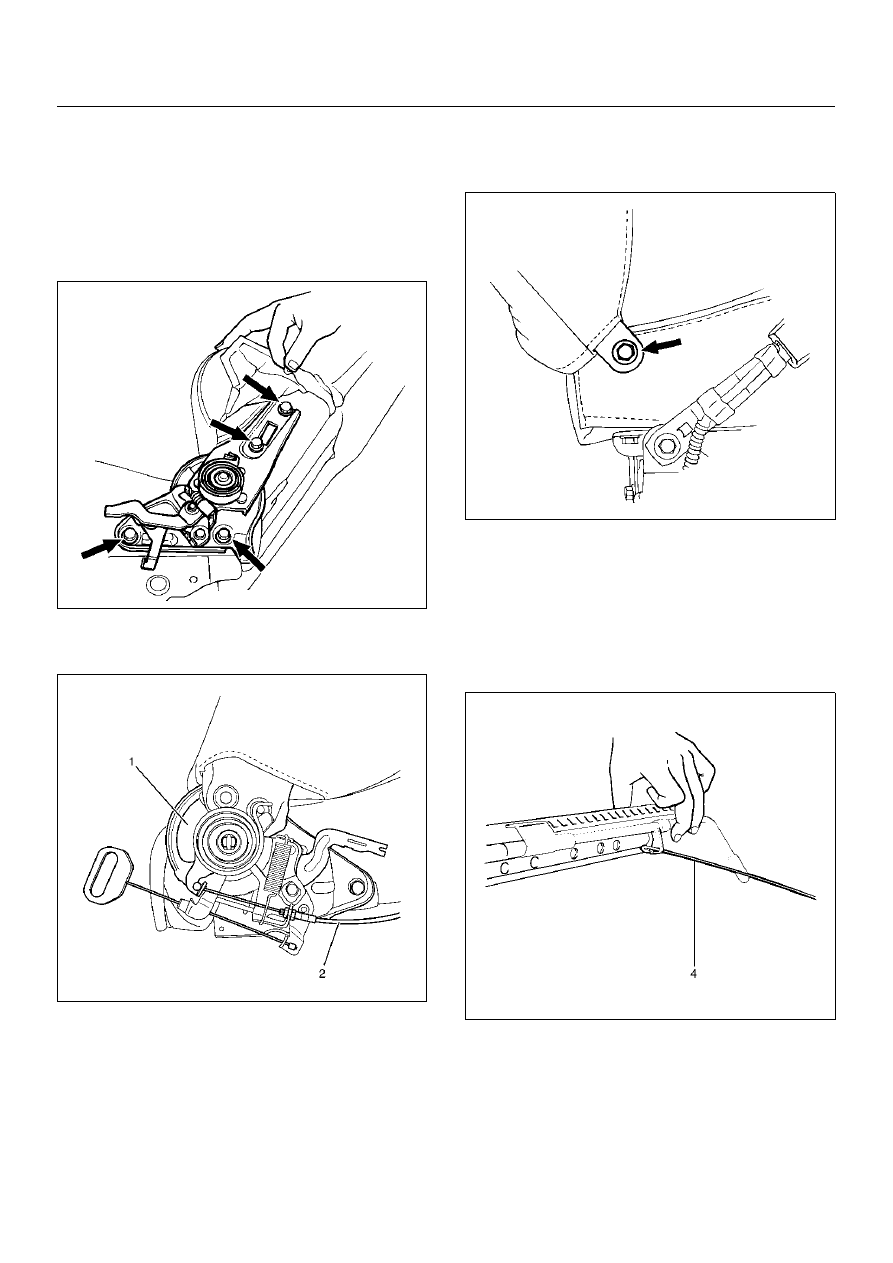

750RS006

• Remove the of device (1) and disconnect the

walk-in cable (2) (SWB).

750RY00276

8. Remove the seat back assembly.

• Remove the seat back assembly fixing nut on the

opposite side of the reclining device.

750RS007

9. Remove the trim cover (Seat back side).

10. Remove the guide holder.

• Pull the guide holder out by holding the bottom

end of it from the seat back assembly.

11. Remove the seat adjuster.

• Disconnect the release wire (4) and remove the

fixing bolts.

750RW006

12. Remove the seat belt buckle assembly.

13. Remove the trim cover (Seat cushion side).

8G–4

SEATS

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the reclining device fixing bolts to the

specified torque.

Torque: 46 N·m (4.7 kg·m/34 lbft)

2. Tighten the front seat assembly fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

SEATS

8G–5

Rear Seat Assembly (LWB)

Rear Seat Cushion Assembly and Associated Parts

755RY00009

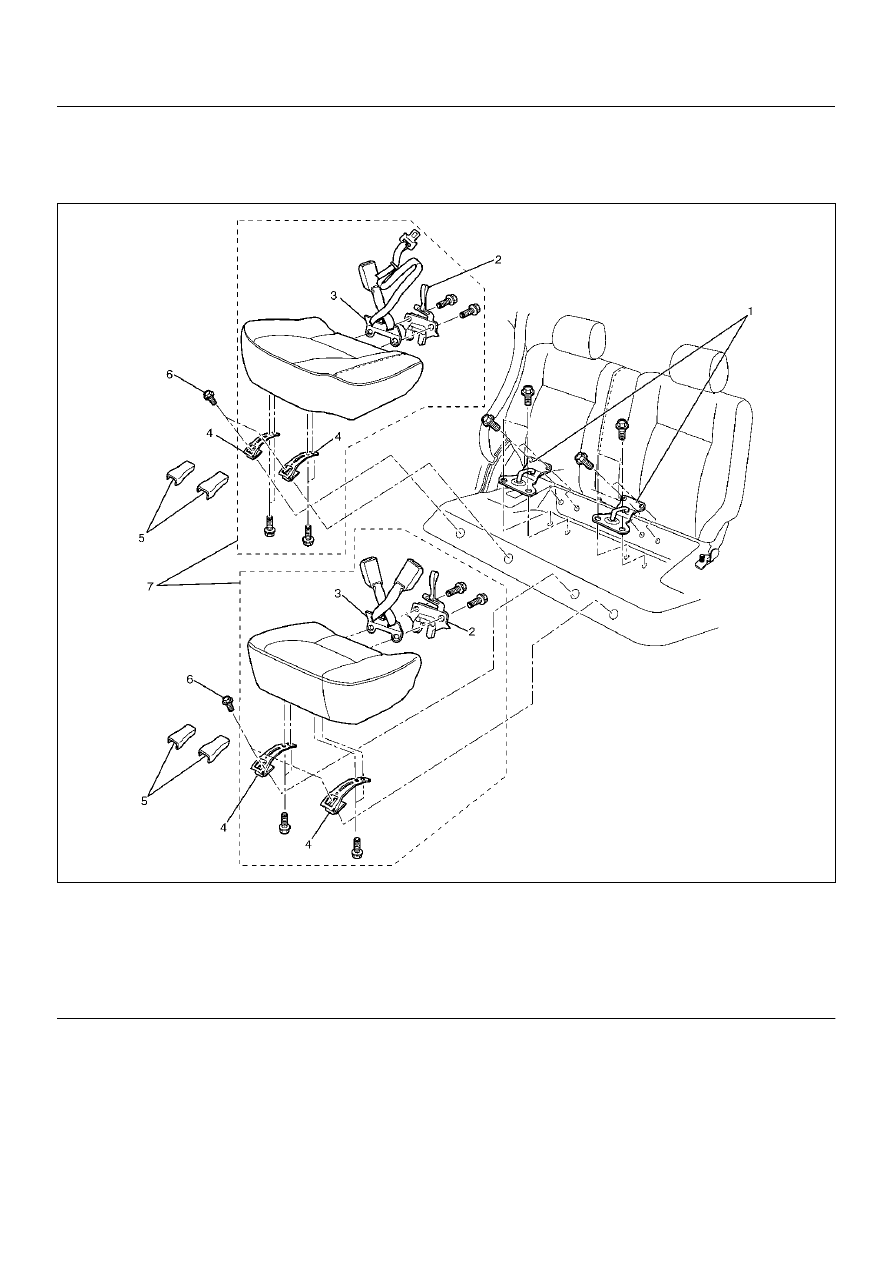

Legend

EndOFCallout

Removal

1. Remove the hinge covers.

2. Remove the seat cushion fixing bolts.

3. Remove the seat cushion assembly.

• Pull on the strap of the rear seat lock assembly to

release the seat lock.

4. Remove the seat cushion hinges.

(1) Rear Seat Lock Striker
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly
(4) Seat Cushion Hinge

(5) Hinge Cover
(6) Seat Cushion Fixing Bolt
(7) Rear Seat Cushion Assembly

8G–6

SEATS

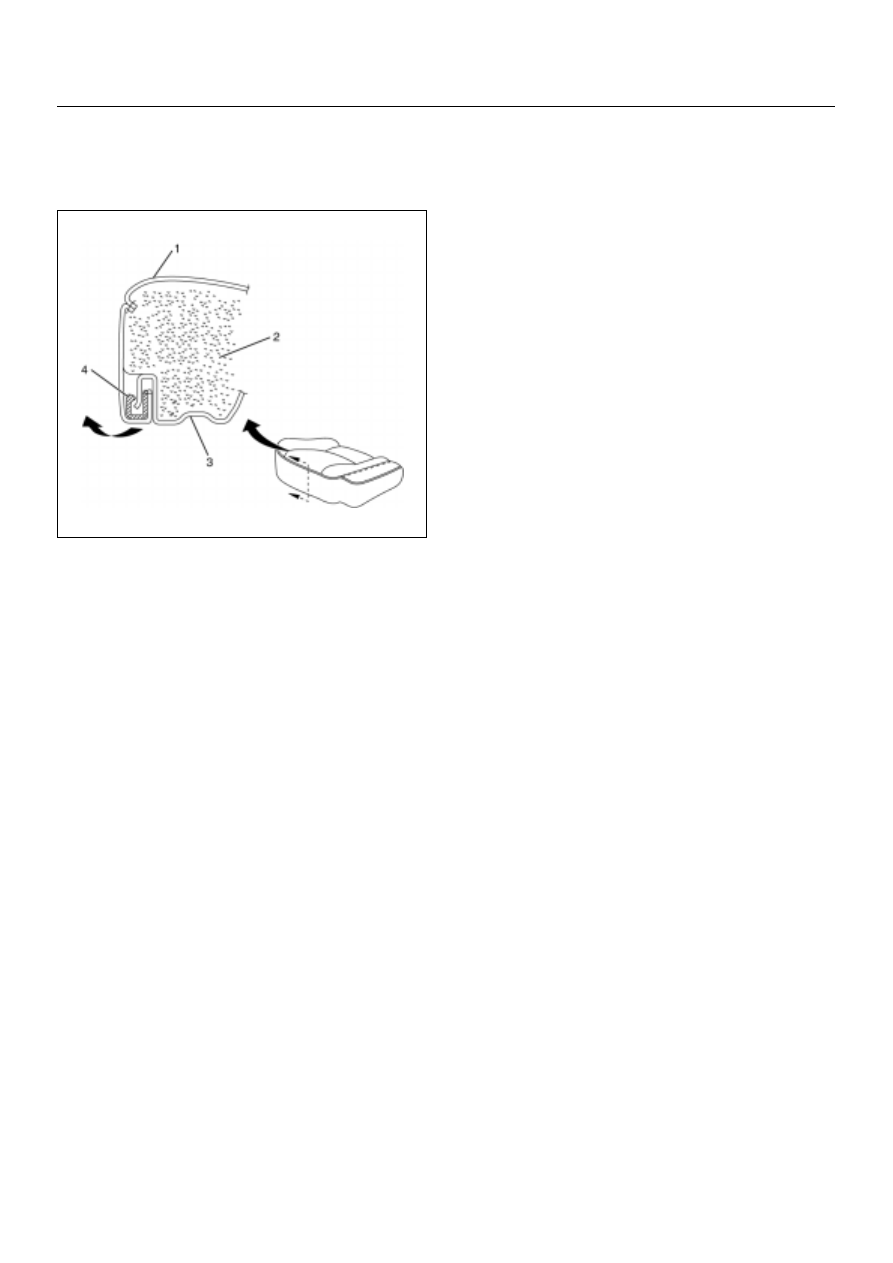

5. Remove the rear cushion trim cover (1) and rear

seat cushion pad (2).

• Remove cushion trim cover from rear cushion

frame (3) with prying the plastic retainers (4).

755RX028

6. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

7. Remove the rear seat lock strikers.

• Remove the four bolts at each striker.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the rear seat lock striker fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

3. Tighten the seat cushion hinge fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)
