Side Window Glass (SWB)
Parts Location
641RX003
Legend
EndOFCallout
Removal
1. Remove the quarter trim cover.
• Refer to Interior Trim Panels (SWB) in Exterior/
Interior Trim section.
2. Remove the side window garnish assembly.
• Pull out the three clips to disengage them.
3. Remove the side window moulding.
4. Remove the side window glass.
• Refer to Windshield in this section.
Installation
1. Install the side window glass.
• Clean the areas of the glass and body panel that
are to be affixed to each other.
• Apply the primer to the specified areas of the
glass and body panel.
• Stick the spacer and fastener tape in place in the
specified locations.
• Apply the adhesive to the entire circumference of
the glass, as shown in the figure.
• Insert the glass clips into the panel and then push
the glass against the panel to affix it in place.
• Wipe away any adhesive that oozes out around
the edges.
2. Install the side window garnish assembly.
• Install it securely so that it does not come loose in
places.

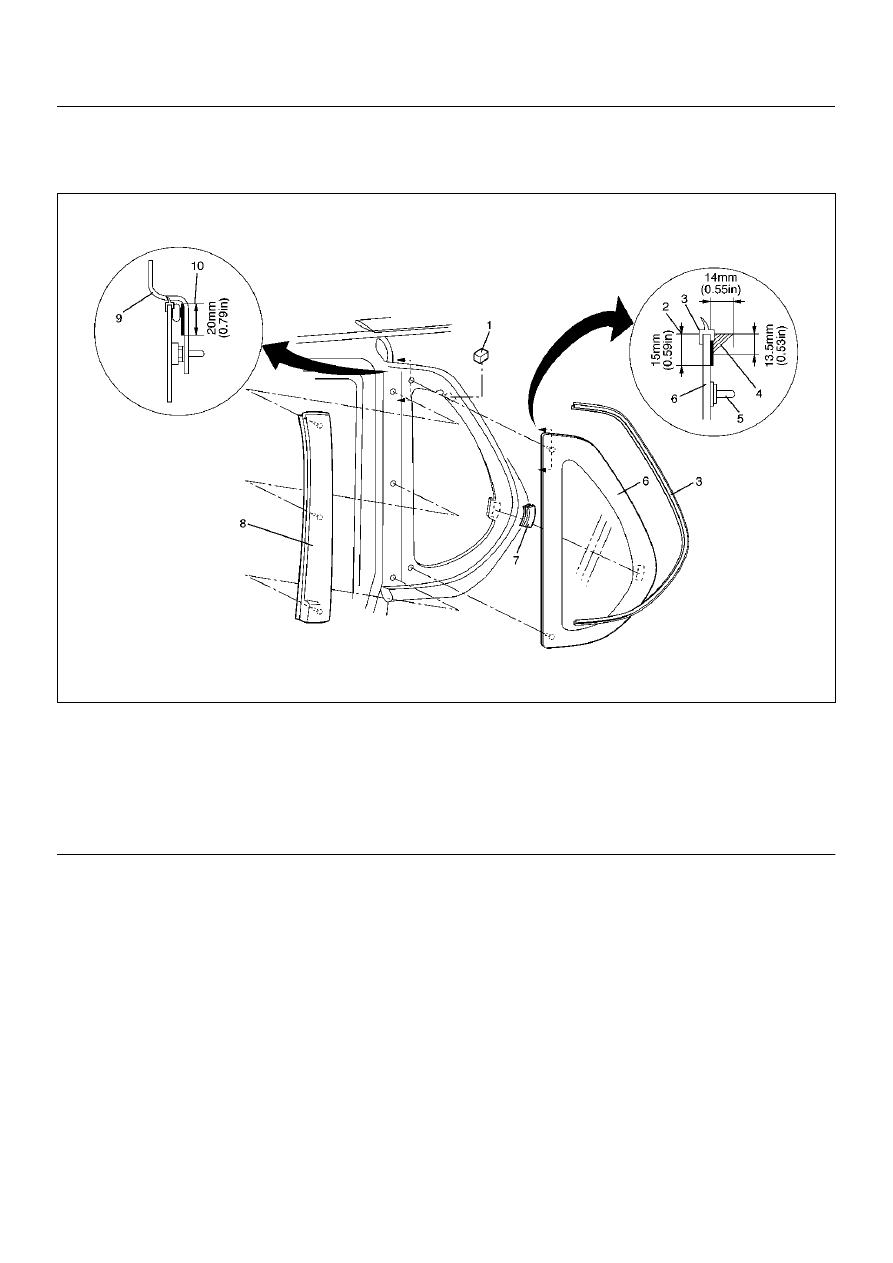

(1) Spacer
(2) Primer Coating Area on Glass Side
(3) Side Window Moulding
(4) Adhesive
(5) Clip
(6) Side Window Glass
(7) Fastener Tape
(8) Side Window Garnish Assembly
(9) Body Panel
(10) Primer Coating Area on Body Side
