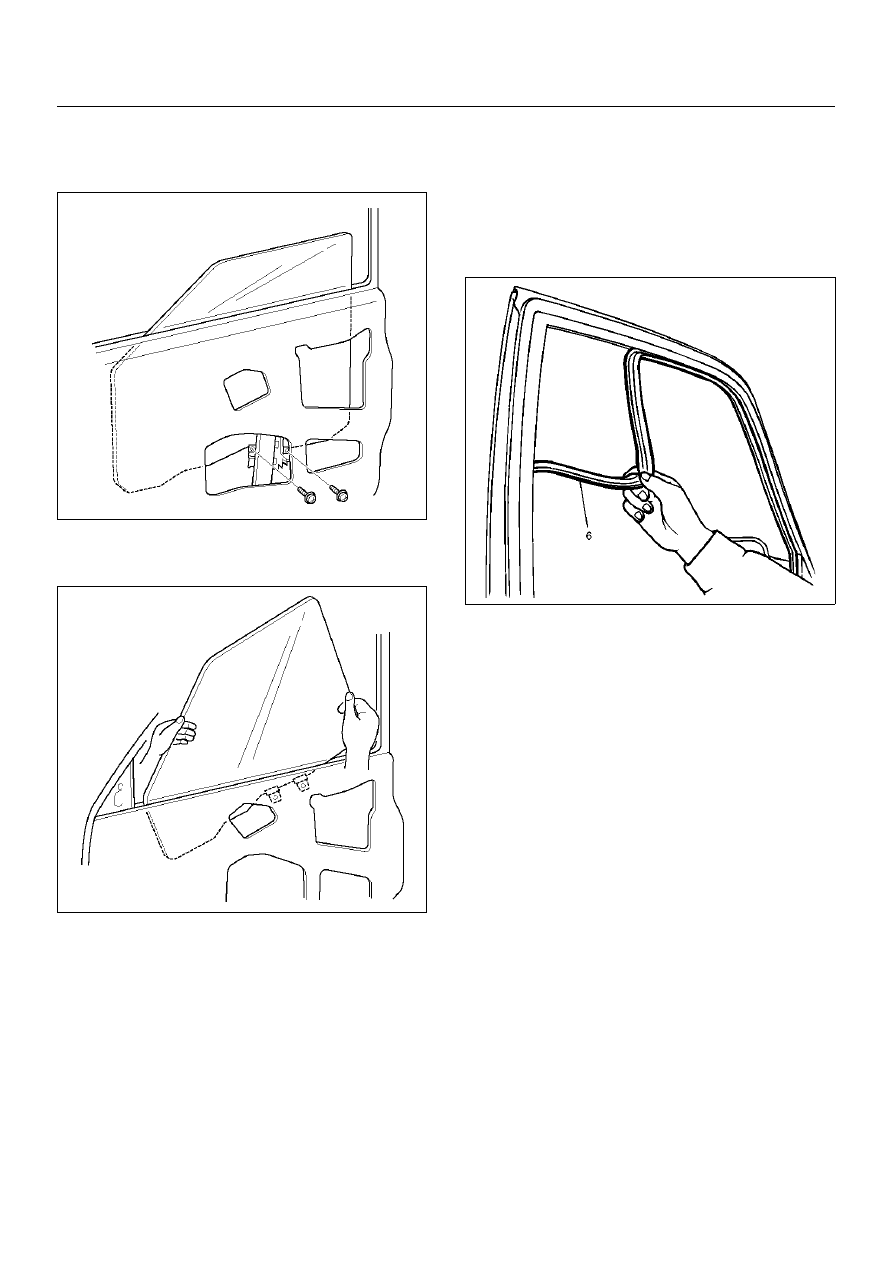

9. Remove the waterproof sheet.

10. Remove the two screws through the access hole

and pull out the glass upward.

631RW006

11. Turn the glass inside out and pull it up from its rear

side.

631RW007

12. Remove the window regulator.

• Remove the seven fixing bolts.

• Disconnect the window regulator motor harness

connector.

13. Remove the glass run.

• Pull the glass run (6) out from the door frame

groove.

631RS007

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.

8F–48

BODY STRUCTURE

Rear Window Regulator, Glass and Glass Run

Parts Location

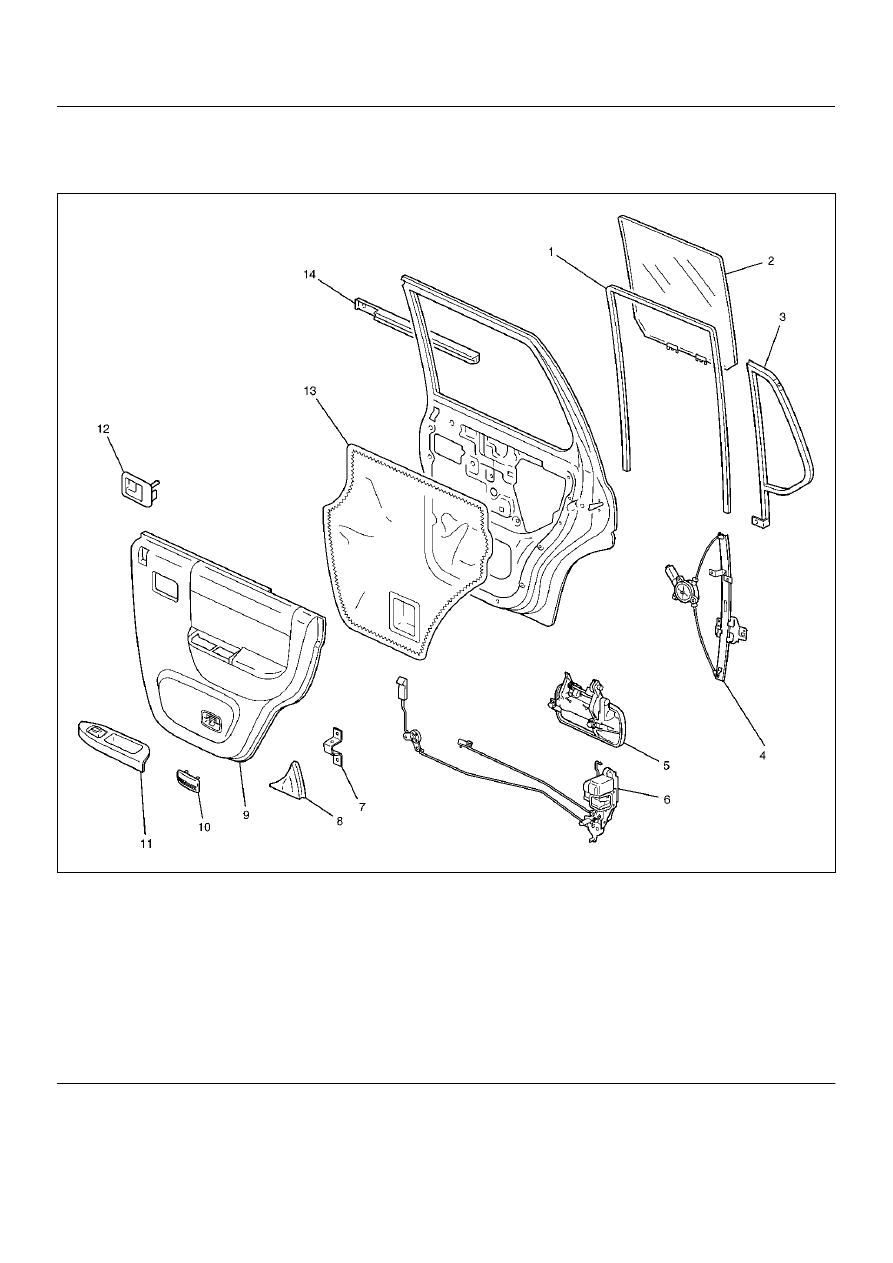

655RW011

Legend

EndOFCallout

(1) Glass Run
(2) Glass
(3) Fixed Glass
(4) Window Regulator
(5) Outside Handle
(6) Door Lock Assembly
(7) Bracket
(8) Rear Corner Garnish

(9) Door Trim Panel

(10) Courtesy Light Lens
(11) Power Window Switch
(12) Inside Handle
(13) Waterproof Sheet
(14) Waist Seal

BODY STRUCTURE

8F–49

Removal

1. Disconnect the battery ground cable.

2. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

3. Remove the one screw at the pull case.

655RW003

4. Remove the rear corner garnish.

5. Pull out the trim panel at the eight clip positions.

• Disconnect the power window switch connector

and courtesy light connector.

655RW002

6. Remove the power window switch.

7. Remove the bracket.

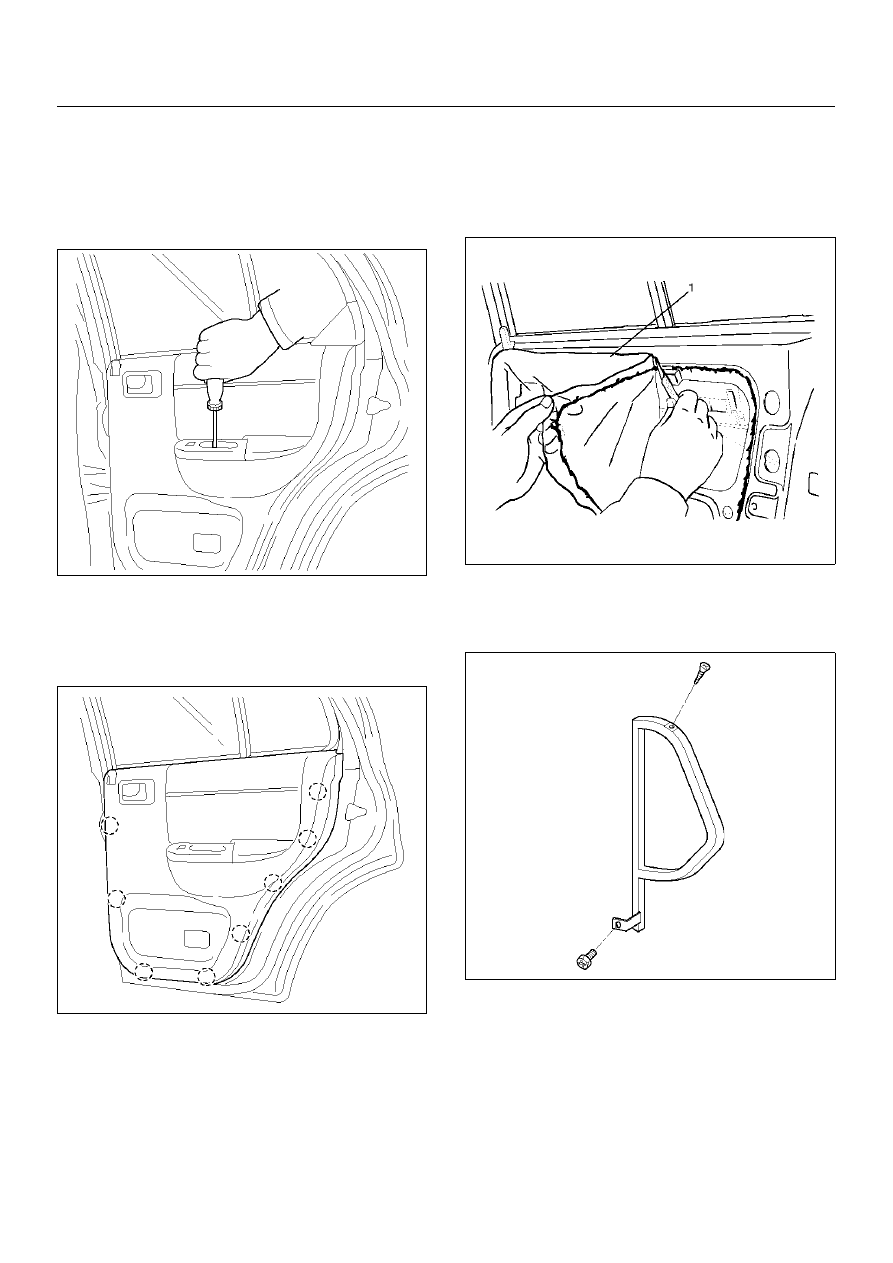

8. Remove the waterproof sheet (1).

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

651RS002

9. Remove the fixed glass.

• Remove one bolt and screw as shown in the

figure, then pull it upward.

651RW002

8F–50

BODY STRUCTURE

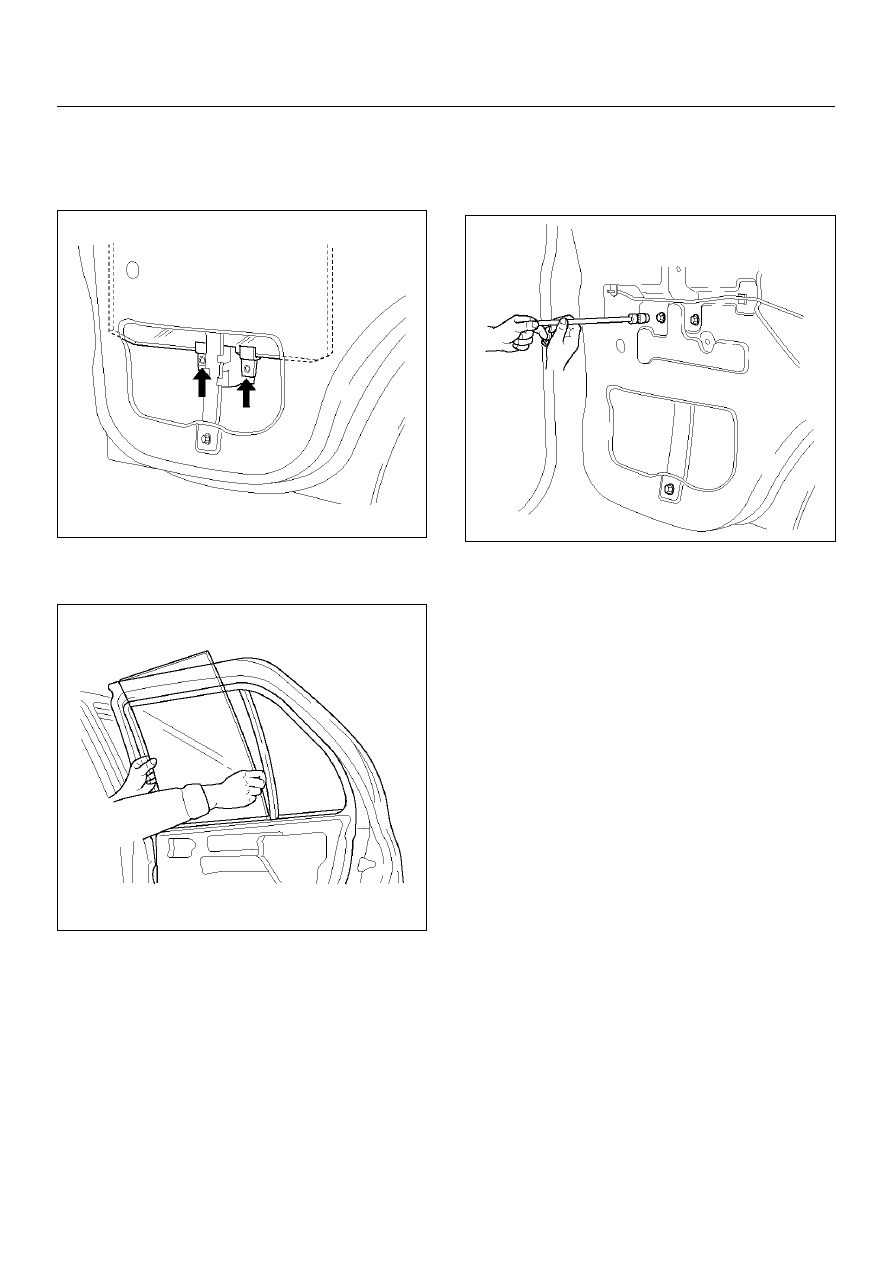

10. Remove the glass.

• First, align the height of regulator to the access

hole. Remove two screws attaching bottom
channel and regulator, then remove the glass.

651RW006

• Remove the window glass by tilting it as

necessary.

651RW007

11. Remove the window regulator.

• Remove the six fixing bolts and pull the regulator

out from the lower hole of the door panel.

• Disconnect the connector.

651RW005

12. Remove the glass run.

• Pull the glass run out from the door frame.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.
