BODY STRUCTURE
8F–51

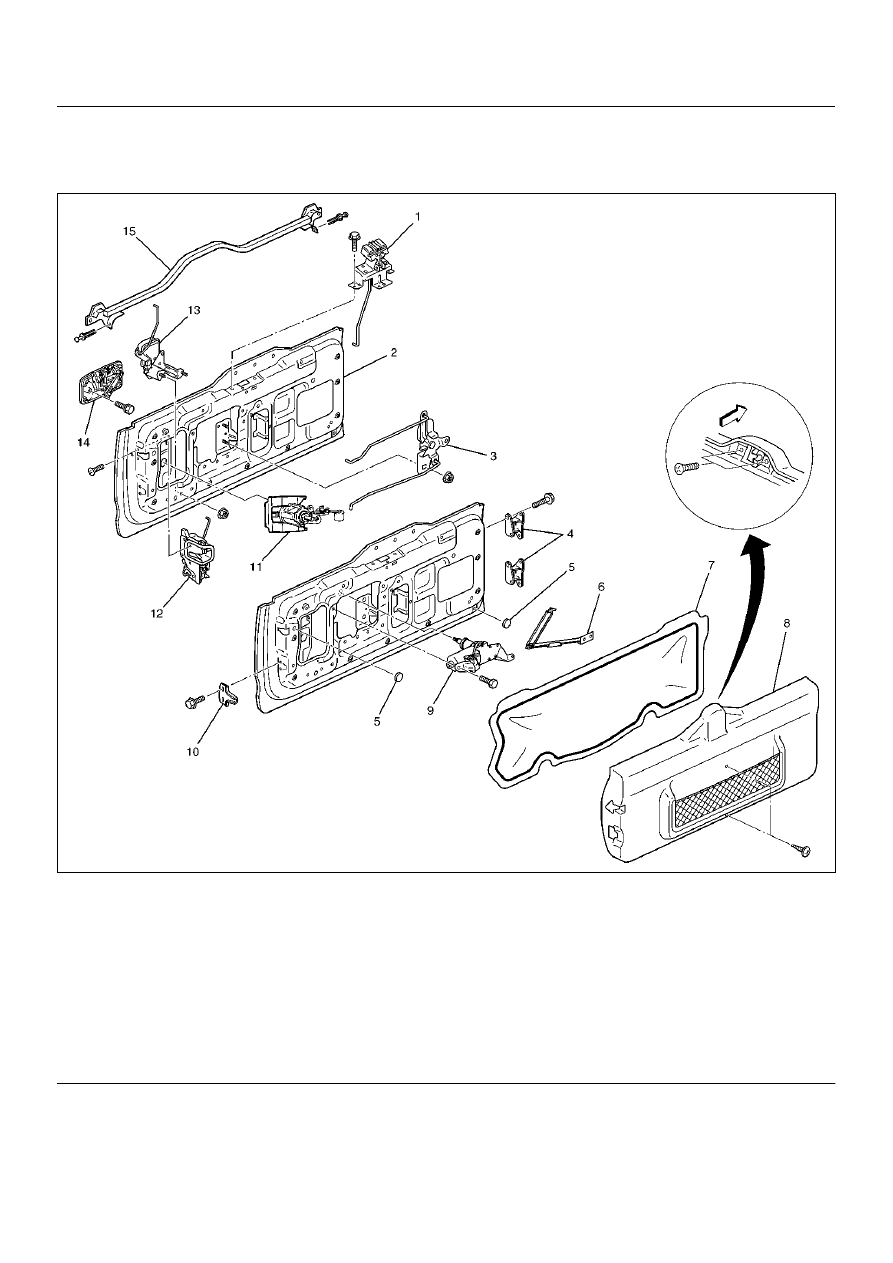

Tailgate (LWB)
Parts Location
681RW010
Legend
EndOFCallout
(1) Hatchgate Lock Assembly
(2) Tailgate Assembly
(3) Tailgate Bell Crank
(4) Hinges
(5) Plug
(6) Tailgate Stopper Link
(7) Waterproof Sheet
(8) Trim Cover Assembly
(9) Rear Wiper Motor
(10) Dove Tail
(11) Key Cylinder
(12) Tailgate Lock Assembly
(13) Hatchgate Lock Actuator Assembly
(14) Outside Handle
(15) Tailgate Waist Seal
