WIRING SYSTEM

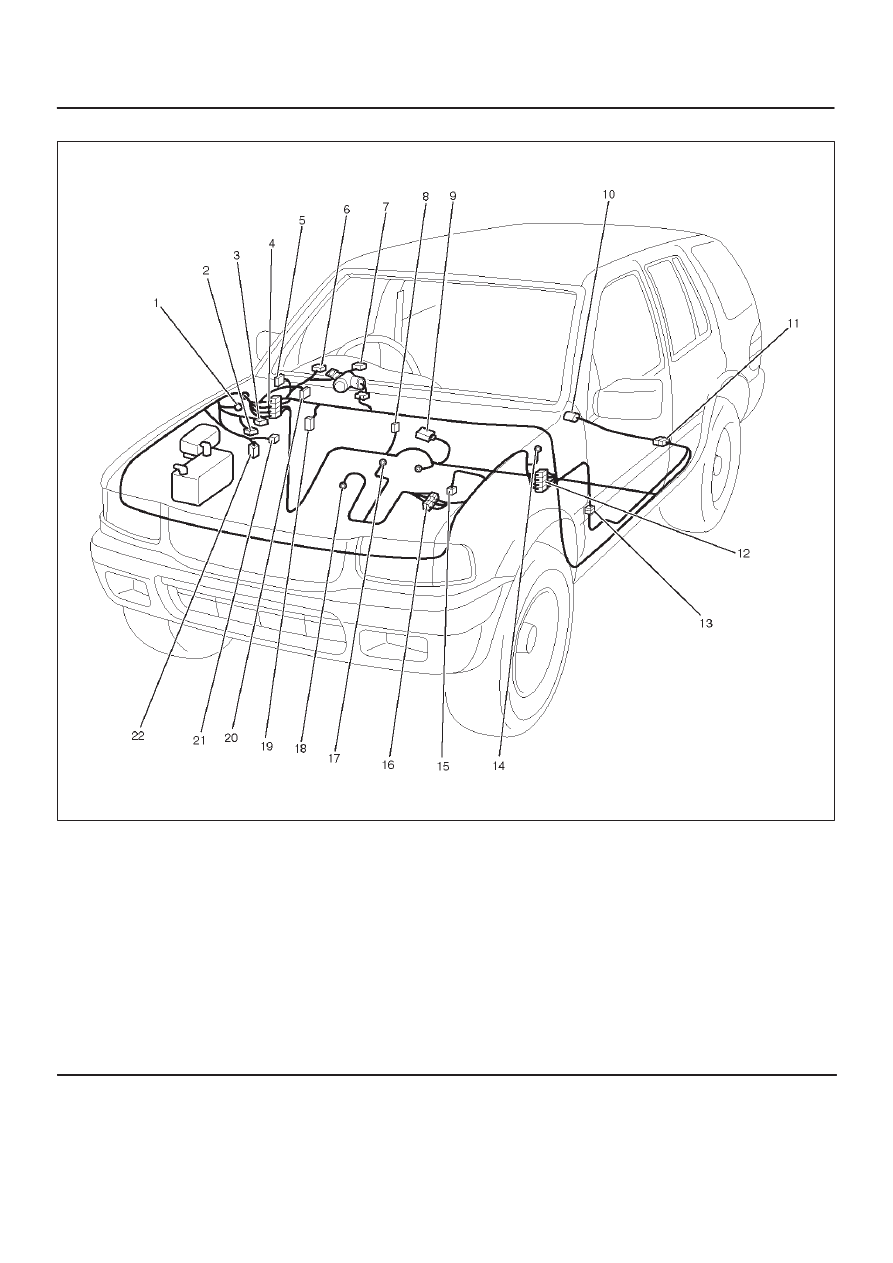

Parts Location

D08RX217

Legend

(1) C–36
(2) C–5
(3) C–4
(4) H–14, H–19
(5) Relay & Fuse Box
(6) I–1
(7) I–2
(8) B–23
(9) B–19

(10) F–4

(11) H–26

(12) H–15
(13) H–25
(14) C–16
(15) C–13
(16) H–5
(17) E–30 (6VD1)
(18) E–28 (X22SE)
(19) I–18
(20) C–34
(21) C–6
(22) C–33

8D–156

WIRING SYSTEM

A/T Shift Lock

General Description

With the starter switch in the “ON” position and the shift
lever in “P” position, the shift lever cannot be shifted from
“P” to another position unless the brake pedal is
depressed. This is because, unless the brake pedal is
depressed, the solenoid pin underneath the shift lever
retracts and the link lever then locks the shift lever cam.

8D–157

WIRING SYSTEM

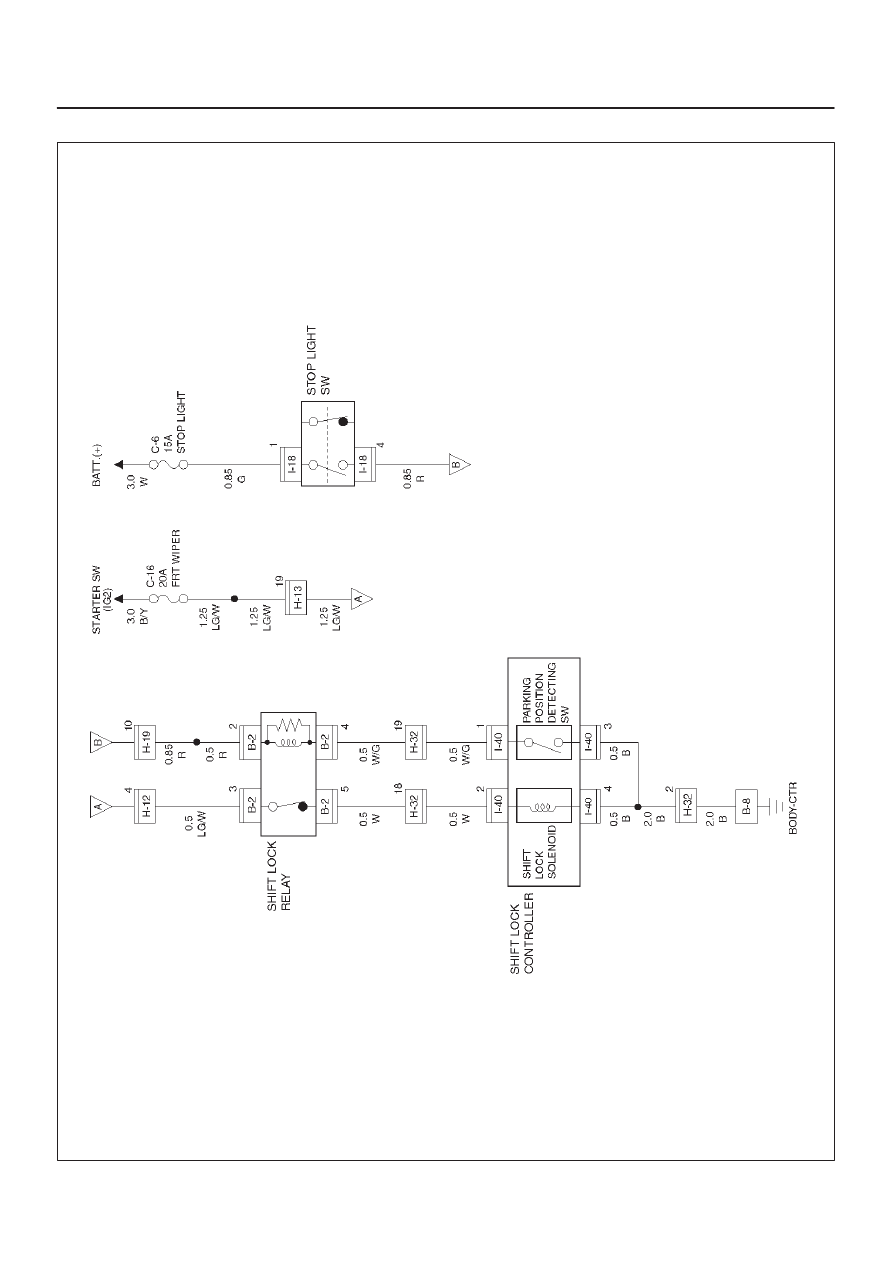

Circuit Diagram–1

D08RY00882

8D–158

WIRING SYSTEM

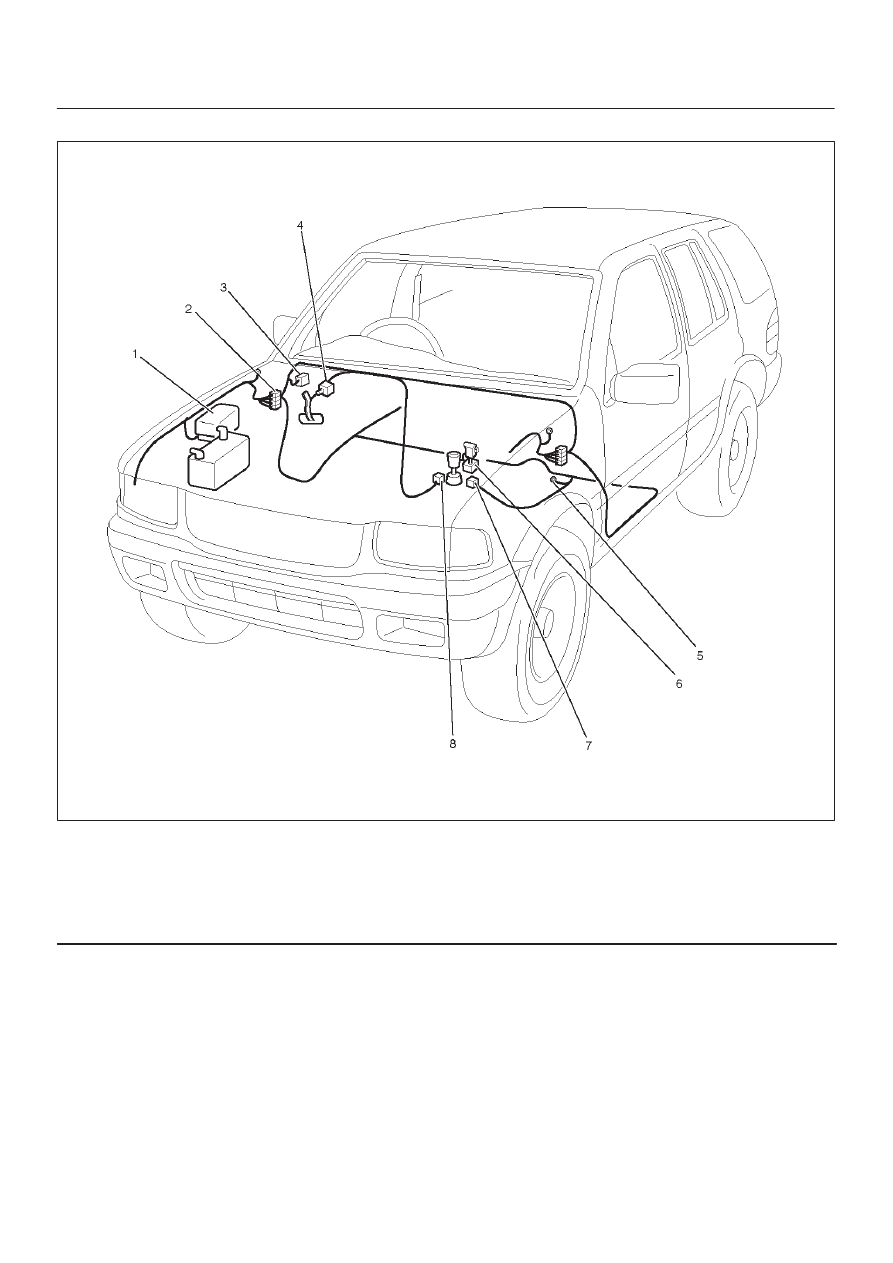

Parts Location

D08RWD16

Legend

(1) Relay & Fuse Box (Engine Room)
(2) H–19, H–32, H–12
(3) Relay & Fuse Box (Instrument Panel)
(4) I–18

(5) B–8
(6) A/T Shift Lever
(7) B–2
(8) I–40
