DTC 1–3 Mechanical Defect

Step

Action

Value(s)

Yes

No

1

1. Turn the starter switch off.
2. Disconnect the actuator connector C-26.
3. Connect the battery positive terminal to the actuator

side connector terminal 3 and the battery negative
terminal to terminal 4.

Does the control plate move by hand?

—

Replace the

actuator

Go to Step 2

2

Connect the battery positive terminal to the actuator
side connector terminal 1 and 3, and the battery
negative terminal to terminal 2 and 4.

Do the control plate move to full open side?

—

Go to Step 3

Replace the

actuator

3

Connect the battery positive terminal to the actuator
side connector terminal 2 and 3, and the battery
negative terminal to terminal 1 and 4.

Does the control plate move to full close side?

—

Go to Step 4

Replace the

actuator

4

Check continuity between harness side connector
C-26 terminal 1 and B-18 terminal 7, C-26 terminal 2
and B-18 terminal 15.

Is there continuity between terminals?

—

Replace the

control unit

Repair or

replace

harness

DTC 1–4 Close Side of Motor System Continuously Energizing

Step

Action

Value(s)

Yes

No

1

1. Turn the starter switch off.
2. Disconnect the actuator connector C-26.
3. Measure resistance between actuator side

connector terminal 1 and 2.

NOTE: If the control plate position is fully opened or
fully closed, resistance can not be measured.

Is the resistance within range specified in the value(s)
column?

More than

4.2

W

Go to Step 2

Replace the

actuator

2

Measure continuity between harness side connector
C-26 terminal 2 and B-18 terminal 15, C-26 terminal 1
and B-18 terminal 7.

Is there continuity between terminals?

—

Replace the

control unit

Repair or

replace the

harness

8D–152

WIRING SYSTEM

Anti–Lock Brake System (ABS)

General Description

The circuit consists of the starter switch, stoplight switch
EHCU wheel speed sensor, ABS warning light, BRAKE
warning light, and data link connector.
When the service brake is applied while in the running
mode, the EHCU (Electronic Hydraulic Control Unit)
judges which wheel is about to lock by using the wheel
rotation speed signals sent from the three wheel speed
sensors at the front wheels and rear differential. And the
brake fluid pressure applied to the four wheels is
controlled by the EHCU to prevent the wheels from
locking.
Refer to Brake Control System in Brakes section in detail.

8D–153

WIRING SYSTEM

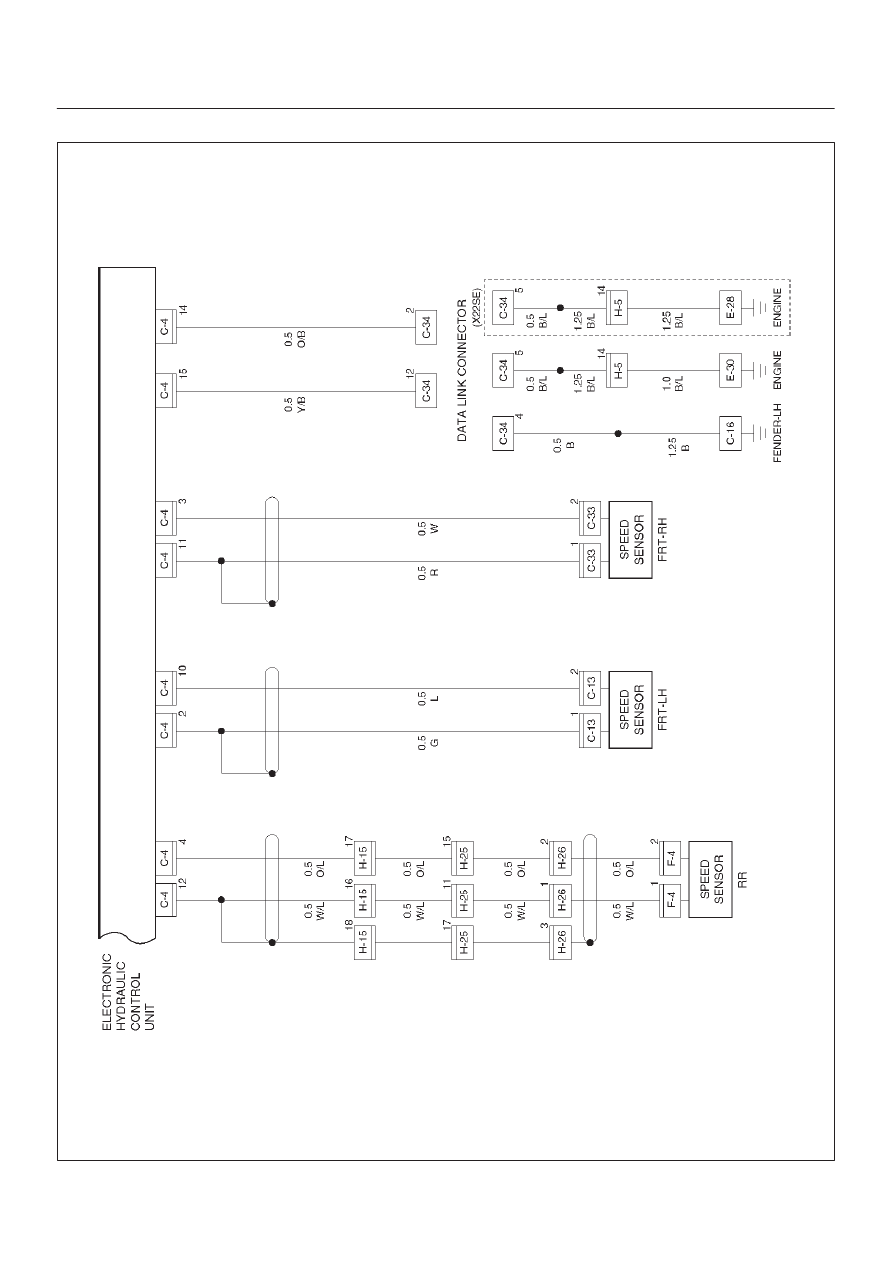

Circuit Diagram–1

D08RX216

8D–154

WIRING SYSTEM

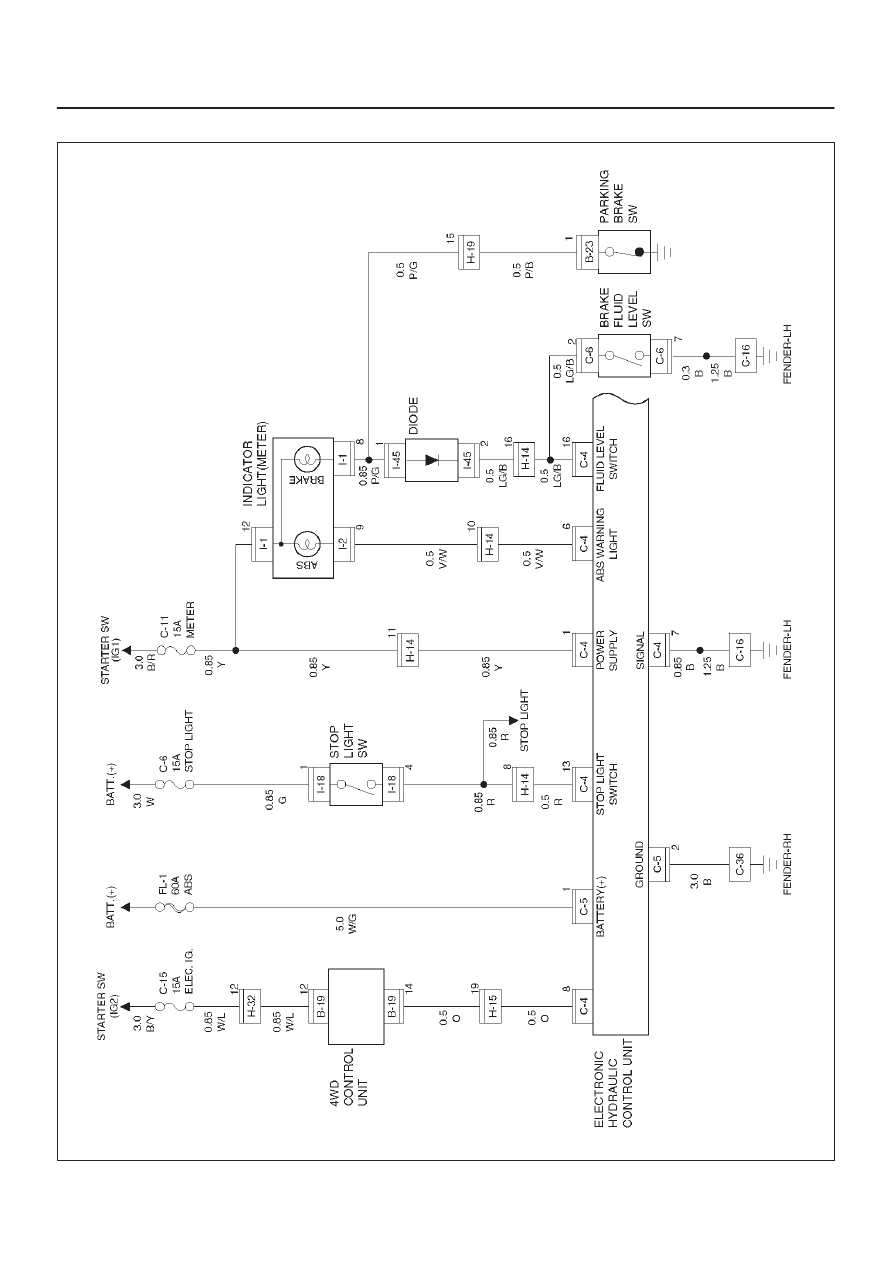

Circuit Diagram–2

D08RX215
