8D–95

WIRING SYSTEM

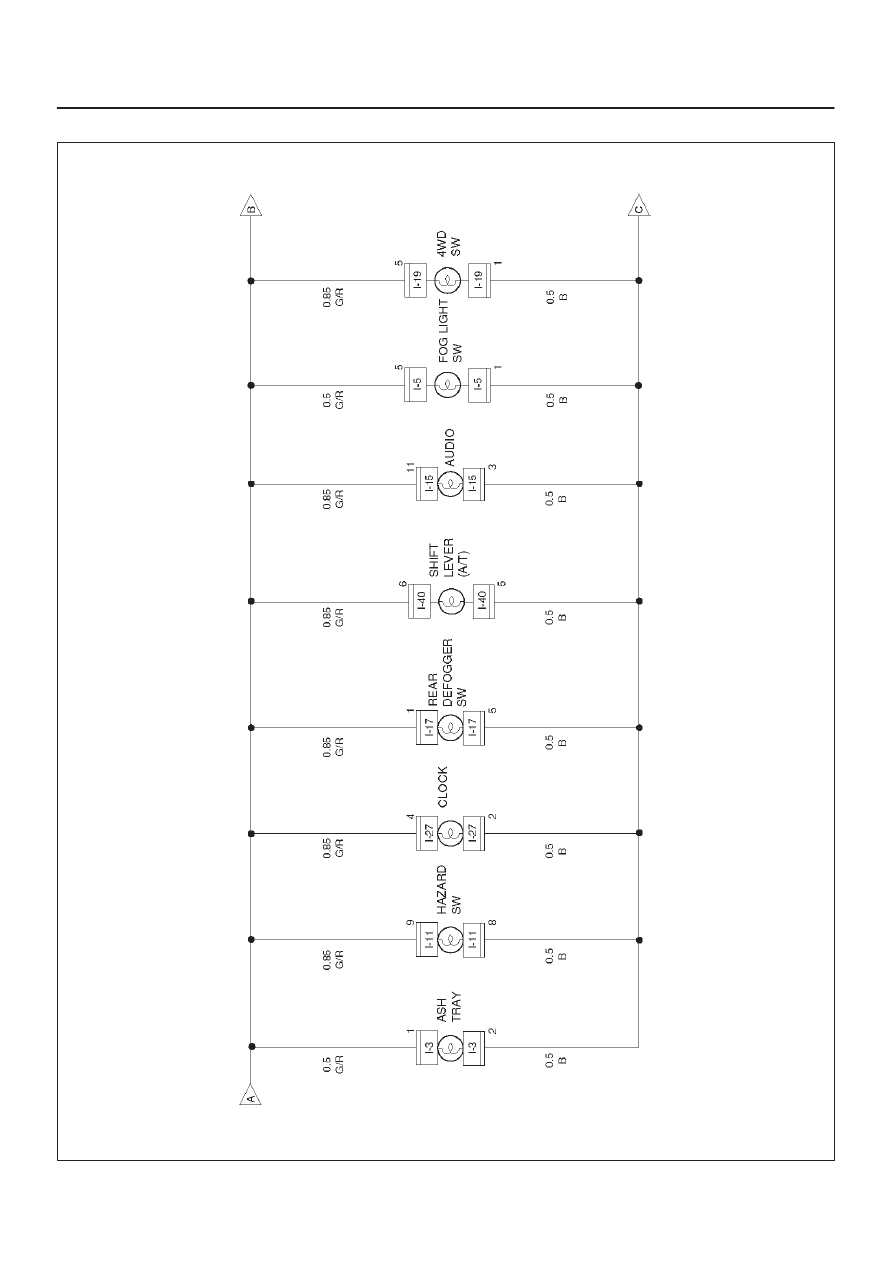

Circuit Diagram–2

D08RX196

8D–96

WIRING SYSTEM

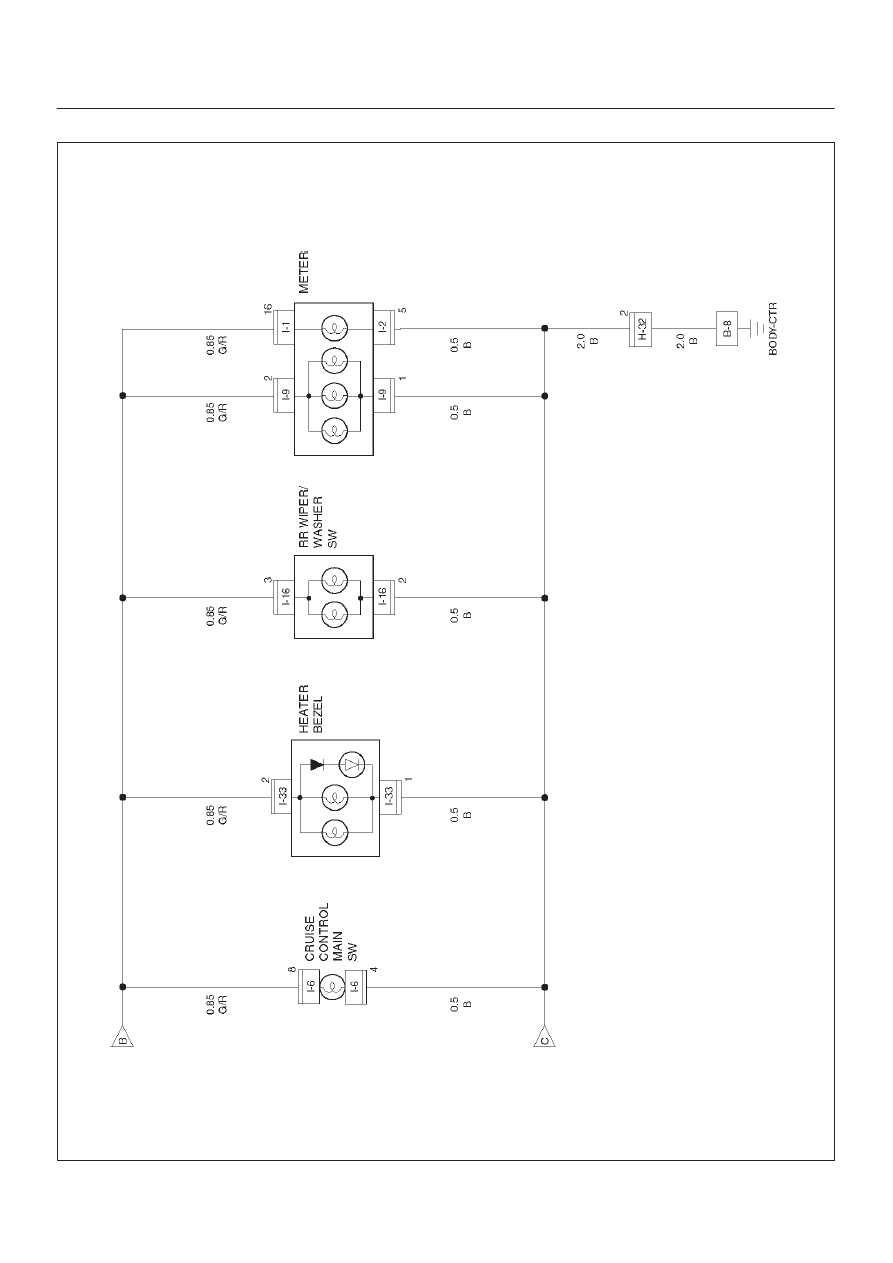

Circuit Diagram–3

D08RX197

8D–97

WIRING SYSTEM

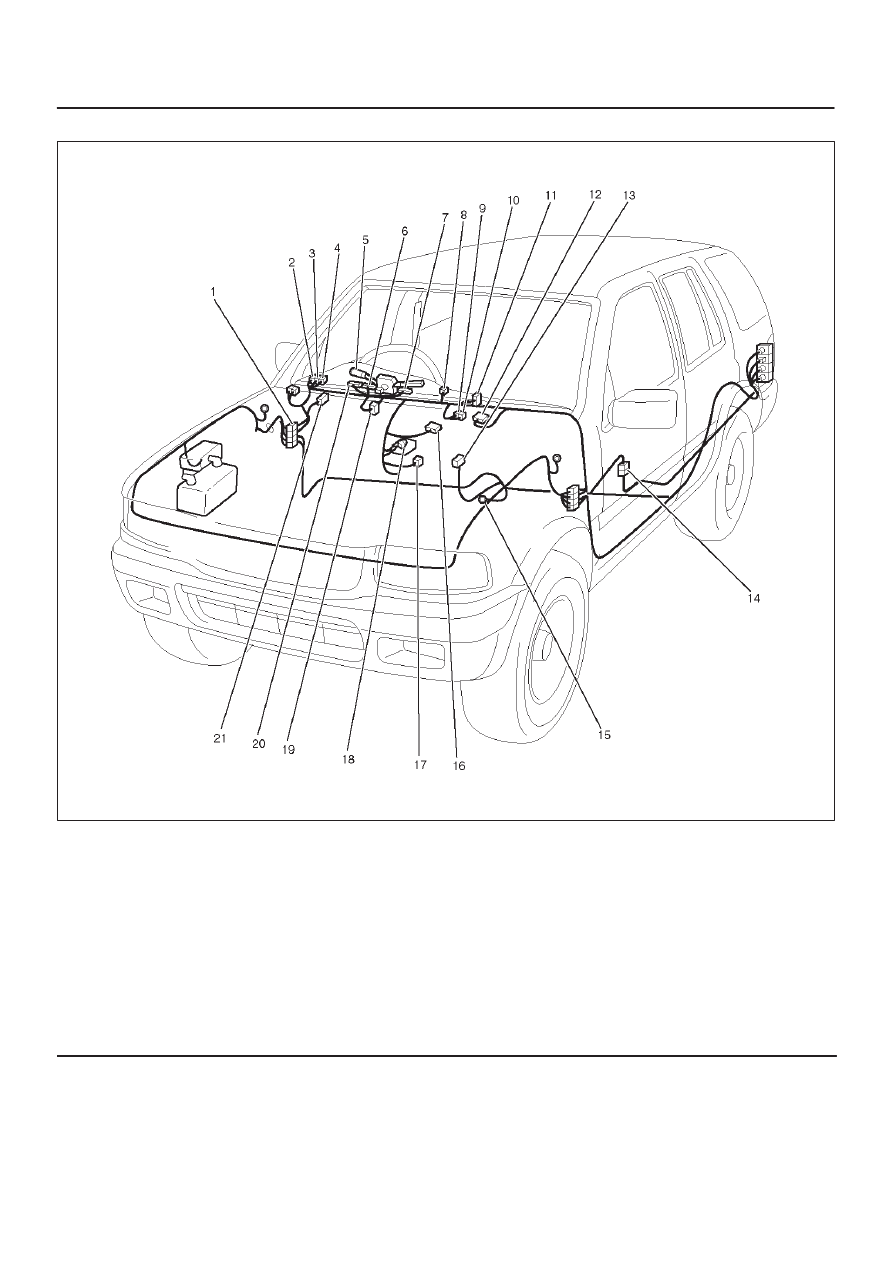

Parts Location

D08RX198

Legend

(1) H–19, H–32
(2) I–19
(3) I–6
(4) I–5
(5) Lighting Switch
(6) I–2
(7) I–9
(8) I–27
(9) I–16

(10) I–17

(11) I–11

(12) I–33
(13) B–24
(14) H–25
(15) B–8
(16) I–15
(17) I–40
(18) I–3
(19) I–32
(20) I–1
(21) Relay & Fuse Box (I–34)

8D–98

WIRING SYSTEM

Diagnosis

Interior Illumination Lights Inoperative

Step

Action

Value(s)

Yes

No

1

Turn the light switch to clearance light position.

Do the exterior light come on?

—

Go to Step 3

Go to Step 2

2

Refer to the diagnosis procedure in Clearance Light,
Taillight and License Plate Light section.

Is the action complete?

—

Verify repair

—

3

Repair an open circuit between tail relay harness side
connector I–34 terminal 1 and interior lights.

Is the action complete?

—

Verify repair

—
