8D–87

WIRING SYSTEM

Clearance Light, Tail Light and License Plate Light

General Description

The circuit consists of lighting switch, clearance light, tail
light and license plate light.
All these lights come on when lighting switch is turned on
with the switch to either parking or headlight position.

8D–88

WIRING SYSTEM

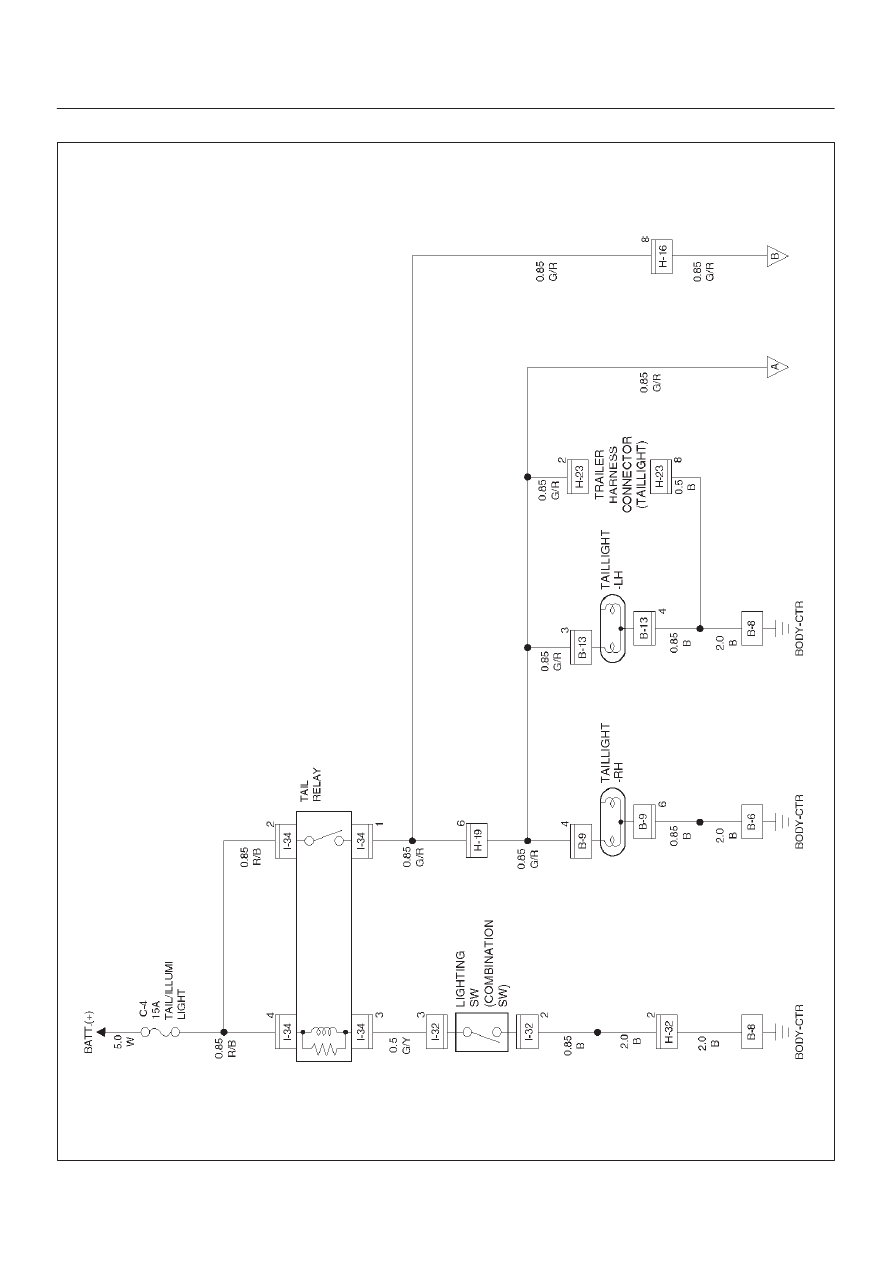

Circuit Diagram–1

D08RX193

8D–89

WIRING SYSTEM

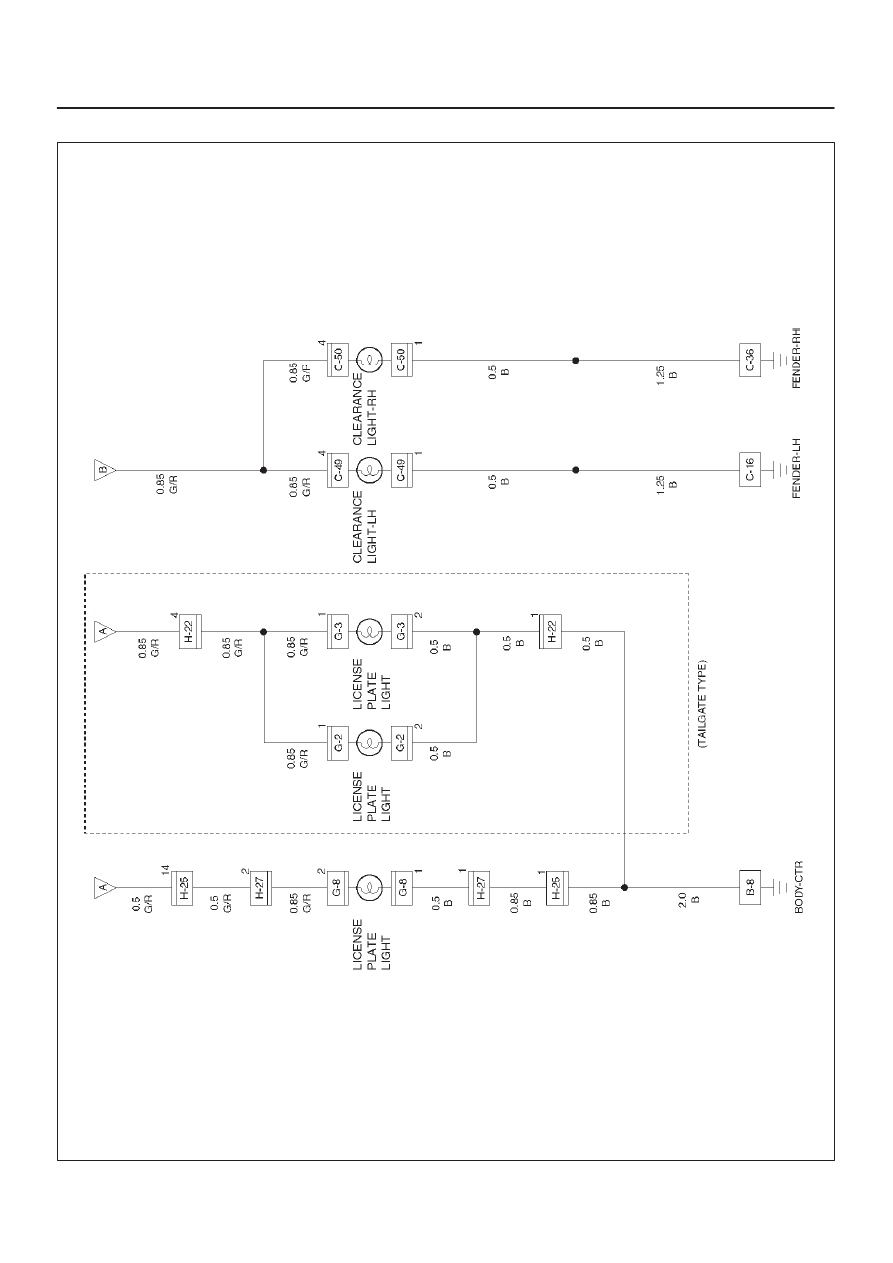

Circuit Diagram–2

D08RX194

8D–90

WIRING SYSTEM

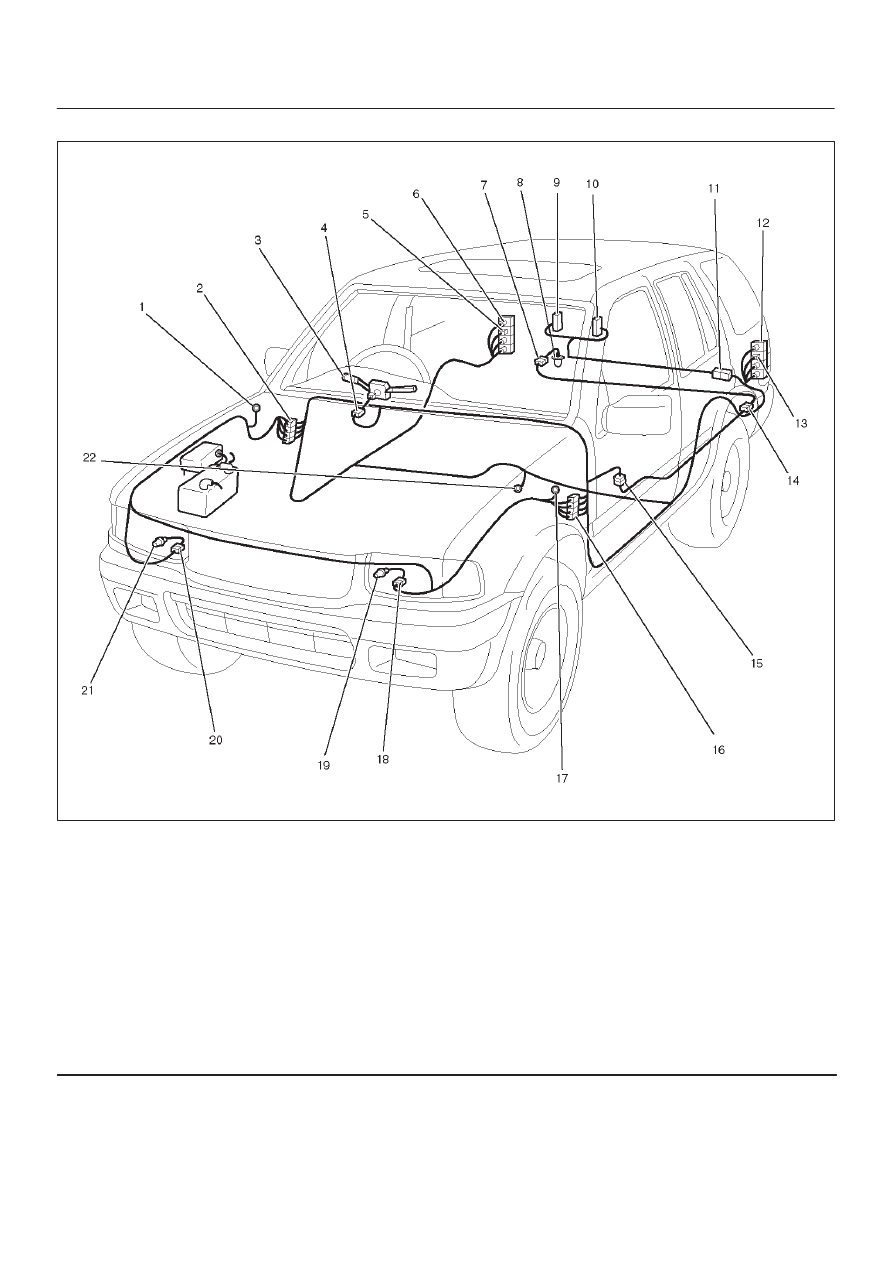

Parts Location

D08RWD04

Legend

(1) C–36
(2) H–19, H–32
(3) Lighting Switch
(4) I–32
(5) B–9
(6) Tail Light – RH
(7) G–8
(8) License Plate Light (Bumper Type)
(9) G–3 (Tailgate Type)

(10) G–2 (Tailgate Type)

(11) H–22

(12) Tail Light – LH
(13) B–13
(14) H–27
(15) H–25
(16) H–16
(17) C–16
(18) C– 49
(19) Clearance Light – LH
(20) C–20
(21) Clearance Light – RH
(22) B–6, B–8
