8D–99

WIRING SYSTEM

Turn Signal Light, Hazard Warning Light

General Description

The circuit consists of turn signal/light switch
(combination switch) turn signal light, hazard warning
switch and flasher unit. When turn signal light switch is
turned on with starter switch on, turn signal light will
operate. When turn signal light is flashing, indicator light
in meter also starts flashing. When hazard warning switch
is turned on, current flows to flasher unit through hazard
warning switch to cause hazard warning light to flash
independent of position of starter switch. At the same
time, indicator lights in meter also start flashing.

8D–100

WIRING SYSTEM

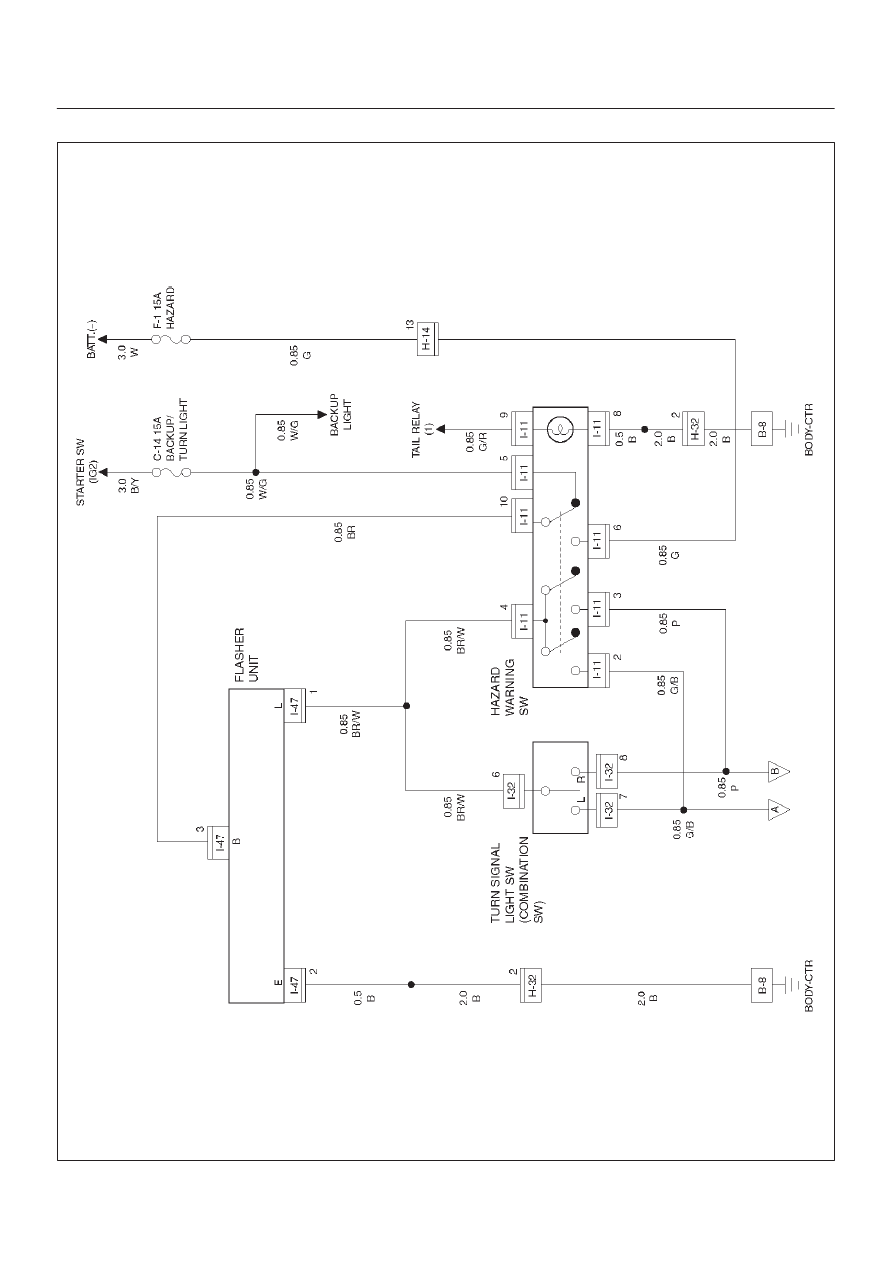

Circuit Diagram–1

D08RX199

8D–101

WIRING SYSTEM

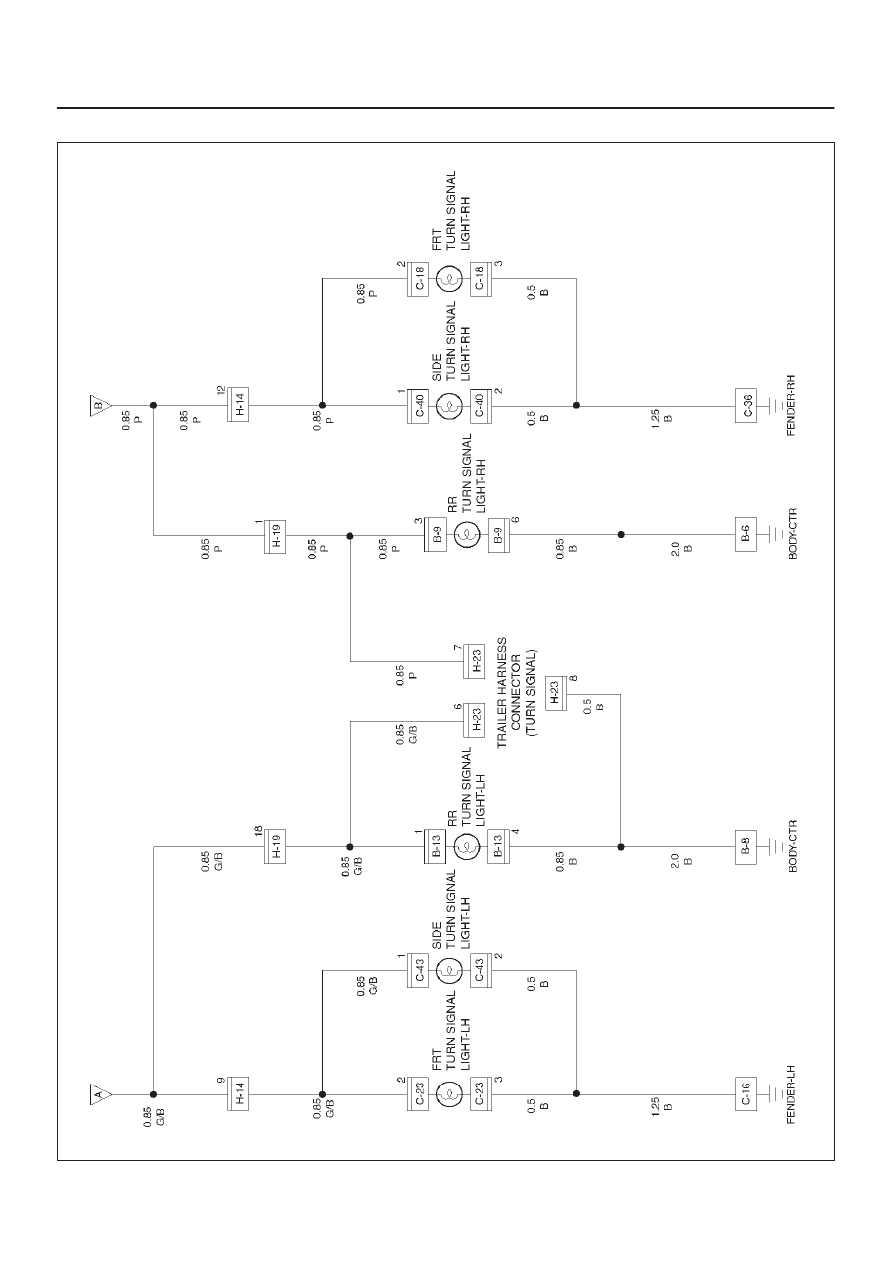

Circuit Diagram–2

D08RX200

8D–102

WIRING SYSTEM

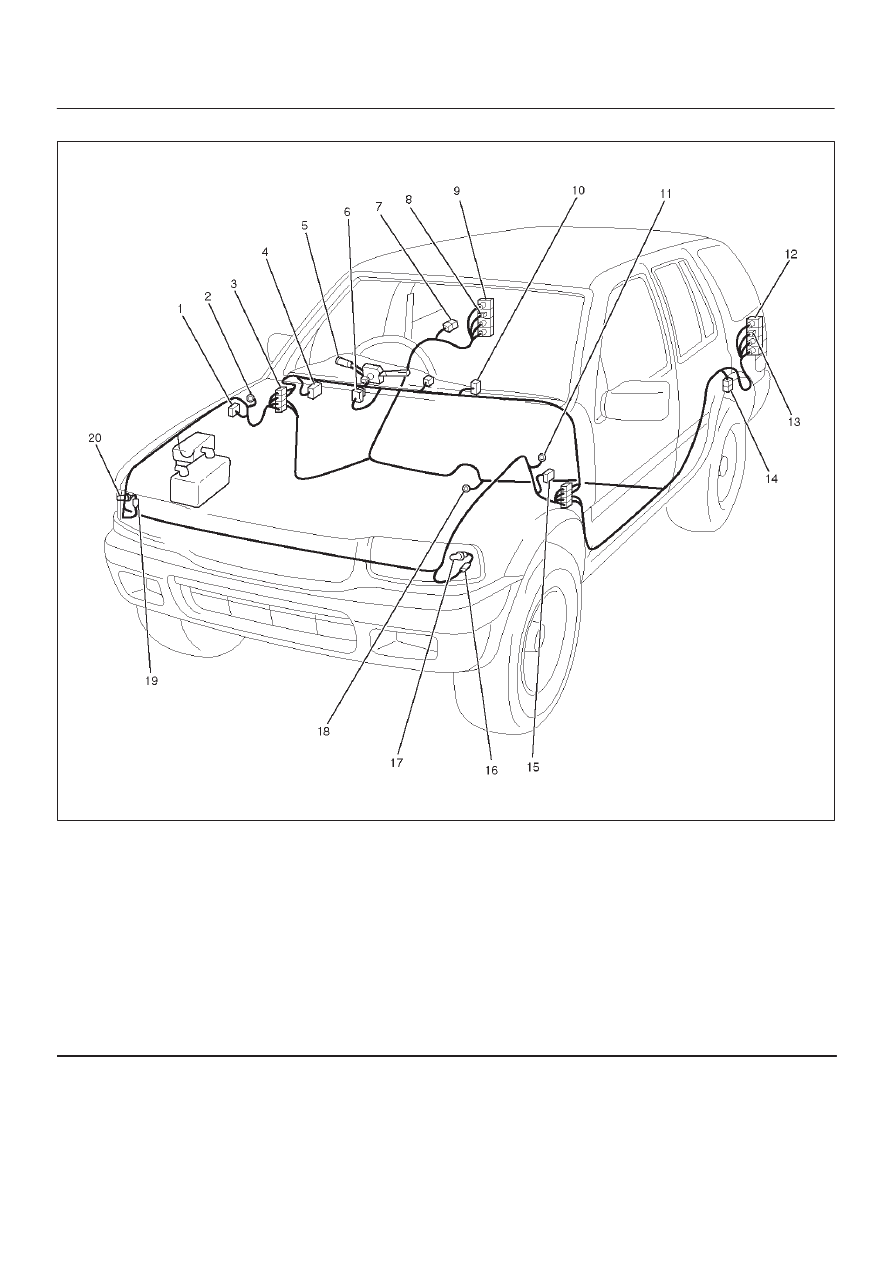

Parts Location

D08RX201

Legend

(1) C–40
(2) C–36
(3) H–14, H–19, H–32
(4) Relay & Fuse Box
(5) Turn Signal light Switch
(6) I–32, I–47
(7) H– 23 (2Door Model)
(8) B–9
(9) Rear Turn Signallight – RH

(10) I–11

(11) C–16

(12) Rear Turn Signallight – LH
(13) B–13
(14) H–23 (4Door Model)
(15) C– 43
(16) C–23
(17) Front Turn Signallight – LH
(18) B– 8
(19) C–18
(20) Front Turn Signallight – RH
