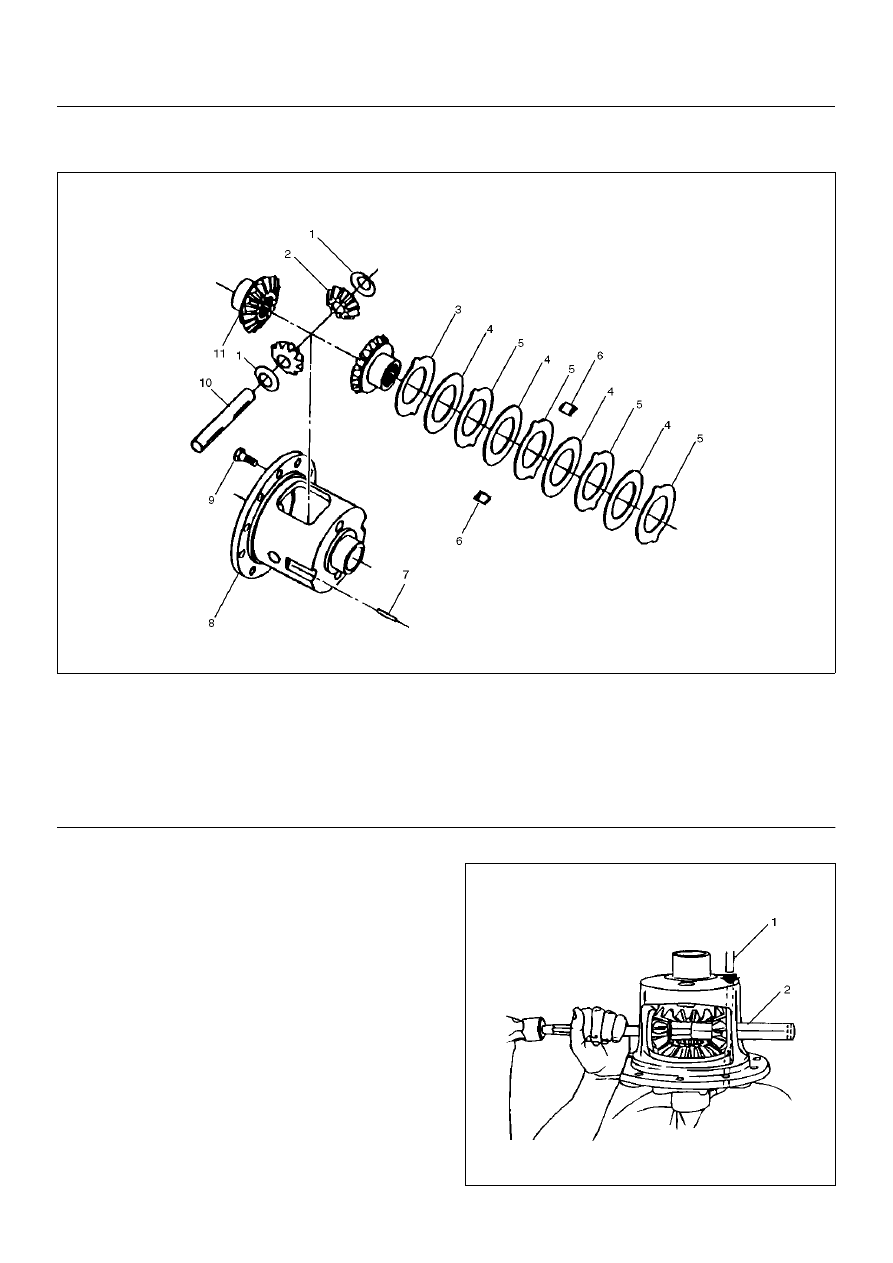

DIFFERENTIAL (REAR) 4A2–29 Limited Slip Differential Assembly Disassembled View 425RW004 Legend EndOFCallout Disassembly 1. Place the holder 5–8840–2583–0 into a vise. Position the differential on the holder with the ring 2. Remove Lock pin (1) from differential shaft using a punch. 3. Remove Differential shaft (2) using hammer and punch. 425RW005 (1) Thrust Washer–Differential Pinion Mate Gear (7) Lock Pin (10) Differential Shaft |
