DIFFERENTIAL (REAR)

4A2–25

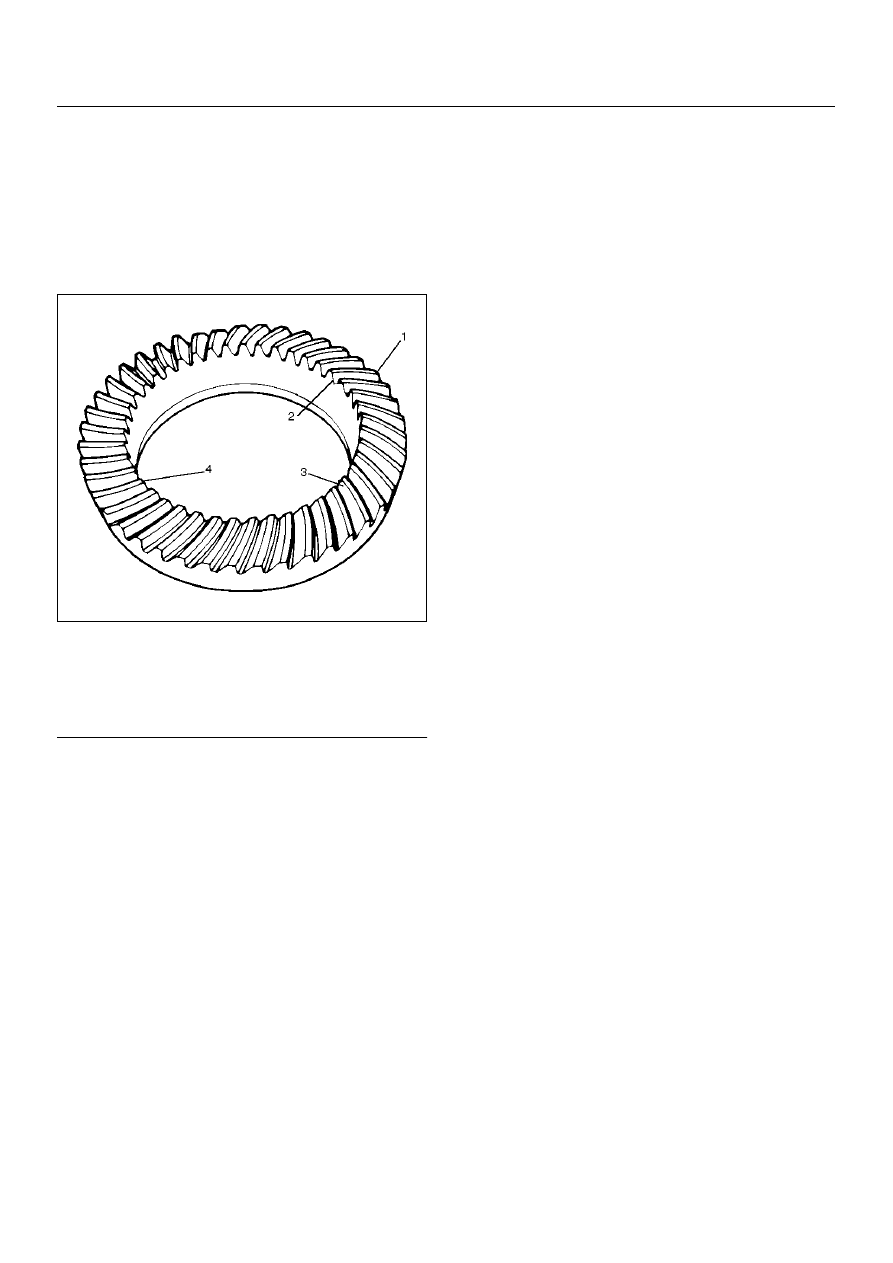

Gear Tooth Pattern Check

Checking the ring gear to pinion tooth pattern is to be
done only after setting up the axle according to the
methods in this section.  The pattern check is NEVER to
be used as an initial check, or instead of checking pinion
depth and backlash adjustments.
This check is only to be verify the correct adjustment of
the gear set after set up.

425RS038

Legend

EndOFCallout

1. Wipe all oil out of the carrier, and carefully clean

each tooth of the ring gear.

2. Use gear marking compound 1052351 or equivalent

and apply this mixture sparingly to all ring gear
teeth,  using a medium-stiff brush. When properly
used, the area of pinion tooth contact will be visible
when hand load is applied.

3. Tighten the bearing cap bolts to the specified

torque.

4. Expand the brake shoes until a torque of 54 to

68N·m (5.5 to 6.9kg·m/40 to 50 lbft.) is required to
turn the pinion.  A test made without loading the
gears will not give a satisfactory pattern.  Turn the
pinion flange with a wrench so that the ring gear
rotates one full revolution, then reverse the rotation
so that the ring gear rotates one revolution in the
opposite direction.

(1) Heel
(2) Toe
(3) Concave Side (Coast)
(4) Convex Side (Drive)

4A2–26

DIFFERENTIAL (REAR)

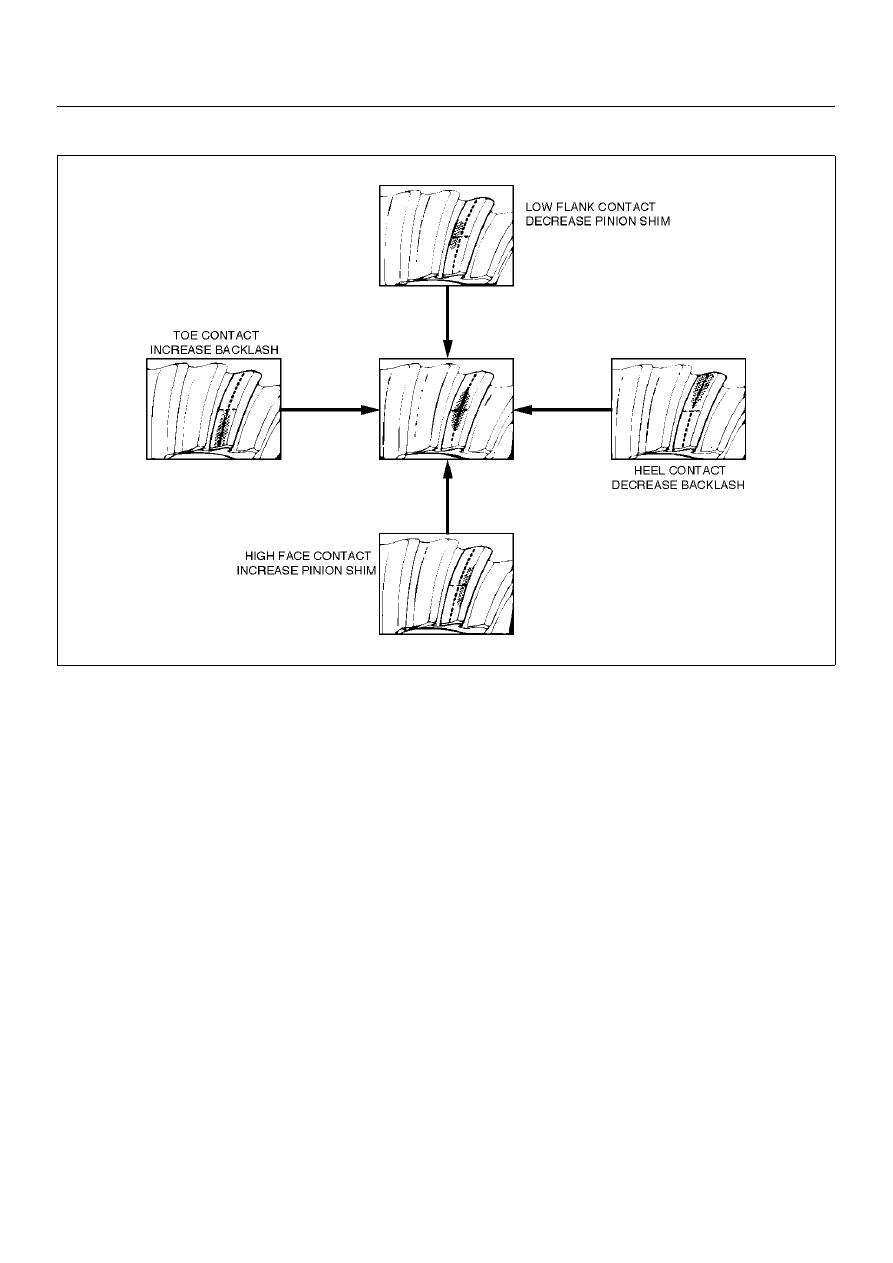

5. Observe the pattern on the ring gear teeth and

compare this with figure.

425RS039

Adjustments Affecting Tooth Contact

Two adjustments can be made which will affect tooth
contact pattern: backlash, and the position of the drive
pinion in the case.  The effects of bearing preloads are
not readily apparent on head loaded tooth contact
pattern tests; however,  these adjustments shuld be
within specifications before proceeding with backlash
and drive pinion adjustments.
The position of the drive pinion is adjusted by increasing
or decreasing the distance between the pinion head and
the centerline of the ring gear.
Decreasing the distance will move the pinion closer to
the centerline of the ring gear. Increasing the distance
will move the pinion farther away from the centerline of
the ring gear.
Backlash is adjusted by means of the side bearing
adjusting shims which move the entire case and ring
gear assembly closer to, or farther from, the drive
pinion. (The adjusting shims are also used to set side
bearing preload.)
If the thickness of the right shim is increased (along with
decreasing the left shim thickness), backlash will
increase.
The backlash will decrease if the left shim thickness is
increased (along with a decrease in right shim
thickness).

DIFFERENTIAL (REAR)

4A2–27

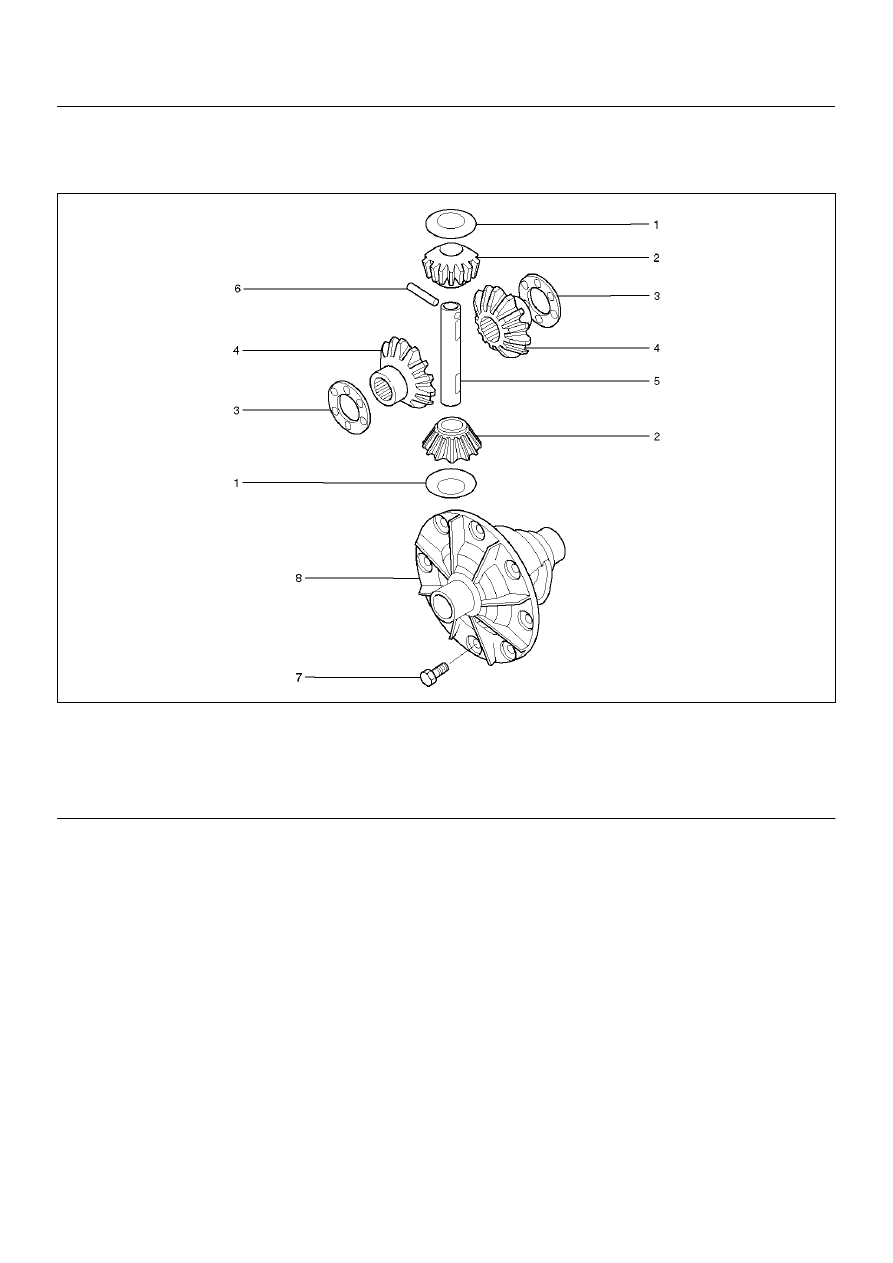

Differential Case Assembly

Disassembled View

425RW014

Legend

EndOFCallout

(1) Thrust Washer (for Pinion Gear)
(2) Pinion Mate Gear
(3) Thrust Washer(for Side Gear)
(4) Side Gear

(5) Differential Shaft
(6) Lock Pin
(7) Bolt
(8) Differential Case

4A2–28

DIFFERENTIAL (REAR)

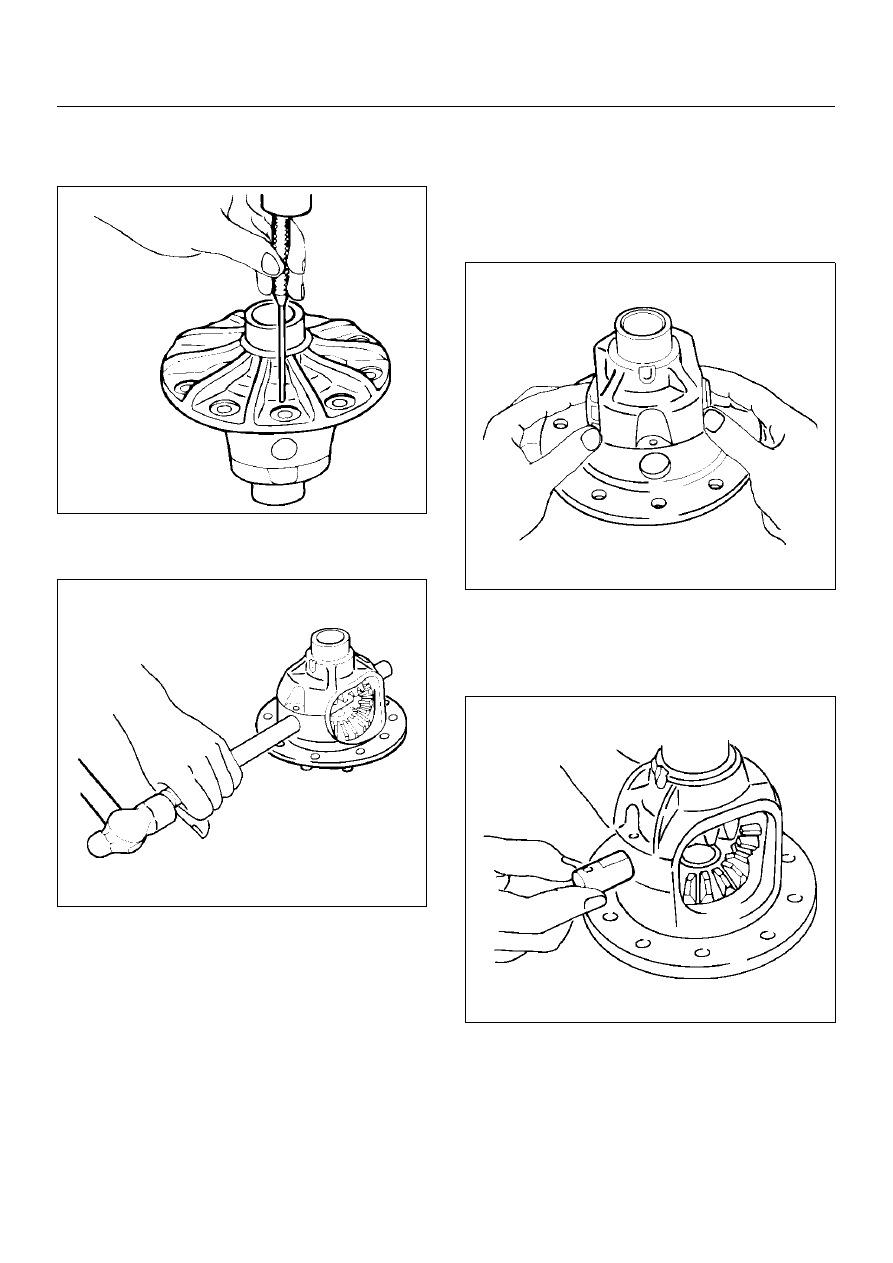

Disassembly

1. Remove lock pin using a small drift.

425RS098

2. Remove the differential shaft by using a soft metal

rod and a hammer.

425RS043

3. Remove pinion mate gear and thrust washer.

4. Remove side gear and thrust washer.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
Check the following parts.

• Ring gear, pinion gear

• Bearing

• Side gear, pinion mate gear, differential shaft

• Differential case, carrier

• Thrust washer

• Oil seal

Reassembly

1. Install side gear with thrust washer.

2. Install the pinion mate gear with thrust washer by

engaging it with the side gears while turning both
pinion mate gears simultaneously in the same
direction.

425RS048

3. Install differential shaft.

1. Be sure to install the differential shaft so that it is

in alignment with the lock pin hole in the
differential case.

425RS049

4. Install lock pin.

After lock pin installation, stake the case to secure
the lock pin.
