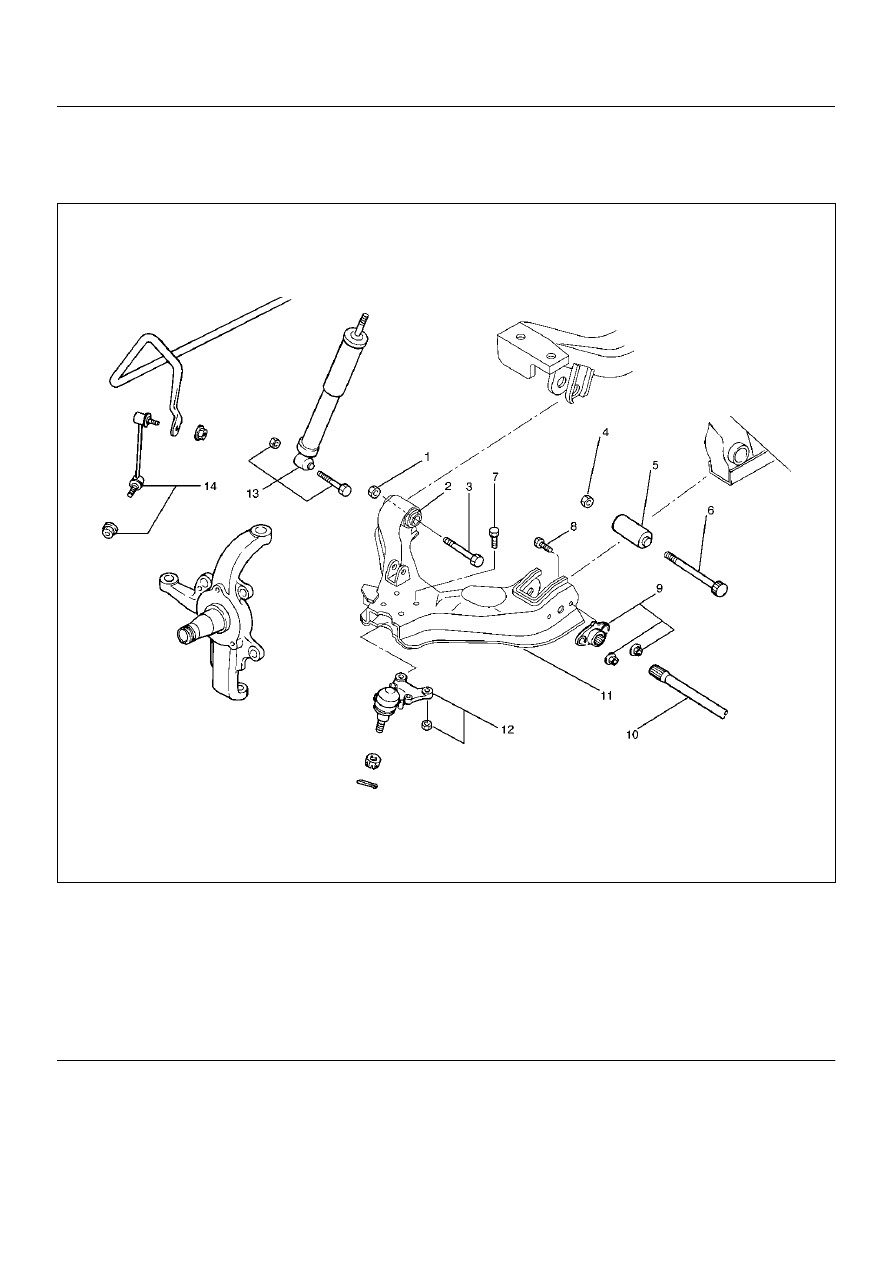

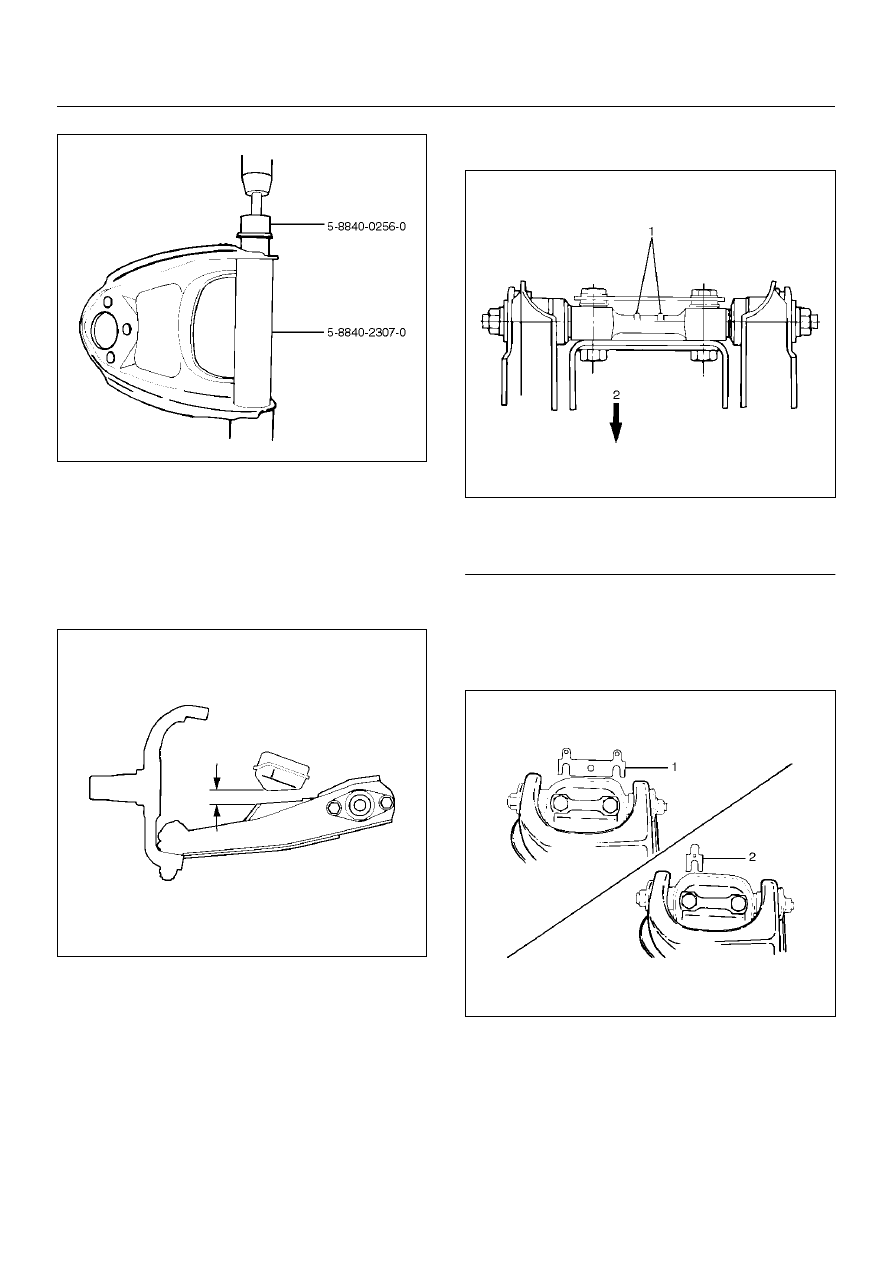

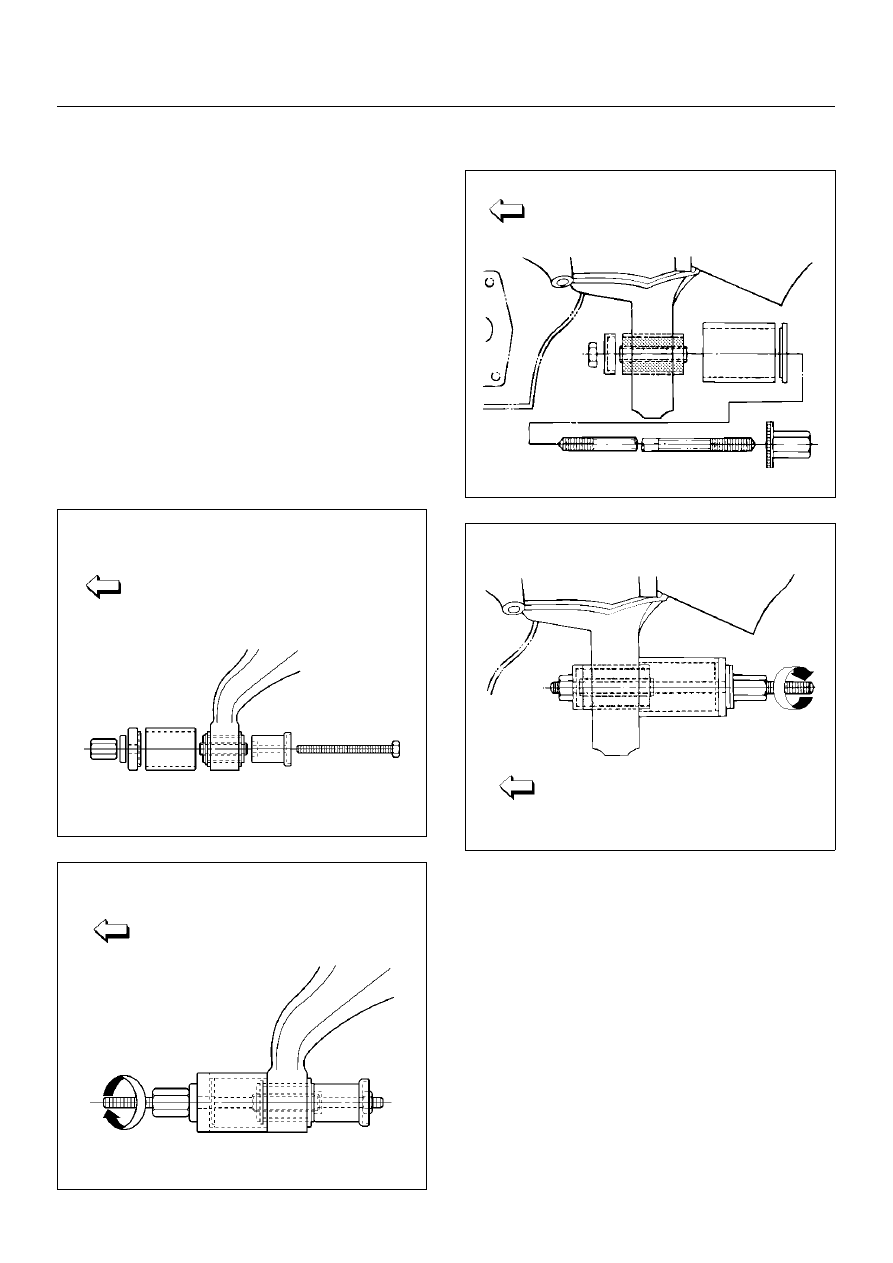

FRONT SUSPENSION 3C–15 901RW279 3. Install plate. 4. Install nut and tighten fulcrum pin nut finger–tight. NOTE: Torque fulcrum pin nut after adjusting buffer Buffer clearance: 22mm (0.87in) Torque: 108N·m (11.0kg·m/80 lbft) 450RS012 5. Install upper control arm assembly with the fulcrum pin projections turned inward. 450RS013 Legend EndOFCallout 6. Install the caster shims(2) between the chassis frame and fulcrum pin. 7. Install the camber shims(1) between the chassis frame and fulcrum pin. 450RS014 (1) Projection |
