Nissan Sentra (2019 year). Instruction - part 9

CONSOLE SIDE POCKETS (if so
equipped)

SEATBACK POCKETS (if so
equipped)

The seatback pockets are located on the
back of the driver’s (if so equipped) and
passenger’s seats. The pockets can be
used to store maps.

WARNING

To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem,

please

observe

the

following

items:

∙ Do not allow a passenger in the rear

seat to push or pull on the seatback
pocket or head restraint/headrest.

∙ Do not place heavy loads heavier than

9.1 lbs. (4 kg) on the seatback, head
restraint/headrest, storage pouch (if
so equipped), or in the seatback
pocket.

LIC2392

LIC1328

2-52

Instruments and controls

STORAGE POUCH (if so equipped)

A storage pouch may be located on the
front of the driver’s and/or passenger’s
seats.

WARNING

∙ Do not store angular, sharp, heavy ob-

jects or objects that cannot fully fit
inside the pouch because they might
increase the likelihood of an injury in a
crash.

To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem,

please

observe

the

following

items:

∙ Do not place loads heavier than

0.55 lbs. (0.25 kg) on the cushion stor-
age pouch.

∙ Do not place a combined weight ex-

ceeding 2.2 lbs. (1 kg) on the seatback,
head restraint, seatback pocket (if so
equipped) and storage pouch at the
same time.

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.

LIC2704

Storage Tray (if so equipped)

LIC3794

Instruments and controls

2-53

GLOVE BOX

Open the glove box by pulling the handle.

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

CONSOLE BOX

To open the console box, press in on the
lever

䊊

and raise the lid

䊊

To close, push the lid down until the lock
latches.

LIC2422

LIC3057

LIC3640

2-54

Instruments and controls

SLIDE FRONT ARMREST (if so
equipped)

To adjust the front armrest, push or pull the
console cover to slide it to the front or rear
as desired.

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push and
release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.

CAUTION

∙ Do not use for anything other than

sunglasses.

∙ Do not leave sunglasses in the sun-

glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.

LIC2652

LIC2312

Instruments and controls

2-55

CUP HOLDERS

WARNING

Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.

CAUTION

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

Soft bottle holder

CAUTION

∙ Do not use bottle holder for any other

objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.

∙ Do not use bottle holder for open liq-

uid containers.

Front cup holders

LIC2424

Rear cup holders (if so equipped)

LIC2656

Front bottle holder

LIC2423

2-56

Instruments and controls

POWER WINDOWS

WARNING

∙ Make sure that all passengers have

their hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time after the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.

Driver’s side power window
switch

1. Window lock button

2. Power door lock switch

3. Front passenger side switch

4. Right rear passenger side

5. Left rear passenger side

6. Driver side automatic switch

The driver’s side control panel is equipped
with switches to open or close all of the
windows.

Rear bottle holder

LIC2425

LIC3208

WINDOWS

Instruments and controls

2-57

To open a window, push the switch and
continue to hold it down until the desired
window position is reached. To close a win-
dow, pull the switch and continue to hold it
up until the desired window position is
reached.

Locking passengers’ windows

When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.

Front passenger’s power window
switch

The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and continue to hold it down until the de-
sired window position is reached

䊊

. To

close the window, pull the switch and con-
tinue to hold it up until the desired window
position is reached

䊊

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

䊊

. To close the window, pull the

switch up

䊊

LIC2309

LIC2663

2-58

Instruments and controls

Automatic operation

To fully open a window equipped with au-
tomatic

operation,

push

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. The window automatically closes all
the way. To stop the window, push the
switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. Have the power window auto-
reverse system re-initialized. It is recom-
mended that you visit a NISSAN dealer for
this service.

If the control unit detects something
caught in a window equipped with auto-
matic operation as it is closing, the window
will be immediately lowered.

When power window switch does
not operate

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initial-
ize the power window system:

1. Place the ignition switch in the ON position.

2. Open the window more than halfway

by operating the power window switch.

3. Pull the power window switch and hold

it to close the window, and then hold
the switch more than 3 seconds after
the window is closed.

4. Release the power window switch. Op-

erate the window by the automatic
function to confirm the initialization is
complete. The power window auto-
matically opens or closes depending
on if the automatic down or up func-
tion is selected.

5. Perform steps 2 through 4 above for

other windows.

If the power window function does not op-
erate properly after performing the above
procedure have the system checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.

LIC0410

Instruments and controls

2-59

POWER MOONROOF

The moonroof will only operate when the
ignition switch is placed in the ON position.
The power moonroof is operational for a
period of time, even if the ignition switch is
placed in the ACC or OFF position. If the
driver’s door or the front passenger’s door
is opened during this period of time, the
power to the moonroof is canceled.

Sliding the moonroof

To fully open or close the moonroof, push
the switch to the open

䊊

or close

䊊

posi-

tion and release it; it need not be held. The
roof will automatically open or close all the

way. To stop the roof, push the switch once
more while it is opening or closing.

Tilting the moonroof

To tilt up, first close the moonroof, then
push the switch to the tilt up position

䊊

and release it; it need not be held. To tilt
down the moonroof, push the switch to the
tilt down position

䊊

Resetting the moonroof switch

If the moonroof does not operate properly,
perform the following procedure to initial-
ize the moonroof operation system.

1. If the moonroof is open, close it fully by

repeatedly

pushing

the

moonroof

switch to the close position

䊊

to tilt the

moonroof up.

2. Push and hold the switch to the close

position

䊊

3. Release the moonroof switch after the

moonroof moves slightly up and down.

4. Push and hold the switch to the open

position

䊊

to fully tilt the moonroof

down.

5. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above,
have your vehicle serviced. It is recom-
mended that you visit a NISSAN dealer for
this service.

Auto-reverse function (when
closing or tilting down the
moonroof)

The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time after the igni-
tion switch is placed in the OFF position.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.

LIC2313

MOONROOF (if so equipped)

2-60

Instruments and controls

When closing

If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.

When tilting down

If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds after it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the moon-
roof.

WARNING

∙ In an accident you could be thrown

from the vehicle through an open
moonroof. Always use seat belts and
child restraints.

∙ Do not allow anyone to stand up or

extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

CAUTION

∙ Remove water drops, snow, ice or

sand

from

the

moonroof

before

opening.

∙ Do not place heavy objects on the

moonroof or surrounding area.

Sunshade

Open and close the sunshade by sliding it
forward or backward.

If the moonroof does not close

Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

䊊

The interior light can be turned on re-
gardless of door position. The light will
go off after a period of time unless the
ignition switch is placed in the ON po-
sition when any door is opened.

LIC2302

INTERIOR LIGHTS

Instruments and controls

2-61

䊊

The interior lights can be set to operate
when the doors are opened. To turn off
the interior lights when a door is open,
push the switch; the interior lights will
not illuminate, regardless of door posi-
tion.
The lights will go off when the ignition
switch is placed in the ON position, or
the driver’s door is closed and locked.
The lights will also go off after a period
of time when the doors are open.

NOTE:

The step lights (if so equipped) illumi-
nate when the driver and passenger
doors are opened regardless of the inte-
rior light switch position. These lights
will turn off automatically after a period
of time while doors are open to prevent
the battery from becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

CONSOLE LIGHT (if so equipped)

The console light will turn on whenever the
parking lights or headlights are illuminated.

MAP LIGHTS

To turn the map lights on, push the
switches. To turn them off, push the
switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

LIC2303

LIC2304

2-62

Instruments and controls

DOME LIGHT

The interior light has a three-position
switch and operates regardless of ignition
switch position.

When the switch is in the ON position

䊊

the interior lights illuminate, regardless of
door position. The lights will go off after a
period of time unless the ignition switch is
placed in the ACC or ON position.

When the switch is in the DOOR position

䊊

the interior lights will stay on for a period of
time when:

∙ The doors are unlocked by the key fob, a

key, or the power door lock switch, while
all doors are closed and the ignition
switch is placed in the OFF position.

∙ The driver’s door is opened and then

closed while the key is removed from
the ignition switch.

∙ The key is removed from the ignition

switch while all doors are closed.

The lights will turn off while the timer is
activated when:

∙ The driver’s door is locked by the key

fob, a key, or the power door lock switch.

∙ The ignition switch is placed in the ON

position.

When the switch is in the OFF position

䊊

the interior lights do not illuminate, regard-
less of door position.

The lights will turn off automatically after a
period of time while doors are open to pre-
vent the battery from becoming dis-
charged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

SIC2063A

Instruments and controls

2-63

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light goes off.

The light will go off after a period of time if
the trunk lid is left open, unless the ignition
switch is placed in the ON position.

For additional information, refer to “Exterior
and interior lights” in the “Do-it-yourself ”
section of this manual.

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.

HomeLink® Universal Transceiver:

∙ Will operate most radio frequency de-

vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

∙ Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed

HomeLink®

Universal

Transceiver buttons should be erased for
security purposes. For additional infor-
mation,

refer

“Programming

HomeLink®” in this section.

WARNING

∙ Do not use the HomeLink® Universal

Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured after April 1, 1982). A
garage door opener which cannot de-
tect an object in the path of a closing
garage door and then automatically
stop and reverse, does not meet cur-
rent federal safety standards. Using a
garage door opener without these
features increases the risk of serious
injury or death.

∙ During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.

TRUNK LIGHT

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

2-64

Instruments and controls

∙ Your

vehicle’s

engine

should

turned off while programming the
HomeLink® Universal Transceiver. Do
not breathe exhaust gases; they con-
tain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

PROGRAMMING HOMELINK®

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink® for quicker programming
and accurate transmission of the radio
frequency.

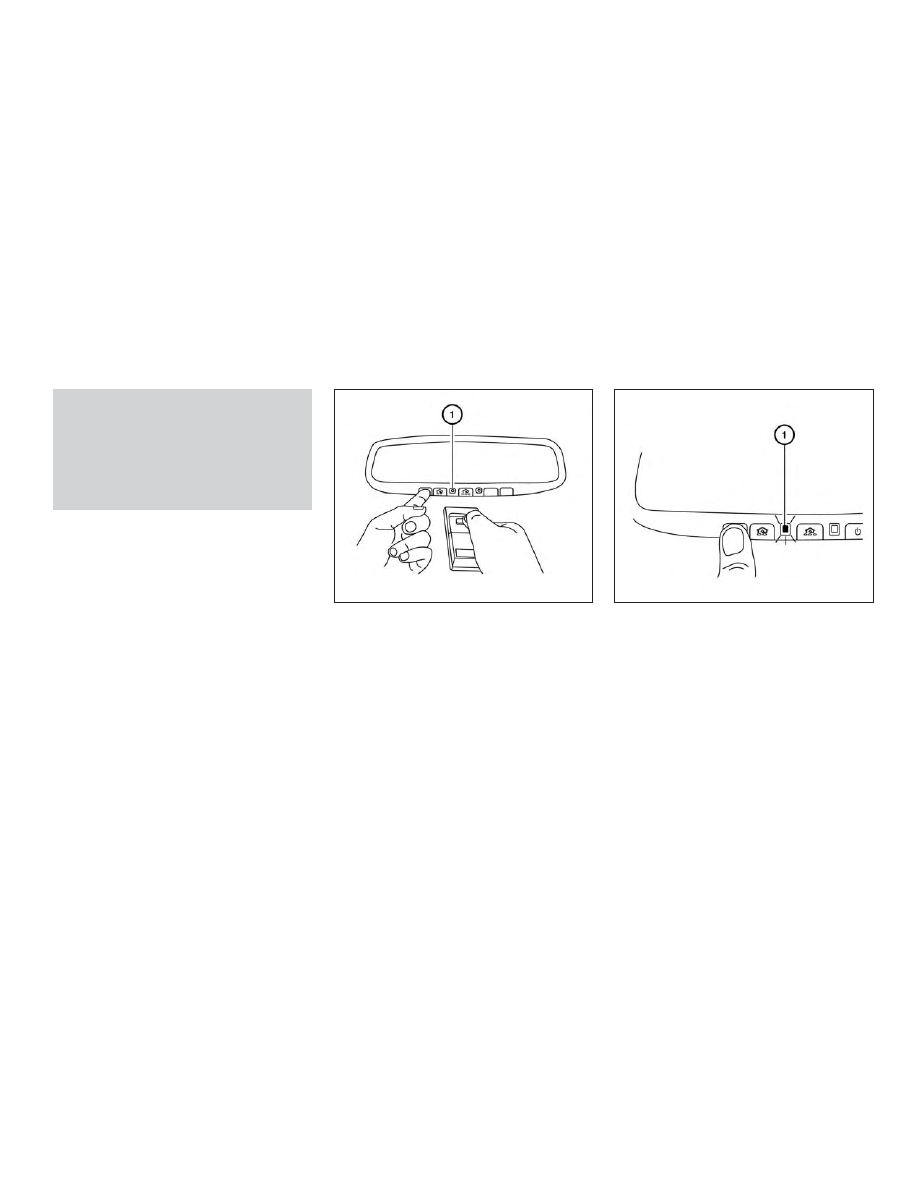

1. Position the end of your hand-held

transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light

䊊

in view.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and hand-held transmitter but-
ton.

NOT

release

until

the

HomeLink® indicator light

䊊

flashes

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. (The rapid flashing
indicates successful programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted
in “Programming HomeLink® for Cana-
dian customers and gate openers” in this
section.

LIC2365

LIC2366

Instruments and controls

2-65

3. Press

and

hold

the

programmed

HomeLink® button and observe the in-
dicator light.

∙ If

the

indicator

light

䊊

solid/continuous, programming is
complete and your device should
activate when the HomeLink® button
is pressed and released.

∙ If the indicator light

䊊

blinks rapidly

for 2 seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code de-
vice. A second person may make the
following steps easier. Use a ladder or
other device. Do not stand on your
vehicle to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, lo-
cate the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually lo-
cated near where the hanging an-
tenna wire is attached to the unit). If
there is difficulty locating the button,
reference the garage door opener’s
manual.

5. Press and release the “learn” or “smart”

button.

6. Return to the vehicle and firmly press

and hold the trained HomeLink® but-
ton for 2 seconds and release. Repeat
the “press/hold/release” sequence up
to three times to complete the training
process. HomeLink® should now acti-
vate your rolling code equipped device.

7. If you have any questions or are having

difficulty

programming

your

HomeLink®

buttons,

refer

the

HomeLink®

web

site

at:

www.homelink.com or call 1-800-355-
3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
training. Similar to this Canadian law, some
U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having diffi-
culties training a gate operator or garage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
step 2 with the following:

NOTE:

When

programming

garage

door

opener, etc., unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this
section.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and the hand-held transmitter
button. During training, your hand-held
transmitter may automatically stop
transmitting. Continue to press and
hold the desired HomeLink® button
while you press and re-press (“cycle”)
your

hand-held

transmitter

every

2 seconds until the frequency signal
has been learned. The HomeLink® indi-
cator light will flash slowly and then
rapidly after several seconds upon
successful training. DO NOT release un-
til the HomeLink® indicator light flashes

2-66

Instruments and controls

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. The rapid flashing in-
dicates successful training.
Proceed

with

“Programming

HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember
to plug it back in when programming is
completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate
the programmed device. To operate, sim-
ply press and release the appropriate pro-
grammed HomeLink® Universal Trans-
ceiver button. The amber indicator light will
illuminate while the signal is being trans-
mitted.

For convenience, the hand-held transmit-
ter of the device may also be used at any
time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

∙ Replace the hand-held transmitter bat-

teries with new batteries.

∙ Position the hand-held transmitter with

its battery area facing away from the
HomeLink® surface.

∙ Press and hold both the HomeLink®

and hand-held transmitter buttons
without interruption.

∙ Position the hand-held transmitter 1 -

3 inches (26 - 76 mm) away from the
HomeLink® surface. Hold the transmit-
ter in that position for up to 15 seconds.
If HomeLink® is not programmed within
that time, try holding the transmitter in
another position – keeping the indicator
light in view at all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed. For additional information, refer
to “Reprogramming a single HomeLink®
button” in this section.

To clear all programming:

1. Press

and

hold

the

two

outer

HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.

HomeLink® is now in the programming
mode and can be programmed at any
time

beginning

with

“Programming

HomeLink®” - Step 1.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal
Transceiver button, complete the following:

1. Press and hold the desired HomeLink®

button. DO NOT release the button.

Instruments and controls

2-67

Content .. 7 8 9 10 ..
