Nissan Quest (2017 year). Instruction

4-70

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Specification chart (for FM-AM-SAT Radio with Compact Disc (CD) Player (Type B)):

Supported media

CD, CD-R, CD-RW, USB2.0

Supported file systems

CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are
not supported.

USB memory: FAT16, FAT32

Supported versions*1

MP3

Version

MPEG1 Audio Layer 3

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR*4

WMA*2

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

32 kbps - 192 kbps, VBR*4

Tag information (Song title and Artist name)

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)

WMA tag (WMA only)

Folder levels

CD, CD-R, CD-RW

Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)

USB

Folder levels: 8, Folders 255, Files: 2500 (Max. 255 files for one folder)
Memory size: 4GB

Displayable character codes*3

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16
Non-BOM Big Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little
Endian), 07: SHIFT-JIS

Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

Protected WMA files (DRM) cannot be played.

Available codes depend on what kind of media, versions and information are going to be displayed.

When VBR files are played, the playback time may not be displayed correctly.

Troubleshooting guide:

Symptom

Cause and Countermeasure

Cannot play

Check if the disc or USB device was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) before using the
player.

If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.

If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-DA data) will
be played.

Files with extensions other than “.MP3 (.mp3)”, “.WMA (.wma)”, “.AAC (.aac)”, “.M4A (.m4a)”, or “.AA3 (.aa3)” cannot be played. In
addition, the character codes and number of characters for folder names and file names should be in compliance with the
specifications.

Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of
compressed audio writing applications or other text editing applications.

Check if the finalization processes, such as session close and disc close, has been performed for the disc.

Check if the disc or USB device is copyright protected.

Poor sound quality

Check if the disc is scratched or dirty.

It takes a relatively long time before
the music starts playing.

If there are many folder or file levels on the disc or USB device, some time may be required before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.

Skipping with high bit rate files

Skipping may occur with large quantities of data, such as for high bit rate data.

Move immediately to the next song
when playing.

If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited by copyright
protection, the player will skip to the next song.

The songs do not play back in the
desired order.

The playback order is the order in which the files were written by the writing software, so the files might not play in the desired order.

Random/Shuffle may be active on the audio system or on a USB device.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-71

4-72

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Compressed Video Files (if so equipped)

Explanation of terms:
. DivX

- DivX

refers to the DivX

codec

owned by DivX, Inc. used for a lossy
compression of video based on MPEG-4.

. AVI - AVI stands for Audio Video Interleave.

It is a standard file format originated by
Microsoft Corporation. A “.divx” encoded file
can be saved into the “.avi” file format for
playback on this system if it meets the
requirements stated in the table in this
section. However, not all the “.avi” files are
playable on this system since different
encodings can be used than the DivX

codec.

. ASF - ASF stands for Advanced Systems

Format. It is a file format owned by Microsoft
Corporation. Note: Only “.asf” files that meet
the requirements stated in the table in this
section can be played.

. Bit rate — Bit rate denotes the number of

bits per second used by a digital video file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

Requirement for Supporting Video Playback:

Media

CD, CD-R, CD-RW, DVD, DVD±R, DVD±RW, DVD±RW DL, USB 2.0 Memory

File Systems

CD,
CD-R,
CD-RW,
DVD,
DVD±R,
DVD±RW,
DVD±RW DL

ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet, UDF Bridge
(UDF1.02+ISO9660), UDF1.5, UDF2.0
- ISO9660 Level 3 (packet writing) is not supported.
- Files saved using the Live File System component (on a Windows
Vista-based computer) are not supported.
- VDF1.5/VDF2.0 (packet writing) is not supported.

USB Memory

FAT16, FAT32

File Types

.divx, .avi

Video Codecs

DivX3, DivX4, DivX5, DivX6

Audio Codecs

MP3, MPEG2.5 Audio Layer3, AC3, LPCM

.asf

Video Codec

ISO-MPEG4

Audio Codec

G.726

Bit Rates

.divx, .avi

Maximum Average

4Mbps

Maximum Peak

8Mbps

Resolution

.divx, .avi

Minimum

6 32

Maximum

720

6 480

.asf

Minimum

6 32

Maximum

720

6 576

Bluetooth

Audio player (if so equipped)

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation
and Clarion Co., Ltd.

. Some Bluetooth

audio devices may not be

recognized by the in-vehicle audio system.

. It is necessary to set up the wireless

connection between a compatible Blue-
tooth

audio device and the in-vehicle

Bluetooth

module before using the Blue-

tooth

audio player.

. Operating procedure of the Bluetooth

audio player will vary depending on the
device. Make sure you understand how to
operate an audio device before using it with
this system.

. The Bluetooth

audio player may be

stopped under the following conditions:
— Receiving a hands-free call.
— Checking the connection to the hands-

free phone.

. Do not place a Bluetooth

audio device in

an area surrounded by metal or far away
from the in-vehicle Bluetooth

module to

prevent tone quality degradation and wire-
less connection disruption.

. While an audio device is connected through

a Bluetooth

wireless connection, the bat-

tery power of the device may discharge
quicker than usual.

. This system supports the Bluetooth

Audio

Distribution Profile (A2DP, AVRCP).

. Wireless LAN (Wi-Fi) and the Bluetooth

functions share the same frequency band
(2.4 GHz). Using the Bluetooth

and the

wireless LAN functions at the same time may
slow down or disconnect the communica-
tion and cause undesired noise. It is
recommended that you turn off the wireless
LAN (Wi-Fi) when using the Bluetooth

functions.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-73

4-74

Monitor, heater, air conditioner, audio, phone and voice recognition systems

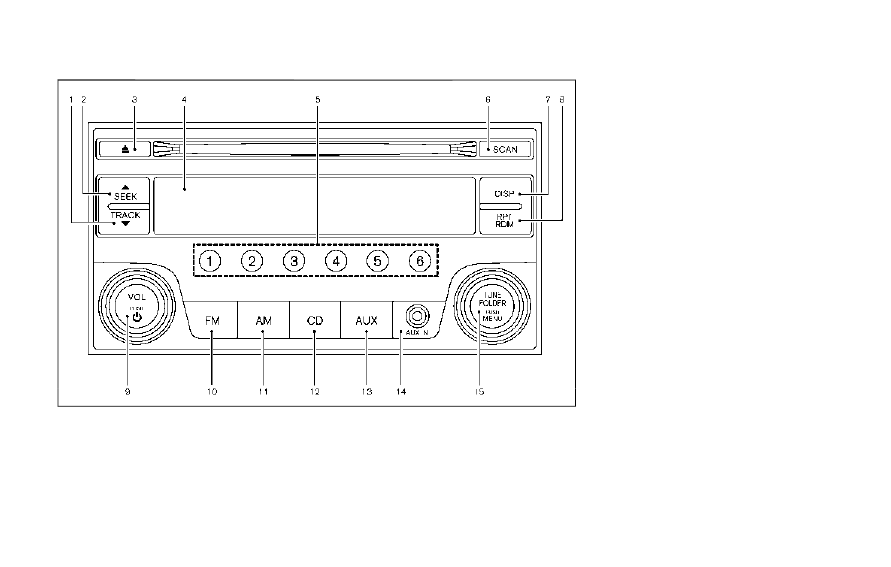

JVH0335X

TRACK button

SEEK button

CD EJECT button

Display

Radio memory buttons

SCAN button

DISP (Display) button

RPT (Repeat)·RDM (Random) button

VOL (volume) control knob/Power button

10.

FM button

11.

AM button

12.

CD button

13.

AUX (Auxiliary) button

14.

AUX (Auxiliary) IN jack

15.

TUNE·FOLDER knob/MENU button

FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER

Audio main operation

The audio system operates when the ignition
switch is in the ACC or ON position.

ON·OFF/Volume contorol:

To turn on the audio system, push the Power
button.
. The system will turn on in the mode (radio or

CD) which was used immediately before the
system was turned off.

. If no CD is loaded, the radio will be turned

on.

To turn on and off the audio system, push the
Power button.

To control the volume, turn the VOL control
knob.

Adjusting sound preference:

1. To adjust the sound settings, push the

MENU button until the item (Bass, Treble,
Balance, Fade or AUX IN Volume) to be
adjusted is displayed.

2. Turn the TUNE knob to adjust the settings.

When no action is taken for 5 seconds, the
display will automatically return to the original
mode.

Clock setting:

Turning the clock ON/OFF:

1. Push the MENU button until “Clock: ON” or

“Clock: OFF” is displayed.

2. Turn the TUNE·FOLDER knob to toggle

between “Clock: ON” and “Clock: OFF”.

Adjusting the clock:

1. Turn on the clock.

2. Push the MENU button until “Adjust Clock”

is displayed, and then select the “Yes”.

3. Push the MENU button. Turn the TUNE knob

to adjust the hour.

4. Push the MENU button. Turn the TUNE knob

to adjust the minutes.

5. Push the MENU button to exit the clock

mode.

When no action is taken for 5 seconds, the
display will automatically return to the original
mode.

AUX button:

The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape player, CD player, digital
audio player or laptop computer.

Push the AUX button to play a compatible

device when it is plugged into the AUX IN jack.

NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.

FM-AM radio operation

radio (FM/AM) band select:

When the FM/AM button is pushed while the
audio system is off, the audio system will turn on
and the radio will turn on.

When the FM/AM button is pushed while
another audio source is playing, the other audio
source will turn off and the radio will turn on.

To change the radio bands (FM1, FM2, or AM),
push the FM/AM buttons.

TUNE (Tuning):

When adjusting the broadcasting station fre-
quency manually, turn the TUNE·FOLDER knob
until the preferred frequency is achieved.

SEEK tuning:

To adjust the broadcasting station frequency
automatically, push and release the SEEK or
TRACK button. When the system detects a
broadcasting station, it will stop at the station.

Detected stations are skipped while SEEK or

TRACK button is pushed and held.

SCAN tuning:

When the SCAN button is pushed, the system
will seek and stop at the detected broadcasting
station for 5 seconds, and then it will start to
seek for the next broadcasting station.

Push the SCAN button in this 5-second period
to stop seeking.

Radio memory operations:

The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM
station frequencies.

During radio reception, pushing the radio
memory button for less than 1.5 seconds will
play the stored radio station.

To store the station frequency manually:

1. Tune to the desired broadcasting station

frequency using the SEEK /TRACK buttons.

2. Push and hold one of the radio memory

buttons

until a beep sounds.

3. The frequency of the selected channel will

appear on the display when the memory is
stored properly.

4. Perform steps 1 - 3 for all other memory

buttons.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-75

4-76

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Compact Disc (CD) player operation

Place the ignition switch in the ACC or ON
position, and insert the CD into the slot with the
label side facing up. The CD will be guided
automatically into the slot and start playing. After
loading the disc, the number of tracks on the
disc will appear on the display.

If the radio is already operating, it will auto-
matically turn off and the CD will play.

If the system has been turned off while the CD
was playing, pushing the Power button will start
the CD.

CD PLAY:

When the CD button is pushed while a CD is
loaded, the CD will start playing.

CD DISPLAY information:

When the DISP is pushed while a CD with title
information is playing, the information text on the
display will change as follows:

CD:

Track time

? Album Title ? Artist Name ?

Song Title

? Track time

CD with MP3/WMA:

Track time

? Folder Title ? Album Title ? Artist

Name

? Song Title ? Track time

Next/Previous Track and Fast

Forward/Rewind:

Fast forward/Rewind:

Push and hold the FF or REW button for more
than 1.5 seconds to fast forward or rewind
through the track. Release the button to play the
CD at normal speed.

Track up/down:

To play the next track, push the FF button for
less than 1.5 seconds while a CD is playing.

To play the previous track, push the REW button
for less than 1.5 seconds within 2 seconds after
the current track started playing. To return to the
beginning of the current track, push the REW
button for less than 1.5 seconds after 2 seconds
from when the current track started playing.

Folder Selector Knob (CD with MP3/
WMA):

To s k i p t o t h e n e x t f o l d e r , t u r n t h e
TUNE·FOLDER knob.

To skip to the next or previous track within the
folder, push SEEK/TRACK button

REPEAT (RPT), RANDOM (RDM):

When the RPT/RDM button is pushed while a
CD is playing, the play mode will change as
follows:

CD:

DISC REPEAT

? TRACK REPEAT ? DISC

RANDOM

? DISC REPEAT

CD with MP3/WMA:

DISC REPEAT

? FOLDER REPEAT ? TRACK

REPEAT

? DISC RANDOM ? FOLDER

RANDOM

? DISC REPEAT

SCAN tuning:

When the SCAN button is pushed while a CD is
being played, the first 10 seconds of all the
tracks will be played.

When the SCAN button is pushed again, the
CD will return to the regular play mode.

CD EJECT button:

When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.

When this button is pushed while the CD is
being played, the CD will come out and the
system will turn off.

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.

JVH0970X

XM band select button

CD EJECT button

FM·AM band select button

MEDIA button

Color display

iPod MENU button

Radio CAT (category)/REW (rewind) button for
SEEK/TRACK

Radio SCAN tuning button

Radio CAT (category)/FF (fast forward) button
for SEEK/TRACK

10.

BACK button

11.

DISP (display) button

12.

Power button/VOL (volume) control knob

13.

RPT (repeat) play button

14.

RDM (random) play button

15.

Radio station preset select buttons

16.

ENTER/SETTING button/TUNE·SCROLL con-
trol knob

FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type A)

For all operation precautions, see “Audio opera-
tion precautions” (P.4-61).
. No satellite radio reception is available when

the SAT band option is selected unless the
optional satellite receiver and antenna are
installed, and there is an active SiriusXM
Satellite Radio subscription.

. The satellite radio mode requires an active

SiriusXM Satellite Radio subscription. The
satellite radio is not available in Alaska,
Hawaii and Guam.

. It may take some time to receive the

activation signal after subscribing the Sir-
iusXM Satellite Radio. After receiving the
activation signal, an available channel list will
be automatically updated in the radio. Push
the ignition switch from LOCK to ACC to
update the channel list.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-77

4-78

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Audio main operation

The audio system operates when the ignition
switch is placed in the ON or ACC position.

Head unit:

The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.

Power button / VOL (volume) control

knob:

Push the Power button/VOL (volume) control
knob to turn on and off the audio system.

Turn the Power button/VOL (volume) control
knob to adjust the volume.

Audio settings:

The settings screen will appear when pushing
the ENTER/SETTING button.

The following items are available in the settings
screen.
. Bluetooth

It is possible to set the Bluetooth

settings.

For details of the Bluetooth

settings, see

“Bluetooth

audio player operation” (P.4-

84).

. Bass, Treble, Balance and Fade

Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound

between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the TUNE·SCROLL control
knob and then push the ENTER/SETTING
button. Turn the TUNE·SCROLL control
knob to adjust the Bass, Treble, balance
and Fade of the screen to the preferred
level.

. Brightness and Contrast

Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using
the TUNE·SCROLL control knob and then
push the ENTER/SETTING button. Turn the
TUNE·SCROLL control knob to adjust the
brightness and contrast of the screen to the
preferred level.

. Clock Adjust

Adjust the clock according to the following
procedure.
1) Select “Clock Adjust” using the TU-

NE·SCROLL control knob and then
push the ENTER/SETTING button.

2) Adjust the hour with the TUNE·SCROLL

control knob and then push the ENTER/
SETTING button.

3) Adjust the minute with the TUNE·SC-

ROLL control knob and then push the
ENTER/SETTING button.

24 hour clock is not available.

. On-Screen Clock

When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL control knob and then push
the ENTER/SETTING button. You can tog-
gle between ON and OFF using the
TUNE·SCROLL control knob.

. RDS Display (if so equipped)

RDS (radio data system) information can be
shown on the display. Select “RDS Display”
using the TUNE·SCROLL control knob and
then push the ENTER/SETTING button. You
can toggle between ON and OFF using the
TUNE·SCROLL control knob.

. Speed Sensitive Vol.

To change the Speed Sensitive Volume
(Speed Sensitive Vol.) level from off (0) to
5, turn the TUNE·SCROLL control knob.

. AUX Vol.

Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Choose a setting between +1 and
+3 or choose 0 to disable the feature
entirely.

. Language Select

The language settings can be changed.
Select “Language Select” using the TU-
NE·SCROLL control knob and then push the
ENTER/SETTING button. Use the TU-
NE·SCROLL control knob knob to select
the preferred language.

DISP button:

Display of the screen can be canceled by
pushing the DISP button. You can still listen to
music that is being played back even while the
screen display is turned off. If you want to
display the screen again, either push the DISP
button once more or push the FM·AM, CD,
MEDIA or iPod MENU button.

MEDIA button:

Pushing the MEDIA button will switch the audio
source as follows:

?USB/iPod

? Bluetooth ? AUX ? CD

FM-AM-SAT radio operation

radio (FM·AM) band select:

Pushing the FM·AM button will change the band
as follows:

? FM1 ? FM2 ? AM

radio (SAT) band select:

Pushing the XM band select button will change
the band as follows:

XM1

? XM2 ? XM3 ? XM1

When the XM band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the channel
last played.

The last channel played will also come on when
the power button is pushed to ON.

The satellite radio is not available in Alaska,
Hawaii and Guam.

If another audio source is playing when the radio
band select button is turned to ON, the audio
source will automatically be turned off and the
last radio channel played will come on.

When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.

TUNE (Tuning):
. For AM and FM radio

Turn the radio TUNE·SCROLL control knob
for manual tuning.

. For SiriusXM Satellite Radio

Turn the radio TUNE·SCROLL control knob
to seek channels from all of the categories
when any category is not selected.

SEEK tuning/CAT (category):

. For AM and FM radio

Push the SEEK button

to tune

from low to high or high to low frequencies
and to stop at the next broadcasting station.

. For SiriusXM Satellite Radio

Push the SEEK button

to tune to

the first channel of the next or previous
category.

SCAN tuning:

Push the SCAN tuning button to tune from low
to high frequencies and stop at each broad-
casting station for 5 seconds. Pushing the
button again during this 5 seconds period will
stop SCAN tuning and the radio will remain
tuned to that station.

If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-79

4-80

Monitor, heater, air conditioner, audio, phone and voice recognition systems

station.

Station memory operations:

12 stations can be set for the FM band (6 each
for FM1 and FM2) and 6 stations can be set for
the AM band.

1. Choose the radio band using the FM·AM

button.

2. Tune to the desired station using the

SEEK·TRACK, SCAN button or the TU-
NE·SCROLL control knob.

3. Push and hold the desired station preset

button

untill beep sounds.

4. The station indicator will then come on and

the sound will resume. Memorizing is now
complete.

5. Other buttons can be set in the same

manner.

If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.

CD player operation

Place the ignition switch in the ON or ACC
position. Insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.

After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.

If the radio is already operating, it will auto-
matically turn off and the CD will play.

If the system has been turned off while the CD
was playing, pushing the Power/VOL dial will
start the CD.

PLAY:

With a CD loaded, press the Media button until
the CD mode is displayed on the screen.

SEEK/CAT:

When the

button is pushed for more

than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.

When the

button is pushed for less

than 1.5 seconds while the CD is being played,
the next track or the beginning of the current

track on the CD will be played.

REPEAT (RPT):

When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:

(CD)

(Normal)

1 Track Repeat

(CD with compressed audio files)

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RANDOM (RDM):

When the RDM button is pushed while a CD is
being played, the play pattern can be changed
as follows:

(CD)

(Normal)

1 Disc Random

(CD with compressed audio files)

(Normal)

? 1 Disc Random ? 1 Folder

Random

? (Normal)

CD eject:

When the CD eject button is pushed with the
CD loaded, the CD will be ejected.

When this button is pushed while the CD is
being played, the CD will be ejected.

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.

USB (Universal Serial Bus) connection
port

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

JVH1033X

Audio main operation:

The USB connection port is located in the
center console. Open the lid and connect a USB
memory as illustrated. Then, switch to the USB
memory mode automatically.

If the system has been turned off while the USB
memory was playing, pushing the Power button
will start the USB memory.

PLAY:

When the MEDIA button is pushed with the
system off and the USB memory inserted, the
system will turn on.

If another audio source is playing with a USB

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-81

4-82

Monitor, heater, air conditioner, audio, phone and voice recognition systems

device inserted, push the MEDIA button repeat-
edly until the center display changes to the USB
memory mode.

Next/Previous Track and Fast

Forward/Rewind:

When the FF or REW button is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.

When the FF or REW button is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.

Folder selection:

To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE·SCROLL knob.

REPEAT (RPT):

When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.

To change the play mode, push the RPT button
repeatedly and the mode will change as follows.

(Normal)

? 1 Folder Repeat ? 1 Track Repeat

? (Normal)

RANDOM (RDM):

When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.

To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.

(Normal)

? All Random ? 1 Folder Random ?

(Normal)

BACK button:

When the BACK button is pushed, it returns to
the previous display.

iPod

player operation

WARNING

Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.

CAUTION

. Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.

. Do not grab the USB port cover (if

so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.

. Do not leave the USB cable in a

place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.

Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.

JVH1032X

Connecting iPod

The USB connection port is located in the
center console. Open the lid and connect the
iPod

cable to the USB connector. The battery

of the iPod

is charged while the connection to

the vehicle.

Depending on the version of the iPod

, the

display on the iPod

shows a NISSAN or

Accessory Attached screen when the connec-
tion is completed. When the iPod

is connected

to the vehicle, the iPod

music library can only

be operated by the vehicle audio controls.

Compatibility:

The following models are available:
. Third generation iPhone

(Firmware version

IOS4/4.0)

. Fourth generation iPhone

(Firmware ver-

sion IOS4/4.0)

. Fifth generation iPod

(Firmware version

1.3)

. First generation iPod Classic

(Firmware

version 1.1.1 or 1.1.2PC)

. Second generation iPod Classic

(Firmware

version 2.0.1)

. First generation iPod touch

(Firmware

version 1.1.5 or 2.2.1)

. Second and third generation iPod touch

(Firmware version 2.2.1 or IOS4/4.0.0)

. First generation iPod nano

(Firmware ver-

sion 1.3.1)

. Second generation iPod nano

(Firmware

version 1.1.3)

. Third generation iPod nano

(Firmware

version 1.1.2PC or 1.1.3PC)

. Fourth generation iPod nano

(Firmware

version 1.0.2 or 1.0.4)

. Fifth generation iPod nano

(Firmware ver-

sion 1.0.1 or 1.0.2)

The iPod touch

may not response quickly with

the system in some cases.

Make sure that the iPod

firmware is updated.

Audio main operation:

Place the ignition switch in the ACC or ON
position. Then, push the iPod MENU button to
switch to the iPod

mode.

You can also switch to the iPod

mode by

pushing the MEDIA button repeatedly.

If the system has been turned off while the iPod

was playing, pushing the Power button will start
the iPod

iPod MENU button:

Place the ignition switch in the ACC or ON
position. Then, push the iPod MENU button to
switch to the iPod

mode.

If another audio source is playing with an iPod

connected, pushing the iPod MENU button
changes to the iPod

mode.

You can also switch to the iPod

mode by

pushing the MEDIA button repeatedly.

If the system has been turned off while the iPod

was playing, pushing the Power button will start
the iPod

When the iPod MENU button is pushed while
the iPod

is connected, the interface for iPod

operation is shown on the audio display. The
items on the menu list can be scrolled by
pushing the

while the iPod

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-83

4-84

Monitor, heater, air conditioner, audio, phone and voice recognition systems

operational. To select an item, push ENTER.
Items in the iPod

menu appear on the display in

the following order.
. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
. Audiobooks
. Shuffle Songs
For more information about each item, see the
iPod

Owner’s Manual.

Next/Previous Track and Fast

Forward/Rewind:

When the FF or REW button is pushed for more
than 1.5 seconds while the iPod

is playing, the

iPod

will play while fast forwarding or rewind-

ing. When the button is released, the iPod

will

return to the normal play speed.

When the FF or REW button is pushed for less
than 1.5 seconds while the iPod

is playing, the

next track or the beginning of the current track
on the iPod

will be played. Push the buttons

several times to skip through the tracks.

The multi-function controller can also be used to
select tracks when the iPod

is playing.

REPEAT (RPT):

When the RPT play button is pushed while a
track is being played, the play pattern can be
changed as follows:

(Repeat Off)

? 1 Track Repeat? All Repeat ?

(Repeat Off)

Random (RDM):

When the RDM play button is pushed while a
track is being played, the play pattern can be
changed as follows:

(Shuffle Off)

? Track Shuffle ? (Shuffle Off)

BACK button:

When the BACK button is pushed, it returns to
the previous display.

Bluetooth

audio player operation

If you have a compatible Bluetooth

audio

device that is capable of playing audio files,
the device can be connected to the vehicle’s
audio system so that the audio files on the
device play through the vehicle’s speakers.

Regulatory information:

Bluetooth

trademark:

Bluetooth

is a trademark owned

by Bluetooth SIG, Inc. and li-
censed to Visteon Corporation.

Connecting Bluetooth

device:

To connect your Bluetooth

device to the

vehicle, follow the procedure below:

1. Push the ENTER/SETTING button.

JVH0620X

2. Select the “Bluetooth” key.

3. Select the “Add Phone” key. This same

screen can be accessed to remove, replace
or select a different Bluetooth

device.

4. The system acknowledges the command

and asks you to initiate connecting from the
Bluetooth

device. The connecting proce-

dure of the Bluetooth

device varies ac-

cording to each cellular phone model. See
the Owner’s manual of the Bluetooth

device for details.

JVH1012X

Bluetooth

audio main operation:

To switch to the Bluetooth

audio mode, push

the MEDIA button repeatedly until the Blue-
tooth

audio mode is displayed on the screen.

The controls for the Bluetooth

audio are

displayed on the screen. Use the Preset 3
button to play and use the Preset 4 button to
pause.

JVH1034X

AUX (Auxiliary) input

AUX IN jack:

The AUX IN jack is located in the center console.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape/CD player, MP3 player or
laptop computer.

MEDIA button:

Push the MEDIA button repeatedly to play a
compatible device when it is plugged into the
AUX IN jack.

NISSAN strongly recommends using a stereo
mini plug cable when connecting your music

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-85

Nissan Quest (2017 year). Instruction - part 17
