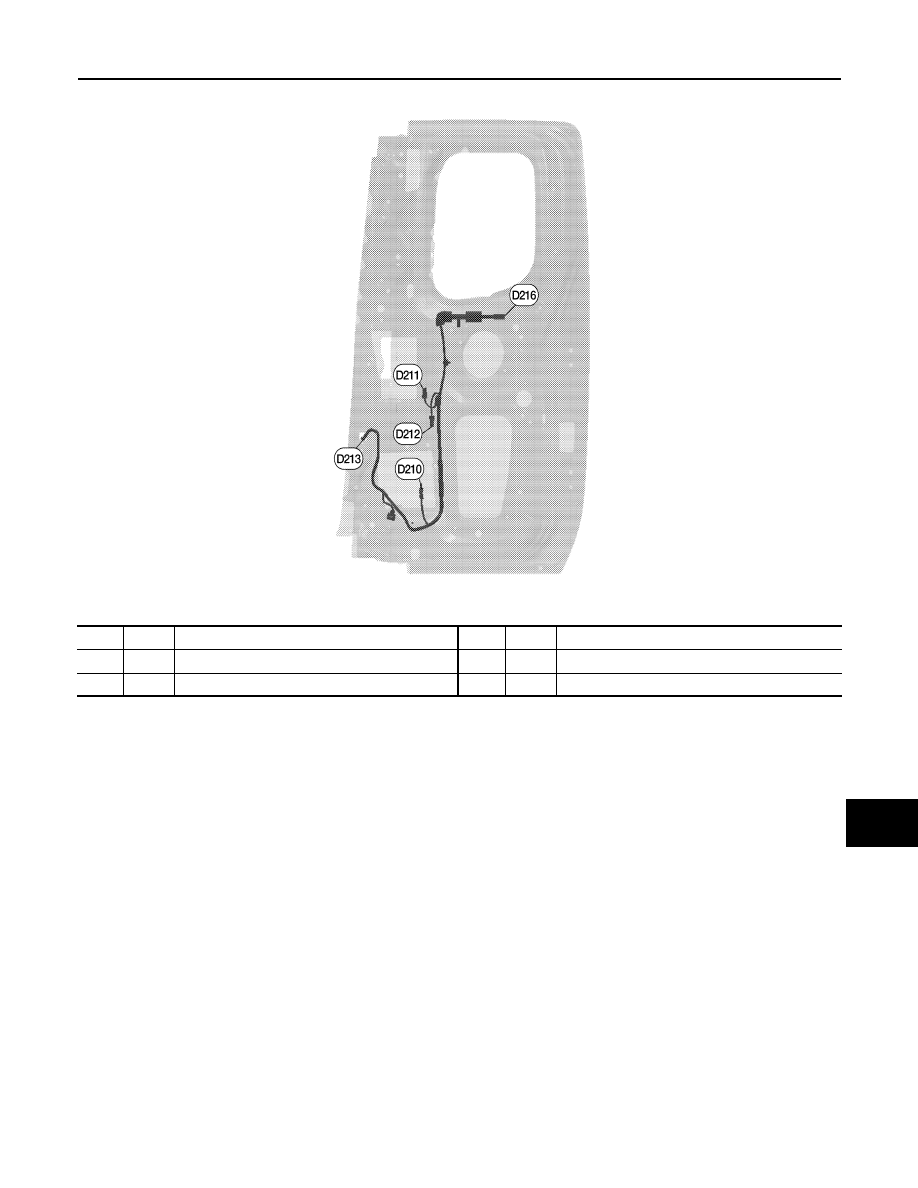

REAR DOOR LH HARNESS (KING CAB MODELS)

ABMIA0453GB

D210

Y/2

: Front LH seat belt pre-tensioner

D213

W/3

: Front door switch LH

D211

B/2

: Rear door switch upper LH

D216

W/8

: To B16

D212

B/2

: Rear door switch lower LH

PG-68

< COMPONENT DIAGNOSIS >

HARNESS

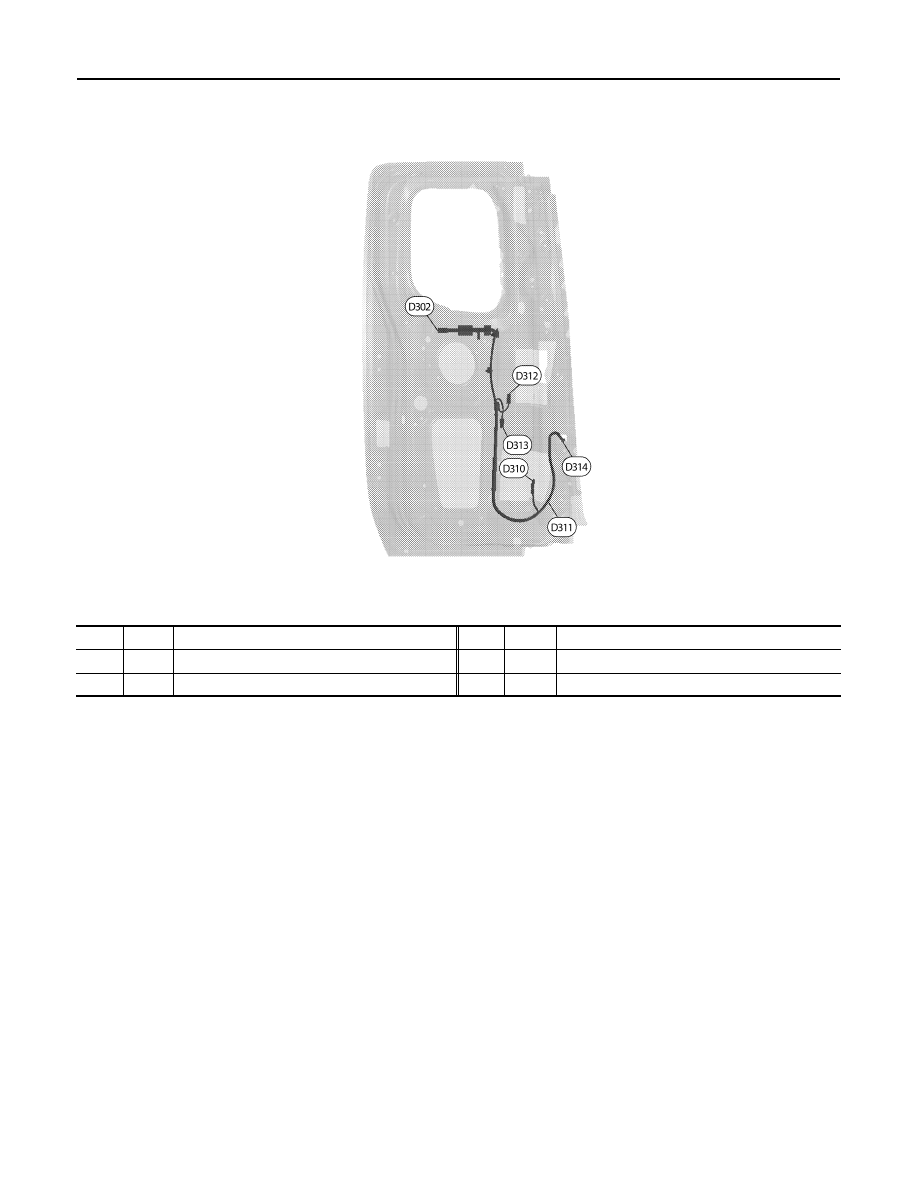

REAR DOOR RH HARNESS (KING CAB MODELS)

ABMIA0409GB

D302

W/8

: To B107

D312

B/2

: Rear door switch upper RH

D310

Y/2

: Front RH seat belt pre-tensioner

D313

B/2

: Rear door switch lower RH

D311

Y/3

: Belt tension sensor

D314

W/3

: Front door switch RH

PG

HARNESS

PG-69

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

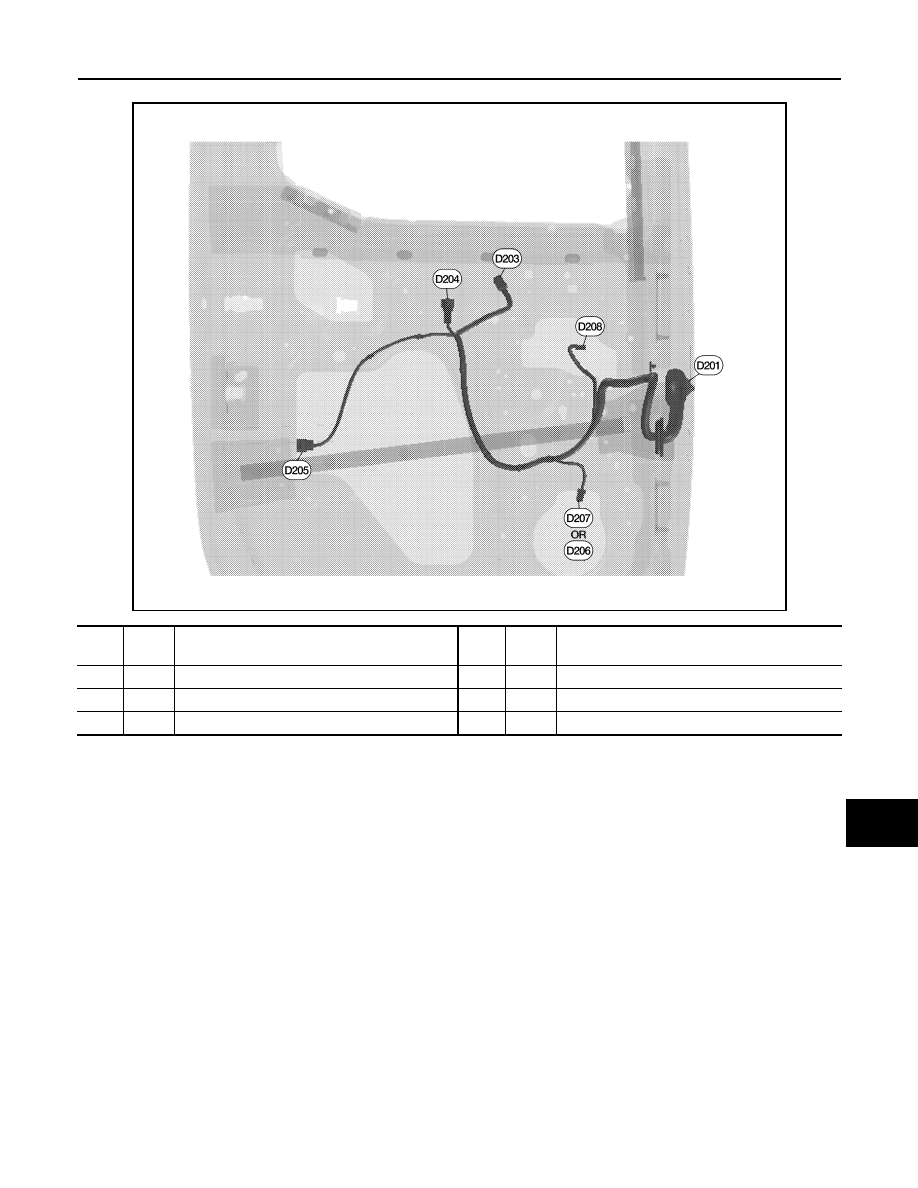

REAR DOOR LH HARNESS (CREW CAB MODELS)

ABMIA1494GB

D201

W/12

: To B6

D206

W/2

: Rear door speaker LH (with premium audio
  system)

D203

W/8

: Rear power window switch LH

D207

W/2

: Rear door speaker LH (with base audio system)

D204

B/2

: Rear power window motor LH

D208

BR/2

: Rear door tweeter LH

D205

BR/2

: Rear door lock actuator LH

PG-70

< COMPONENT DIAGNOSIS >

HARNESS

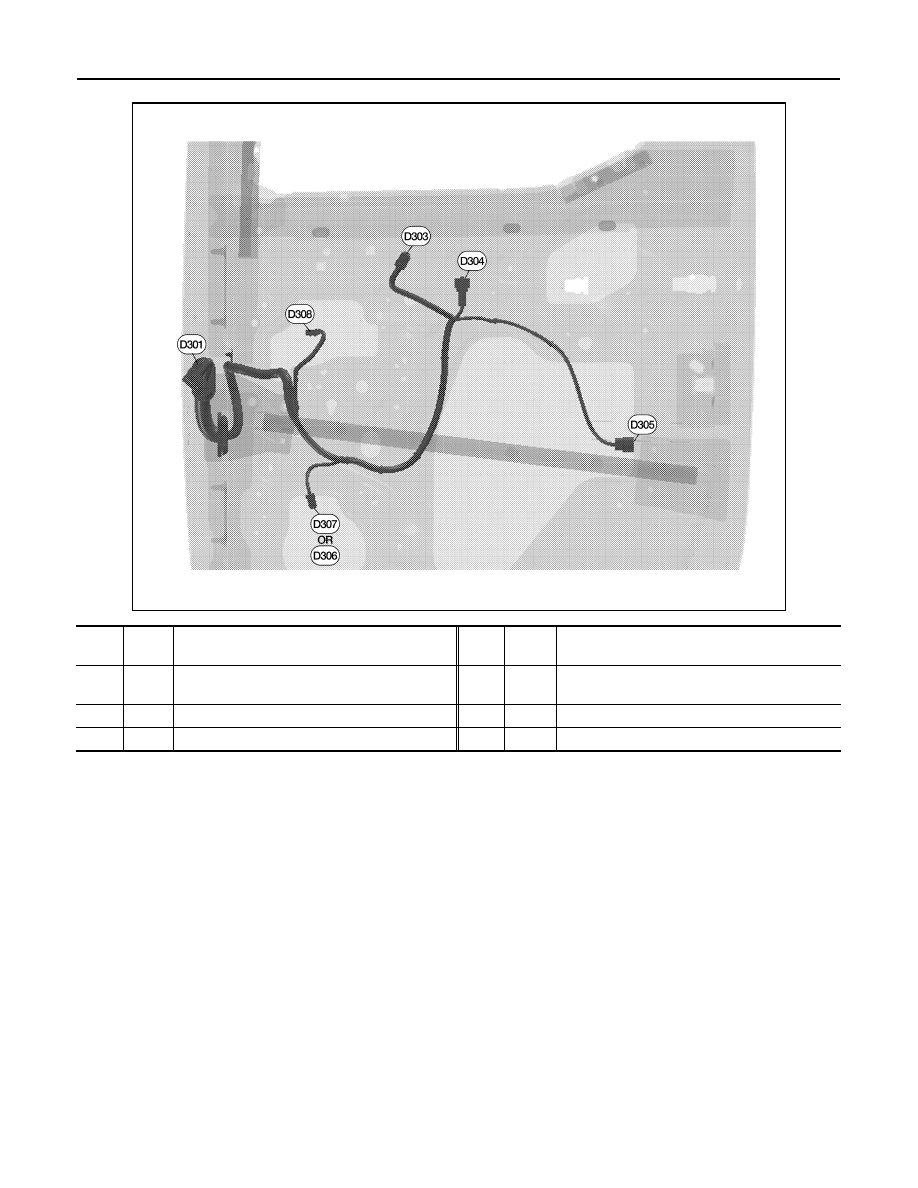

REAR DOOR RH HARNESS (CREW CAB MODELS)

ABMIA1495GB

D301

W/12

: To B106

D306

W/2

: Rear door speaker RH (with premium audio
  system

D303

W/8

: Rear power window switch RH

D307

W/2

: Rear door speaker RH (with base audio
  system

D304

B/2

: Rear power window motor RH

D308

BR/2

: Rear door tweeter RH

D305

BR/2

: Rear door lock actuator RH
