Nissan Frontier D40. Manual - part 899

PG

HARNESS

PG-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

D5

B114

Y/2

: RH side air bag (satellite) sensor

A2

B165

B/1

: Rear window defogger

B3

B116

W/3

: Rear door switch RH

Front seat RH harness

E5

B117

—

: Body ground

D4

B302

W/2

: Reclining motor RH

E4

B126

Y/2

: Front RH side air bag module

E5

B303

W/16

: To B154

C4

B127

Y/2

: Front RH seat belt pretensioner

D4

B307

W/3

: Front seat heater RH

B3

B132

—

: Body ground

D4

B308

W/6

: Power seat switch RH

E4

B136

W/16

: To B351

D4

B309

GR/2

: Sliding motor RH

C5

B137

B/3

: Belt tension sensor

E4

B310

W/18

: To B349

D5

B141

W/32

: Bluetooth control unit

E4

B349

W/8

: To B310

F5

B149

SMJ

: To M36

E4

B351

W/16

: To B136

E5

B154

W/16

: To B303

E4

B352

B/18

: Occupant classification system control unit

F4

B157

Y/2

: To B78

D4

B353

B/3

: Occupant classification system sensor

PG-64

< COMPONENT DIAGNOSIS >

HARNESS

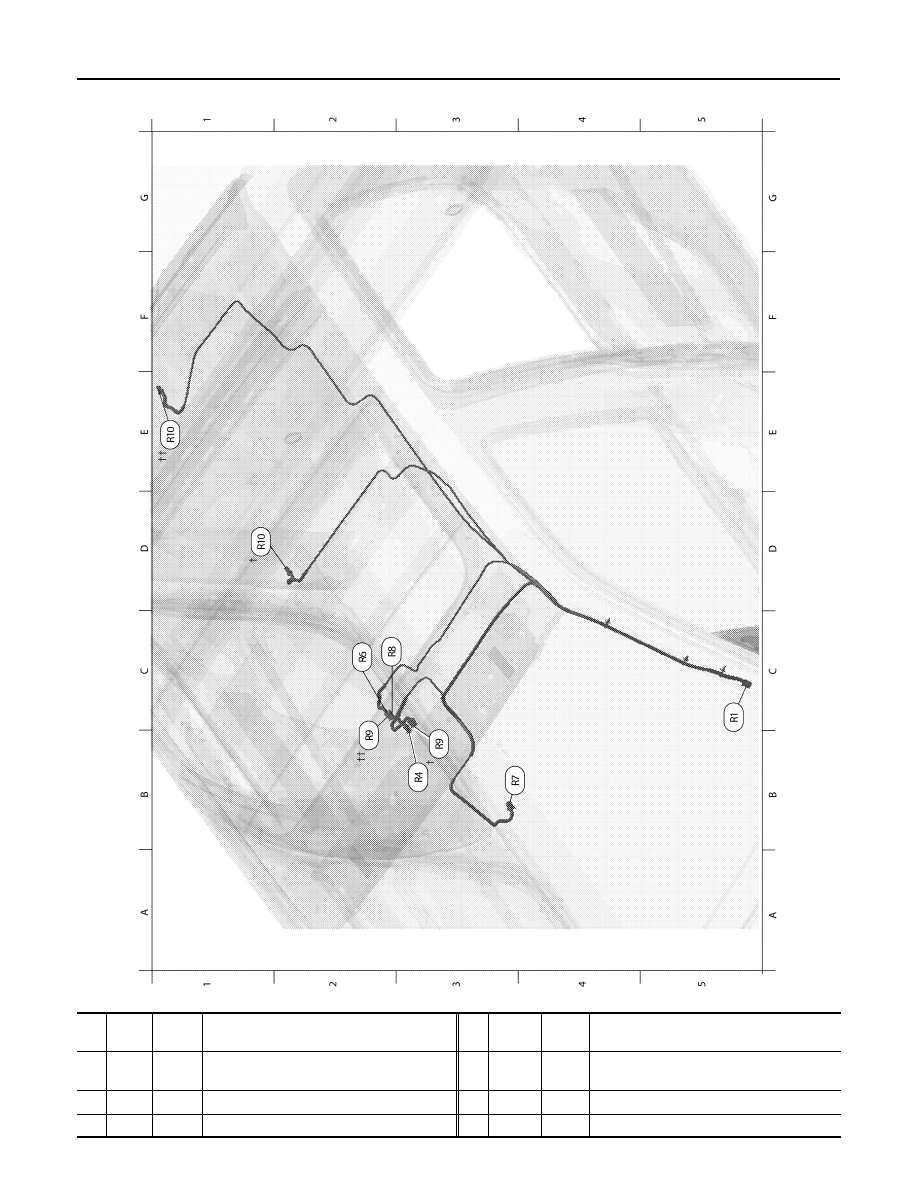

ROOM LAMP HARNESS

ABMIA0406GB

C5

R1

W/24

: To M1

B3

R9†

W/3

: Front room/map lamp assembly
  (with sunroof)

B3

R4

W/3

: Sunroof switch

B2

R9††

W/3

: Front room/map lamp assembly
  (without sunroof)

B3

R7

B/10

: Auto anti-dazzling inside mirror

D1

R10†

W/2

: Room lamp 2nd row (king cab)

C3

R8

W/4

: Microphone

E1

R10††

W/2

: Room lamp 2nd row (crew cab)

PG

HARNESS

PG-65

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

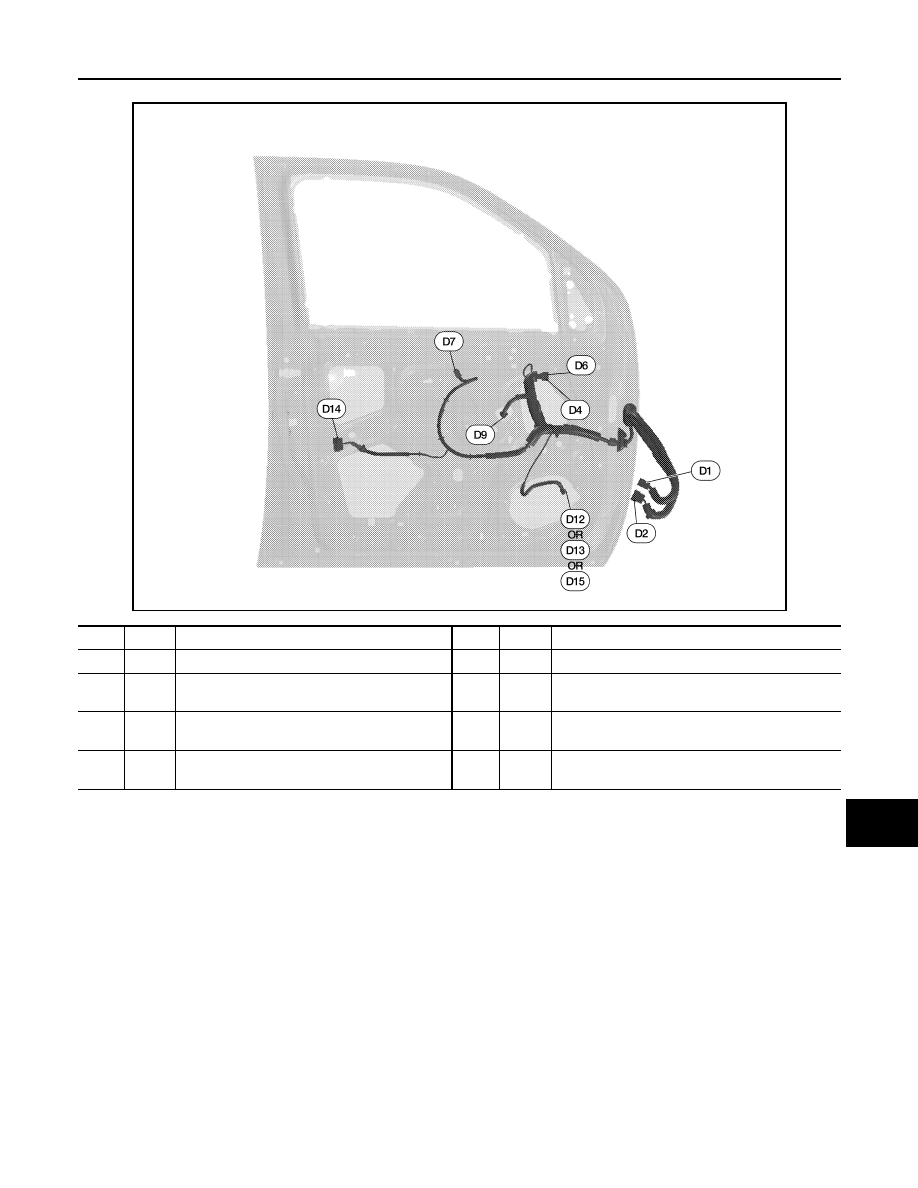

FRONT DOOR LH HARNESS

ABMIA1492GB

D1

W/16

: To M9

D9

BR/2

: Front power window motor LH

D2

BR/12

: To M8

D12

W/2

: Front door speaker LH

D4

B/10

: Door mirror LH (with heated mirror)

D13

W/2

: Front door speaker LH (king cab with premium
  audio system)

D6

B/3

: Door mirror LH (without heated mirror)

D15

W/2

: Front door speaker LH (crew cab with premium
  audio system)

D7

W/16

: Main power window and door lock/unlock
  switch

D14

GR/6

: Front door lock assembly LH

PG-66

< COMPONENT DIAGNOSIS >

HARNESS

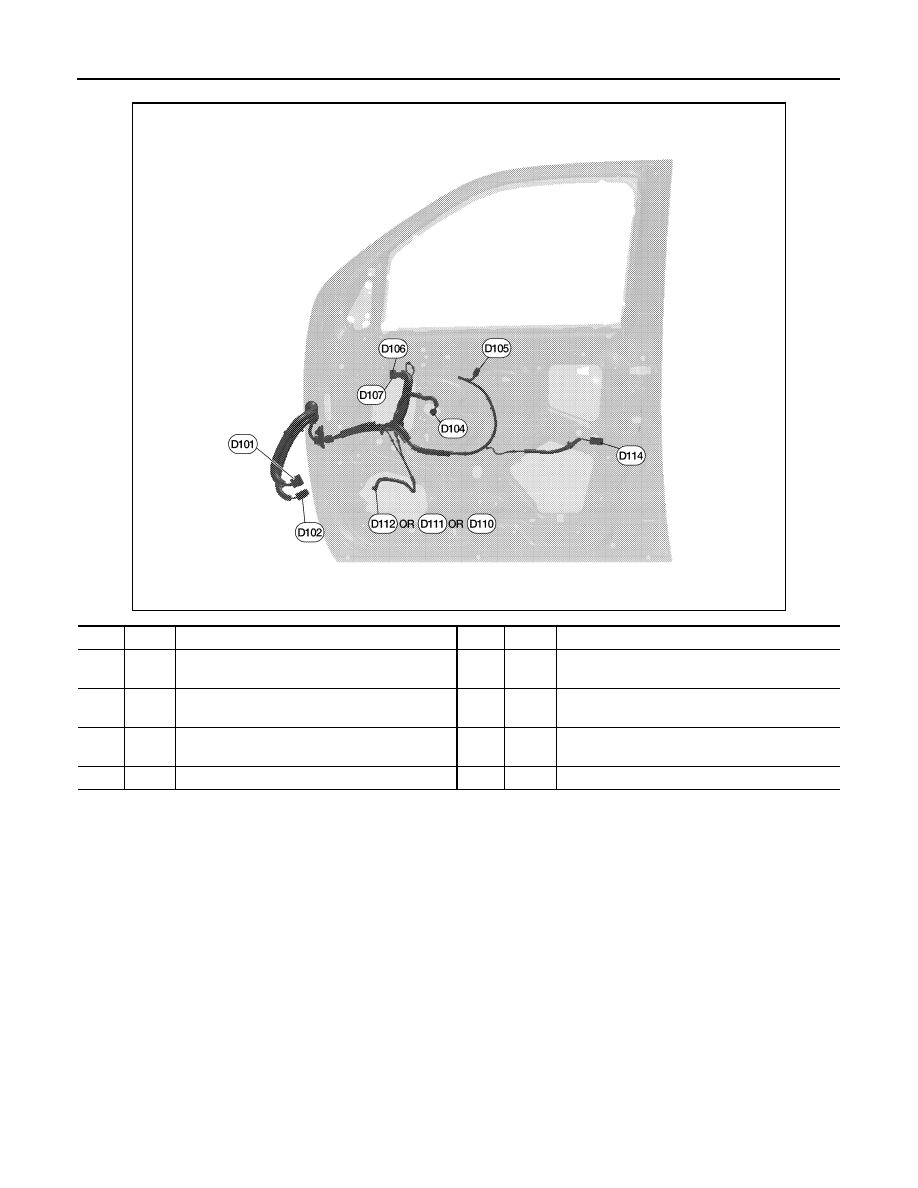

FRONT DOOR RH HARNESS

ABMIA1493GB

D101

W/12

: To M75

D107

B/10

Door mirror RH (with heated mirror)

D102

W/16

: To M74

D110

W/2

: Front door speaker RH (crew cab with premium
  audio system)

D104

BR/2

: Front power window motor RH

D111

W/2

: Front door speaker RH (king cab with premium
  audio system)

D105

W/12

: Power window and door lock/unlock switch RH

D112

W/2

: Front door speaker RH (with base audio
  system)

D106

B/3

Door mirror RH (without heated mirror)

D114

BR/2

: Front door lock actuator RH
