INT-20

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

Removal

1.

Remove rear seats. Refer to

SE-29, "Removal and Installation"

.

2.

Remove storage boxes (if equipped).

3.

Remove rear kick plates RH/LH and seat belt anchor bolts.

4.

Remove seatback latch strikers (Crew cab models).

5.

Remove child seat anchor cover (if equipped) and rear panel(s).

6.

Remove first rear lower, then rear upper finishers RH/LH.

7.

Remove drafter duct(s).

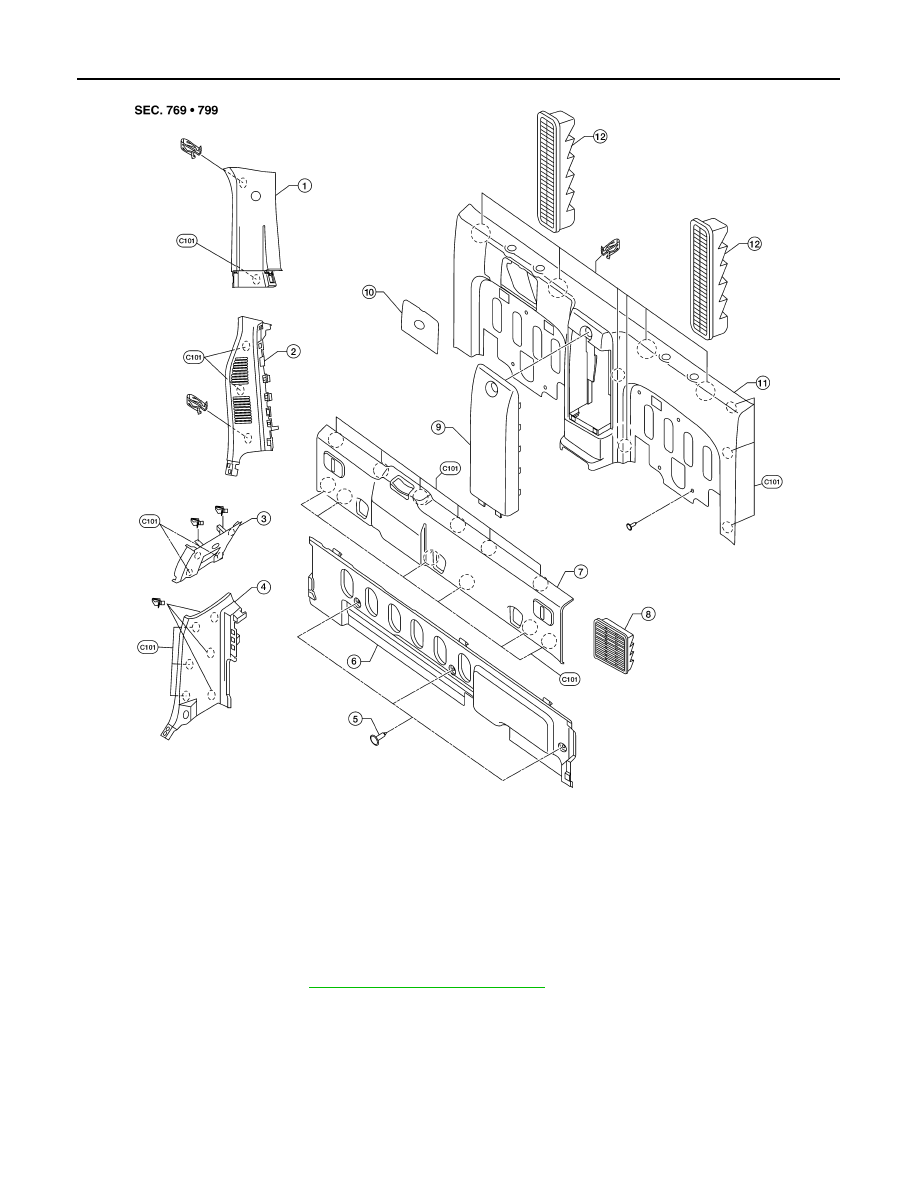

Installation

1.

Rear upper finisher (King cab)

2.

Rear lower finisher (King cab)

3.

Rear upper finisher (Crew cab)

4.

Rear lower finisher (Crew cab)

5.

Pushpin

6.

Rear panel lower (Crew cab)

7.

Rear panel upper (Crew cab)

8.

Drafter duct (Crew cab)

9.

Jack storage cover

10. Child seat anchor cover

11.

Rear panel (King cab)

12. Drafter ducts (King cab)

LIIA1966E

BODY SIDE TRIM

INT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation is in the reverse order of removal.

INT-22

< ON-VEHICLE REPAIR >

FLOOR TRIM

FLOOR TRIM

Removal and Installation

INFOID:0000000005274451

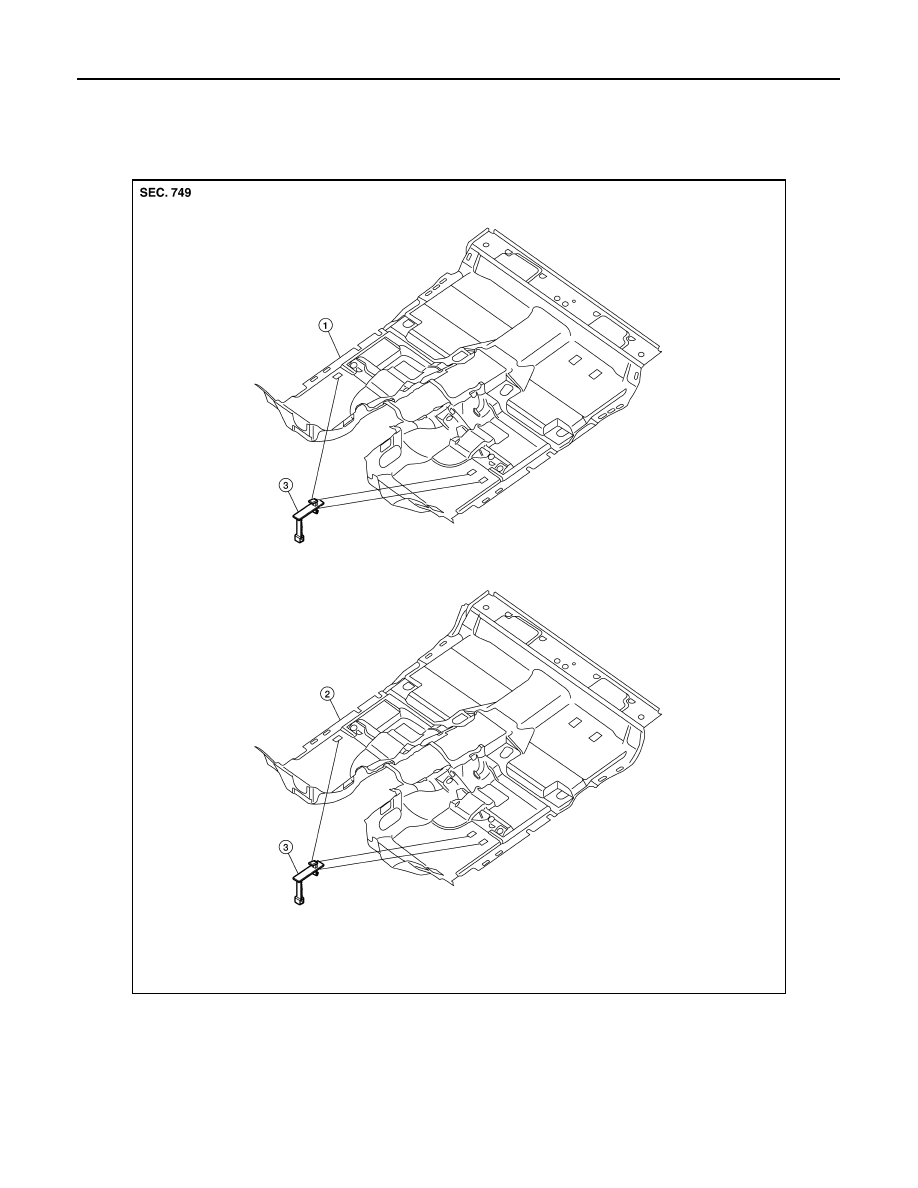

Crew Cab and King Cab Floor Carpet

AWJIA0413ZZ

1.

Crew cab carpet

2.

King cab carpet

3.

Floor mat hook

FLOOR TRIM

INT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Storage Box

REMOVAL

1.

Remove front seats. Refer to

SE-28, "Removal and Installation"

.

2.

Remove rear seats. Refer to

SE-29, "Removal and Installation"

.

3.

Remove storage boxes (if equipped).

4.

Remove lower seat belt anchors (crew cab only). Refer to

SB-15, "Removal and Installation"

.

5.

Remove lower body side trim panels. Refer to

INT-18, "Removal and Installation"

.

6.

Remove center console. Refer to

IP-10, "Exploded View"

.

7.

Remove floor mat hooks.

8.

Remove carpet.

INSTALLATION

Installation is in the reverse order of removal.

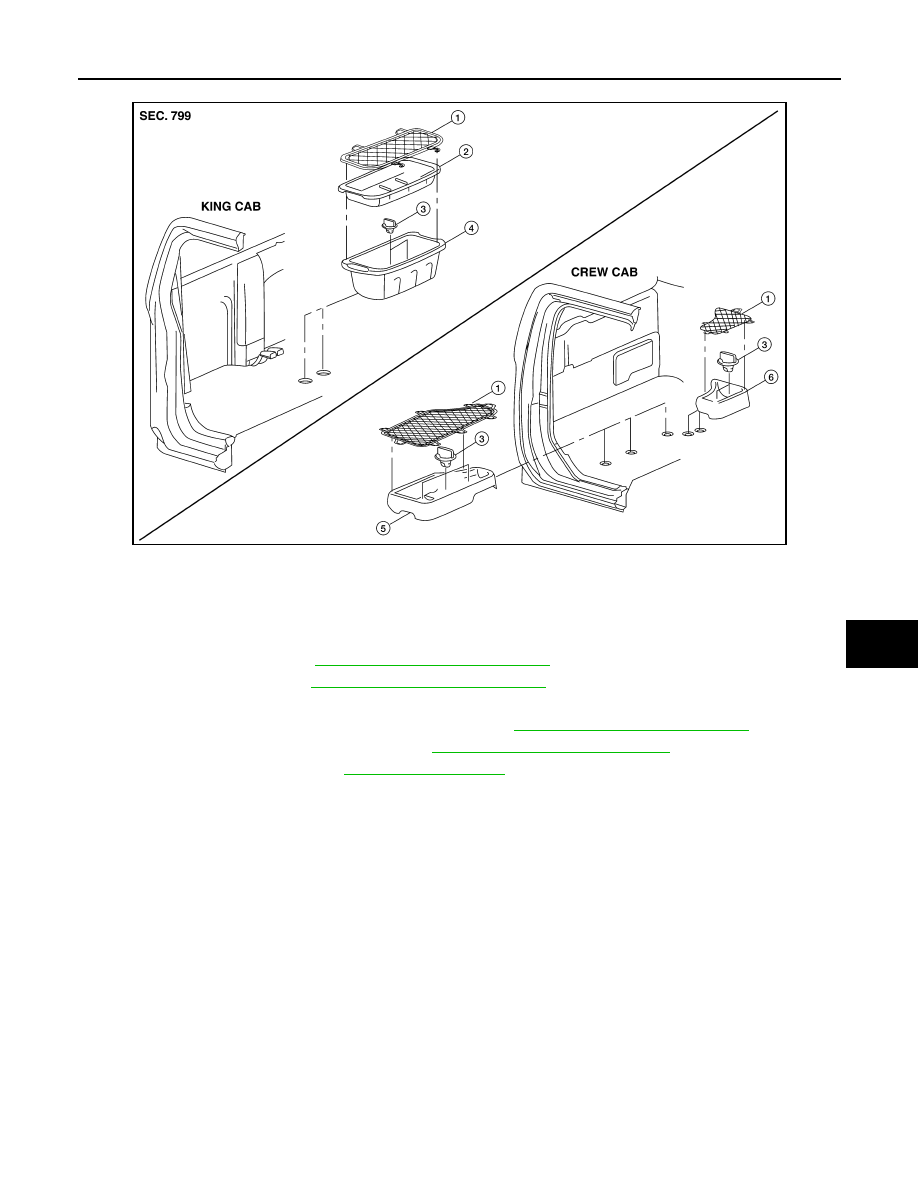

LIIA2078E

1.

Net

2.

Tray (King Cab)

3.

Locking clip

4.

Storage box (King Cab)

5.

Storage box RH (Crew Cab)

6.

Storage box LH (Crew Cab) (if
equipped)
