INT-16

< ON-VEHICLE REPAIR >

DOOR FINISHER

REAR DOOR - KING CAB

Removal

1.

Remove lower seat belt anchor bolt. Refer to

SB-15, "Removal and Installation"

.

• Disconnect harness connector for passenger side.

2.

Release the clips and remove rear door finisher.

3.

Remove lock lever assembly.
• Disconnect lock lever cable and lever assembly. Refer to

DLK-139, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

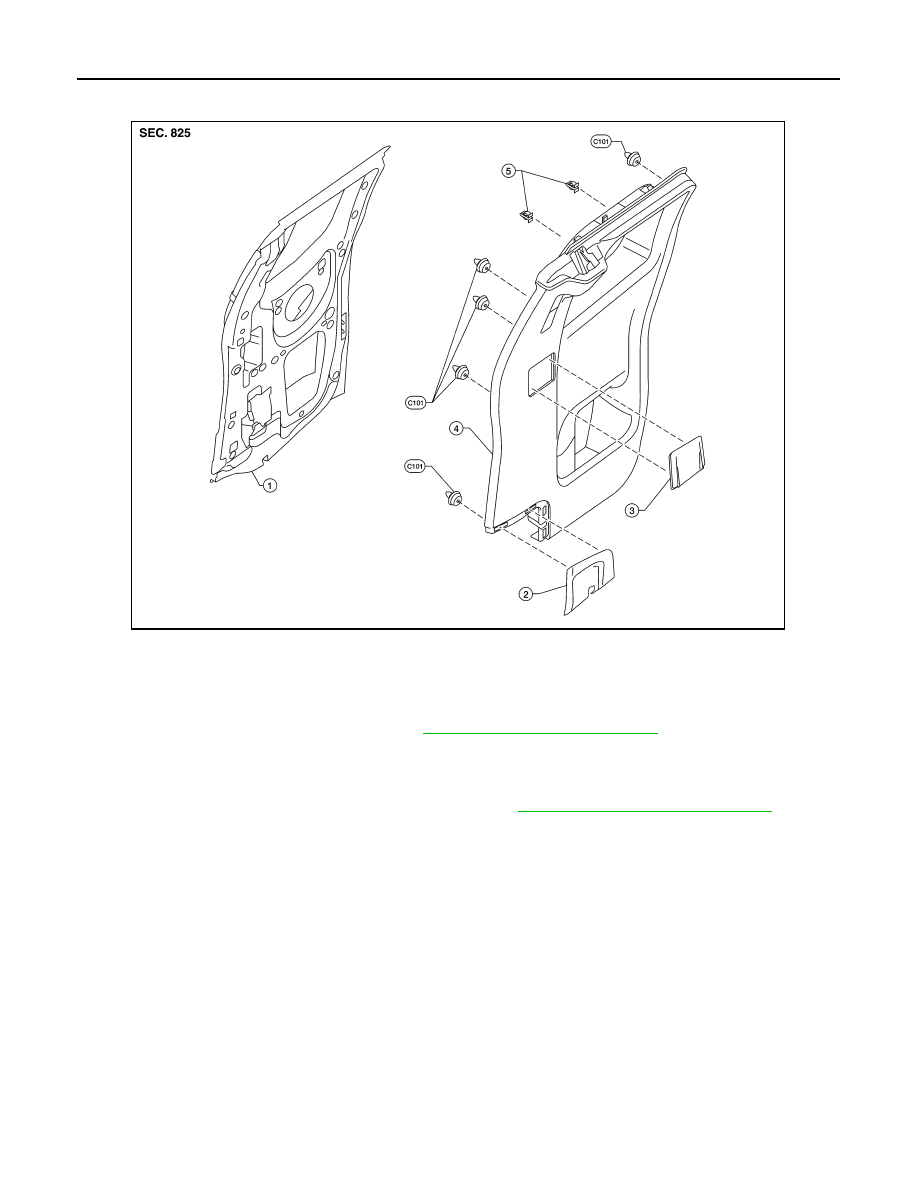

1.

Rear door

2.

Latch cover

3.

Guide

4.

Rear door finisher

5.

Metal clip

LIIA1963E

BODY SIDE TRIM

INT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

Component

INFOID:0000000005274449

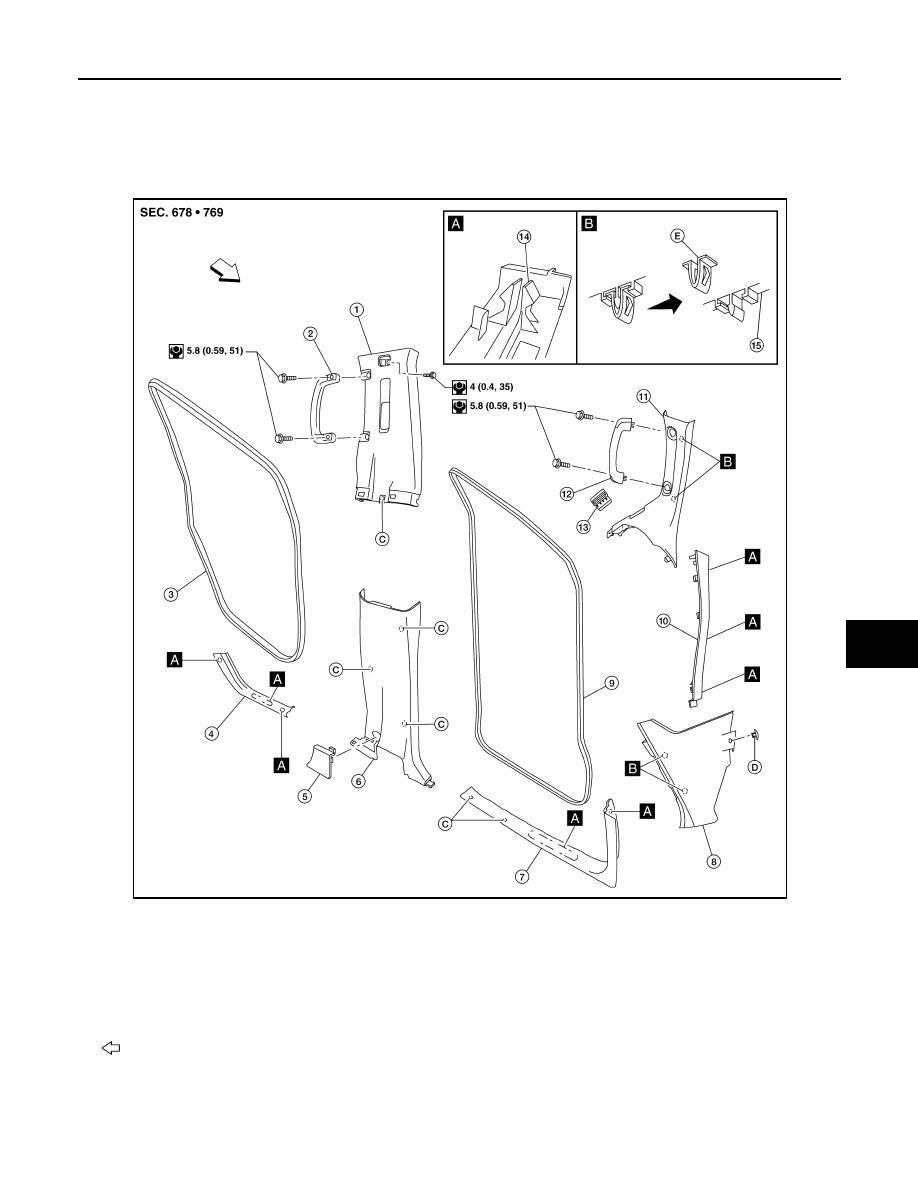

CREW CAB

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear kick plate

5.

Access cover (RH side only)

6.

Center pillar lower finisher

7.

Front kick plate

8.

Lower dash side finisher

9.

Front door welt

10. Front pillar lower finisher

11.

Front pillar upper finisher

12.

Front pillar assist grip

13. LH side demister grille

14.

Molded plastic clip

15.

Finisher

C.

Clip C101

D.

Clip C111

E.

Metal clip

Front

AWJIA0051GB

INT-18

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

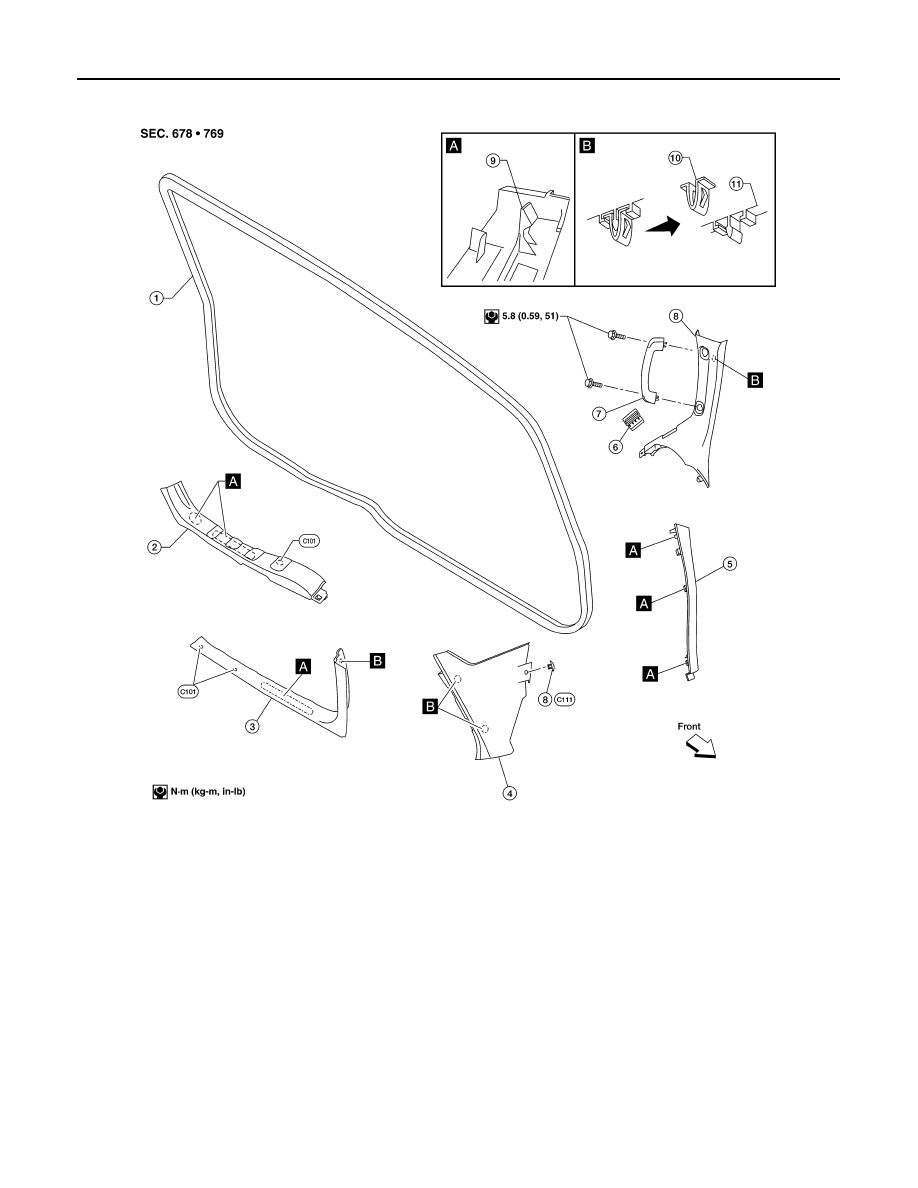

KING CAB

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

Removal and Installation

INFOID:0000000005274450

LOWER DASH SIDE FINISHER

Removal

1.

Remove push pin from lower dash side finisher.

2.

Remove front kick plate from center pillar lower finisher.

1.

Door welt

2.

Rear kick plate

3.

Front kick plate

4.

Lower dash side finisher

5.

Front pillar lower finisher

6.

Side demister grille

7.

Front pillar assist grip

8.

Front pillar upper finisher

9.

Molded plastic clip

10. Metal clip

11.

Garnish

LIIA1962E

BODY SIDE TRIM

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

3.

Remove front kick plate from dash side from lower dash side finisher.

4.

Remove lower dash side finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER

Removal

1.

Remove front and rear door welts.

2.

Remove seat belt anchor. Refer to

SB-15, "Removal and Installation"

.

• On RH side, remove the cover and disconnect seat belt tension sensor.

3.

Remove front and rear kick plates.

4.

Remove center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1.

Remove front and rear door welts.

2.

Remove seat belt shoulder anchor and D-ring. Refer to

SB-15, "Removal and Installation"

.

3.

Remove front and rear kick plates.

4.

Remove center pillar lower finisher.

5.

Remove assist grip.

6.

Remove center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR UPPER FINISHER

Removal

1.

Remove front pillar lower finisher.

2.

Remove the front pillar assist grip.

3.

Remove the front pillar upper finisher bolt.

4.

Remove the front pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR LOWER FINISHER

Removal

1.

Remove front door welt and kick plate.

2.

Remove the front pillar lower finisher.

Installation

Installation is in the reverse order of removal.

KICK PLATES

Removal

Release clips and remove front and/or rear kick plates.

Installation

Installation is in the reverse order of removal.
