Nissan Frontier D40. Manual - part 713

GW-20

< ON-VEHICLE REPAIR >

REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATOR

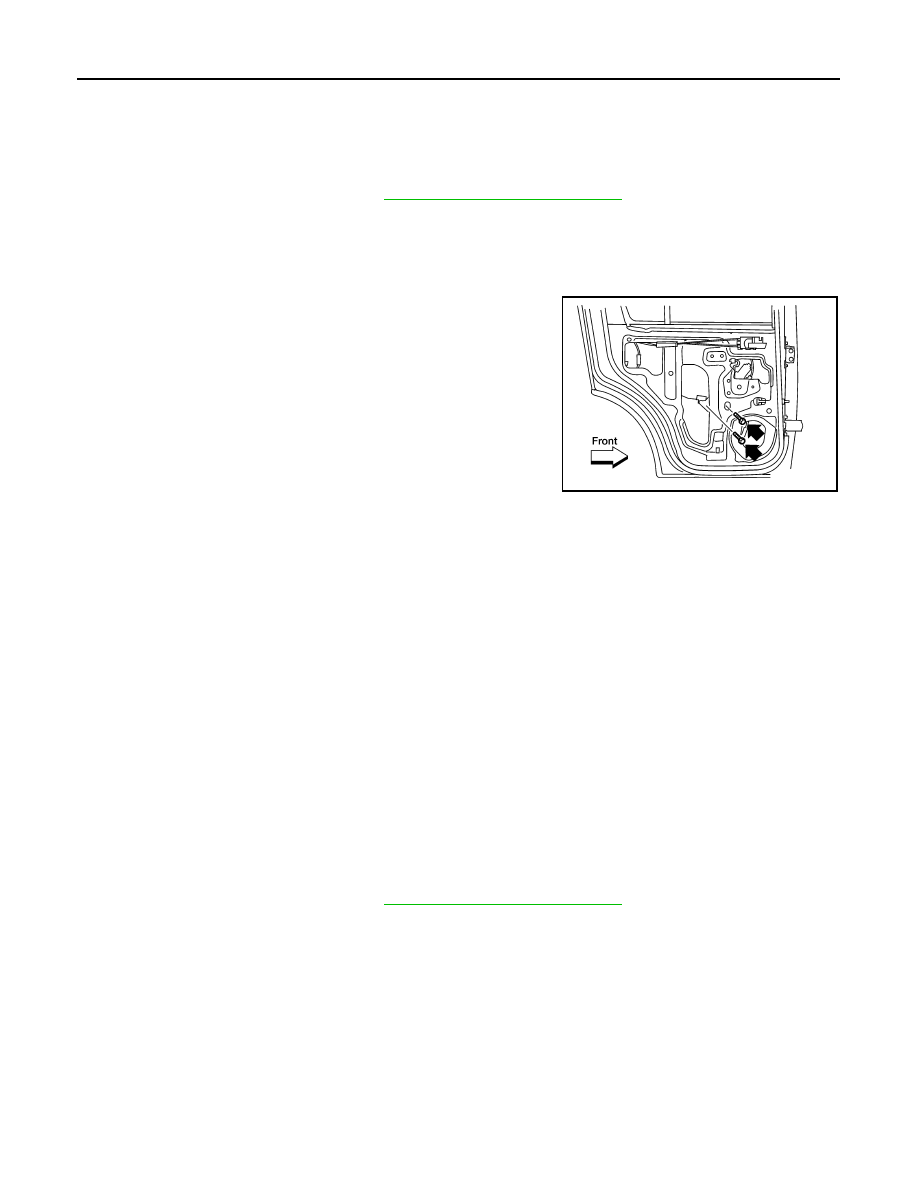

Rear Door Glass

INFOID:0000000005274595

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

 .

2.

Position aside the vapor barrier.

3.

Remove the inside seal.

4.

If equipped, temporarily reconnect the power window switch.

5.

Remove the glass run from the partition glass.

6.

For power windows, operate the power window switch to raise/
lower the door window until the glass bolts can be seen.

7.

For manual windows, temporarily reinstall the window crank
handle and lower the window until the glass bolts can be seen.

8.

Remove the partition sash bolt (lower) and screw (upper) to
remove the sash.

9.

Remove the bolts and the glass.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass alignment. Follow the FITTING INSPECTION procedure.

FITTING INSPECTION

• Check that the glass fits securely into the glass run groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide
rail bolts, and glass carrier plate bolts to adjust the glass position.

Rear Door Glass Regulator

INFOID:0000000005274596

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Position aside the vapor barrier.

3.

Remove the inside seal.

4.

If equipped, temporarily reconnect the power window switch.

LIIA1689E

Glass bolts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

Regulator and motor
or manual crank as-
sembly bolts

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

REAR DOOR GLASS AND REGULATOR

GW-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

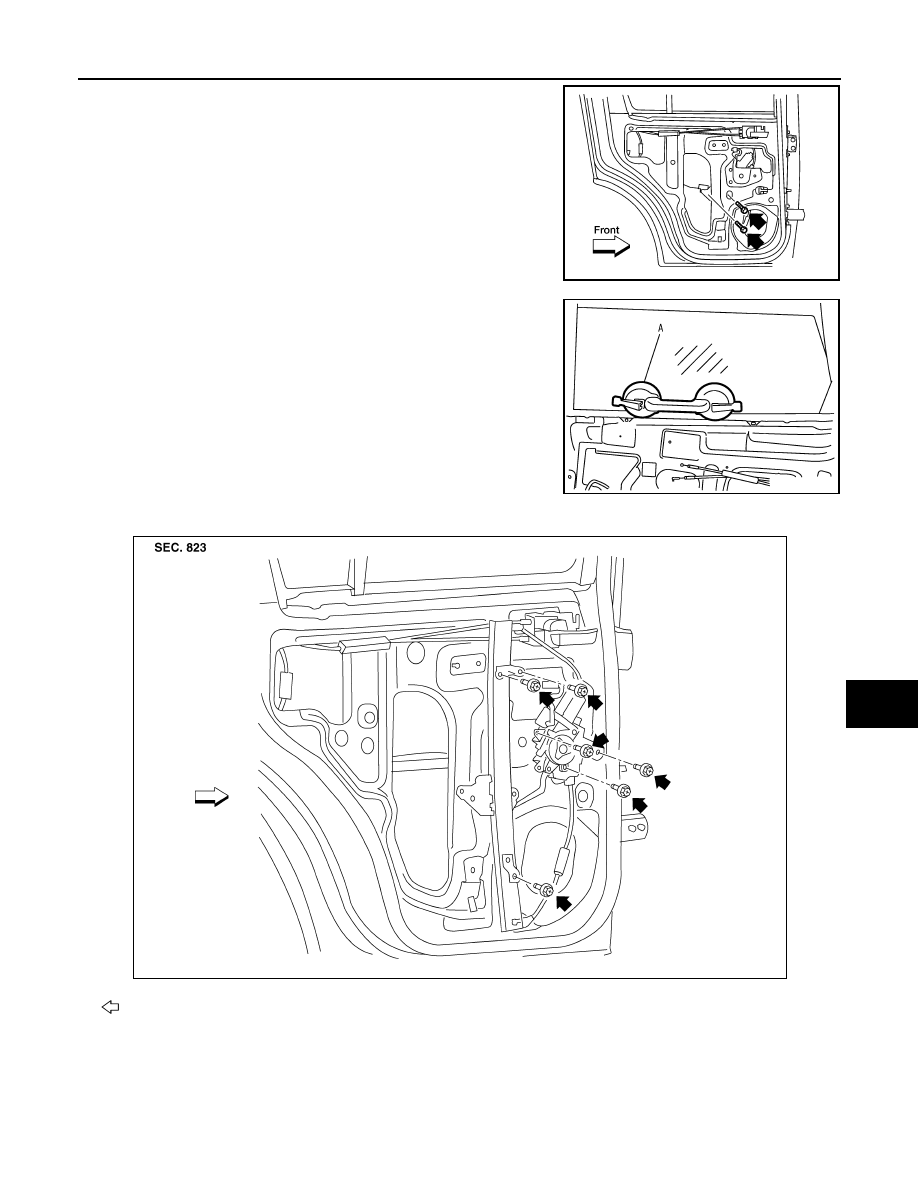

5.

For power windows, operate the power window switch to raise/
lower the door window until the glass bolts can be seen.

6.

For manual windows, temporarily reinstall the window crank
handle and lower the window until the glass bolts can be seen.

7.

Raise the rear door glass and hold it in place with suitable tool
(A).

8.

Remove the bolts and the regulator assembly.
• If equipped, disconnect the connector from the regulator

assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.
• Gear wear
• Regulator deformation
• Spring damage
• Grease condition for each sliding part

LIIA1689E

PIIB3511J

Front

WIIA1034E

GW-22

< ON-VEHICLE REPAIR >

REAR DOOR GLASS AND REGULATOR

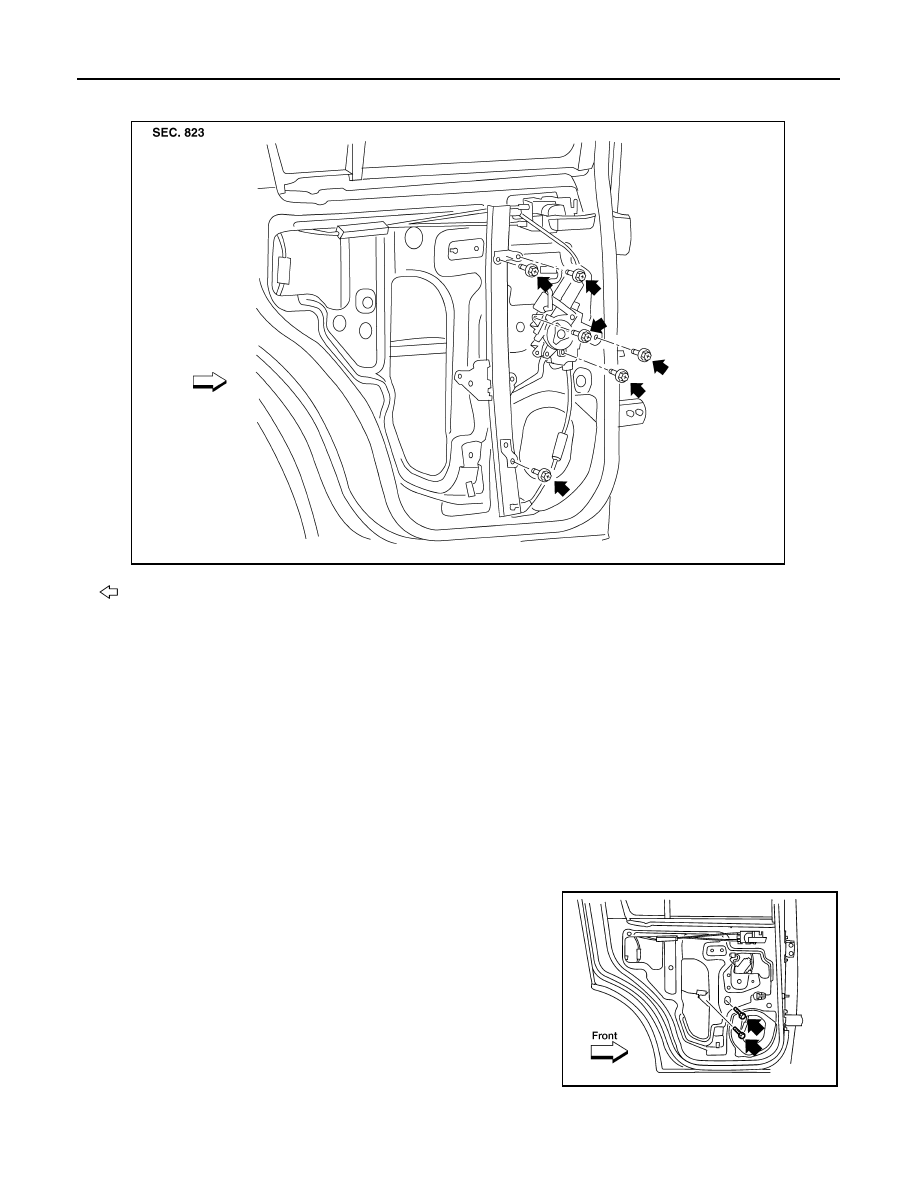

INSTALLATION

1.

Connect the harness connector and install the regulator assembly.

a.

Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor or
manual crank assembly to install the assembly in the door.

b.

Install the top front regulator bolt.

c.

Install the bottom regulator bolt.

d.

Tighten the top rear regulator bolt.

e.

Install the top window motor or manual crank assembly bolt.

f.

Install the lower window motor or manual crank assembly bolt.

g.

Install the front window motor or manual crank assembly bolt.

2.

Lower the glass and ensure that it is in both the front and rear
glass channels. Tighten glass bolts.

3.

Install the partition sash

4.

Check the glass alignment. Follow the Fitting Inspection procedure.

Front

Regulator and motor or
manual crank assembly
bolts

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

WIIA1034E

LIIA1689E

REAR DOOR GLASS AND REGULATOR

GW-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

5.

Install the inside seal.

6.

Reposition the vapor barrier.

7.

Install the rear door finisher. Refer to

INT-14, "Removal and Installation"

.
