FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Front Door Glass

INFOID:0000000005274593

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Position the vapor barrier aside.

3.

Remove the window inside seal.

4.

If equipped, temporarily reconnect the power window switch.

5.

For power windows, operate the power window switch to raise/
lower the door window until the glass bolts can be seen.

6.

For manual windows, temporarily reinstall the window crank
handle and lower the window until the glass bolts can be seen.

7.

Remove the glass bolts.

8.

While holding the door window, raise it at the rear and pull the
glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass for proper fit. Follow the FITTING INSPECTION procedure.
• On the drivers door, reset the motor if equipped. Follow the SETTING AFTER INSTALLATION procedure.

FITTING INSPECTION

• Check that the glass fits securely into the glass run groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide
rail bolts, and glass and guide rail bolts to adjust the glass position.

Front Door Glass Regulator

INFOID:0000000005274594

REMOVAL

1.

Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

 .

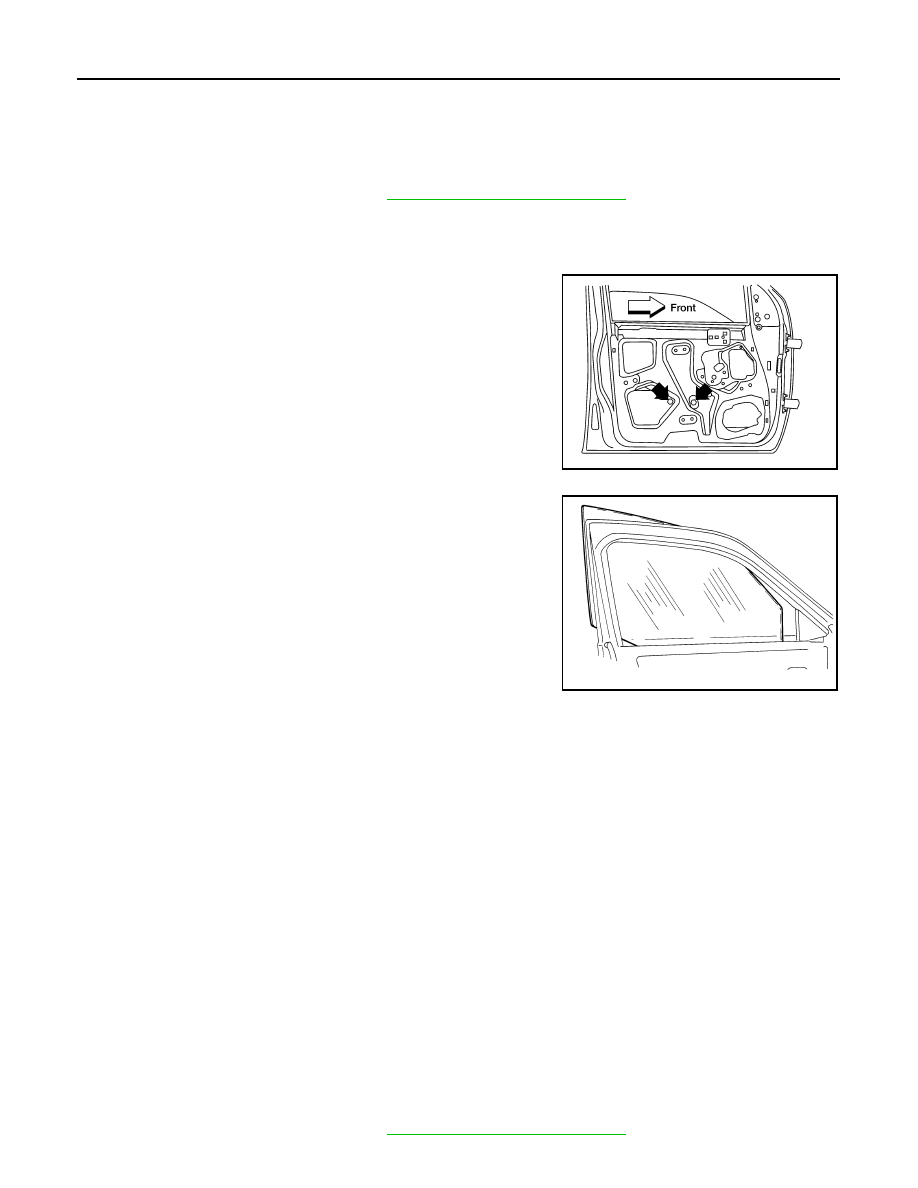

LIIA1686E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Regulator and motor
or manual crank as-
sembly bolts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

FRONT DOOR GLASS AND REGULATOR

GW-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

2.

Position the vapor barrier aside.

3.

If equipped, temporarily reconnect the power window switch.

4.

For power windows, operate the power window switch to raise/
lower the door window until the glass bolts can be seen.

5.

For manual windows, temporarily reinstall the window crank
handle and lower the window until the glass bolts can be seen.

6.

Remove the glass bolts.

7.

Raise the front door glass and hold it in place with suitable tool
(A).

8.

If equipped, disconnect the harness connector from the regula-
tor assembly.

9.

Remove the bolts and the regulator assembly.

DISASSEMBLY AND ASSEMBLY

Remove the regulator motor or manual crank assembly from the regulator assembly.

INSPECTION AFTER REMOVAL

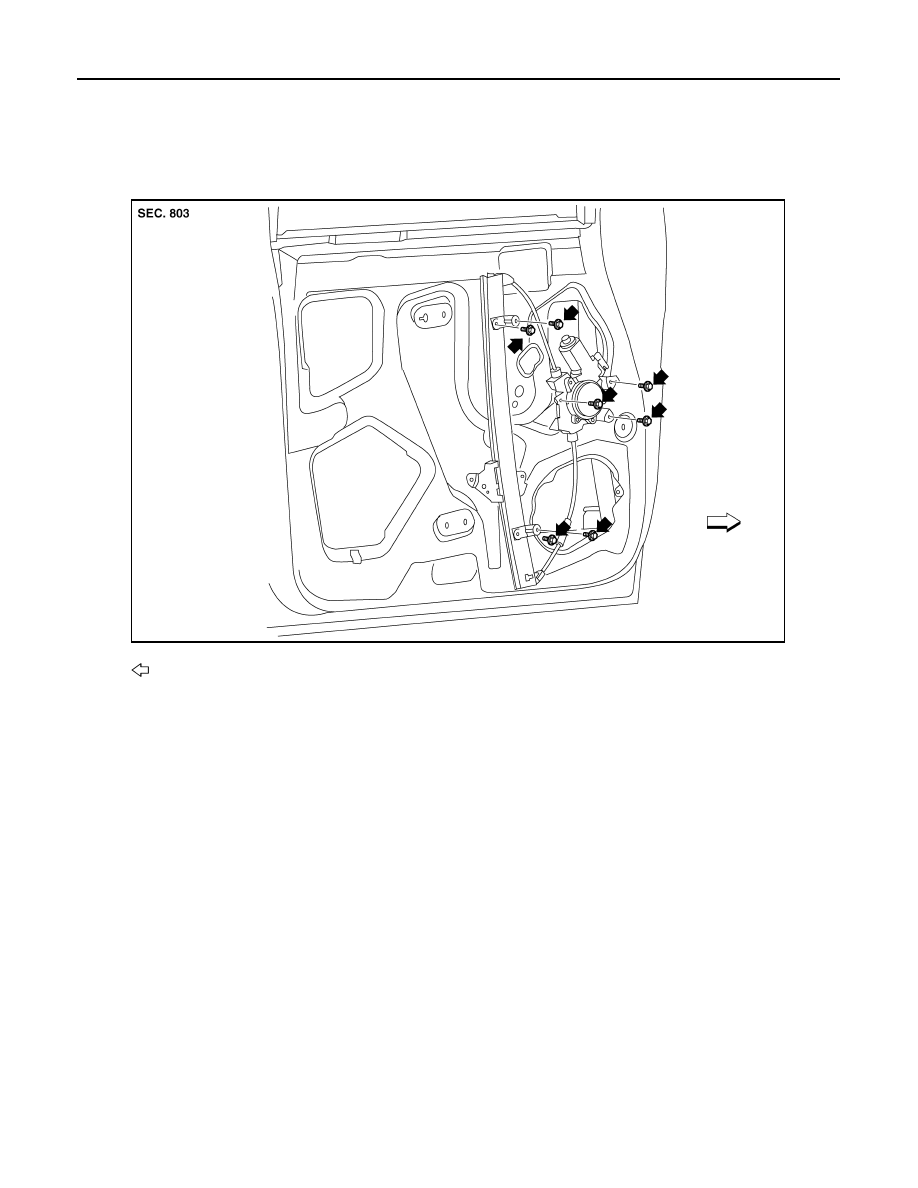

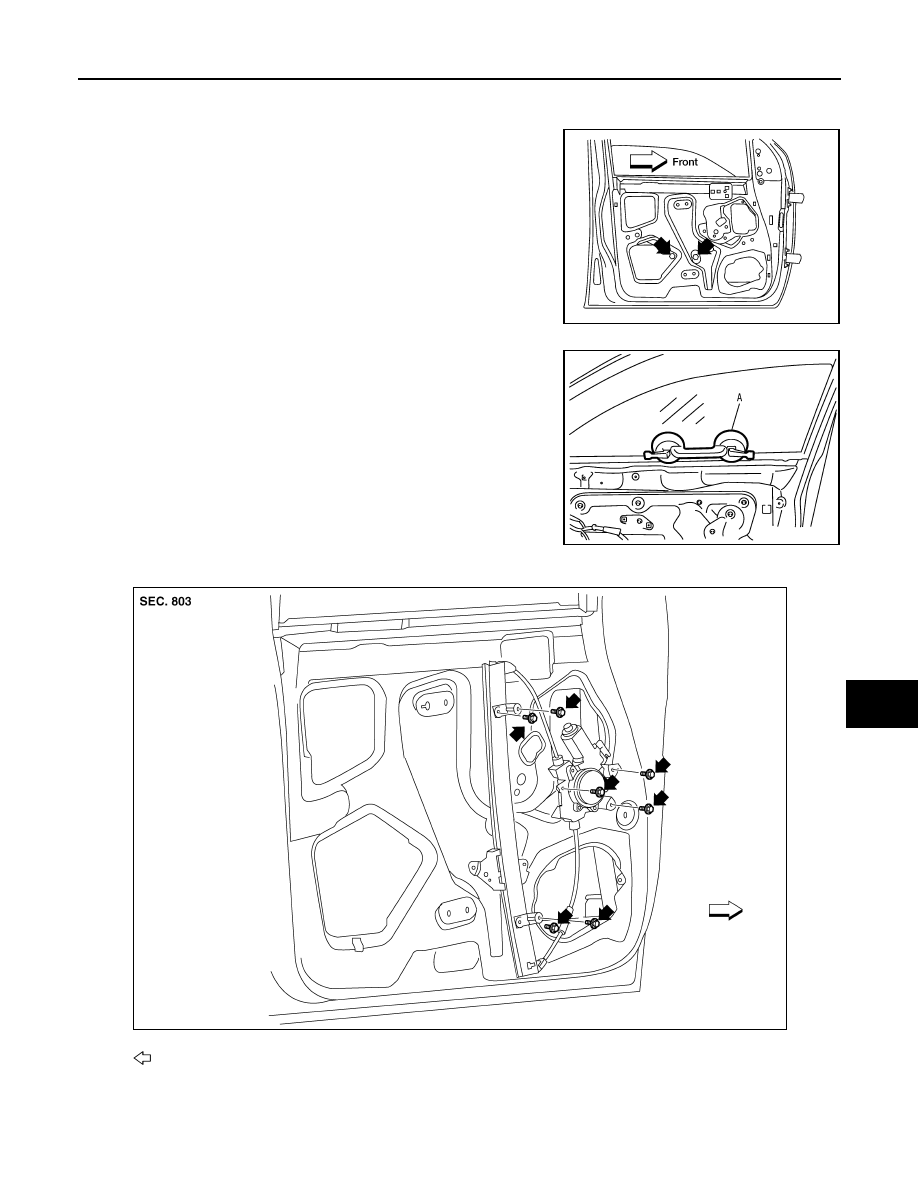

LIIA1686E

PIIB3510J

Front

WIIA1033E

GW-18

< ON-VEHICLE REPAIR >

FRONT DOOR GLASS AND REGULATOR

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.
• Wire wear
• Regulator deformation
• Grease condition for each sliding part

INSTALLATION

1.

Install the regulator assembly.

a.

Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor or
crank assembly to install the assembly in the door.

b.

Install the top front regulator bolt.

c.

Install the bottom front regulator bolt.

d.

Install the bottom rear regulator bolt.

e.

Tighten the top rear regulator bolt.

f.

Install the top window motor or manual crank assembly bolt.

g.

Install the lower window motor or manual crank assembly bolt

h.

Install the rear window motor or manual crank assembly bolt.

2.

If equipped, connect the harness connector to the regulator assembly.

Front

Regulator and motor or
manual crank assembly
bolts

: 5.7 N·m (0.58 kg-m, 50 in-lb)

WIIA1033E

FRONT DOOR GLASS AND REGULATOR

GW-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

3.

Lower the glass and ensure that it is in both the front and rear
glass channels. Tighten glass bolts.

4.

Check the glass for proper fit. Follow the FITTING INSPECTION procedure .

5.

On the drivers door, reset the motor (if equipped). Follow the SETTING AFTER INSTALLATION proce-
dure .

6.

Install the inside seal.

7.

Reposition the vapor barrier.

8.

Install front door finisher. Refer to

INT-14, "Removal and Installation"

 .

SETTING AFTER INSTALLATION

Setting of Limit Switch

If any of the following work has been done, set the limit switch (integrated in the motor).
• Removal and installation of the regulator.
• Removal and installation of the motor from the regulator.
• Removal and installation of the glass.
• Removal and installation of the glass run.

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1.

Raise the glass to the top position.

2.

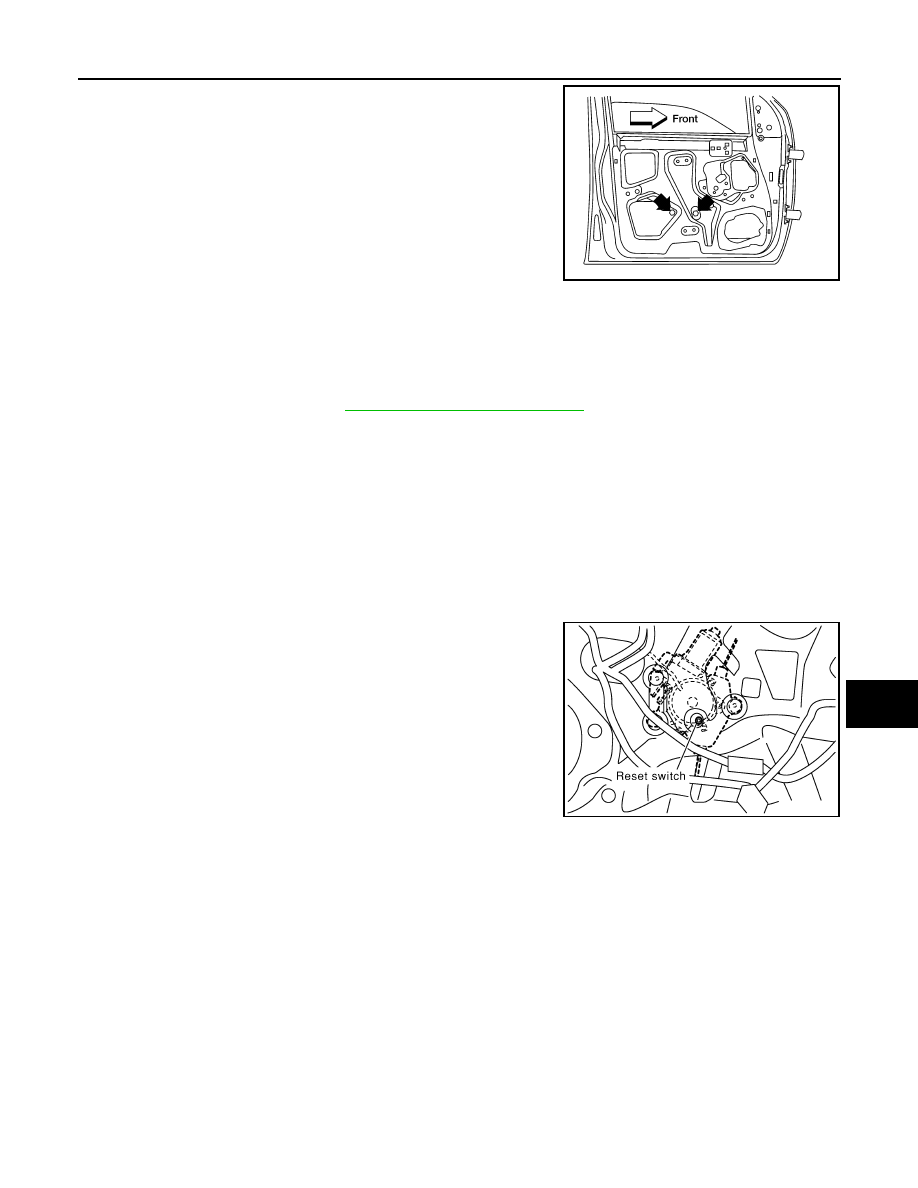

While pressing and holding the reset switch, lower the glass to
the bottom position.

3.

Release the reset switch. Verify that the reset switch returns to
the original position, if not, pull the switch using suitable tool.

4.

Raise the glass to the top position.

CAUTION:

Do not operate the glass automatically to raise the glass to
the top position.

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1686E

SIIA0347E
