HAZARD SWITCH

EXL-149

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Removal and Installation

INFOID:0000000005274798

REMOVAL

1.

Remove cluster lid C. Refer to

IP-10, "Exploded View"

2.

Disconnect the hazard switch connector.

3.

Remove the screws and remove the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

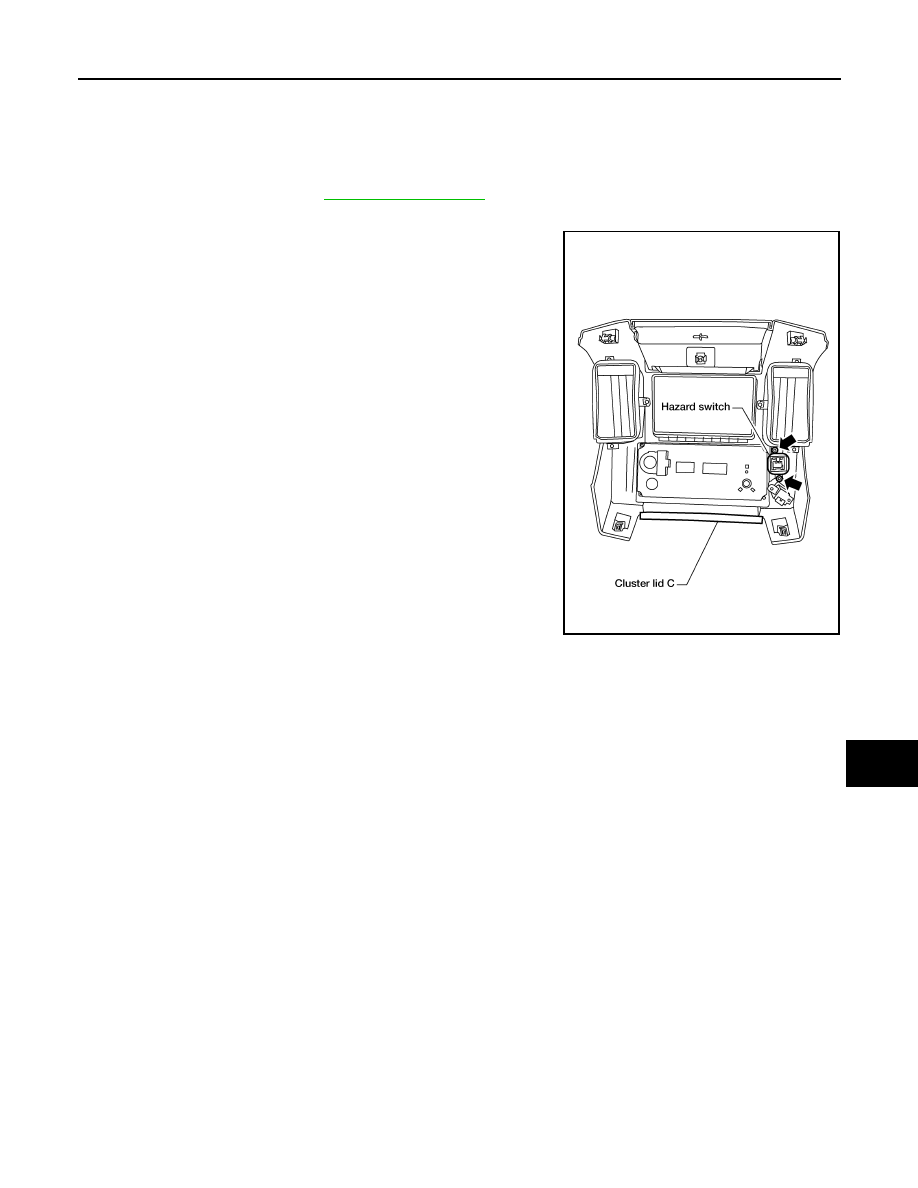

LKIA0575E

EXL-150

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Headlamp

INFOID:0000000005274799

*: Always check with the Parts Department for the latest parts information.

Exterior Lamp

INFOID:0000000005274800

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Low/High

65/55

Item

Wattage (W)*

Front combination lamp

Turn signal lamp/parking lamp

28/8

Side marker

3.8

Rear combination lamp

Stop/Tail lamp

27/8

Turn signal lamp

27

Back-up lamp

18

Fog lamp

55

License plate lamp

5

High-mounted stop lamp

16

Cargo lamp (in high-mounted stop lamp)

16

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Service Notice ...........................................................

Precaution for Procedure without Cowl Top Cover

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool ..........................................

ON-VEHICLE MAINTENANCE .....................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

Work Flow .................................................................

Generic Squeak and Rattle Troubleshooting ............

Diagnostic Worksheet ...............................................

CLIP AND FASTENER .......................................

Clip and Fastener ....................................................

ON-VEHICLE REPAIR .................................

FRONT BUMPER ...............................................

Removal and Installation .........................................

REAR BUMPER .................................................

Removal and Installation .........................................

FRONT GRILLE .................................................

Removal and Installation .........................................

COWL TOP .......................................................

Removal and Installation .........................................

FRONT FENDER ...............................................

Removal and Installation .........................................

FENDER PROTECTOR ....................................

Component ..............................................................

Removal and Installation of Front Fender Protec-
tor ............................................................................

Removal and Installation of Rear Fender Protector

....

MUDGUARD .....................................................

Removal and Installation .........................................

RUNNING BOARDS .........................................

Removal and Installation .........................................

ROOF RACK .....................................................

Removal and Installation .........................................

DOOR OUTSIDE MOLDING .............................

Removal and Installation .........................................

SIDE GUARD MOLDING ..................................

Removal and Installation .........................................

BED RAILS AND TRIM .....................................

Removal and Installation .........................................

TAIL GATE FINISHER ......................................

Removal and Installation .........................................

EXT-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005561438

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service Notice

INFOID:0000000005274667

• When removing or installing various parts, place a cloth or padding on the vehicle body to prevent scratches.
• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil or

damage them.

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000005274668

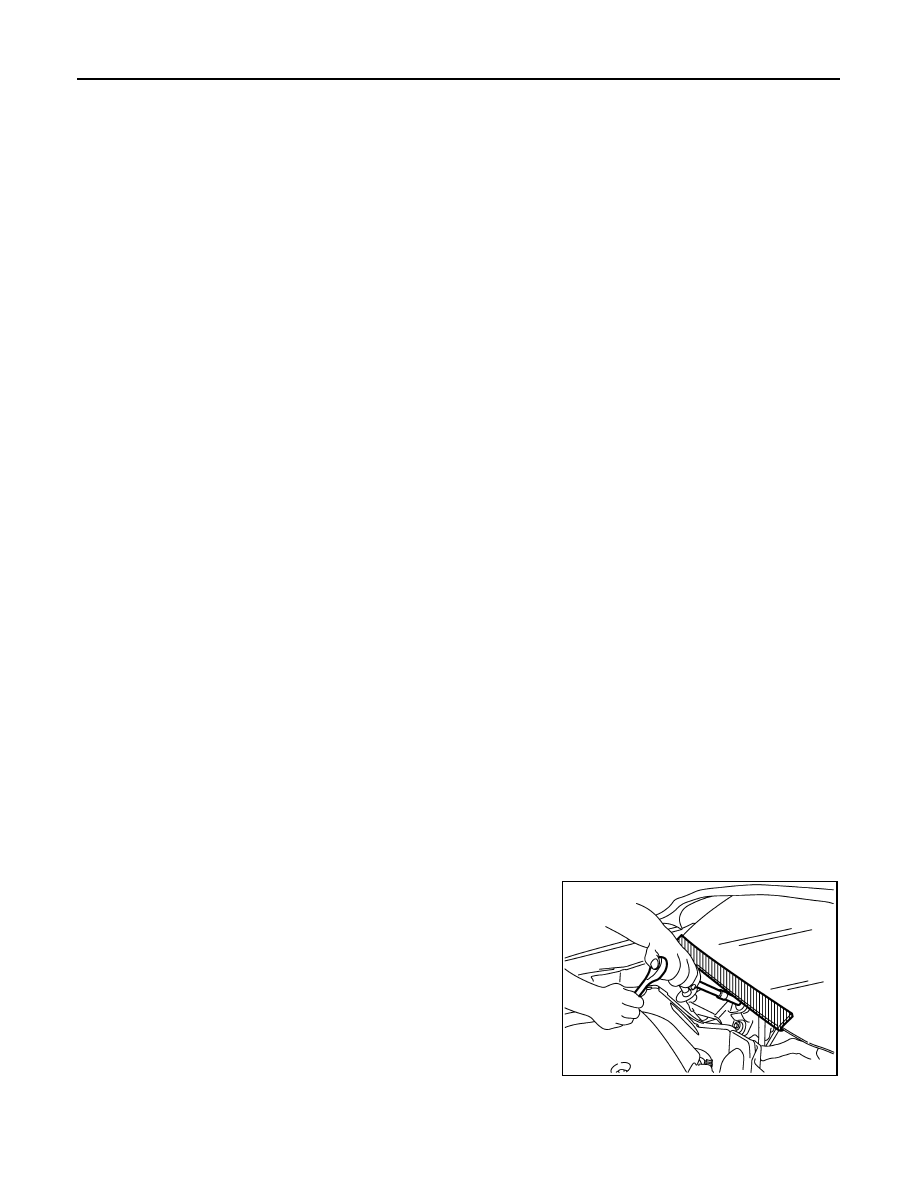

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J
