Nissan Frontier D40. Manual - part 668

STOP LAMP

EXL-145

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

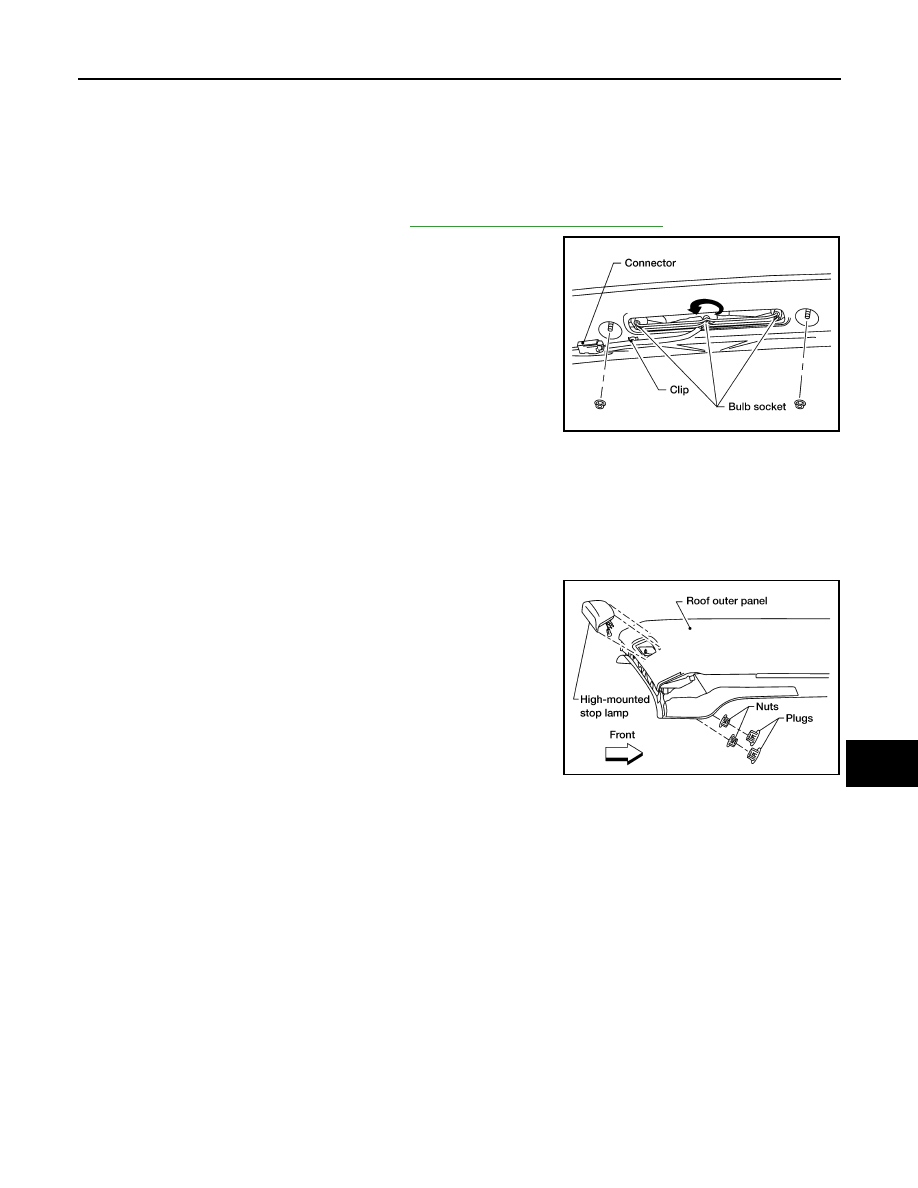

STOP LAMP

Bulb Replacement

INFOID:0000000005274791

HIGH-MOUNTED STOP LAMP

Removal

1.

Remove high-mounted stop lamp. Refer to

EXL-145, "Removal and Installation"

.

2.

Rotate the center bulb socket counterclockwise to release from
high-mounted stop lamp assembly.

3.

Pull bulb straight out from bulb socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005274792

HIGH-MOUNTED STOP LAMP

Removal

1.

Remove plugs on headlining.

2.

Remove the nuts and remove high-mounted stop lamp from out-
side of roof outer panel.

3.

Rotate the bulb sockets counterclockwise and remove the high-
mounted stop lamp assembly.

Installation

Installation is in the reverse order of removal.

WKIA3545E

WKIA3782E

High-mounted stop lamp nuts

: 3.38 N·m (0.34 kg-m, 30 in-lb)

EXL-146

< ON-VEHICLE REPAIR >

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000005274793

REMOVAL

1.

Turn bulb socket counterclockwise to unlock bulb socket.

2.

Pull bulb to remove from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005274794

REMOVAL

1.

Disconnect license plate lamp harness.

2.

Depress tab to remove license plate lamp from rear bumper.

INSTALLATION

Installation is in the reverse order of removal.

REAR COMBINATION LAMP

EXL-147

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

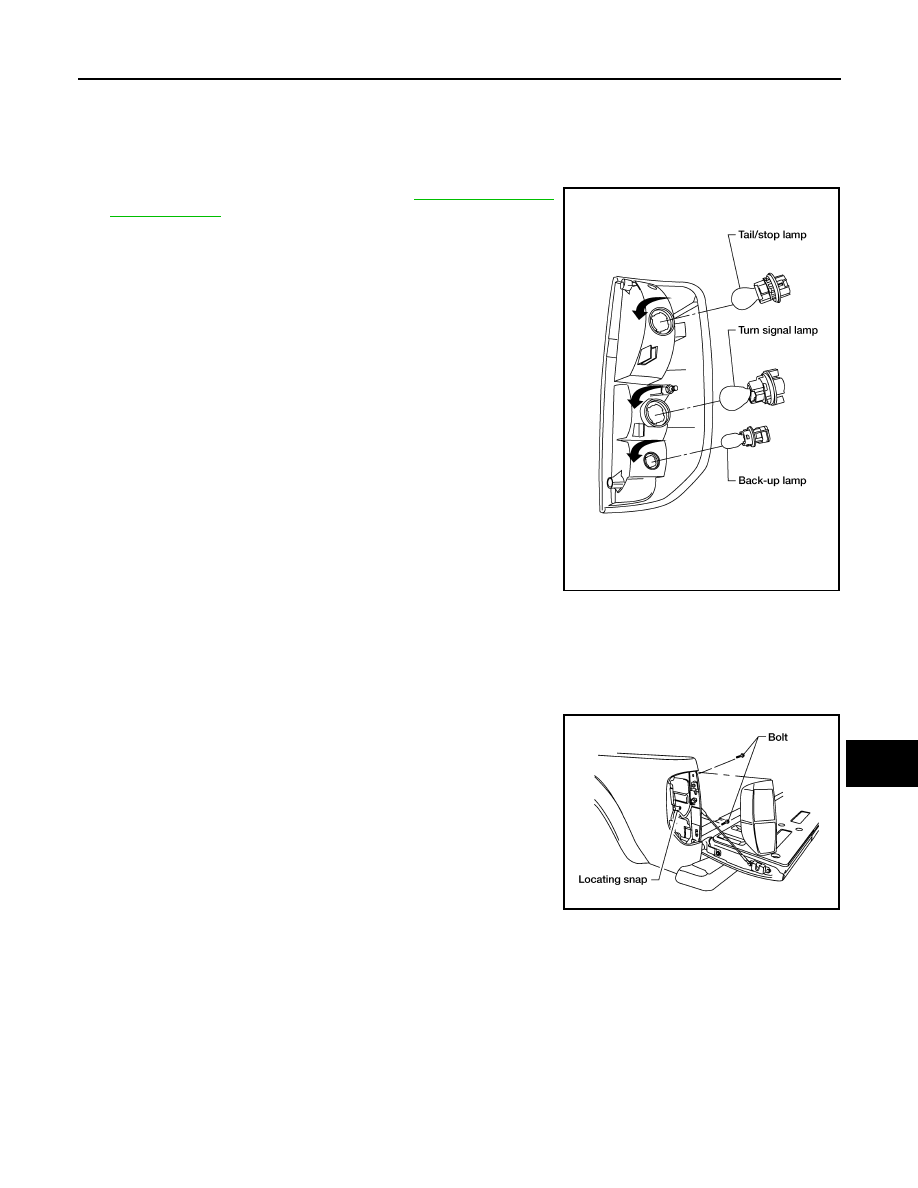

REAR COMBINATION LAMP

Bulb Replacement

INFOID:0000000005274795

REMOVAL

1.

Remove rear combination lamp. Refer to

EXL-147, "Removal

and Installation"

.

2.

Turn bulb counterclockwise to remove bulb socket.

3.

Pull bulb straight out away from socket to release.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000005274796

REMOVAL

1.

Open tailgate and remove rear combination lamp bolts.

2.

Pull combination lamp housing rearward to release locating
snap.

3.

Rotate each bulb socket counterclockwise to unlock it from lamp
housing and remove from vehicle.

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
 During installation, align locating snap on body prior to installing bolts.

WKIA3780E

WKIA3781E

Rear combination lamp bolts

: 2.4 Nm (0.24 kg-m, 21 in-lb)

EXL-148

< ON-VEHICLE REPAIR >

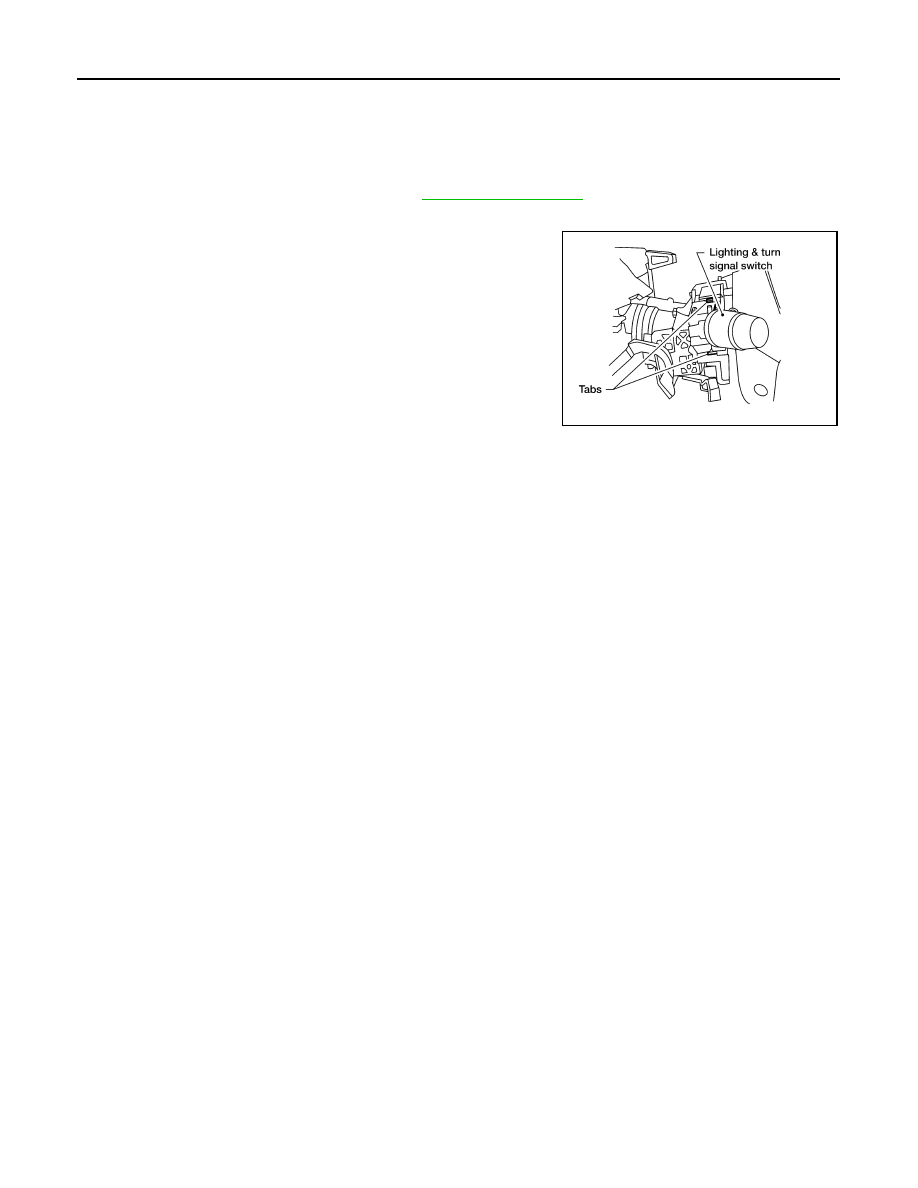

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000005274797

REMOVAL

1.

Remove lower instrument panel LH. Refer to

IP-10, "Exploded View"

.

2.

Remove knee protector brace.

3.

Remove steering column cover.

4.

Disconnect the lighting and turn signal switch connector.

5.

While pressing tabs, pull lighting and turn signal switch toward
driver door and release from the steering column.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0013E
