< PREPARATION >

[VQ40DE]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005274310

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

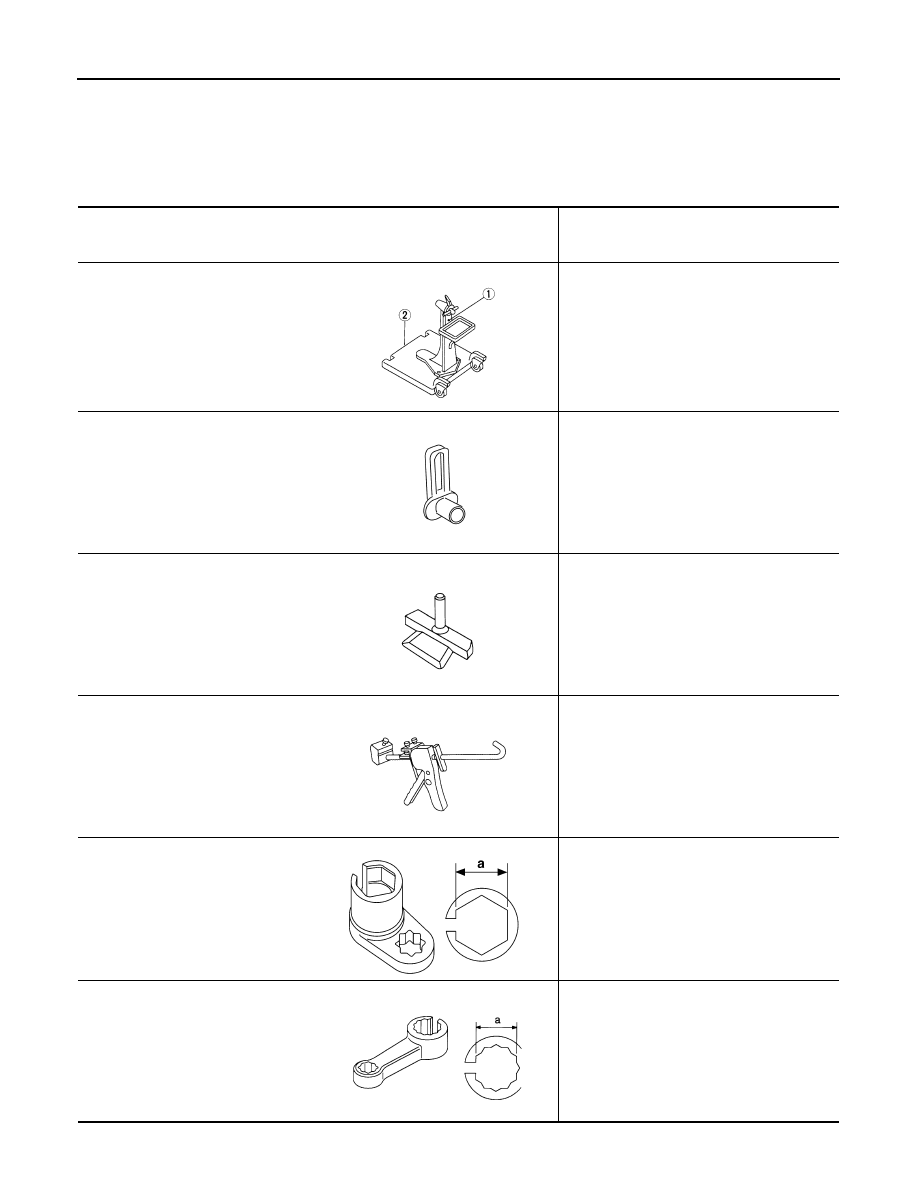

ST0501S000
(

—

)

Engine stand assembly
1. ST05011000
(

—

)

Engine stand
2. ST05012000
(

—

)

Base

Disassembling and assembling engine

—

(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

WS39930000
(

—

)

Tube presser

Pressing the tube of liquid gasket

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

NT042

PBIC0198E

NT046

NT052

LBIA0444E

NT636

PREPARATION

EM-121

< PREPARATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

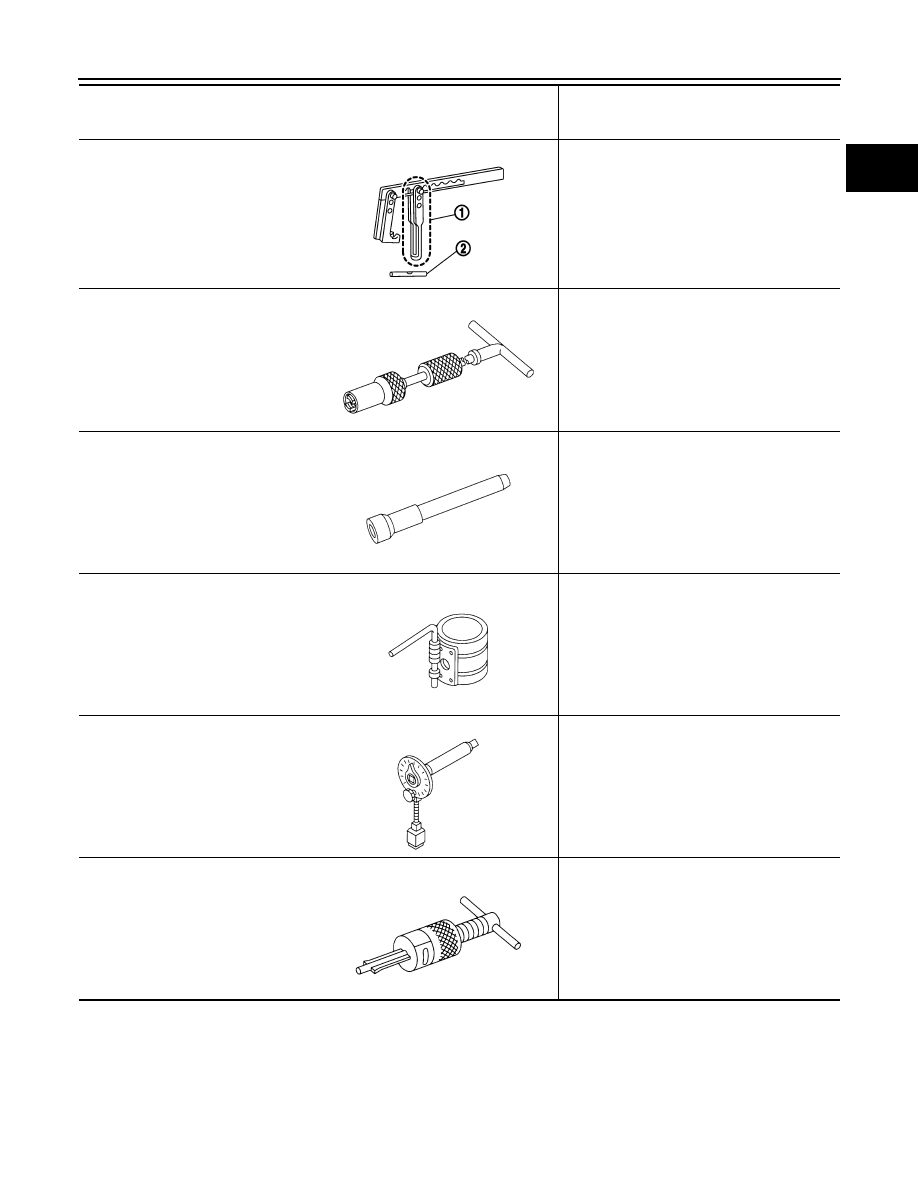

KV10116200
(J-26336-B)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2.KV10109220
(

—

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-B), but Part (2) is not so.

KV10107902
(J-38959)
Valve oil seal puller

Replacing valve oil seal

—

(J-39386)
Valve oil seal drift

Installing valve oil seal

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter

Tool number
(Kent-Moore No.)
Tool name

Description

PBIC1650E

NT011

NT024

NT044

NT014

NT045

EM-122

< PREPARATION >

[VQ40DE]

PREPARATION

Commercial Service Tool

INFOID:0000000005274311

   —

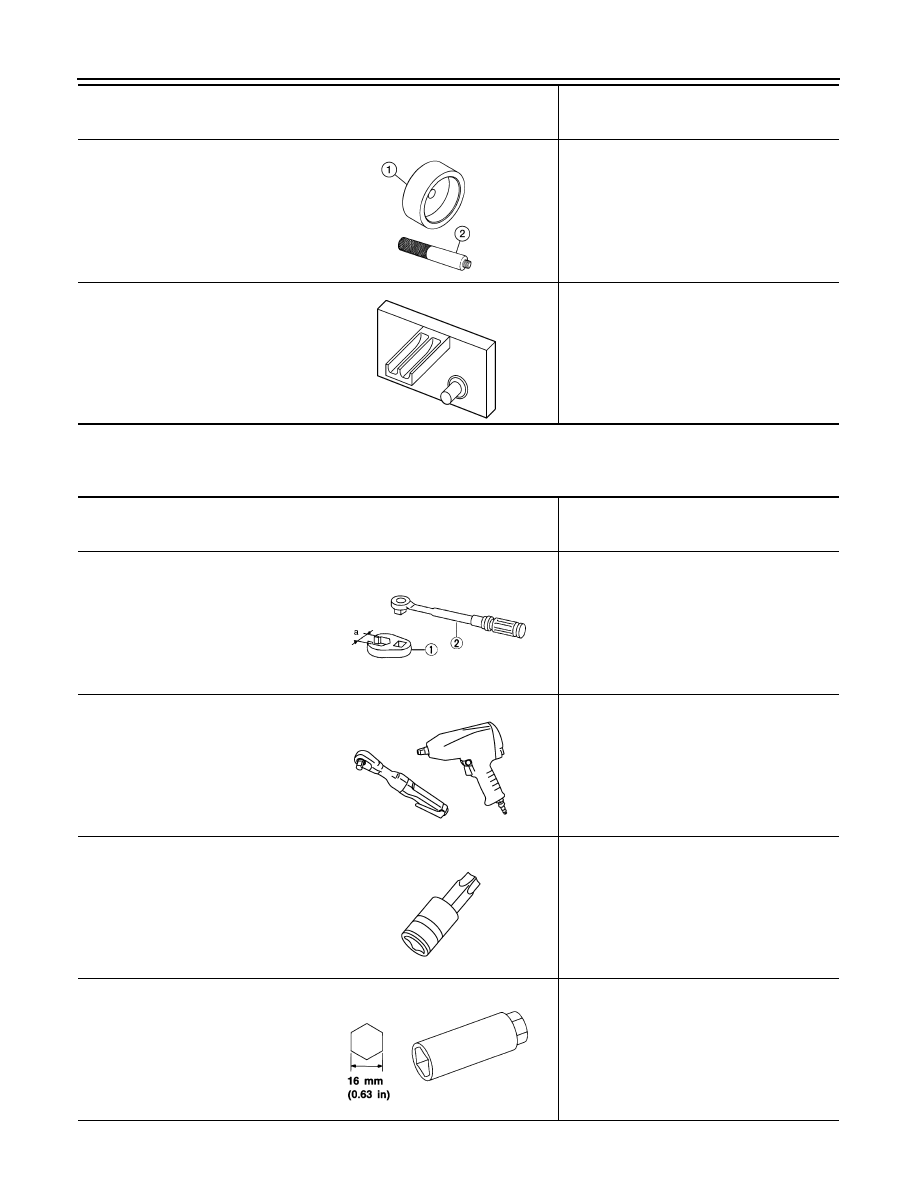

1. (J-49815)
2. (J-8092)
Seal installer and driver handle

Installing rear main seal

—

(J-48761)
Ring gear stopper

Removing and installing crankshaft pulley

Tool number
(Kent-Moore No.)
Tool name

Description

AWBIA0862ZZ

ALBIA0523ZZ

Tool number
(Kent-Moore No.)
Tool name

Description

1. Crowfoot
2. Torque wrench

Installing exhaust manifold nuts
a: 14 mm (0.55 in)

(

—

)

Power tool

Loosening nuts and bolts

KV991J0100
(J-46531)
TORX socket

Removing and installing flywheel
Size: T55

(

—

)

Spark plug wrench

Removing and installing spark plug

S-NT360

PBIC0190E

PBIC1113E

NT047

PREPARATION

EM-123

< PREPARATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

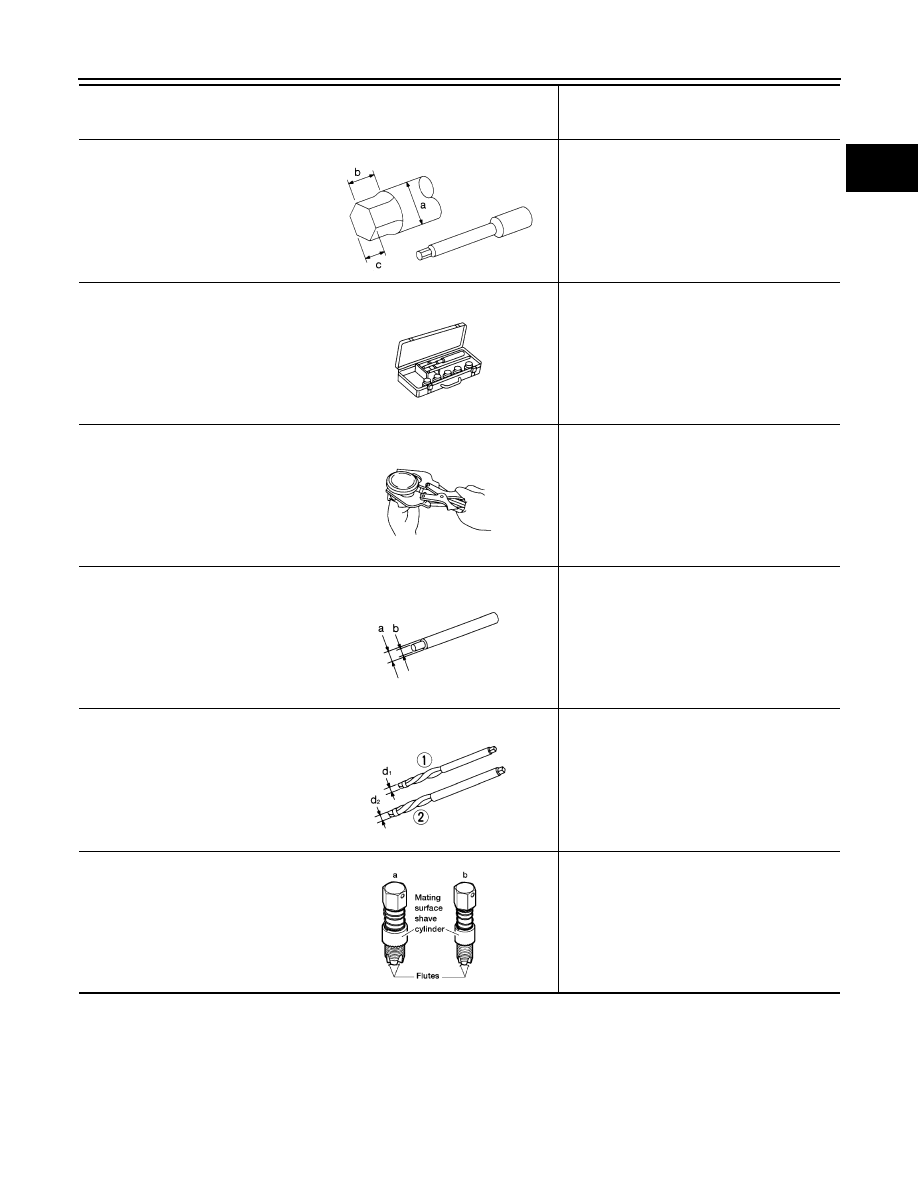

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

(

—

)

Valve seat cutter set

Finishing valve seat dimensions

(

—

)

Piston ring expander

Removing and installing piston ring

(

—

)

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

(

—

)

Valve guide reamer

(1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.175 - 10.196 mm (0.4006 - 0.4014 in)

dia.

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor
