Nissan Frontier D40. Manual - part 598





EM-124

< PREPARATION >

[VQ40DE]

PREPARATION

(

)

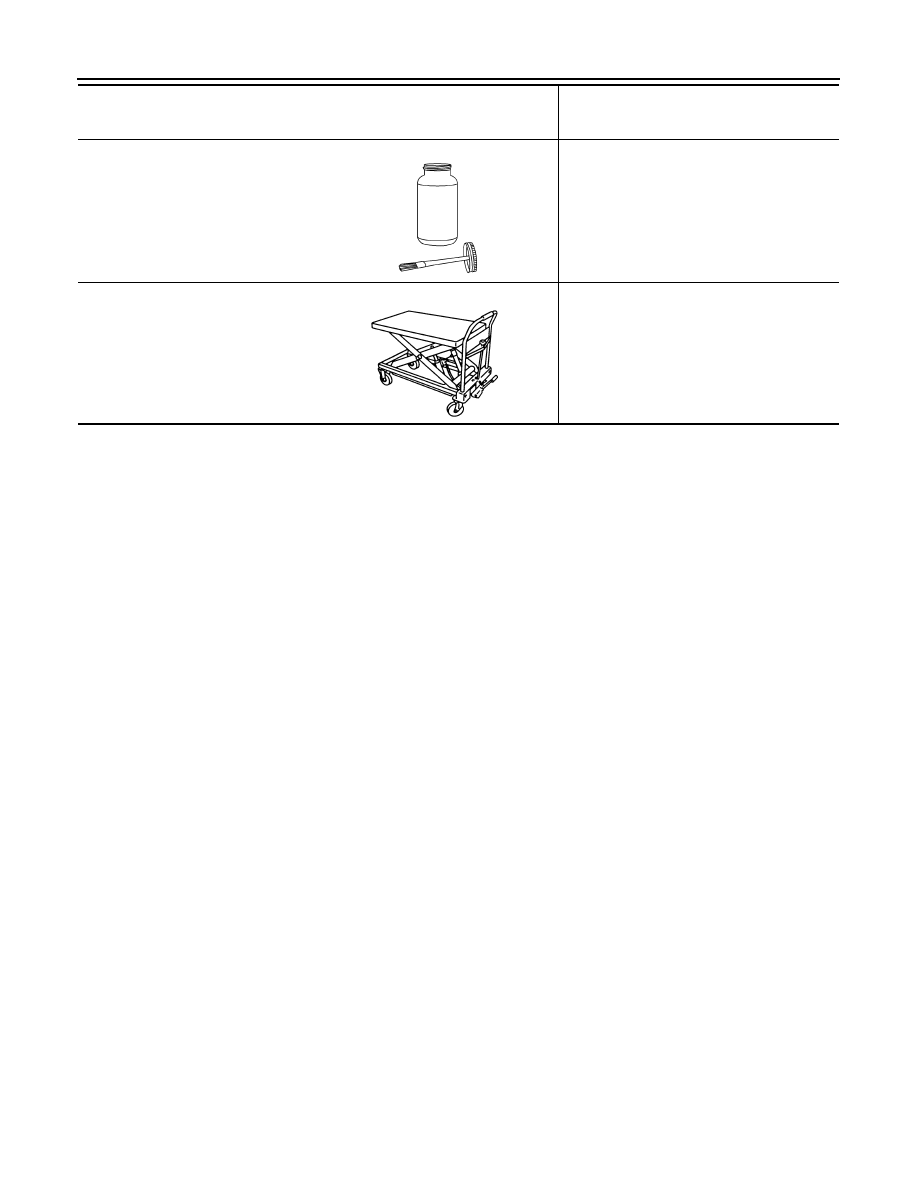

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

(

)

Manual lift table caddy

Removing and installing engine

Tool number
(Kent-Moore No.)
Tool name

Description

AEM489

ZZA1210D

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-125

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUNCTION DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting - Engine Noise

INFOID:0000000005274312

Use the Chart Below to Help You Find the Cause of the Symptom

INFOID:0000000005274313

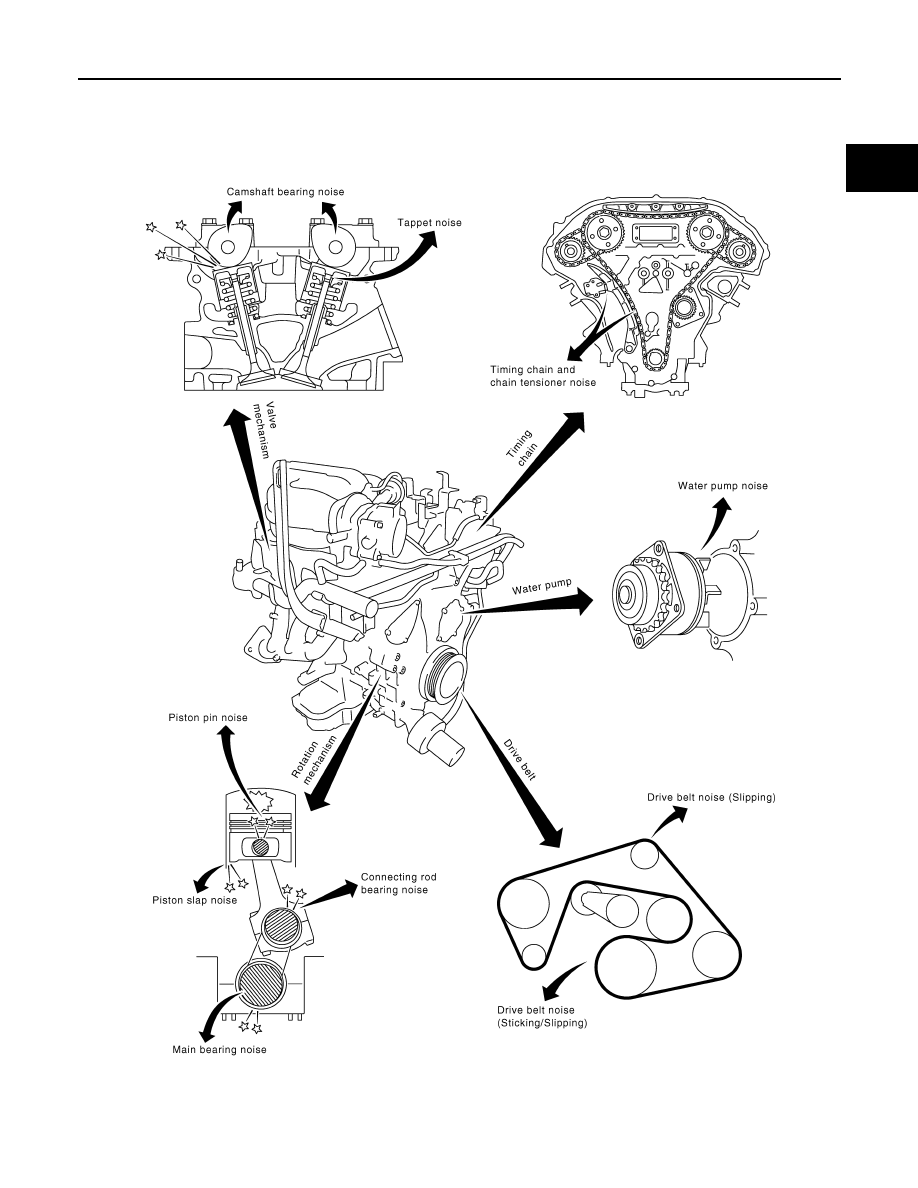

1.

Locate the area where noise occurs.

PBIC2873E

EM-126

< FUNCTION DIAGNOSIS >

[VQ40DE]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of en-
gine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-132

Rattle

C

A

A

B

C

Camshaft
bearing
noise

Camshaft runout
Camshaft journal oil
clearance

EM-187
EM-187

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
knock

A

B

B

Piston pin
noise

Piston to piston pin oil
clearance
Connecting rod bushing
oil clearance

EM-225



EM-225

Slap or
rap

A

B

B

A

Piston
slap noise

Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion

EM-225
EM-225
EM-225
EM-225

Knock

A

B

C

B

B

B

Connect-
ing rod
bearing
noise

Connecting rod bushing
oil clearance
Connecting rod bearing
oil clearance

EM-225
EM-225

Knock

A

B

A

B

C

Main bear-
ing noise

Main bearing oil clear-
ance
Crankshaft runout

EM-225
EM-225

Front of
engine
Timing
chain case

Tapping or
ticking

A

A

B

B

B

Timing
chain and
chain ten-
sioner
noise

Timing chain cracks
and wear
Timing chain tensioner
operation

EM-173
EM-173

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belts
(Sticking
or slip-
ping)

Drive belts deflection

EM-127

Creaking

A

B

A

B

A

B

Drive belts
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-49

Rattle

A

VTC

VTC lock pin clearance

EM-173

DRIVE BELTS

EM-127

< ON-VEHICLE MAINTENANCE >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ON-VEHICLE MAINTENANCE

DRIVE BELTS

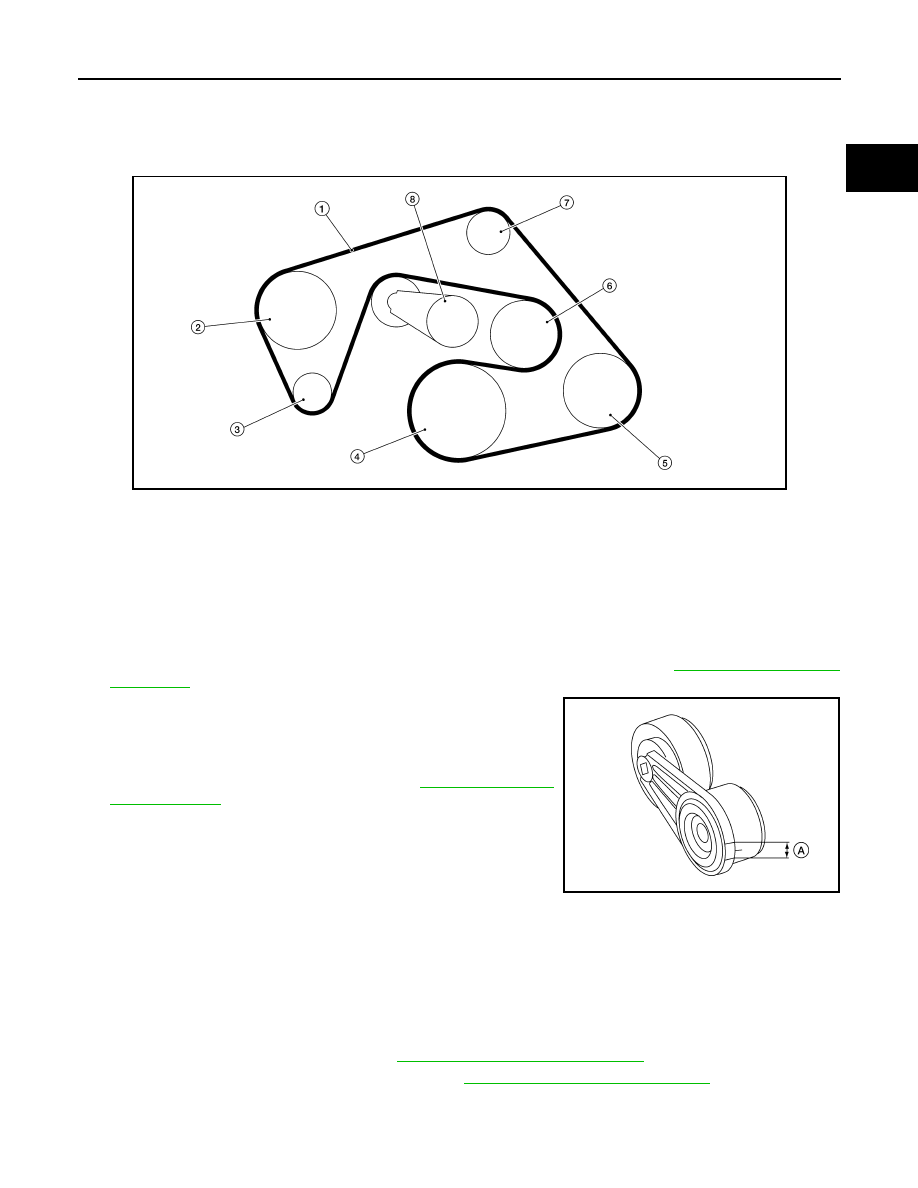

Exploded View

INFOID:0000000005274314

Checking Drive Belts

INFOID:0000000005274315

WARNING:

Be sure to perform when the engine is stopped.
1.

Remove air duct and resonator assembly when inspecting drive belt. Refer to

EM-139, "Removal and

Installation"

.

2.

Make sure that the auto tensioner indicator is within the allow-
able working range (A) as shown.

3.

Visually check entire belt for wear, damage or cracks.

4.

If the indicator is out of allowable working range or drive belt is
damaged, replace the drive belt. Refer to

EM-127, "Removal

and Installation"

.

Adjustment

INFOID:0000000005274316

There is no manual drive belt tension adjustment. The drive belt tension is automatically adjusted by the drive
belt auto tensioner.

Removal and Installation

INFOID:0000000005274317

REMOVAL

1.

Remove the engine room cover. Refer to

EM-138, "Removal and Installation"

.

2.

Remove air duct and resonator assembly. Refer to

EM-139, "Removal and Installation"

.

LBIA0427E

1.

Drive belt

2.

Power steering oil pump pulley

3.

Generator pulley

4.

Crankshaft pulley

5.

A/C compressor

6.

Cooling fan pulley

7.

Idler pulley

8.

Drive belt tensioner

AWBIA0723ZZ
