P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-695

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-696, "Component Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Replace EVAP canister purge volume control solenoid valve.

8.

CHECK RUBBER TUBE FOR CLOGGING

1.

Disconnect rubber tube connected to EVAP canister vent control valve.

2.

Check the rubber tube for clogging.

OK or NG

OK

>> GO TO 9.

NG

>> Clean the rubber tube using an air blower.

9.

CHECK DRAIN FILTER

Refer to

EC-691, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Replace drain filter.

10.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-702, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> Replace EVAP canister vent control valve.

11.

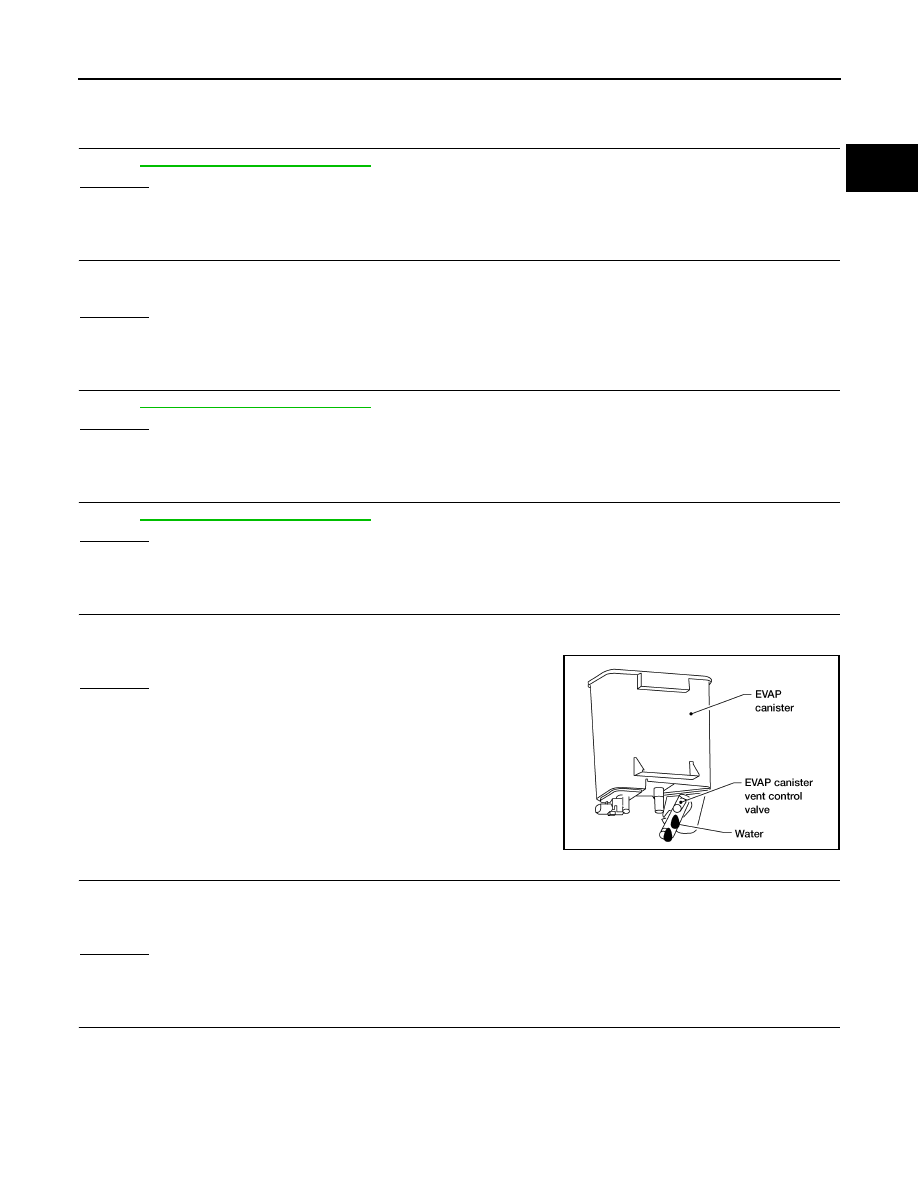

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.

2.

Check if water will drain from the EVAP canister.

Yes or No

Yes

>> GO TO 12.

No

>> GO TO 14.

12.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.0 kg (4.4 lb).

OK or NG

OK

>> GO TO 14.

NG

>> GO TO 13.

13.

DETECT MALFUNCTIONING PART

Check the following.
• EVAP canister for damage
• EVAP hose between EVAP canister and drain filter for clogging or poor connection

>> Repair hose or replace EVAP canister.

BBIA0558E

EC-696

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

14.

CHECK INTERMITTENT INCIDENT

Refer to

GI-46, "Intermittent Incident"

.

>> INSPECTION END

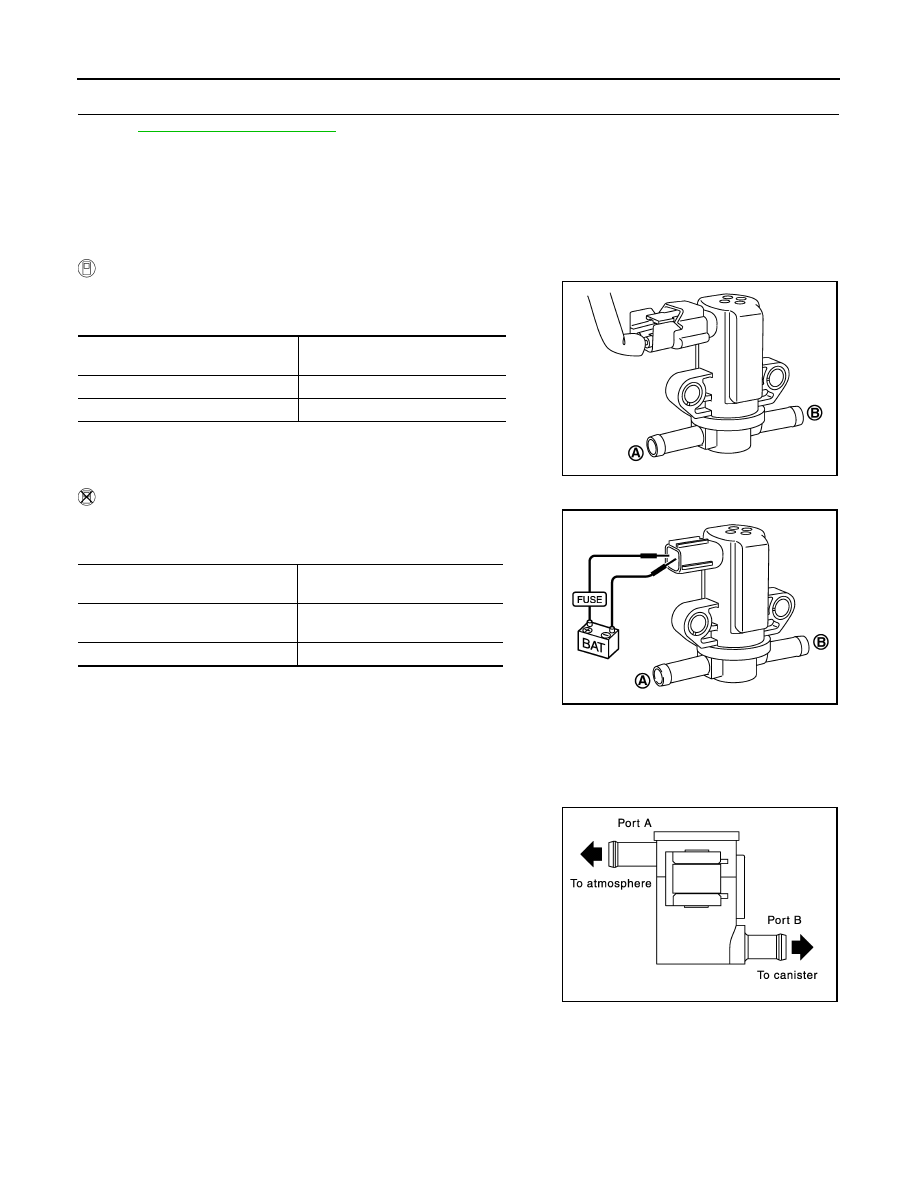

Component Inspection

INFOID:0000000005273662

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT-III

Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.

 Without CONSULT-III

Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.

DRAIN FILTER

1.

Check visually for insect nests in the drain filter air inlet.

2.

Check visually for cracks or flaws in the appearance.

3.

Check visually for cracks or flaws in the hose.

4.

Blow air into port A and check that it flows freely out of port B.

5.

Block port B.

6.

Blow air into port A and check that there is no leakage.

7.

If NG, replace drain filter.

Condition

(PURG VOL CONT/V value)

Air passage continuity

between (A) and (B)

100%

Yes

0%

No

PBIB2058E

Condition

Air passage continuity

between (A) and (B)

12V direct current supply between
terminals 1 and 2

Yes

No supply

No

PBIB2059E

PBIB3641E

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

EC-697

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE

Description

INFOID:0000000005273663

SYSTEM DESCRIPTION

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This signal is sent to the ECM through CAN communication line.

This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.

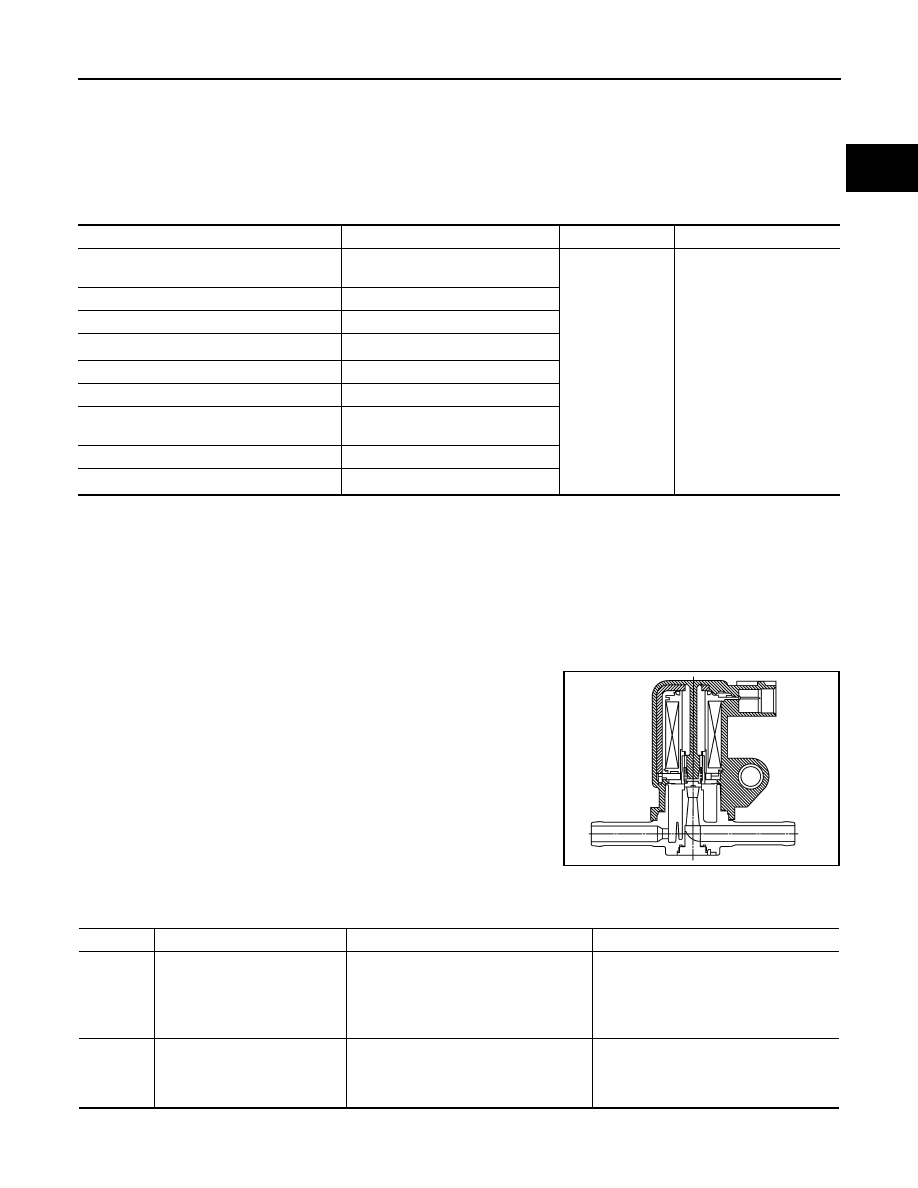

COMPONENT DESCRIPTION

The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.

On Board Diagnosis Logic

INFOID:0000000005273664

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

EVAP canister
purge flow control

EVAP canister purge vol-
ume control solenoid valve

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

1

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Air fuel ratio (A/F) sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel tank temperature sensor

Fuel temperature in fuel tank

Wheel sensor

Vehicle speed*

2

PBIB2057E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0444
0444

EVAP canister purge volume
control solenoid valve circuit
open

An excessively low voltage signal is sent
to ECM through the valve

• Harness or connectors

(The solenoid valve circuit is open or
shorted.)

• EVAP canister purge volume control so-

lenoid valve

P0445
0445

EVAP canister purge volume
control solenoid valve circuit
shorted

An excessively high voltage signal is sent
to ECM through the valve

• Harness or connectors

(The solenoid valve circuit is shorted.)

• EVAP canister purge volume control so-

lenoid valve

EC-698

< COMPONENT DIAGNOSIS >

[VQ40DE]

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

DTC Confirmation Procedure

INFOID:0000000005273665

NOTE:
If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next step.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11V at idle.
1.

Start engine and let it idle for at least 13 seconds.

2.

Check 1st trip DTC.

3.

If 1st trip DTC is detected, go to

EC-698, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005273666

1.

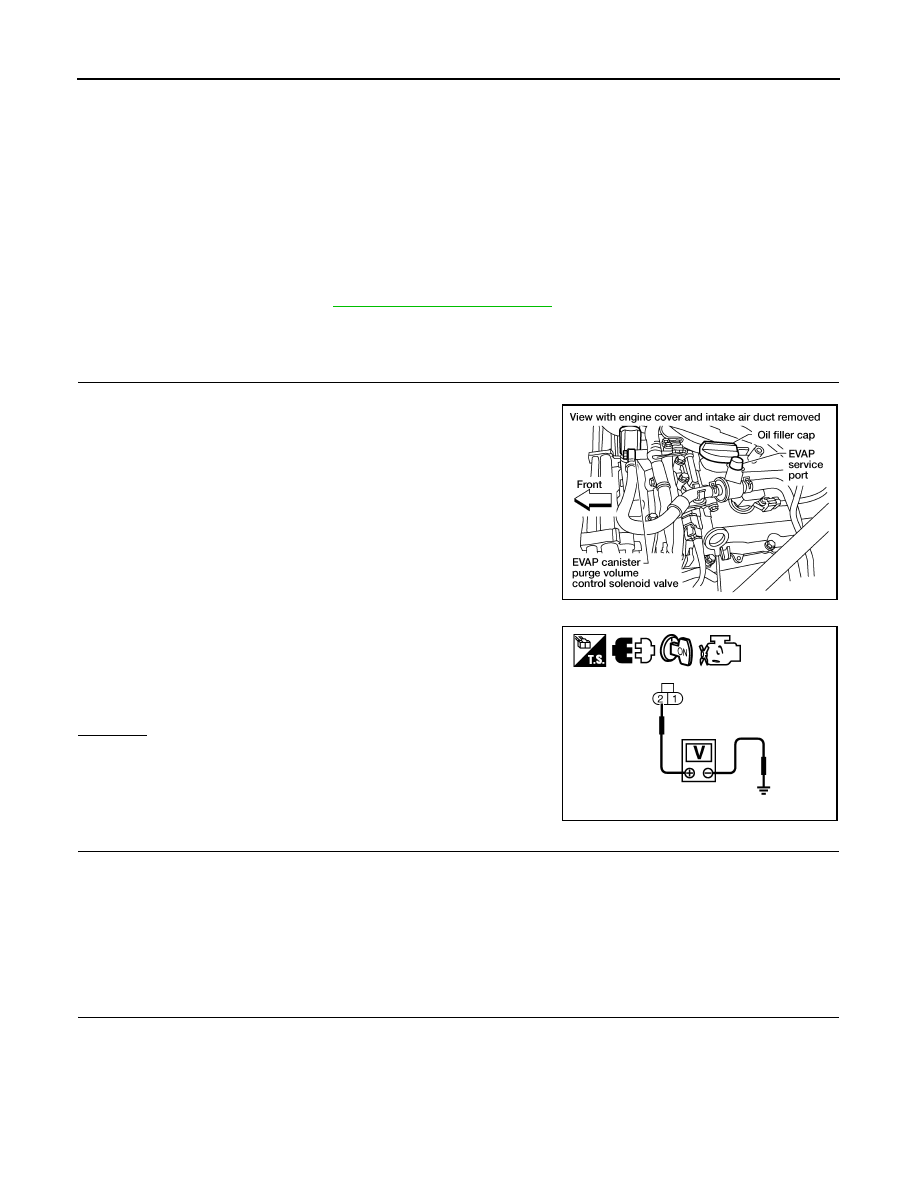

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve
harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between EVAP canister purge volume control
solenoid valve terminal 2 and ground with CONSULT-III or
tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E2, F32
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair harness or connectors.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 45 and EVAP canister purge volume control solenoid
valve terminal 1. Refer to Wiring Diagram.

BBIA0550E

Voltage: Battery voltage

PBIB2605E

Continuity should exist.
