Nissan Frontier D40. Manual - part 283

REAR PROPELLER SHAFT

DLN-153

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

REAR PROPELLER SHAFT

Removal and Installation

INFOID:0000000005275514

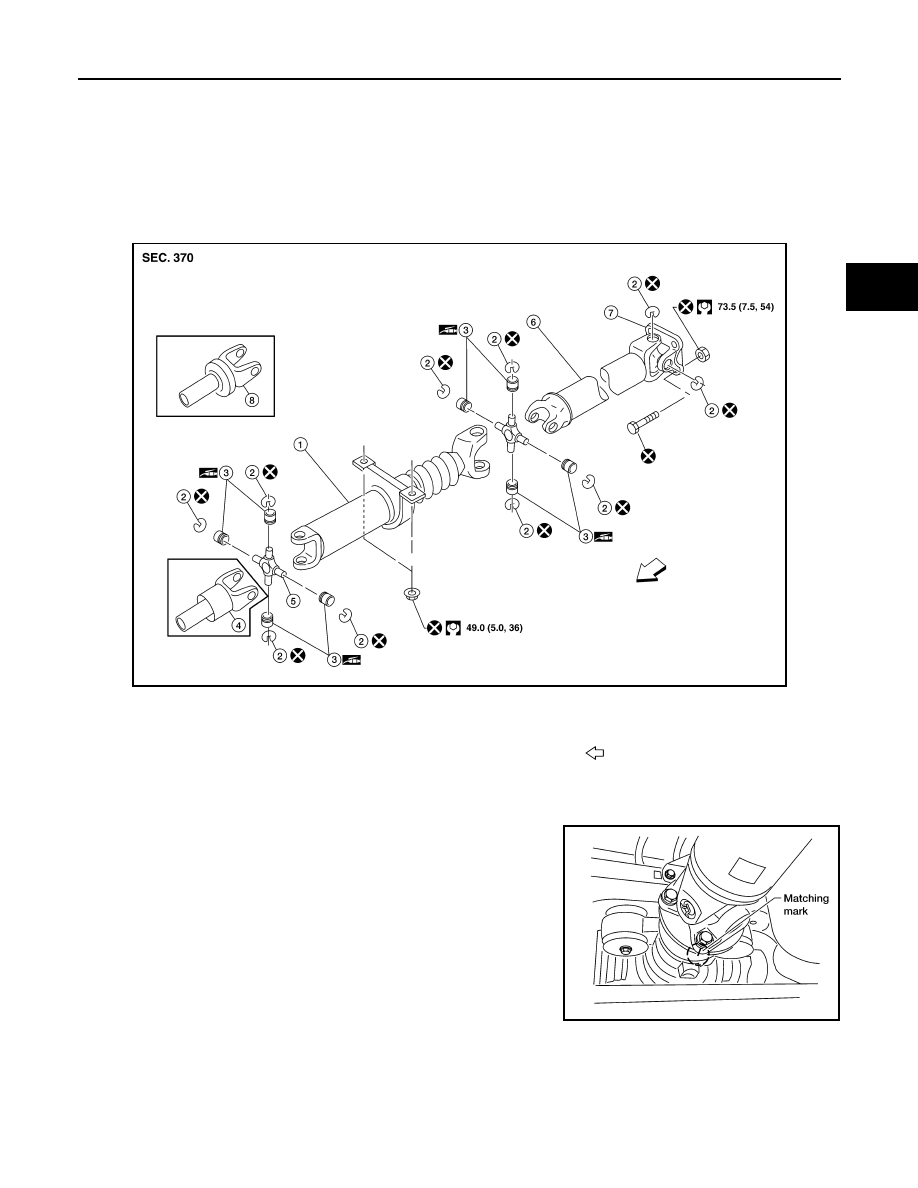

COMPONENTS

Model 3S1310

REMOVAL

1.

Put the transmission in neutral and release the parking brake.

2.

Put matching marks on the rear propeller shaft flange yoke and
the rear final drive companion flange as shown.

CAUTION:

For matching marks, use paint. Never damage the rear pro-
peller shaft flange yoke or the companion flange.

3.

Remove the bolts, then remove the propeller shaft from the rear
final drive and transmission.

INSPECTION

WDIA0338E

1.

Propeller shaft (1st shaft)

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke (5A/T)

5.

Journal

6.

Propeller shaft (2nd shaft)

7.

Flange yoke

8.

Sleeve yoke (5M/T)

Front

WDIA0049E

DLN-154

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 3S1310]

REAR PROPELLER SHAFT

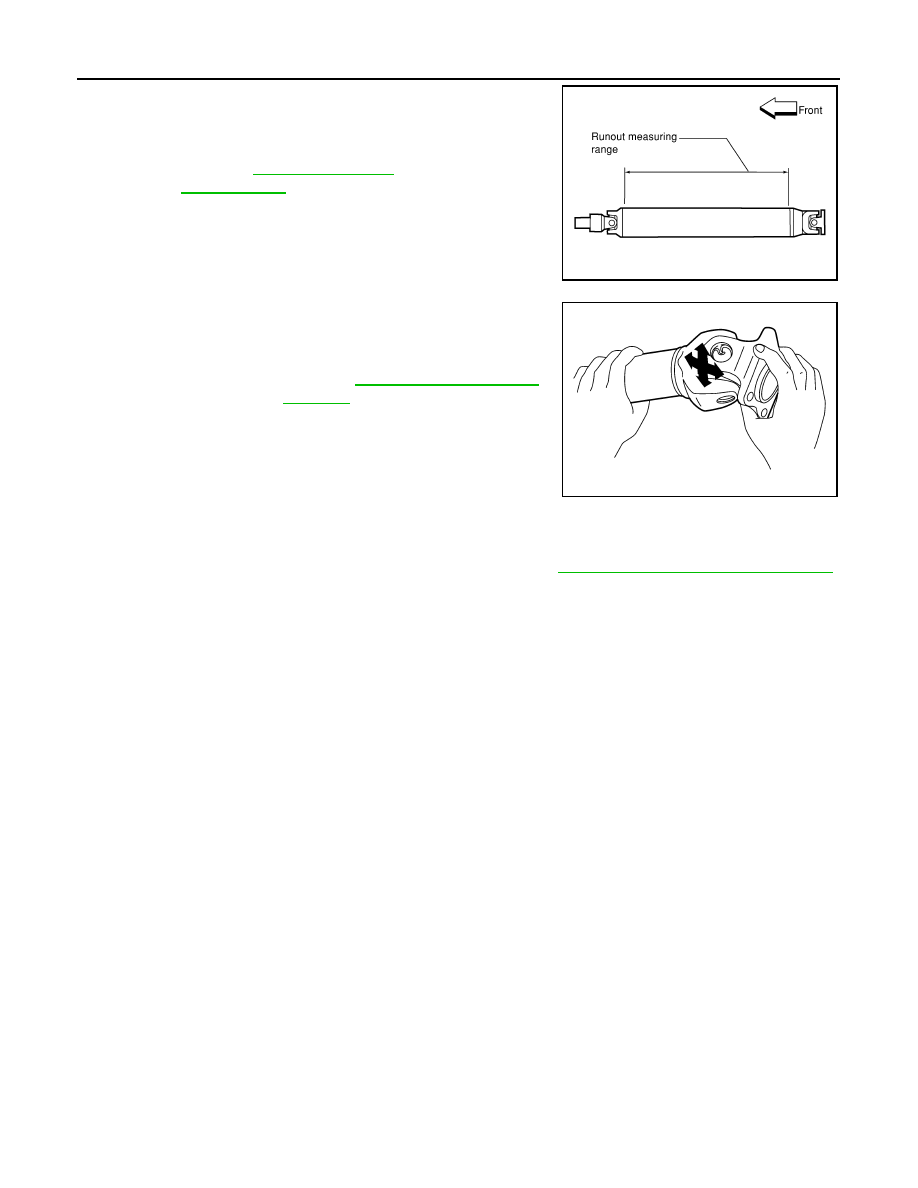

• Inspect the propeller shaft runout. If runout exceeds the limit,

replace the propeller shaft assembly.

• While holding the flange yoke on one side, check axial play of the

joint as shown. If the journal axial play exceeds the specification,
repair or replace the journal parts.

• Check the propeller shaft for dents or cracks. If damage is

detected, replace the propeller shaft assembly.

INSTALLATION

Installation is in the reverse order of removal.
• After installation, check for vibration by driving the vehicle. Refer to

DLN-151, "NVH Troubleshooting Chart"

.

CAUTION:

Do not reuse the bolts and nuts. Always install new ones.

Propeller shaft runout limit

2WD

: Refer to

DLN-158, "General

Specification"

LDIA0121E

Journal axial play

: Refer to

DLN-158, "General Spec-

ification"

LDIA0117E

REAR PROPELLER SHAFT

DLN-155

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DISASSEMBLY AND ASSEMBLY

REAR PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000005840684

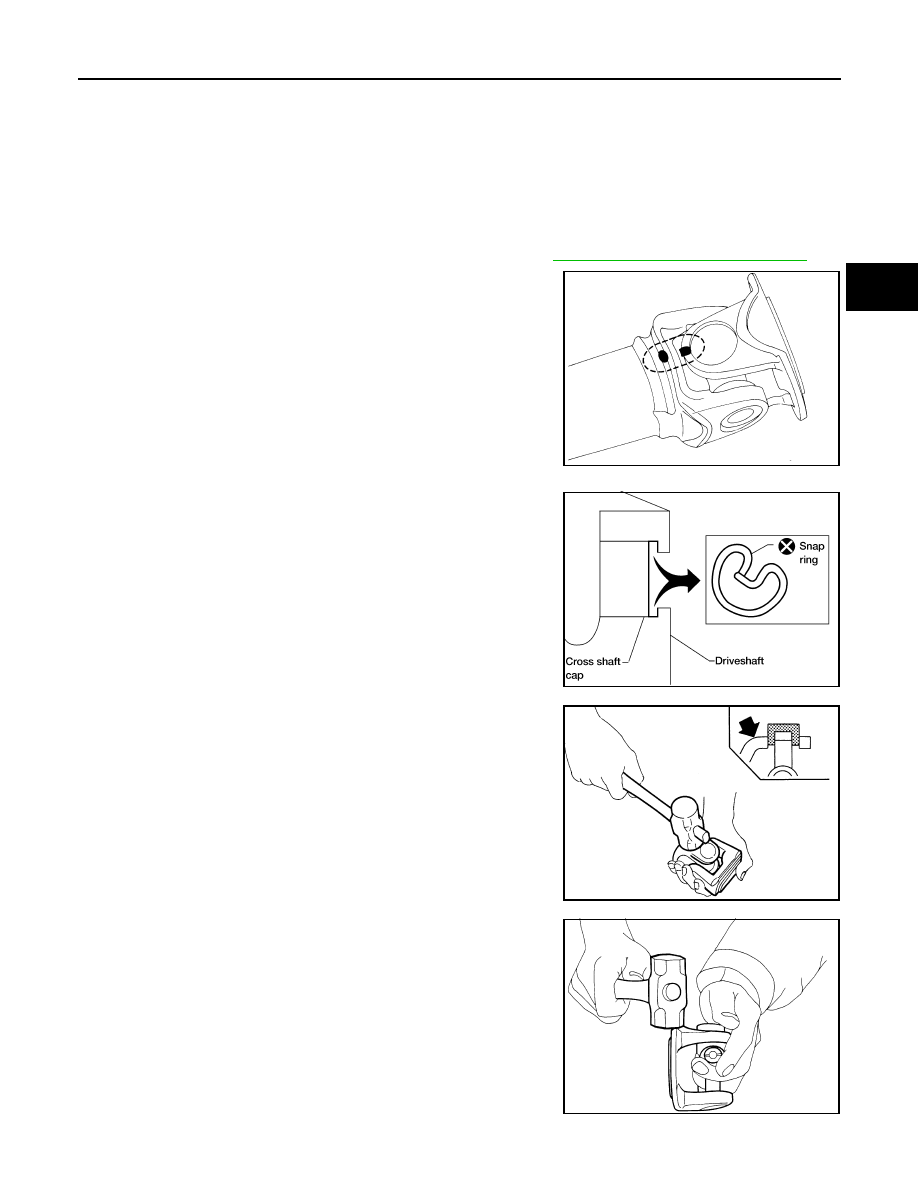

DISASSEMBLY

Journal

1.

Remove the propeller shaft assembly from the vehicle. Refer to

DLN-153, "Removal and Installation"

.

2.

Put matching marks on the rear propeller shaft tube and flange
yoke as shown.

CAUTION:

For matching marks use paint. Never damage the rear pro-
peller shaft or flange yoke.

3.

Remove the snap rings.

4.

Push out and remove the journal bearing by lightly tapping the
yoke with a hammer, taking care not to damage the journal or
yoke hole.

5.

Remove the bearing at the opposite side of above operation.
NOTE:
Put marks on the disassembled parts so that they can be rein-
stalled in their original positions from which they were removed.

SPD128

APD011

SPD732

SPD131

DLN-156

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1310]

REAR PROPELLER SHAFT

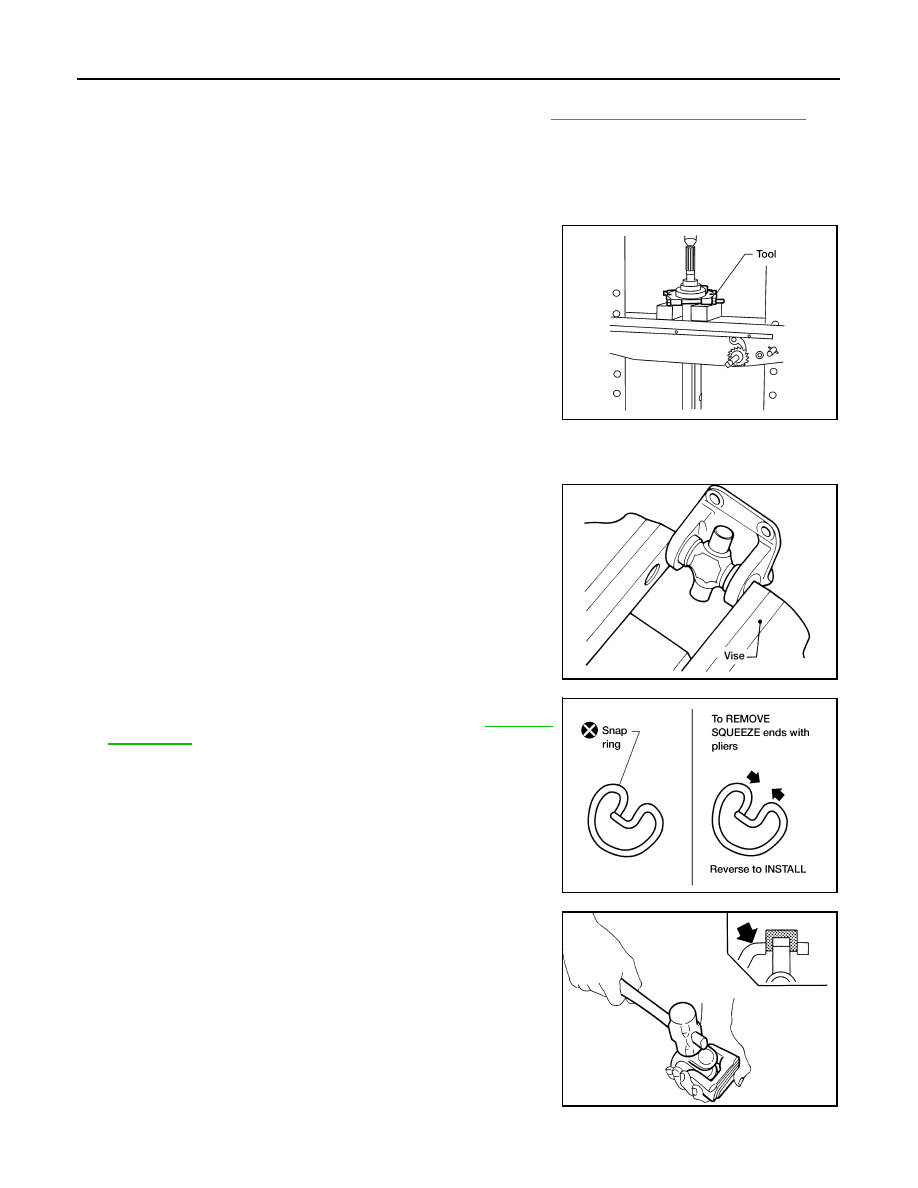

Center Support Bearing

1.

Remove the propeller shaft assembly from the vehicle. Refer to

DLN-153, "Removal and Installation"

.

2.

Put matching marks on the propeller shaft tube and the slip yoke.

CAUTION:

For matching marks, use paint. Never damage the propeller shaft tube or slip yoke.

3.

Remove and discard the clamp near the center support bearing, then slide the slip yoke off of propeller
shaft tube.

4.

Press the center support bearing off the propeller shaft tube
using Tool and suitable hydraulic press.

ASSEMBLY

Journal

1.

Assemble the journal bearings. Apply multipurpose grease on
the bearing inner surface.
NOTE:
During assembly, use caution so that the needle bearings do not
fall down.

2.

Select snap rings that will provide the specified play in an axial
direction of the journal, and install them. Refer to

DLN-158,

"Snap Ring"

.

NOTE:
Select snap rings with a difference in thickness at both sides
within 0.02 mm (0.0008 in).

3.

Adjust the thrust clearance between the bearing and snap ring
to zero by tapping the yoke.

Tool number

: 205-D002

LDIA0152E

WPD019

APD012

SPD732
