REAR PROPELLER SHAFT

DLN-157

< DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 3S1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

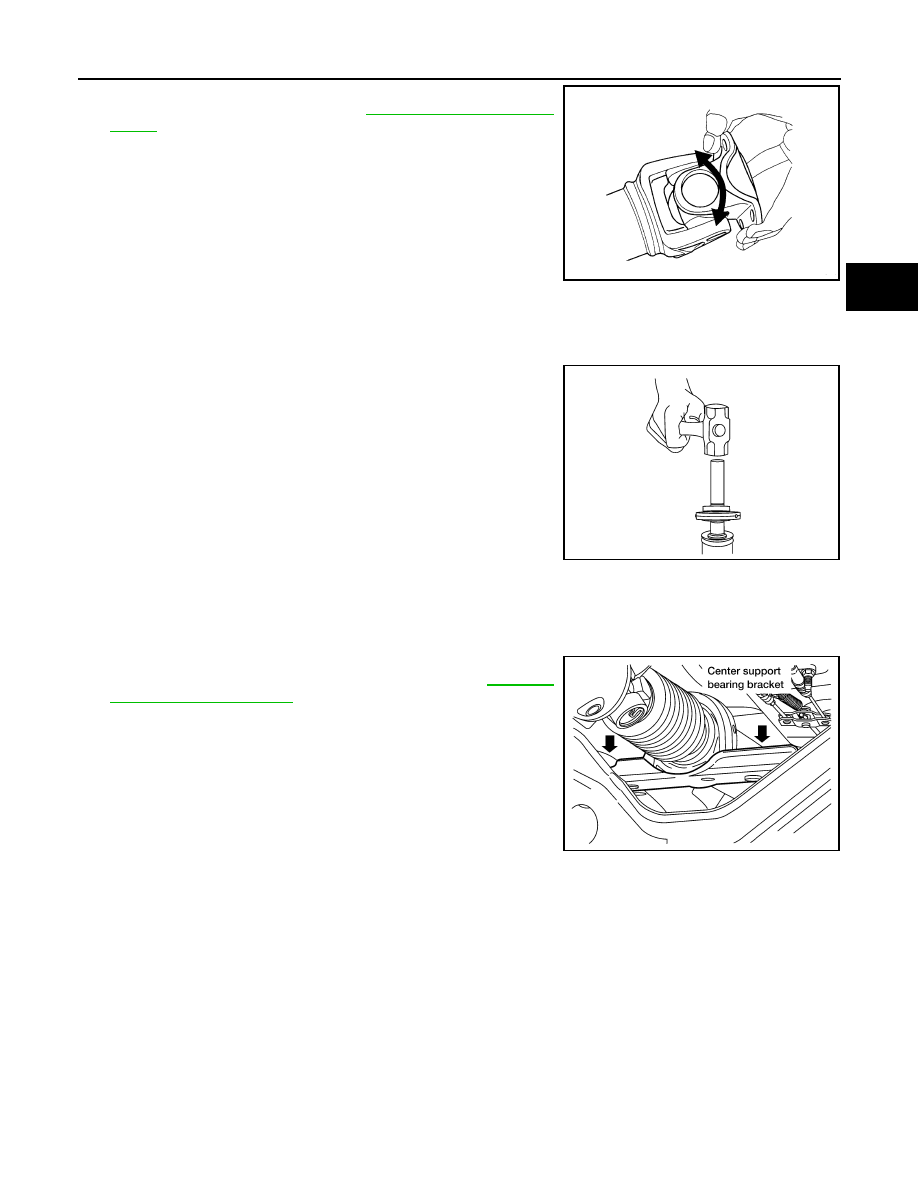

4.

Make sure that the journal moves smoothly and is below the
joint flex effort specification. Refer to

DLN-158, "General Specifi-

cation"

.

Center Support Bearing

1.

Apply a thin coat of multi-purpose grease to both the propeller shaft tube and the inside surface of the
center support bearing.

2.

Install the center support bearing on the propeller shaft tube
using a suitable pipe pressing on the inner race.

3.

Install a new clamp over the boot on the slip yoke.

4.

Align the matching marks and install the slip yoke on the propeller shaft tube.

5.

Clean the surfaces and position the boot over the propeller shaft tube and tighten the clamp.

6.

Install the center support bearing bracket, then install the rear
propeller shaft assembly in the vehicle. Refer to

DLN-153,

"Removal and Installation"

.

LDIA0119E

LDIA0153E

WDIA0066E

DLN-158

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 3S1310]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005275516

Snap Ring

INFOID:0000000005275517

Unit: mm (in)

*Always check with the Parts Department for the latest parts information.

Applied model

QR25DE

2WD

M/T               A/T

Propeller shaft model

3S1310

Number of joints

3

Coupling method with rear final drive

Flange type

Coupling method with transmission

Sleeve type

1st Shaft length (Center bearing to spider)

741.5

±

 1.5 mm (29.19

±

 0.06 in)

2nd Shaft length (Spider to spider)

779.8

±

 1.5 mm (30.70

±

 0.06 in)

Shaft outer diameter

76.2 + 0.00/- 0.13 mm (3.00 +0.00/ -0.01 in)

Journal axial play

0.02 mm (0.0008 in) or less

Propeller shaft runout limit

0.6 mm (0.024 in) or less

Propeller shaft joint flex effort

2.26 N·m (0.23 kg-m, 20 in-lb) or less

Thickness

Color

Part Number*

1.99 (0.0783)

White

37146-C9400

 2.02 (0.0795)

Yellow

37147-C9400

2.05 (0.0807)

Red

37148-C9400

2.08 (0.0819)

Green

37149-C9400

2.11 (0.0831)

Blue

37150-C9400

2.14 (0.0843)

Light brown

37151-C9400

2.17 (0.0854)

Black

37152-C9400

2.20 (0.0866)

No paint

37153-C9400

PRECAUTIONS

DLN-159

< PRECAUTION >

[3S1330]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005590005

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

DLN-160

< PREPARATION >

[3S1330]

PREPARATION

PREPARATION

PREPARATION

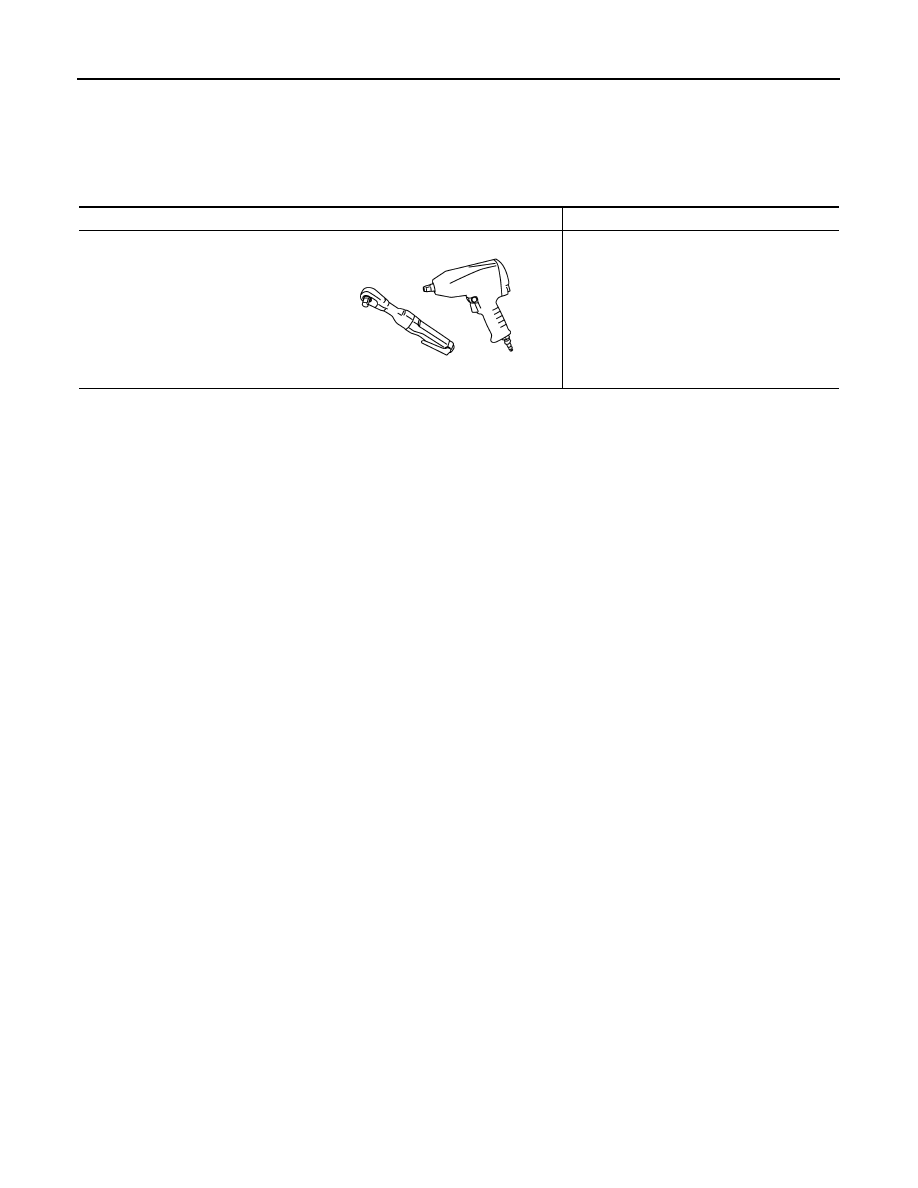

Commercial Service Tool

INFOID:0000000005275518

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E
