Nissan Frontier D40. Manual - part 1108





TM-330

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

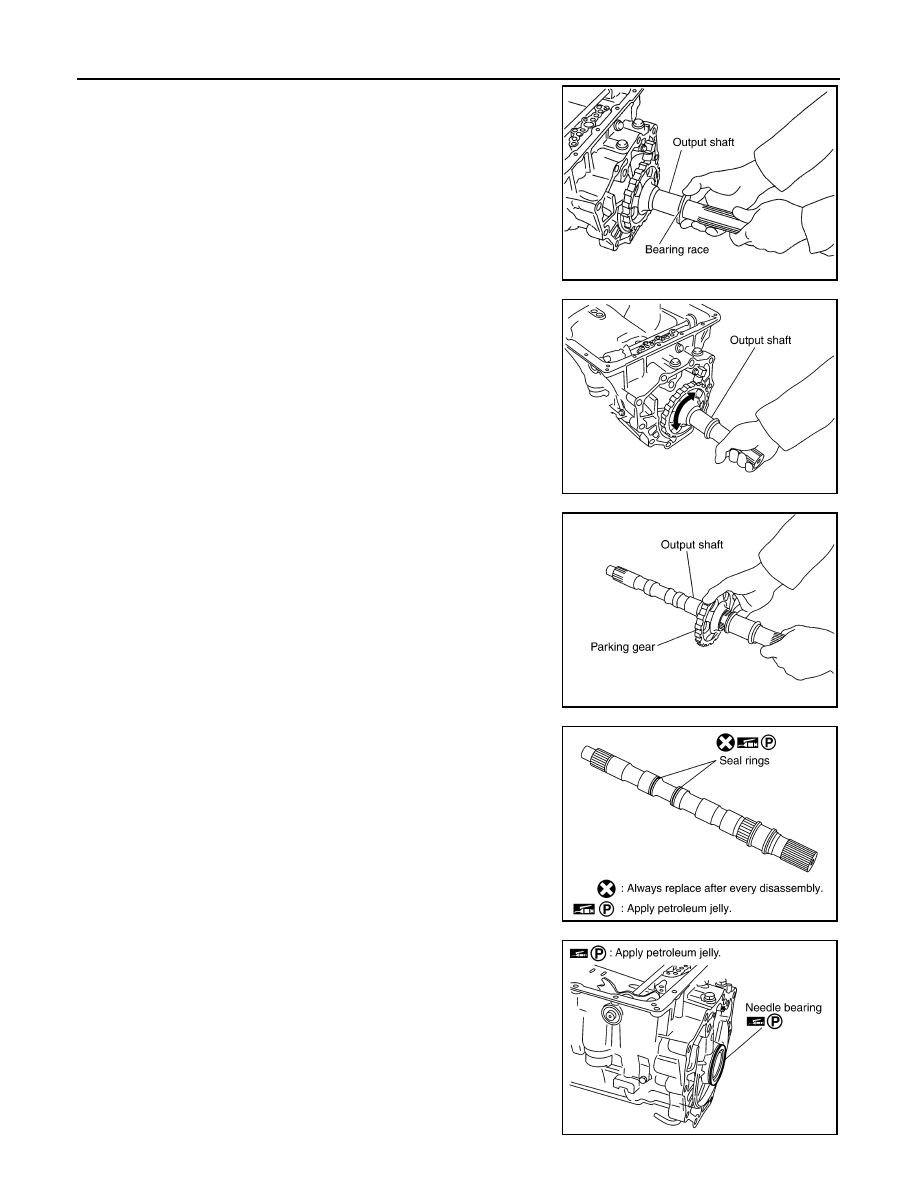

42. Remove bearing race from output shaft.

43. Remove output shaft from transmission case by rotating left and

right.

44. Remove parking gear from output shaft.

45. Remove seal rings from output shaft.

46. Remove needle bearing from transmission case.

SCIA5245E

SCIA5030E

SCIA5247E

SCIA5209E

SCIA5031E

DISASSEMBLY

TM-331

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

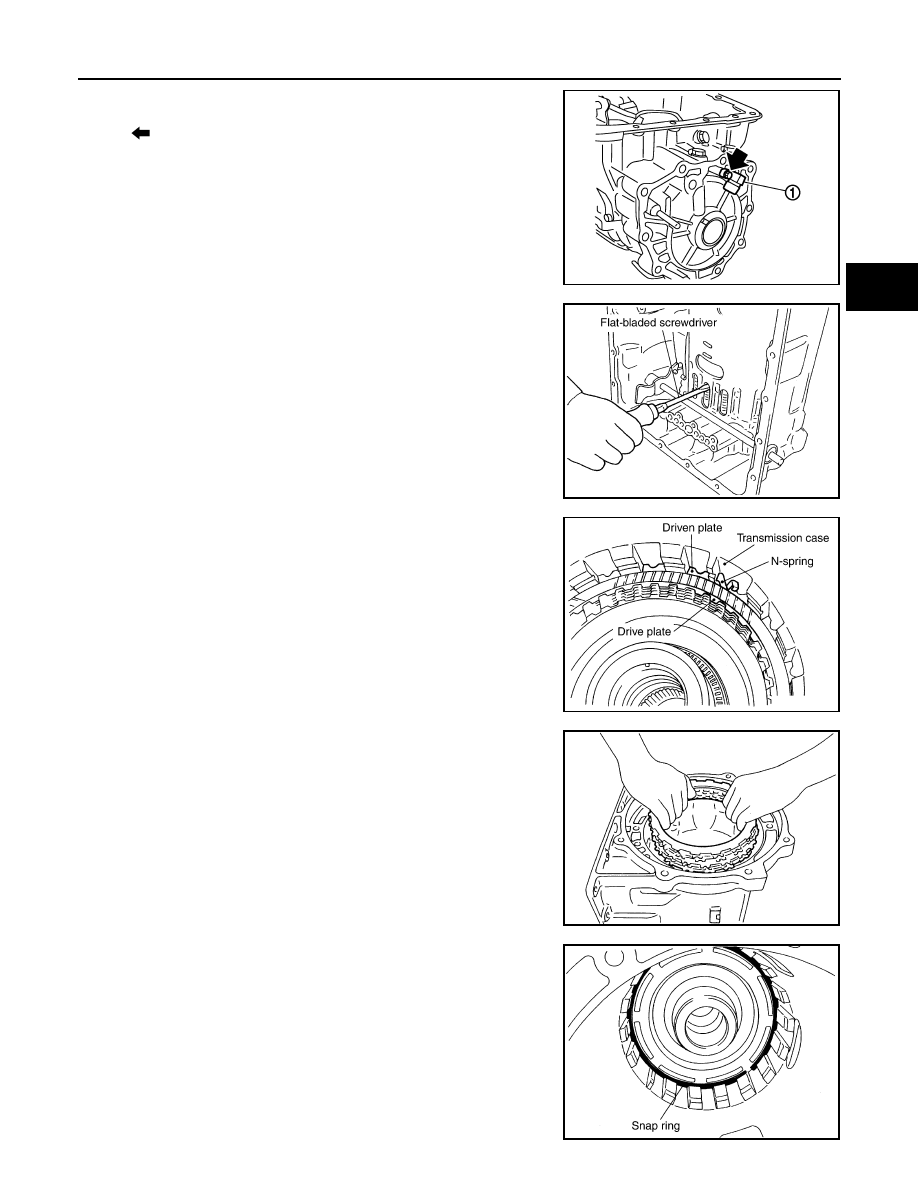

47. Remove output speed sensor (1) from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings or any foreign material to get on

the sensor's front edge magnetic area.

• Do not place in an area affected by magnetism.

48. Remove reverse brake snap ring using two flat-bladed screw-

drivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using a another
screwdriver.

49. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

50. Remove N-spring from transmission case.

51. Remove reverse brake drive plates, driven plates and dish plate

from transmission case.
• Check facing for burns, cracks or damage. If necessary,

replace the plate.

52. Remove snap ring using suitable tool.

: Bolt

JSDIA1321ZZ

SCIA5032E

SCIA5214E

SCIA2322E

SCIA2323E

TM-332

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

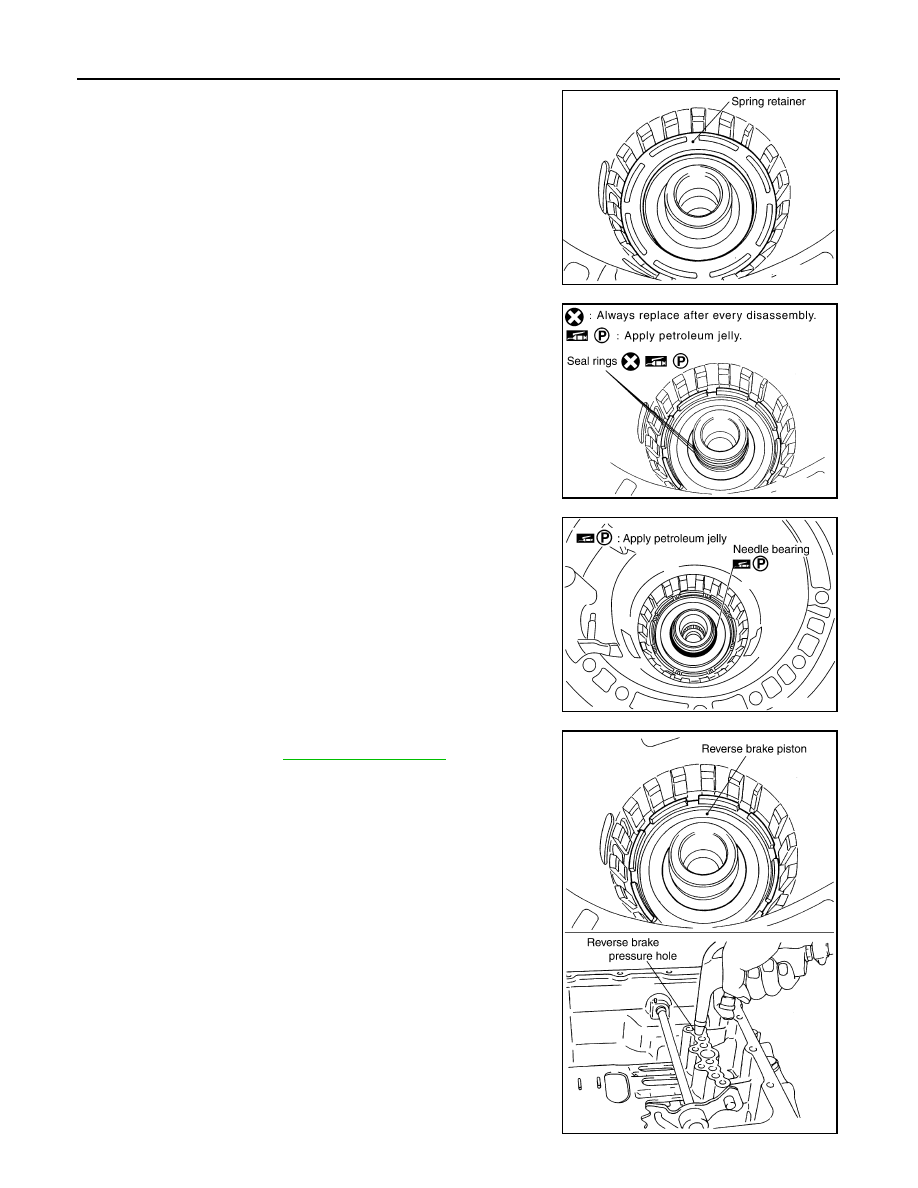

53. Remove spring retainer and return spring from transmission

case.

54. Remove seal rings from drum support.

55. Remove needle bearing from drum support edge surface.

56. Remove reverse brake piston from transmission case using

compressed air. Refer to

TM-318, "Disassembly"

.

CAUTION:

Care should be taken not to abruptly blow air. It makes the
piston incline, and as a result, it becomes hard to disas-
semble the pistons.

SCIA2324E

SCIA3333E

SCIA2796E

SCIA5047E

DISASSEMBLY

TM-333

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

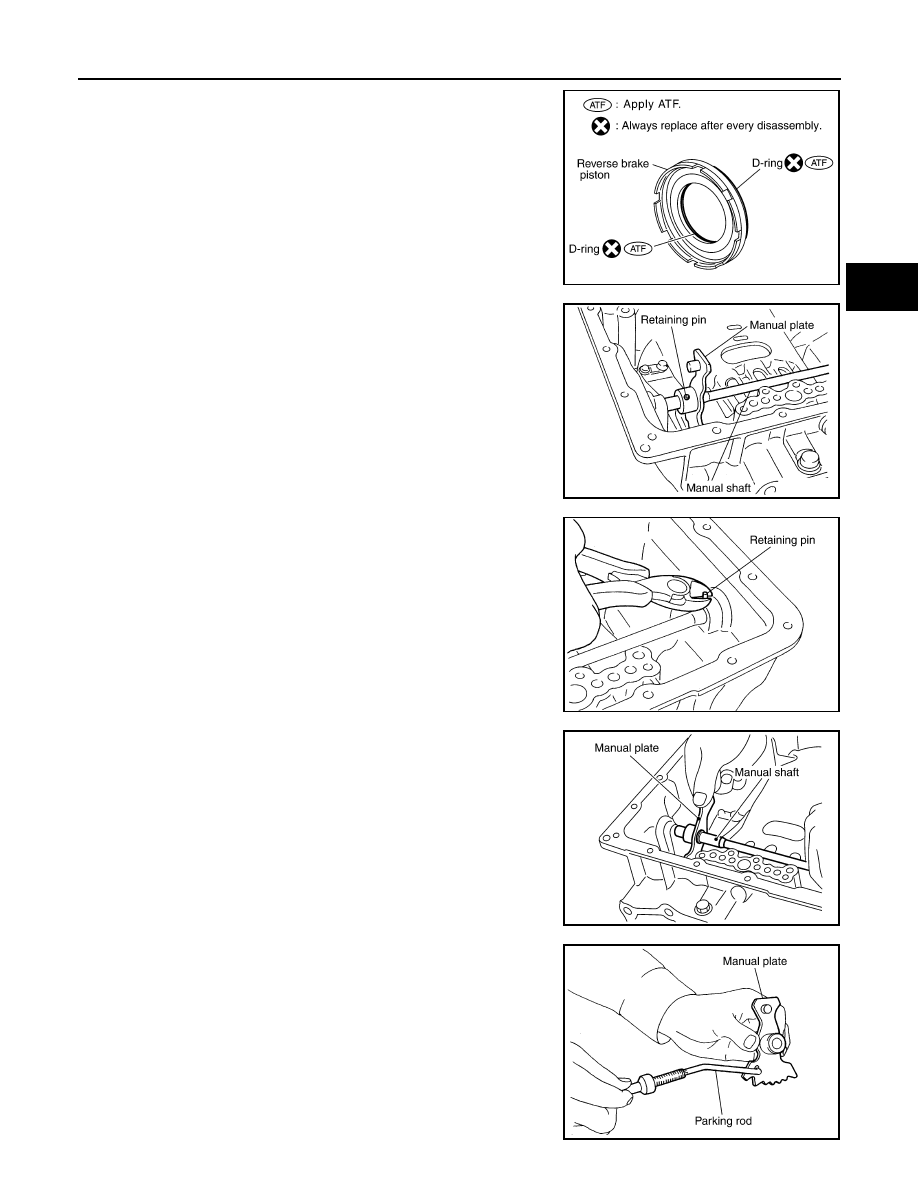

57. Remove D-rings from reverse brake piston.

58. Knock out retaining pin using suitable tool.

59. Remove manual shaft retaining pin using suitable tool.

60. Remove manual plate (with parking rod) from manual shaft.

61. Remove parking rod from manual plate.

SCIA6330E

SCIA2328E

SCIA2329E

SCIA5715E

SCIA5220E
