Nissan Frontier D40. Manual - part 1109





TM-334

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

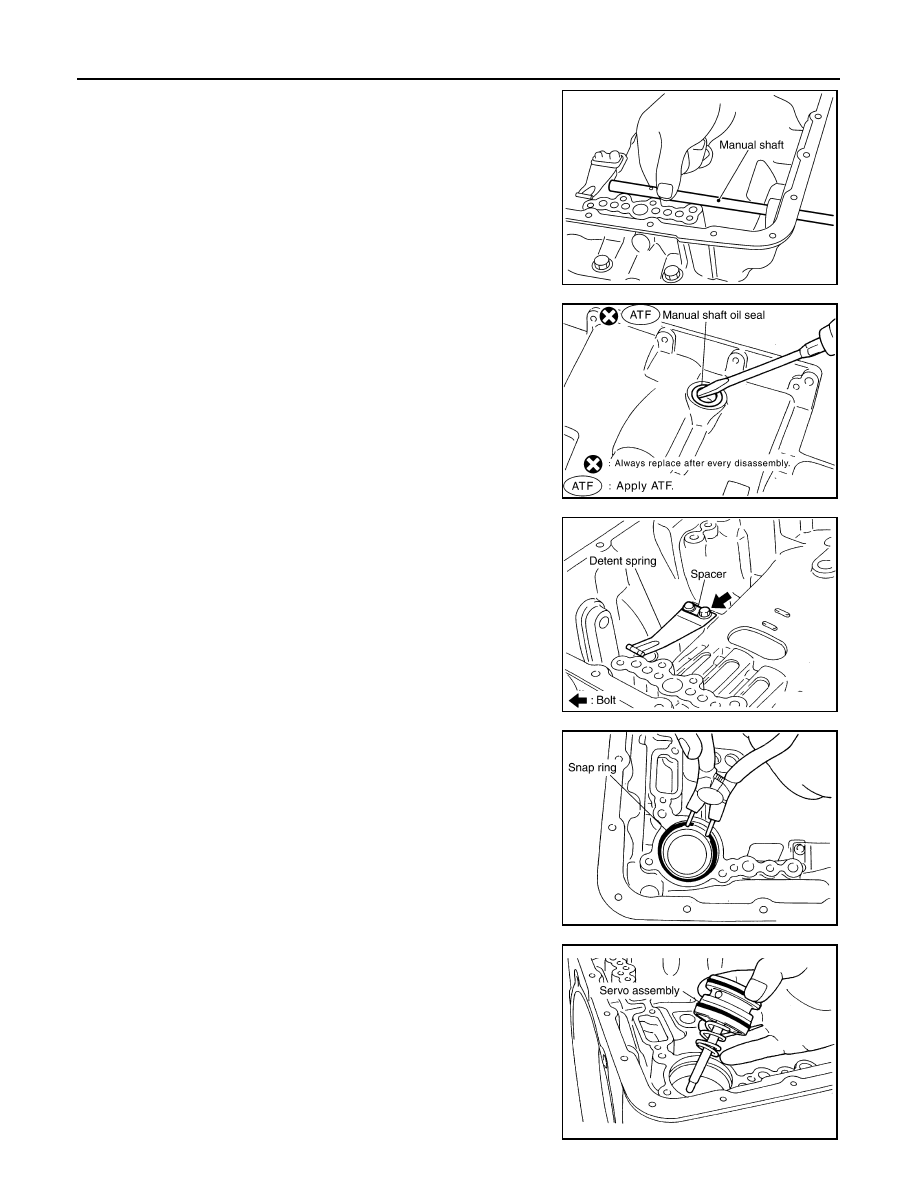

62. Remove manual shaft from transmission case.

63. Remove manual shaft oil seals using suitable tool.

CAUTION:

Do not scratch transmission case.

64. Remove detent spring and spacer from transmission case.

65. Remove snap ring from transmission case using suitable tool.

66. Remove servo assembly (with return spring) from transmission

case.

SCIA5716E

SCIA2331E

SCIA5248E

SCIA2333E

SCIA5679E

DISASSEMBLY

TM-335

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

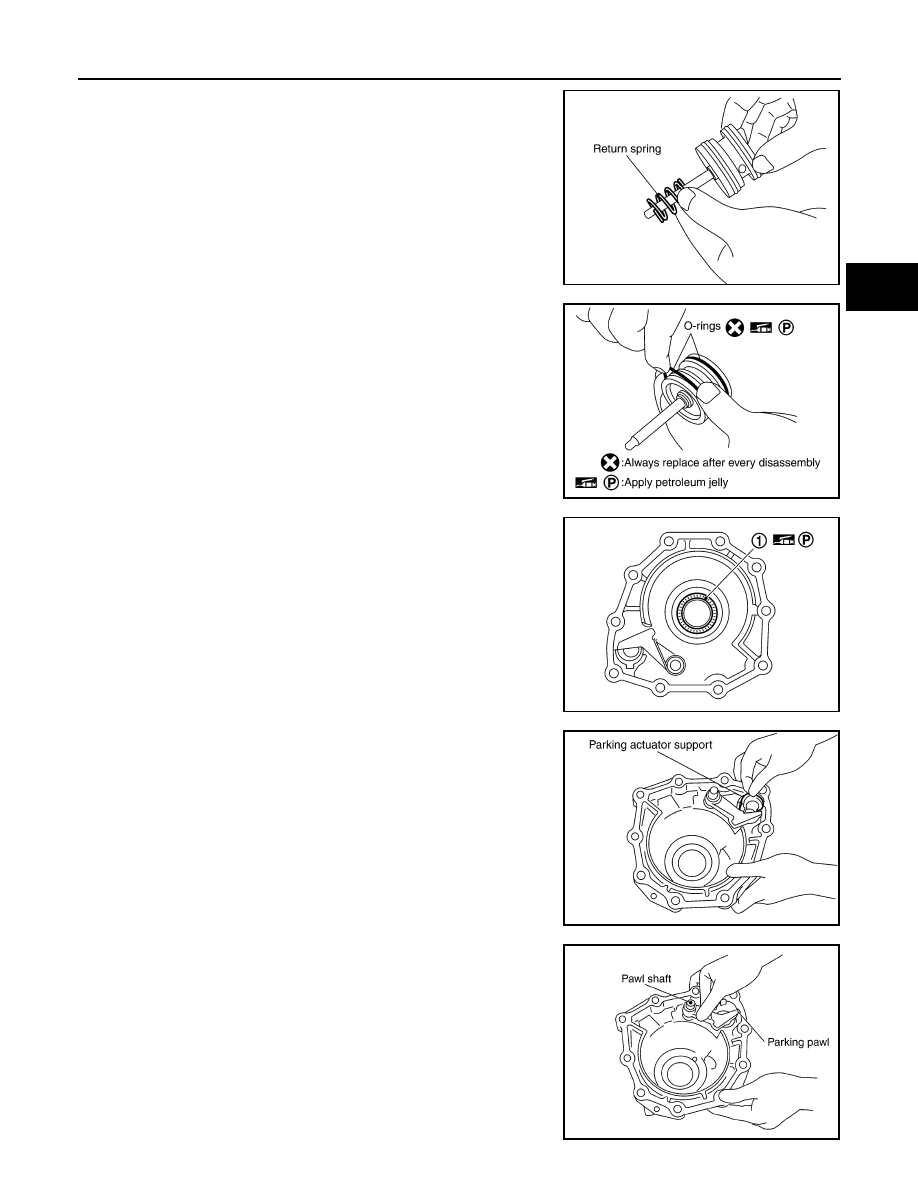

67. Remove return spring from servo assembly.

68. Remove O-rings from servo assembly.

69. Remove needle bearing (1) from rear extension (2WD models)

or adapter case (4WD models).

70. Remove parking actuator support from rear extension (2WD

models) or adapter case (4WD models).

71. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD models) or adapter case (4WD models).

SCIA5717E

SCIA5719E

SCIA6179J

SCIA3423E

SCIA3424E

TM-336

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

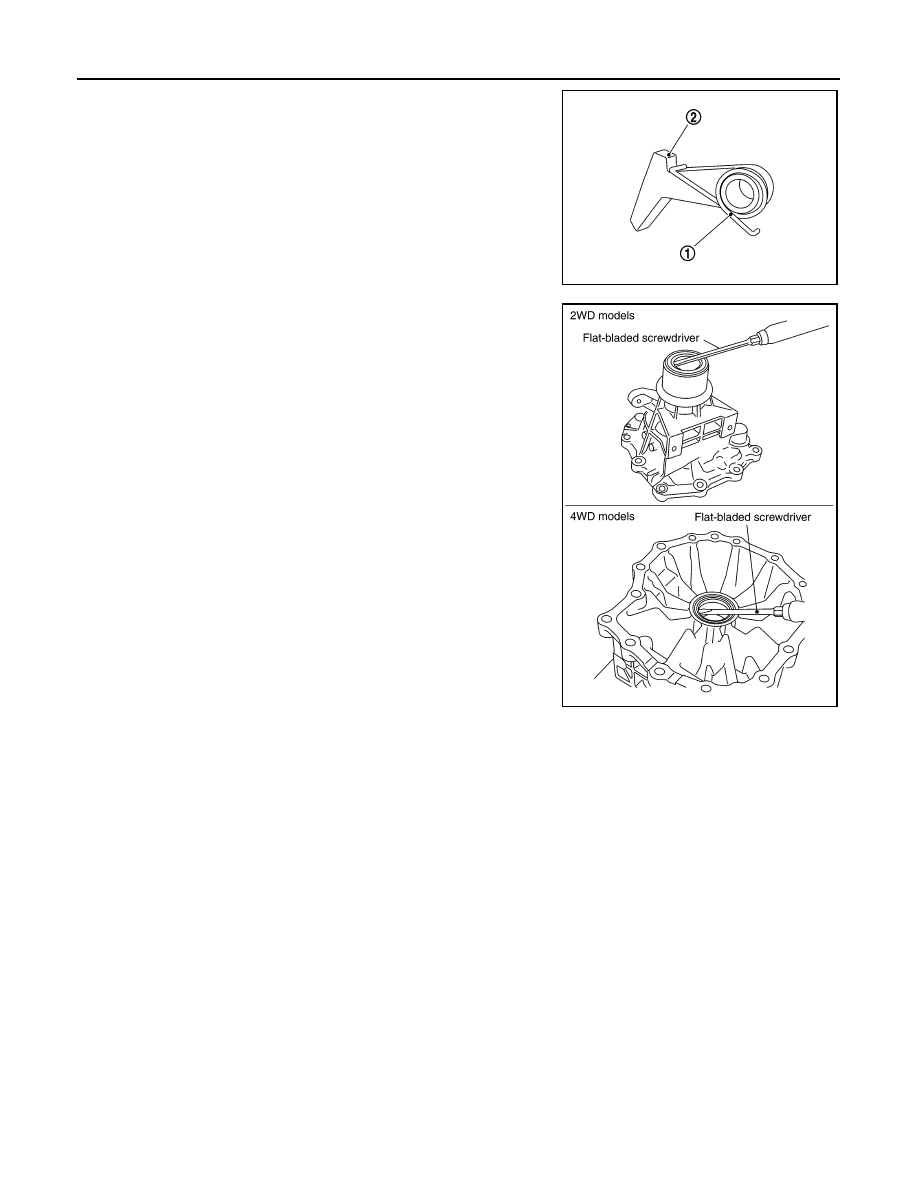

72. Remove return spring (1) from parking pawl (2).

73. Remove rear oil seal from rear extension (2WD models) or

adapter case (4WD models) using suitable tool.

CAUTION:

Do not scratch rear extension (2WD models) or adapter
case (4WD models).

SCIA6180J

SCIA5272E

OIL PUMP

TM-337

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PUMP

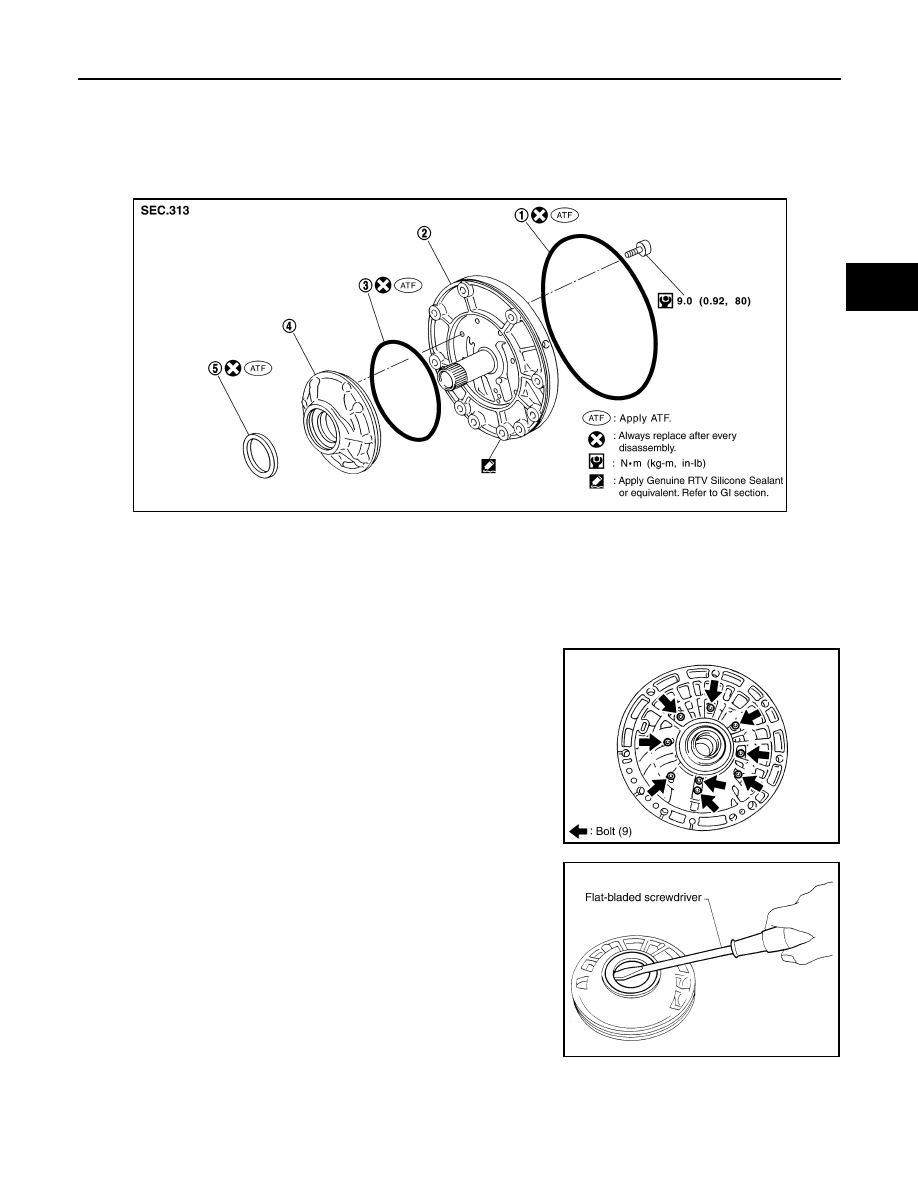

Exploded View

INFOID:0000000005274221

Oil Pump

Disassembly and Assembly

INFOID:0000000005274222

DISASSEMBLY

1.

Remove oil pump housing from oil pump cover.

2.

Remove oil pump housing oil seal using suitable tool.

CAUTION:

Do not scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E
