TM-290

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

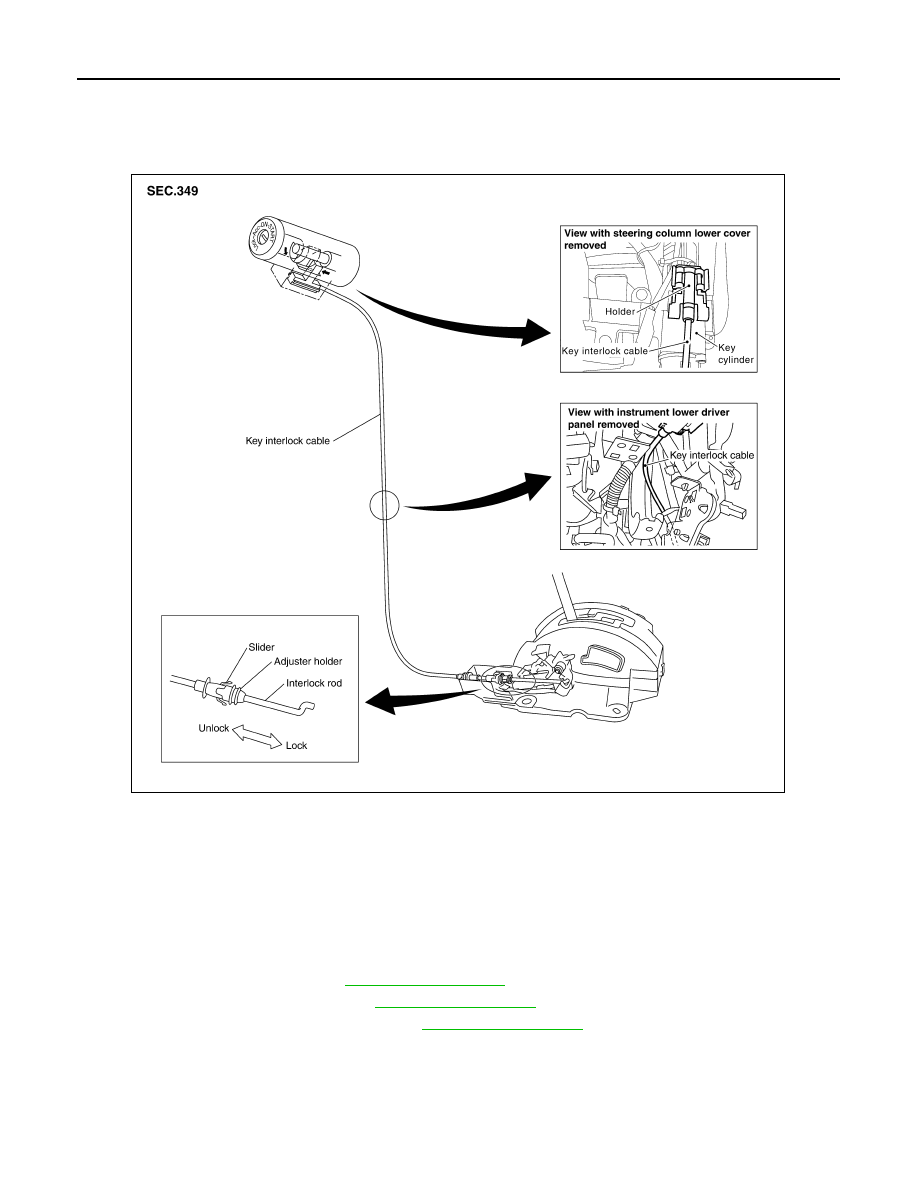

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Component

INFOID:0000000005274208

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to A/T shift selector, make sure that casing cap and bracket are

firmly secured in their positions. If casing cap can be removed with an external load of less than 39
N (4.0 kg, 8.8 lb), replace key interlock cable with new one.

Removal and Installation

INFOID:0000000005274209

REMOVAL

1.

Remove the A/T finisher. Refer to

IP-19, "Exploded View"

.

2.

Remove the lower glove box. Refer to

IP-10, "Exploded View"

.

3.

Remove lower instrument panel LH. Refer to

IP-17, "Exploded View"

.

WCIA0467E

KEY INTERLOCK CABLE

TM-291

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

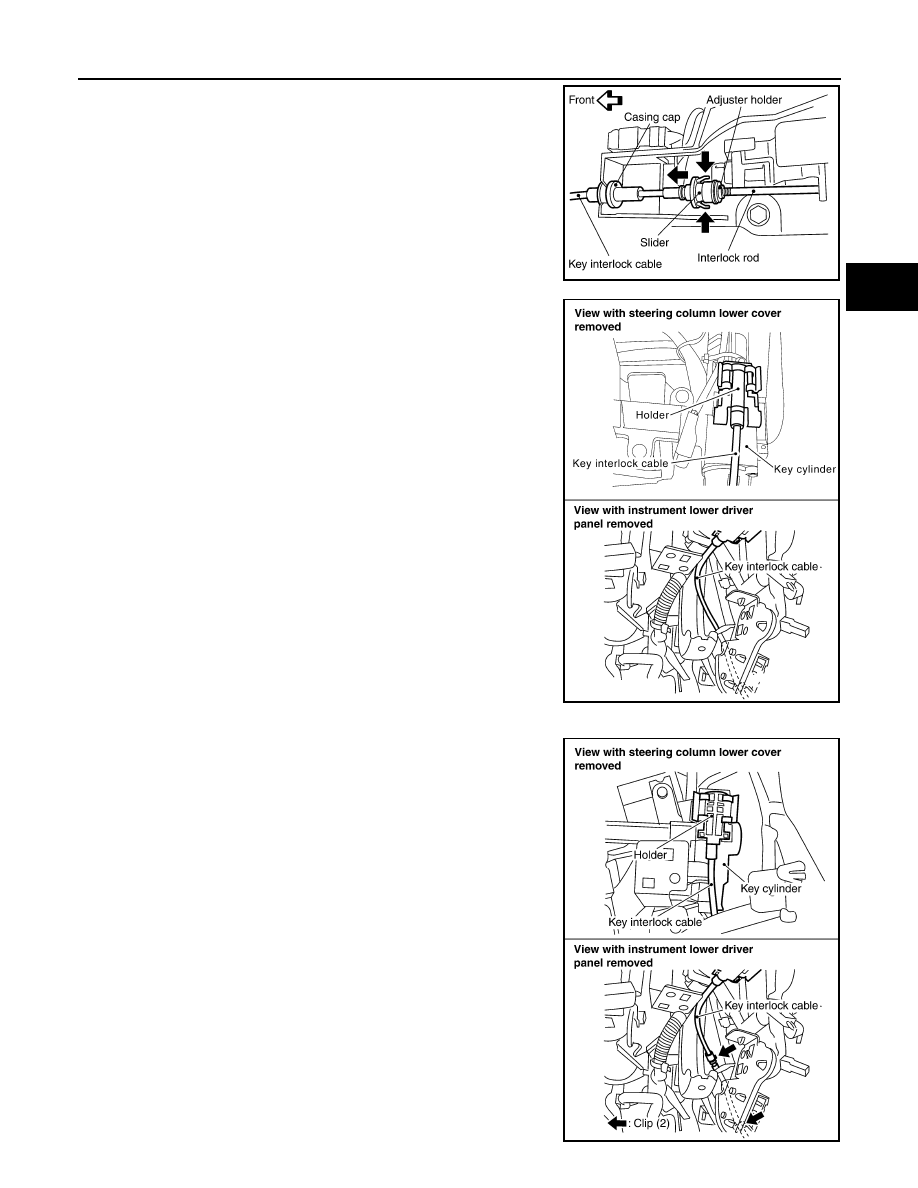

4.

Unlock slider from adjuster holder by squeezing lock tabs.

5.

Remove casing cap from bracket of A/T shift selector assembly
and remove interlock rod from adjuster holder.

6.

Remove holder from key cylinder and remove key interlock
cable.

INSTALLATION

1.

Set key interlock cable to key cylinder and install holder.

2.

Turn ignition key to "LOCK" position.

3.

Set selector lever to “P” position.

SCIA1230E

LCIA0375E

SCIA2258E

TM-292

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

KEY INTERLOCK CABLE

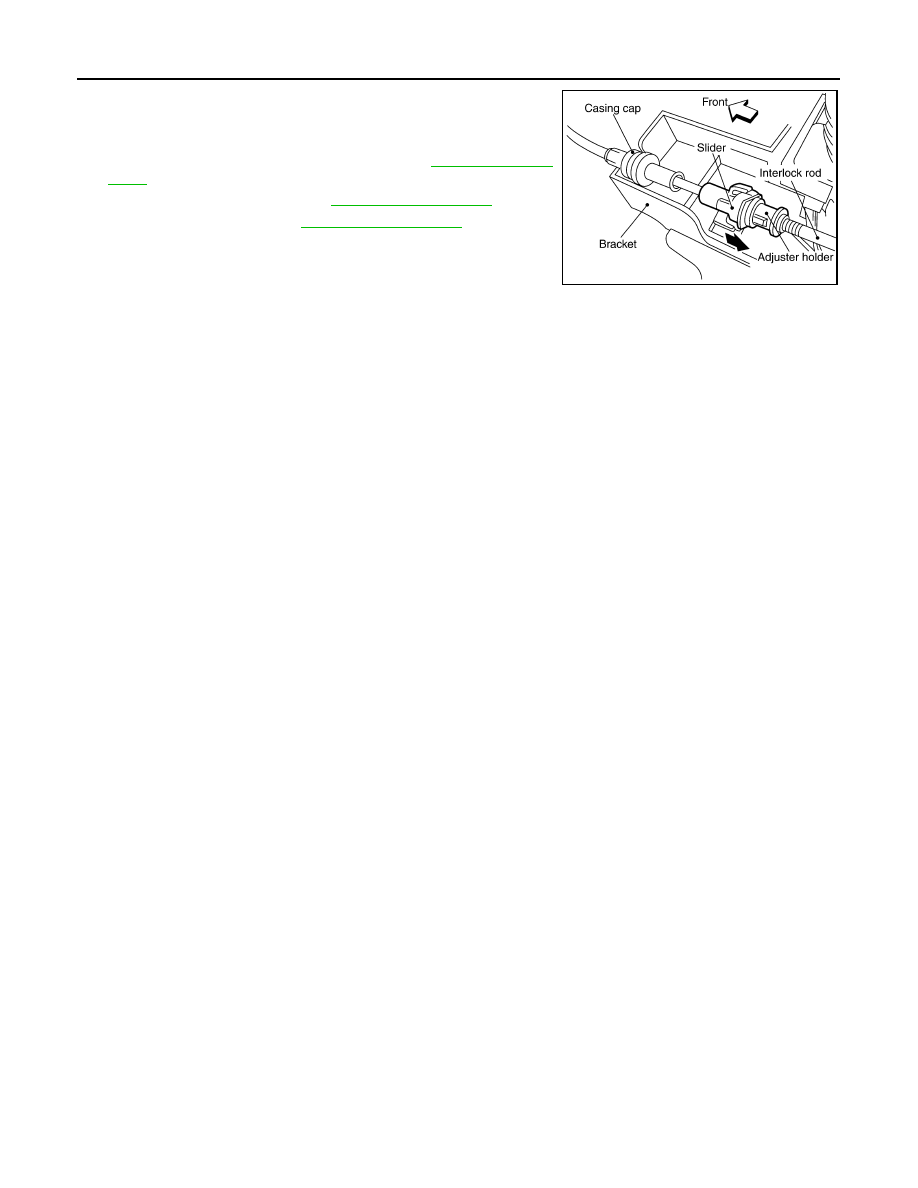

4.

Insert interlock rod into adjuster holder.

5.

Install casing cap to bracket.

6.

Move slider in order to secure adjuster holder to interlock rod.

7.

Install lower instrument panel LH. Refer to

IP-10, "Exploded

View"

.

8.

Install lower glove box. Refer to

IP-10, "Exploded View"

.

9.

Install A/T finisher. Refer to

IP-10, "Exploded View"

.

SCIA1232E

AIR BREATHER HOSE

TM-293

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

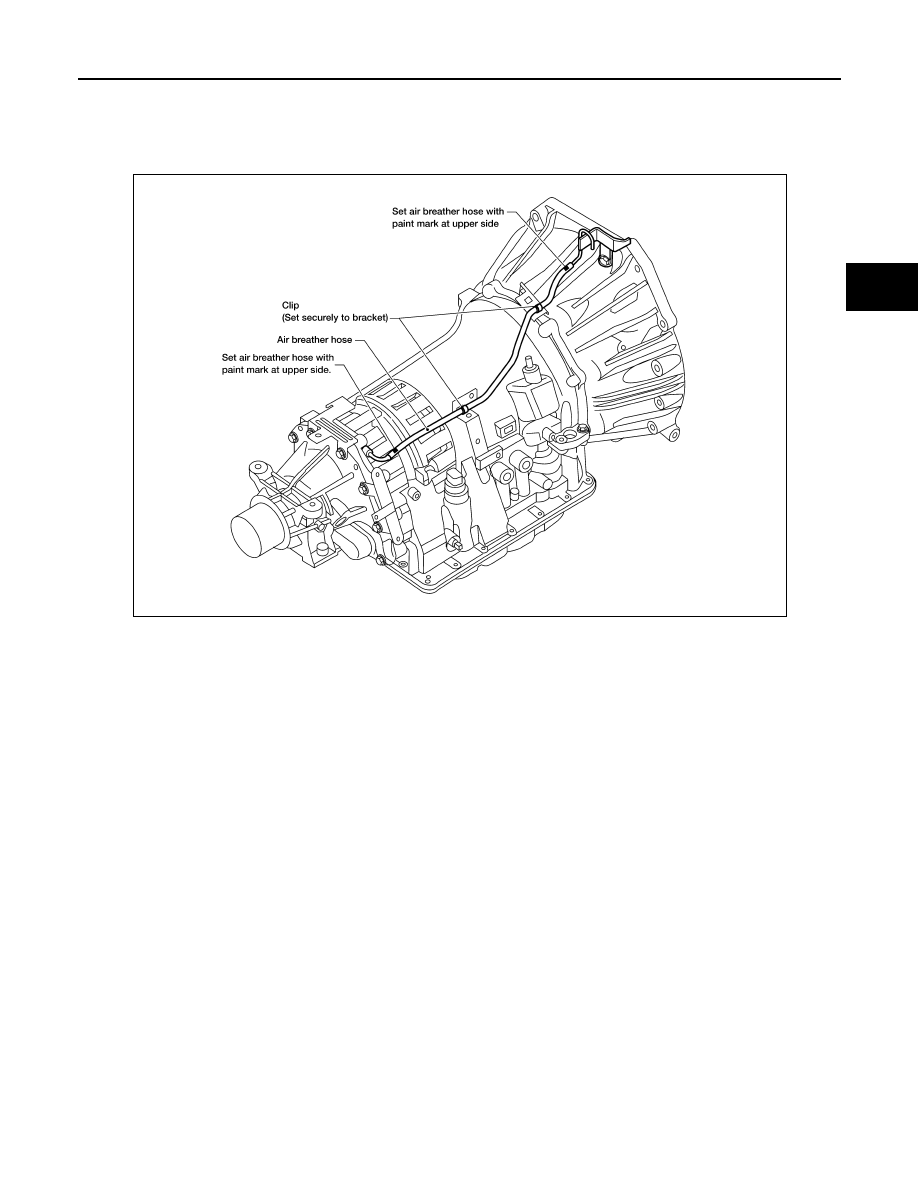

AIR BREATHER HOSE

Removal and Installation for QR25DE Engine

INFOID:0000000005274210

CAUTION:

• When installing an air breather hose, do not to crush or block by folding or bending the hose.
• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

LCIA0395E
