AIR BREATHER HOSE

Removal and Installation for VQ40DE Engine

INFOID:0000000005274211

2WD Models

CAUTION:

• When installing an air breather hose, do not to crush or block by folding or bending the hose.
• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

4WD Models

CAUTION:

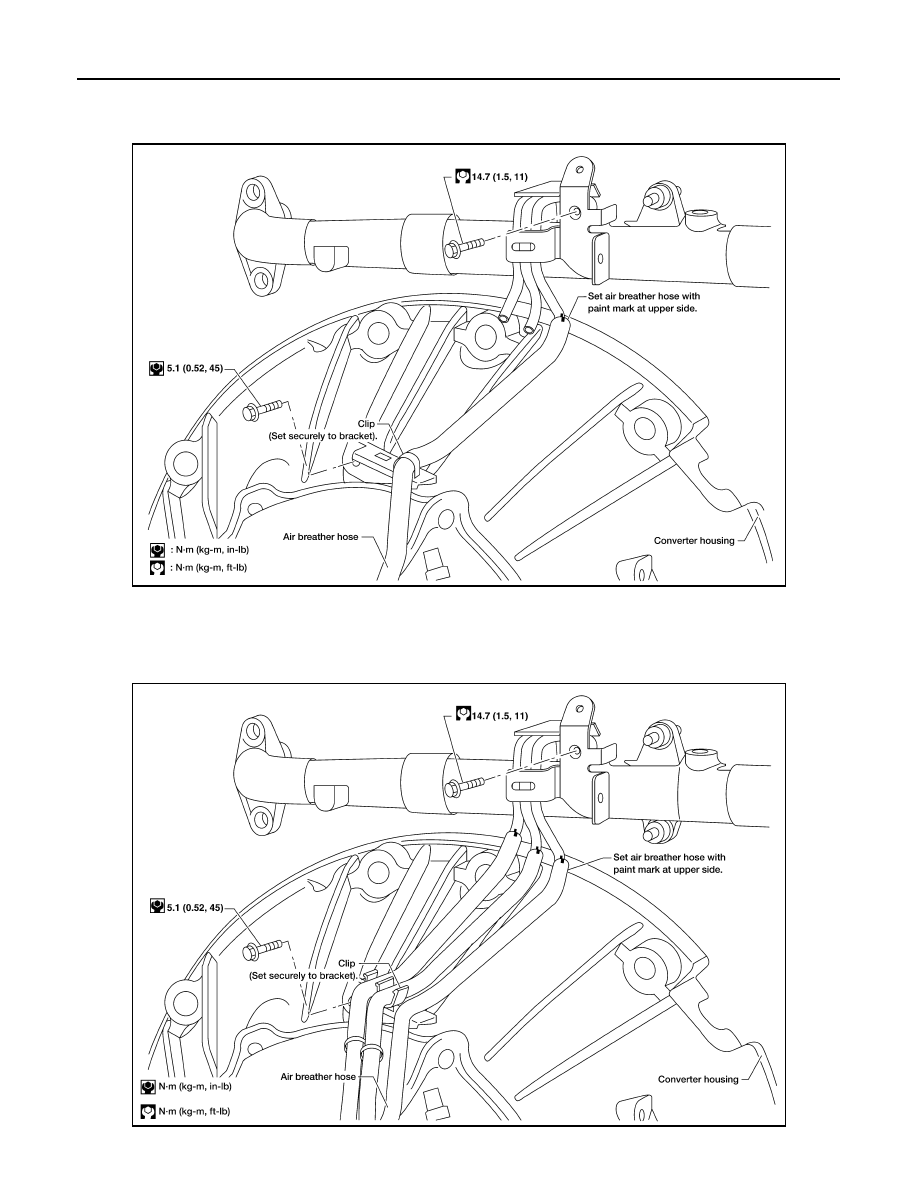

LCIA0389E

LCIA0390E

AIR BREATHER HOSE

TM-295

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• When installing an air breather hose, do not to crush or block by folding or bending the hose.
• When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

TM-296

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

A/T FLUID COOLER

A/T FLUID COOLER

Removal and Installation

INFOID:0000000005274212

• After completing installation, check fluid level and check for fluid leakage. Refer to

TM-261, "Checking the A/

T Fluid (ATF)"

.

1.

A/T fluid cooler

2.

Fluid cooler tube

3.

Clip

4.

Hose clamp

5.

Cooler hose (lower)

6.

Cooler hose

7.

Tube joint

8.

Cooler hose (upper)

A.

To transmission

B.

From radiator

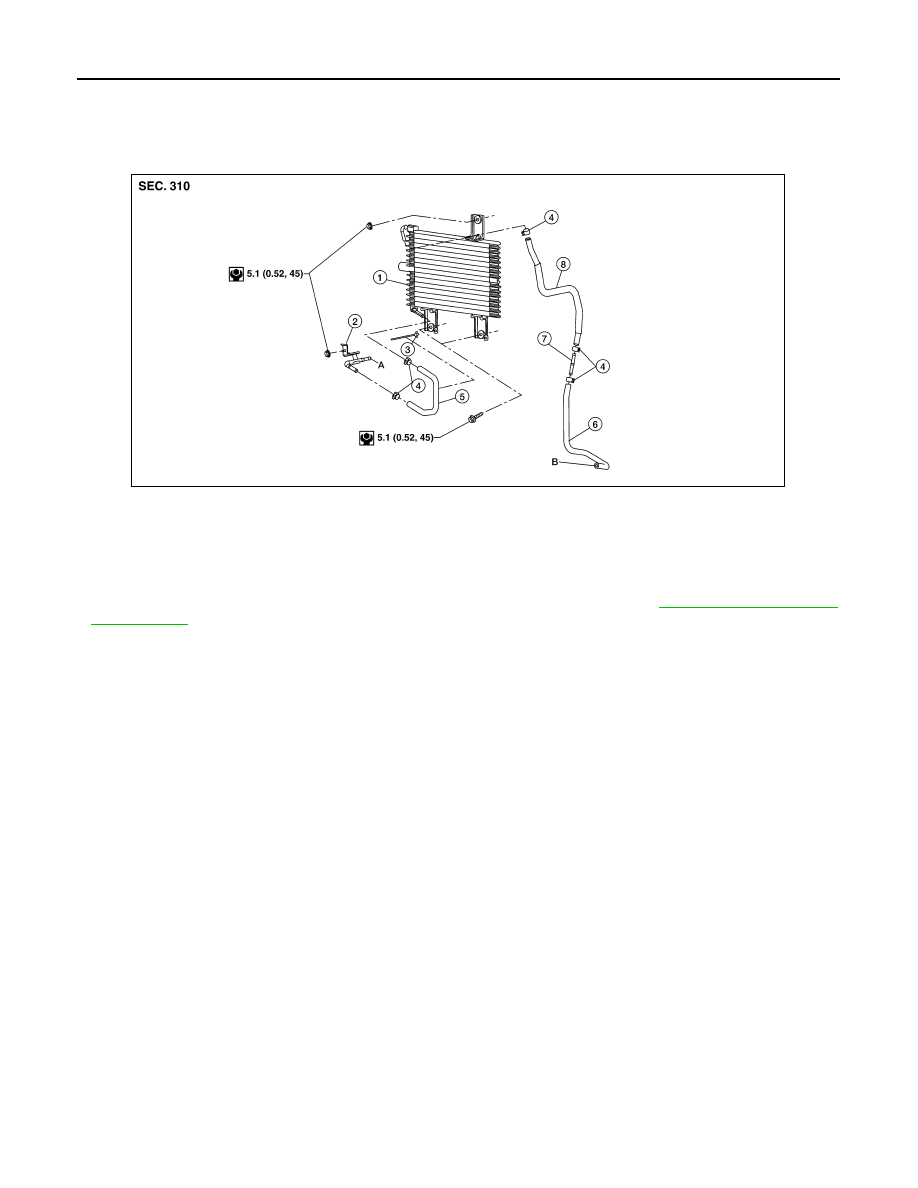

AWDIA0631GB

TRANSMISSION ASSEMBLY

TM-297

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

TRANSMISSION ASSEMBLY

Component

INFOID:0000000005274213

QR25DE

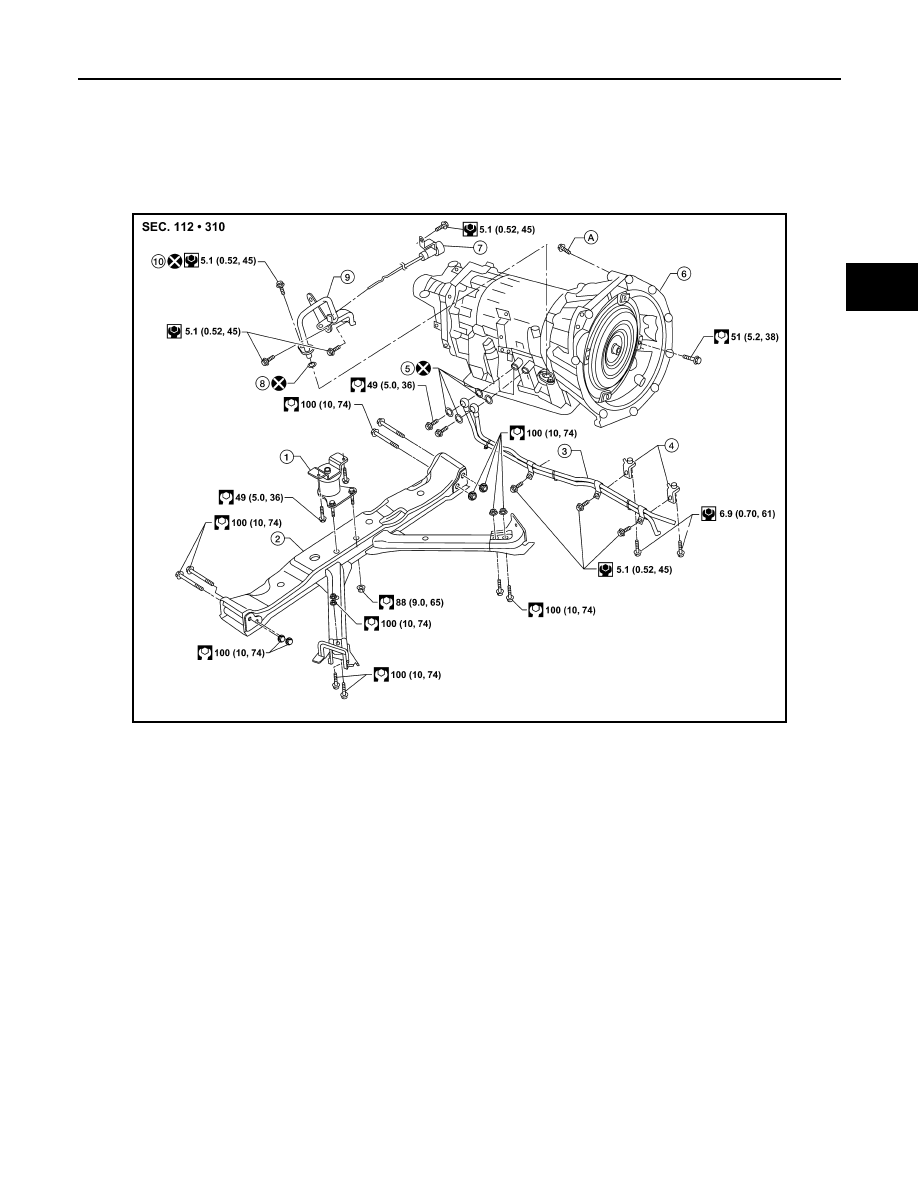

AWDIA0691GB
