Nissan Frontier D40. Manual - part 1044

TM-74

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

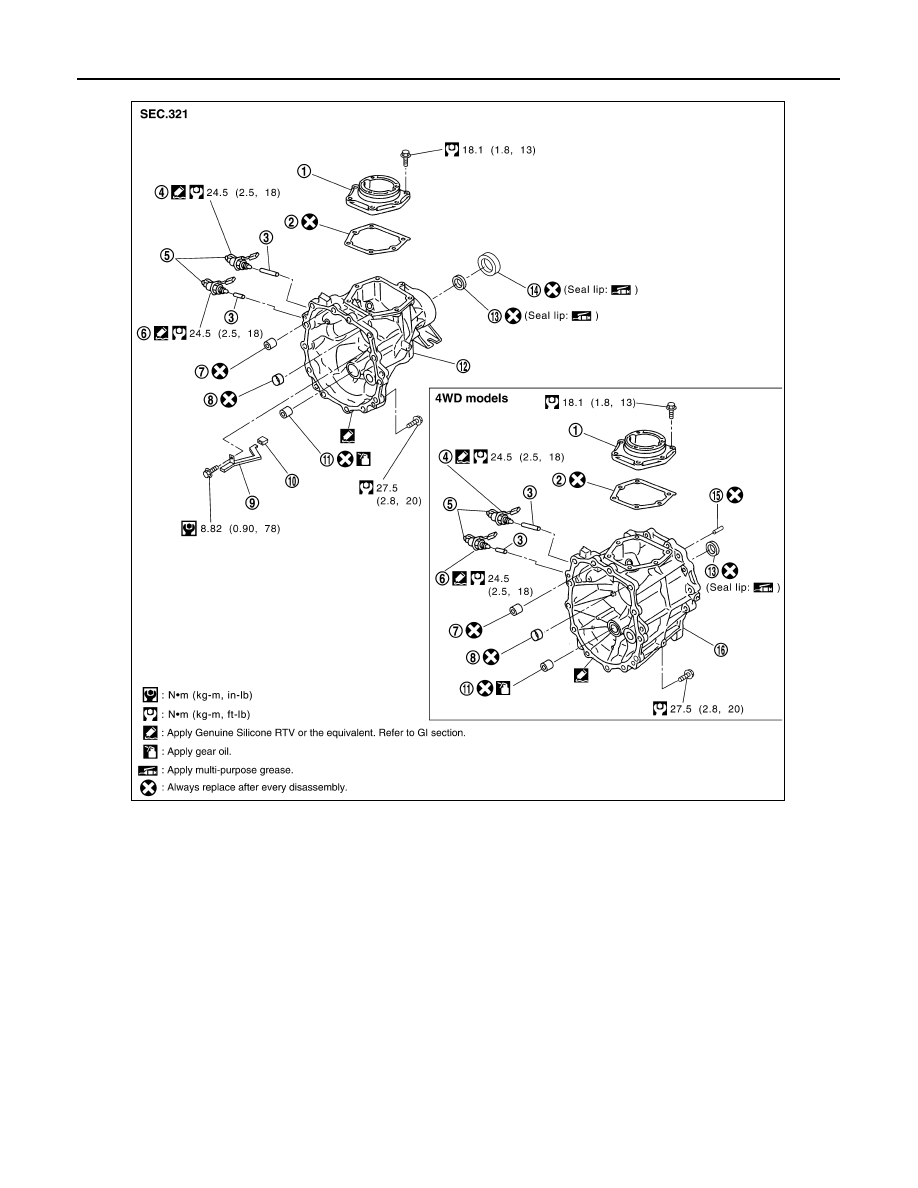

TRANSMISSION ASSEMBLY

Gear Components

1.

Control housing

2.

Gasket

3.

Plunger

4.

Park/neutral position (PNP) switch

5.

Clip

6.

Back-up lamp switch

7.

Sliding ball bearing

8.

Bushing

9.

Rear extension oil gutter

10. Cap

11.

Counter end bearing

12. Rear extension

13. Rear oil seal

14. Dust seal

15. Dowel pin

16. OD gear case

PCIB1209E

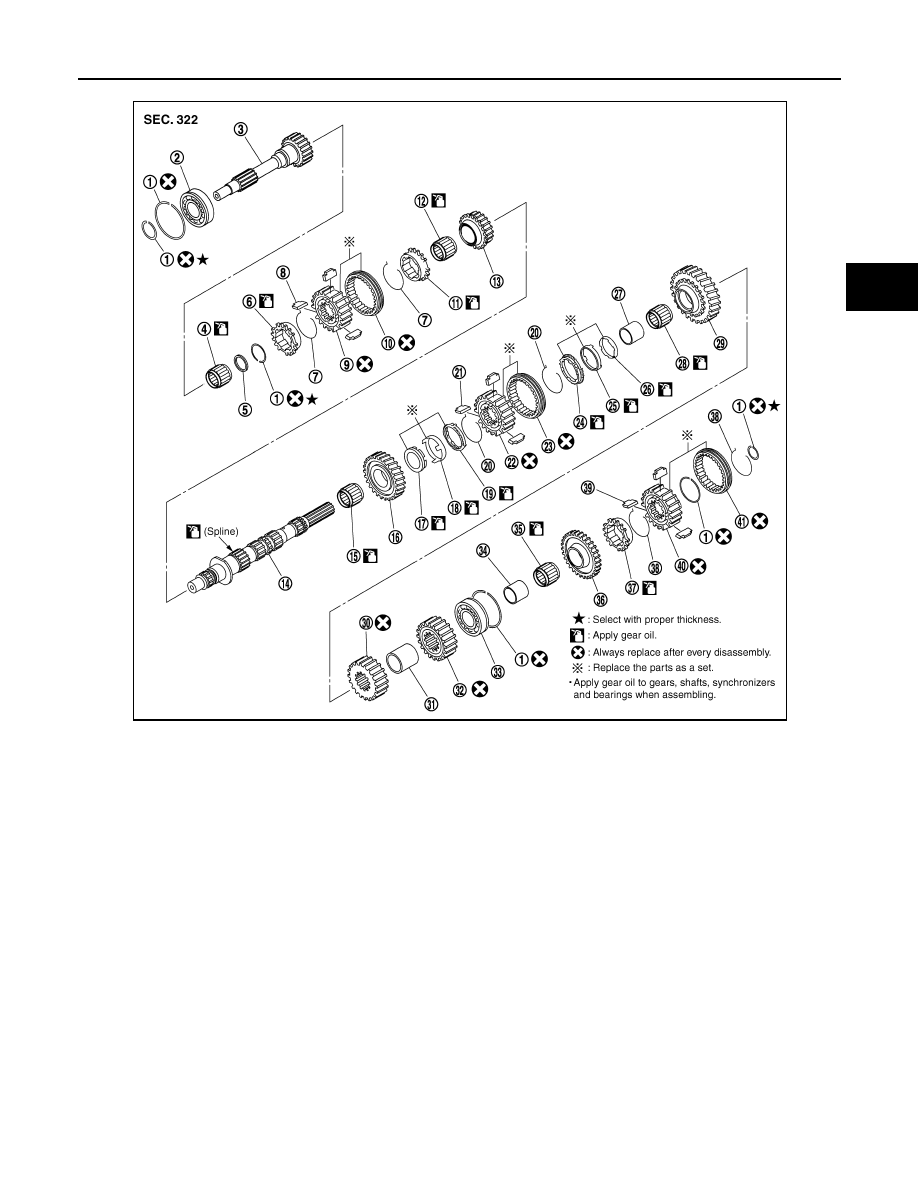

TRANSMISSION ASSEMBLY

TM-75

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Snap ring

2.

Main drive gear bearing

3.

Main drive gear

4.

Main pilot bearing

5.

Pilot bearing spacer

6.

5th baulk ring

7.

5th-6th spread spring

8.

5th-6th shifting insert

9.

5th-6th synchronizer hub

10. 5th-6th coupling sleeve

11.

6th baulk ring

12. 6th needle bearing

13. 6th main gear

14. Mainshaft

15. 2nd needle bearing

16. 2nd main gear

17. 2nd inner baulk ring

18. 2nd synchronizer cone

19. 2nd outer baulk ring

20. 1st-2nd spread spring

21. 1st-2nd shifting insert

22. 1st-2nd synchronizer hub

23. 1st-2nd coupling sleeve

24. 1st outer baulk ring

25. 1st synchronizer cone

26. 1st inner baulk ring

27. 1st gear bushing

28. 1st needle bearing

29. 1st main gear

30. 3rd main gear

31. 3rd-4th main spacer

32. 4th main gear

33. Mainshaft bearing

34. Reverse main gear bushing

35. Reverse main needle bearing

36. Reverse main gear

37. Reverse baulk ring

38. Reverse spread spring

39. Reverse shifting insert

40. Reverse synchronizer hub

41. Reverse coupling sleeve

PCIB1210E

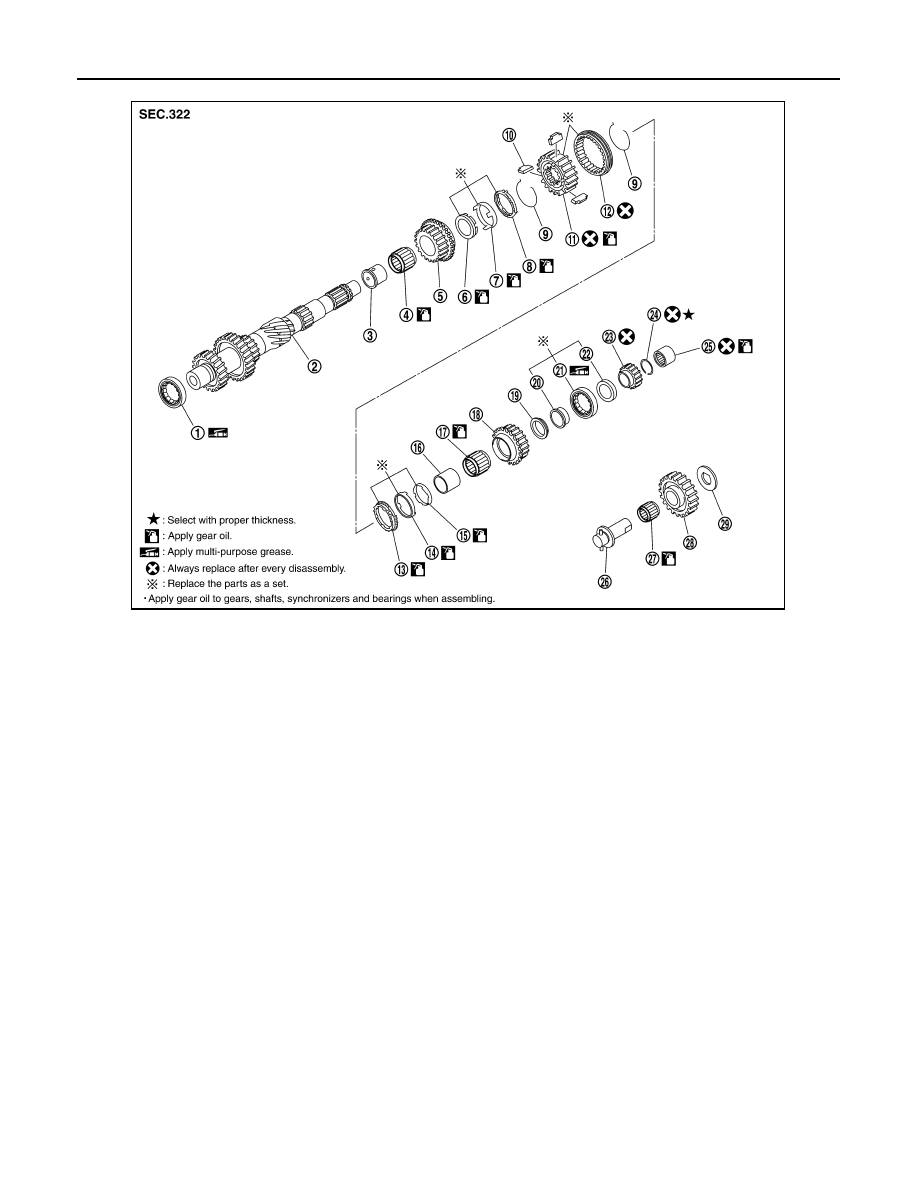

TM-76

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

Shift Control Components

1.

Counter front bearing

2.

Counter gear

3.

3rd gear bushing

4.

3rd needle bearing

5.

3rd counter gear

6.

3rd inner baulk ring

7.

3rd synchronizer cone

8.

3rd outer baulk ring

9.

3rd-4th spread spring

10. 3rd-4th shifting insert

11.

3rd-4th synchronizer hub

12. 3rd-4th coupling sleeve

13. 4th outer baulk ring

14. 4th synchronizer cone

15. 4th inner baulk ring

16. 4th gear bushing

17. 4th needle bearing

18. 4th counter gear

19. 4th counter gear thrust washer

20. Counter rear bearing inner race

21. Counter rear bearing

22. Counter rear bearing spacer

23. Reverse counter gear

24. Snap ring

25. Counter end bearing

26. Reverse idler shaft

27. Reverse idler needle bearing

28. Reverse idler gear

29. Reverse idler thrust washer

PCIB1211E

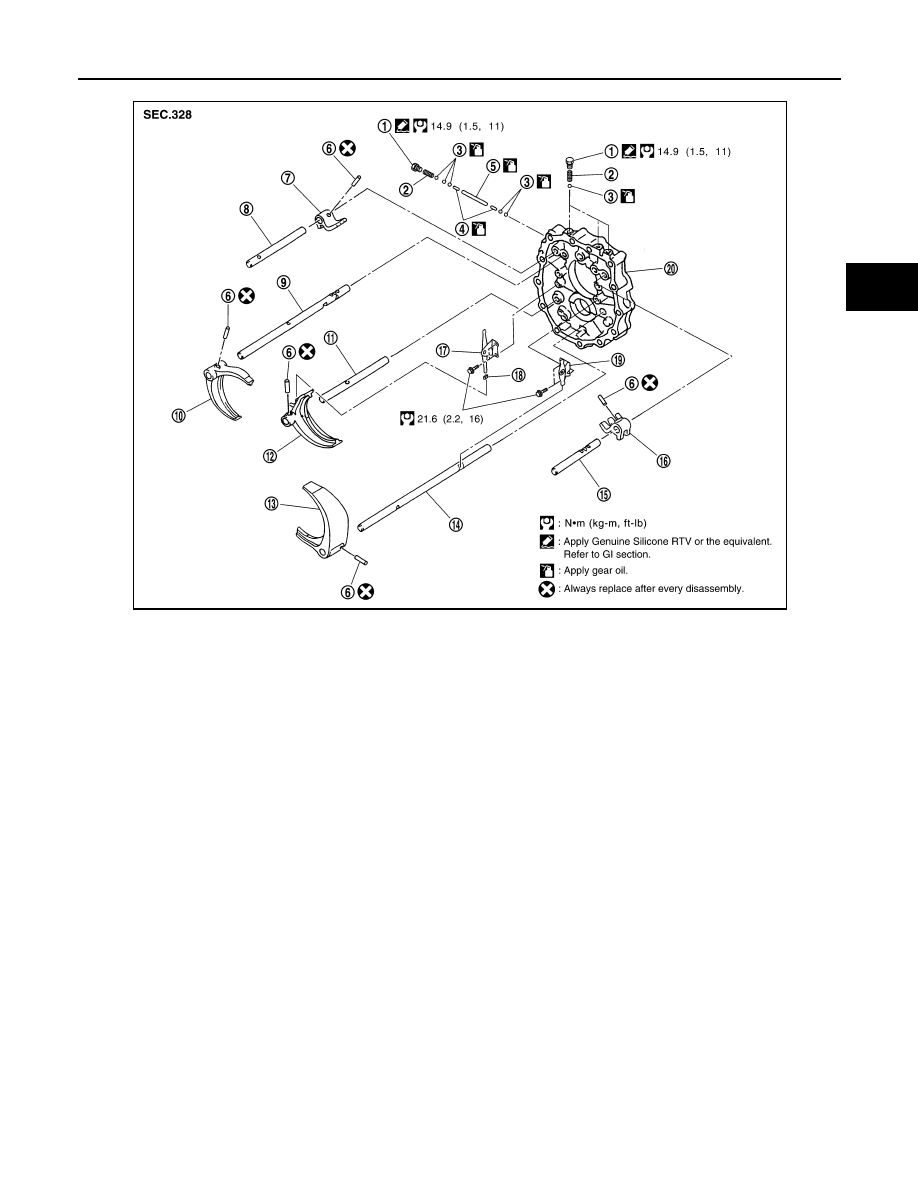

TRANSMISSION ASSEMBLY

TM-77

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Check ball plug

2.

Check ball spring

3.

Check ball

4.

Interlock pin

5.

Interlock plunger

6.

Retaining pin

7.

3rd-4th fork rod bracket

8.

3rd-4th fork rod

9.

1st-2nd fork rod

10. 1st-2nd shift fork

11.

3rd-4th fork rod (reversal side)

12. 3rd-4th shift fork

13. 5th-6th shift fork

14. 5th-6th fork rod (reversal side)

15. 5th-6th fork rod

16. 5th-6th fork rod bracket

17. 3rd-4th control lever

18. Shifter cap

19. 5th-6th control lever

20. Adapter plate

PCIB1212E
