Nissan Frontier D40. Manual - part 1043
TM-70
< REMOVAL AND INSTALLATION >
[6MT: FS6R31A]

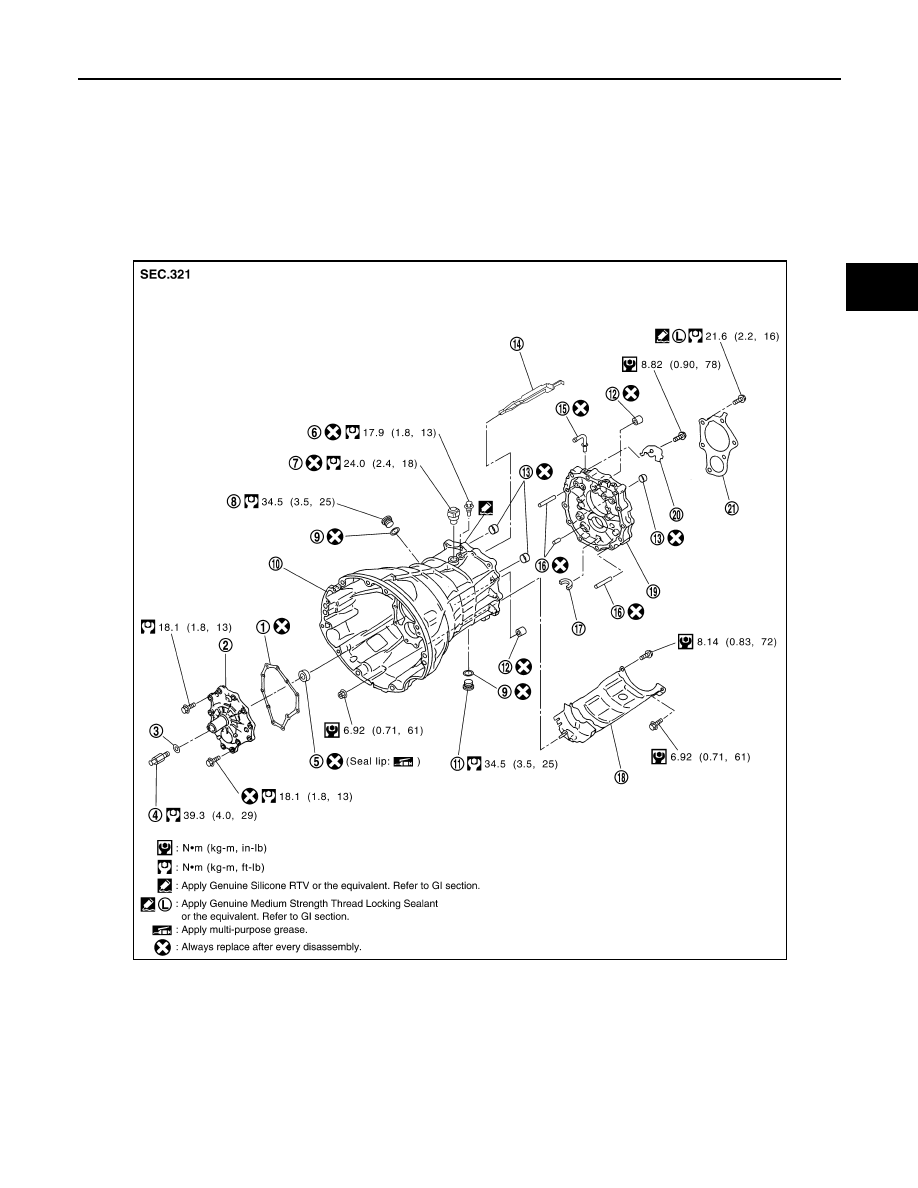

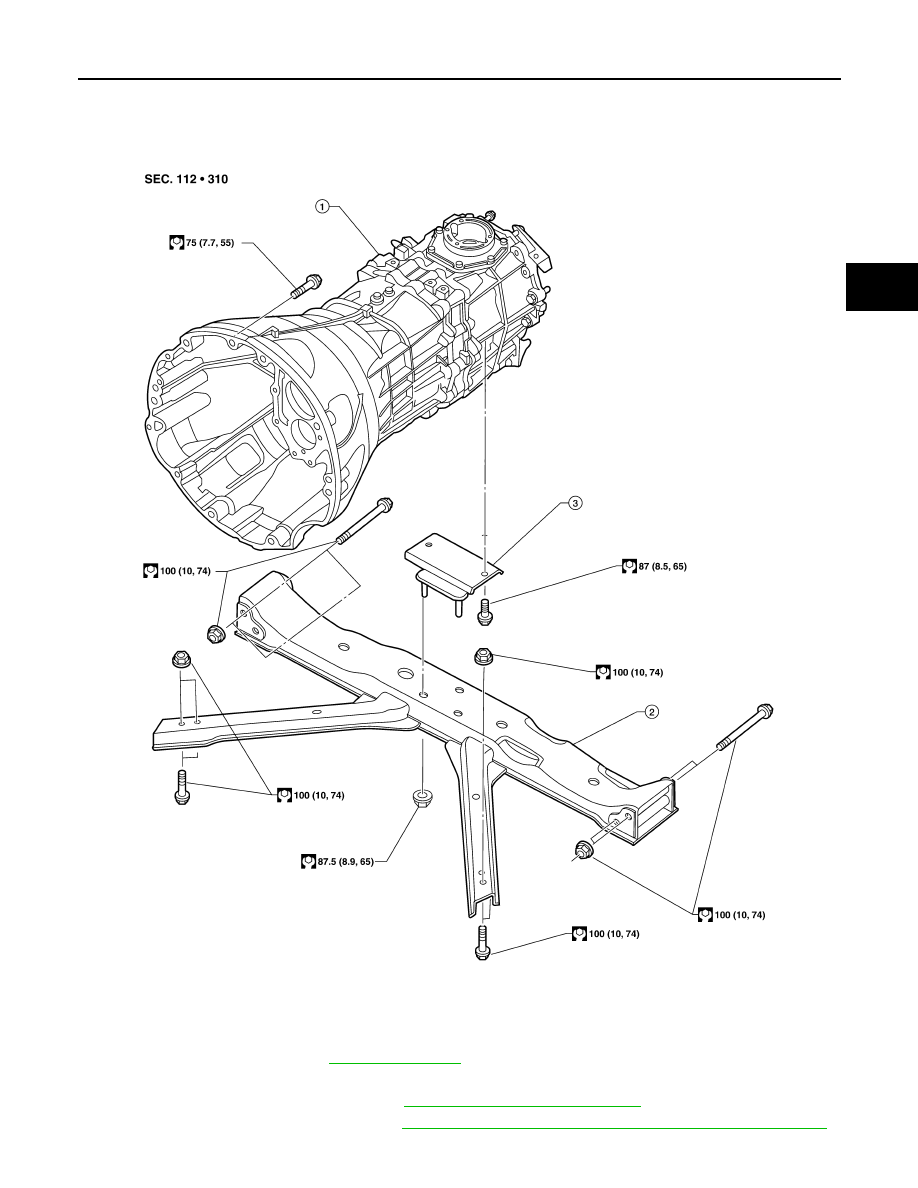

TRANSMISSION ASSEMBLY
2.
Disconnect the battery cable from the negative terminal.
3.
Remove the shift lever assembly. Refer to
TM-66, "Removal and Installation"
.
4.
Remove the LH fender protector. Refer to
EXT-22, "Removal and Installation of Front Fender Protector"
5.

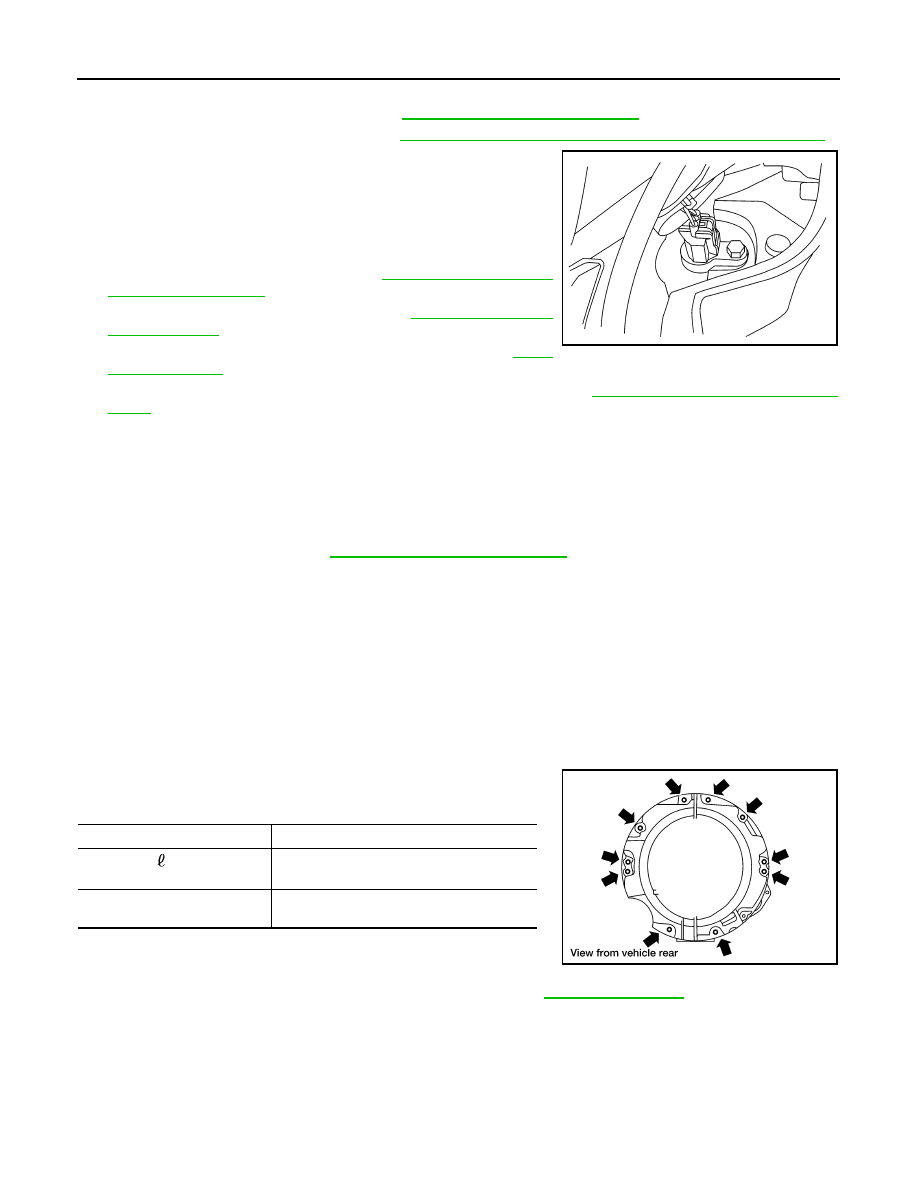

Remove the crankshaft position sensor (POS) from M/T assem-
bly.
CAUTION:
Do not damage the sensor edge.
6.
Remove the undercovers using power tool.
7.
Remove the front crossmember using power tool.
8.
Remove the starter motor. Refer to
.
9.
Remove the rear propeller shaft. Refer to
10. Remove the left and right front exhaust tubes. Refer to
11. Remove the clutch operating cylinder from the transmission. Refer to
CL-17, "6M/T : Removal and Instal-
.
12. Support the transmission using a suitable jack.
13. Remove the nuts securing the insulator to the crossmember.
14. Remove the crossmember using power tool.
WARNING:
Support the transmission using suitable jack.
15. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect
the air breather hoses. Refer to
TM-68, "Removal and Installation"
16. Disconnect the following:
• Back-up lamp switch connector
• Park/neutral position (PNP) switch connector
17. Remove the wiring harness from the retainers.
18. Remove the transmission to engine bolts using power tool.
19. Separate the transmission from the engine and remove it from the vehicle.
WARNING:
Support the transmission while removing it using suitable jack.
INSTALLATION
Installation is the reverse order of removal.

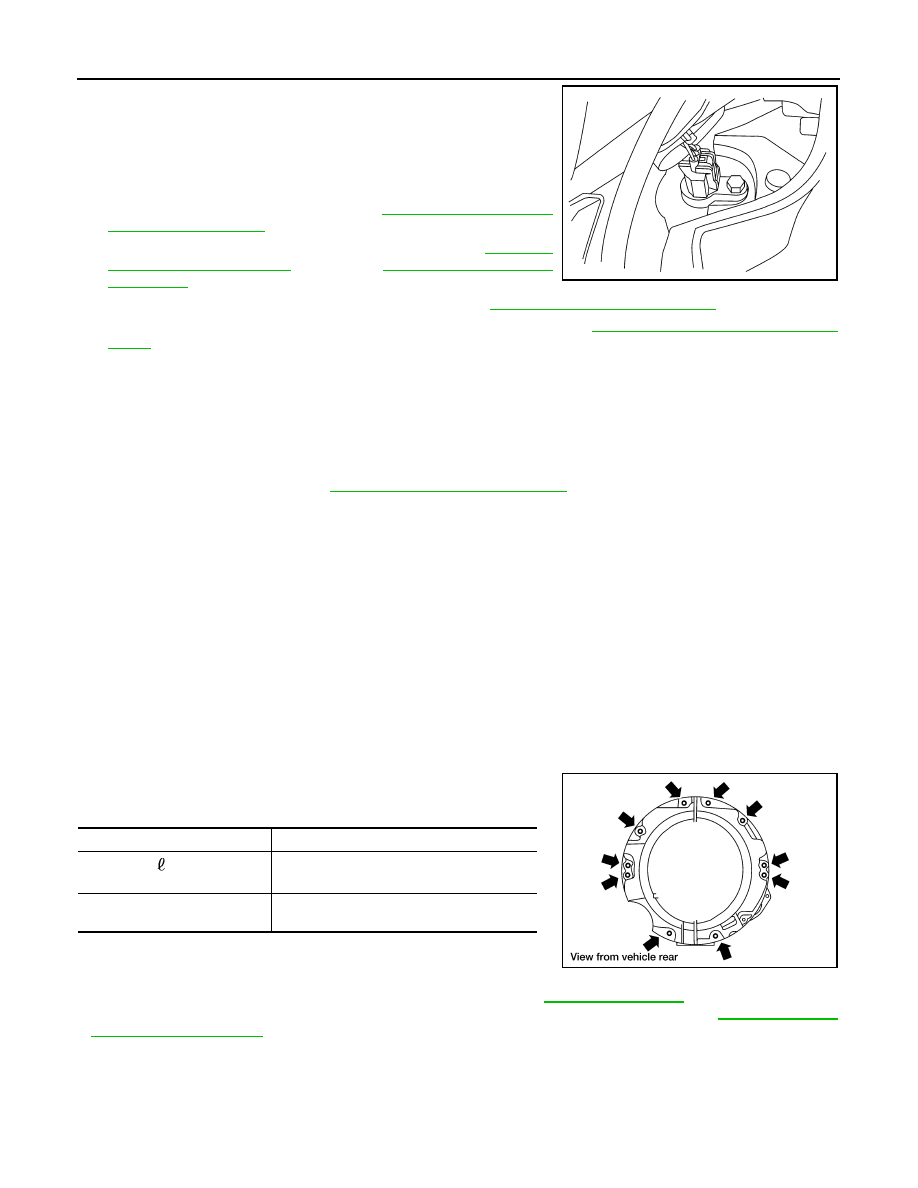

• When installing the transmission to the engine, tighten the bolts to
the specified torque.
CAUTION:
• When installing be careful to avoid interference between
transmission main drive gear and clutch cover.
• After installation, check for oil leakage and oil level. Refer to
• If flywheel is removed, align dowel pin with the smallest hole of flywheel.
• When replacing an engine or transmission you must make sure the dowels are installed correctly
during re-assembly.
• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive
train components.
LCIA0367E
Quantity
10
Bolt length “
”
mm (in)
65 (2.56)
Tightening torque
N·m (kg-m, ft-lb)
75 (7.7, 55)
WCIA0507E
