Nissan Terrano model r20 series 2004. Manual - part 358





Performance Test Diagnoses

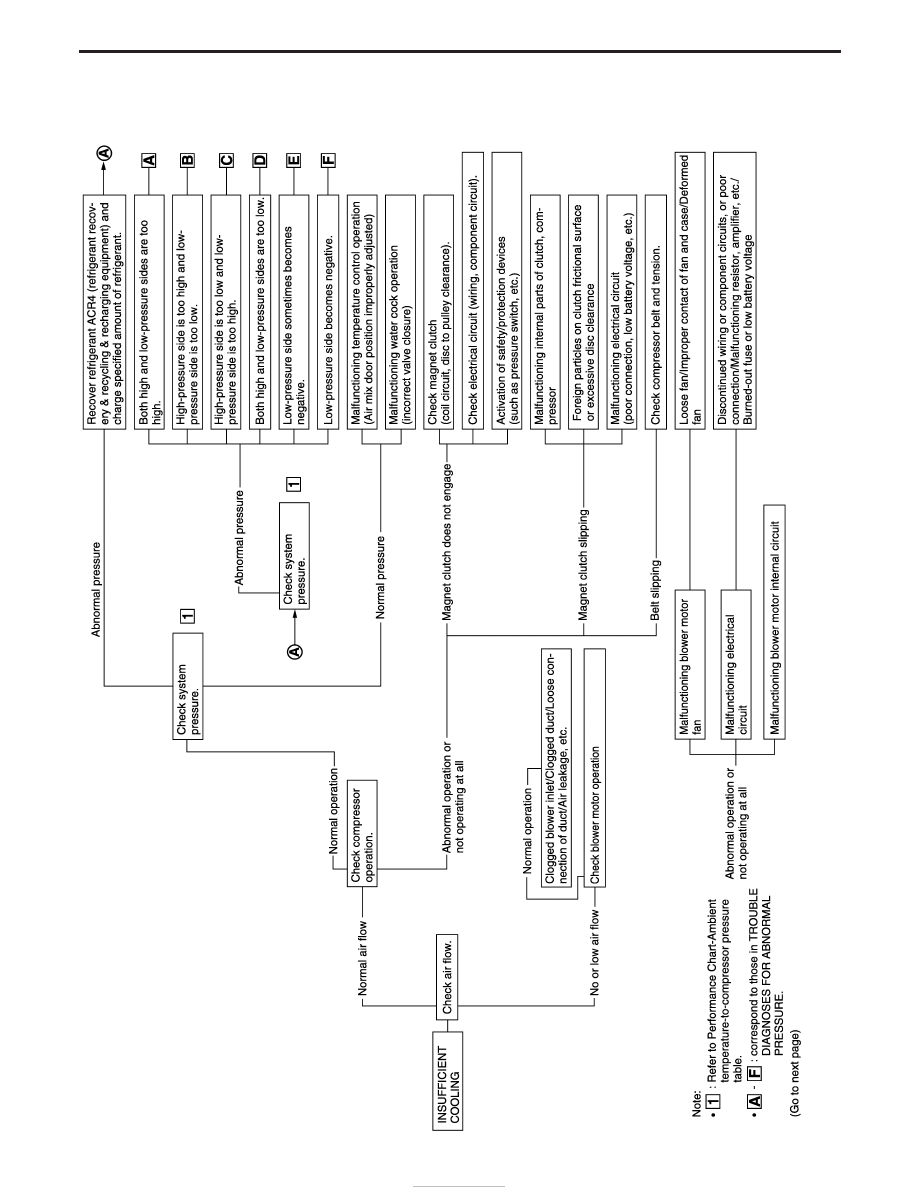

INSUFFICIENT COOLING

MHA176B

DIAGNOSES — Overall System

HA-32

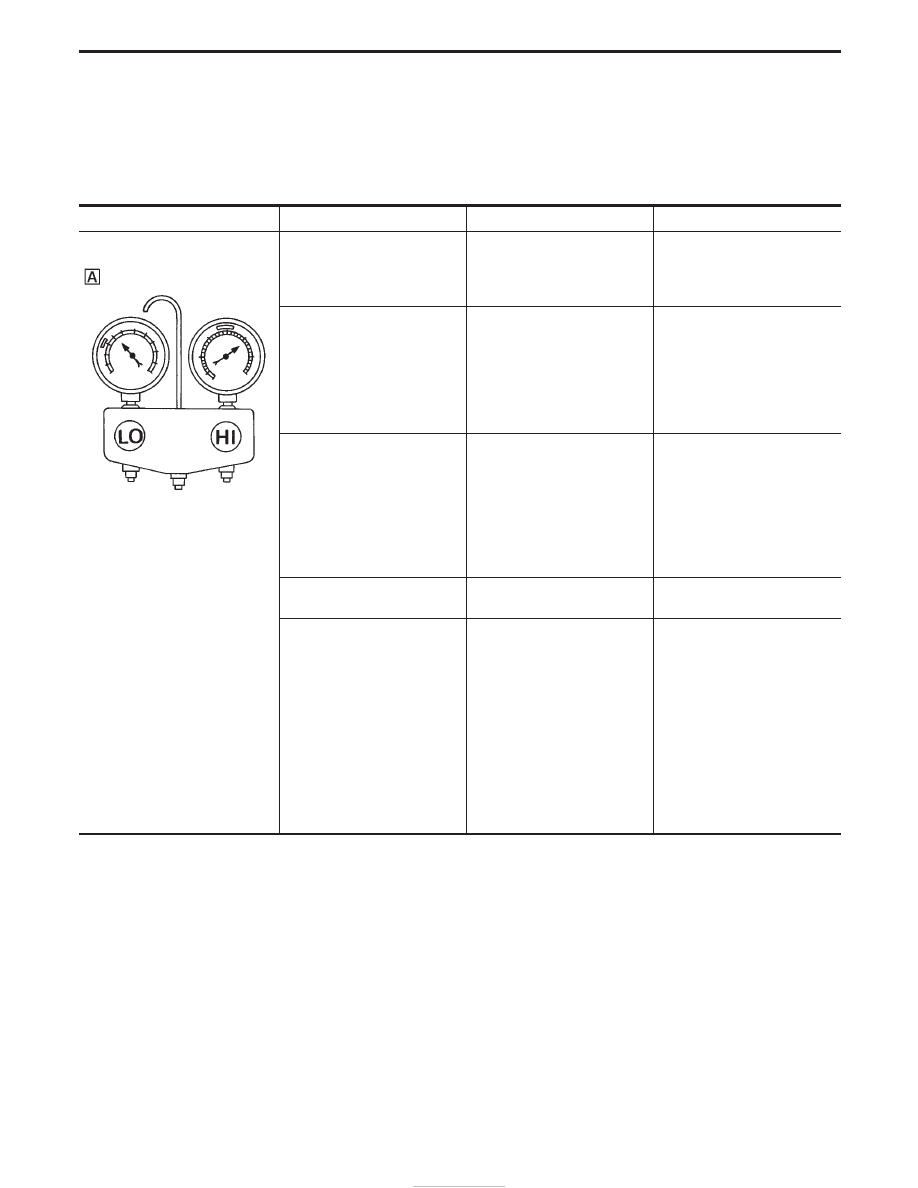

TROUBLE DIAGNOSES FOR ABNORMAL PRESSURE

Whenever abnormal pressure of high and/or low sides of the system is noted, diagnosis must be conducted
by using a manifold gauge. The large-line zone on the gauge scale (see illustrations.) shown in the following
table refers to the standard (normal) pressure range for the corresponding pressure side (high or low). Since
the standard (normal) pressure, however, differs from vehicle to vehicle, refer to the “Ambient air temperature-
to-compressor pressure table”.

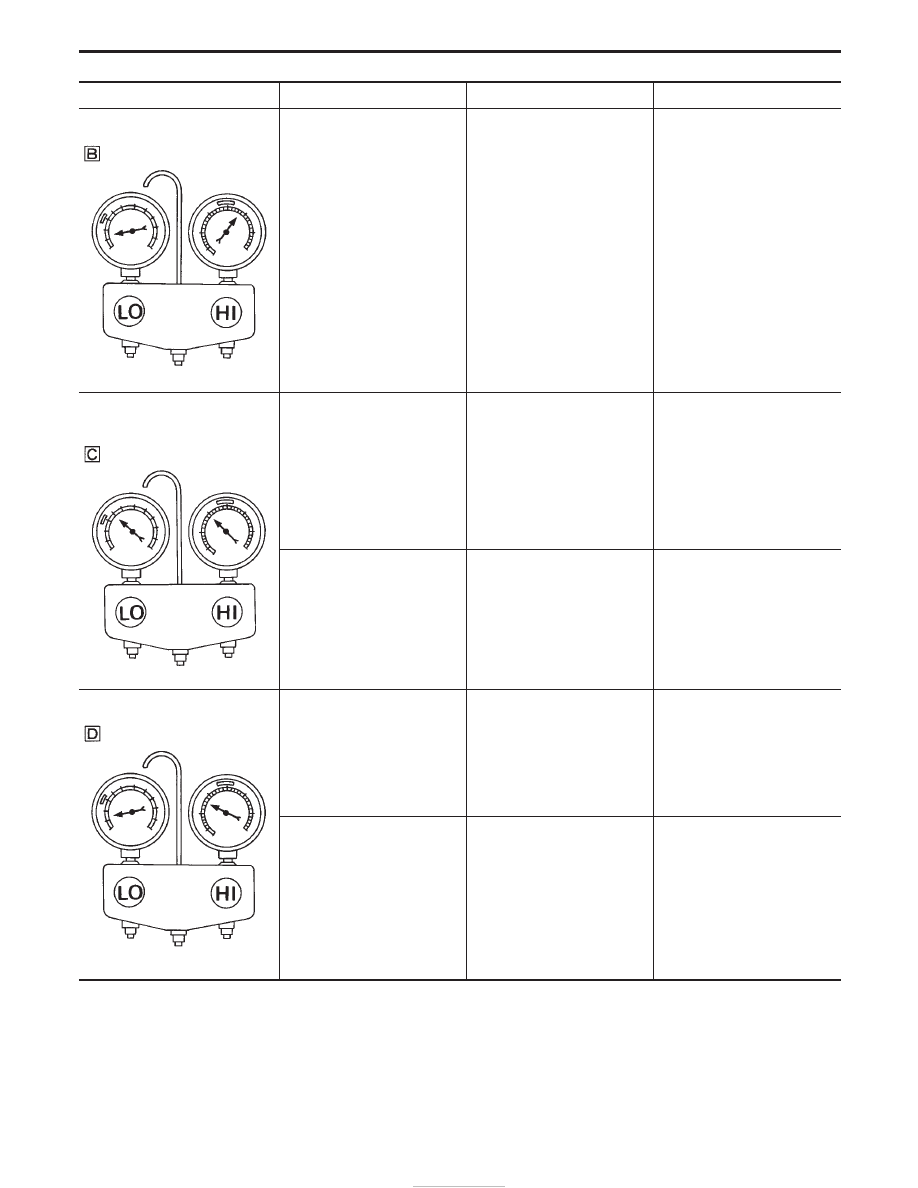

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure
sides are too high.

AC359A

I

Pressure is reduced soon
after water is splashed on
condenser.

Excessive refrigerant charge in
refrigeration cycle

Reduce refrigerant until speci-
fied pressure is obtained.

Air suction by radiator or con-
denser fan is insufficient.

Insufficient condenser cooling
performance

"

q

1

Condenser fins are
clogged.

q

2

Improper rotation of radiator
fan or condenser fan

I

Clean condenser.

I

Check and repair radiator or
condenser fan as necessary.

I

Low-pressure pipe is not
cold.

I

When compressor is stopped
high-pressure value quickly
drops by approximately 196
kPa (2 kg/cm

2

, 28 psi). It

then decreases gradually
thereafter.

Poor heat exchange in con-
denser
(After compressor operation
stops, high pressure
decreases too slowly.)

"

Air in refrigeration cycle

Evacuate repeatedly and
recharge system.

Engine tends to overheat.

Engine cooling systems mal-
function.

Check and repair each engine
cooling system.

I

Areas near low-pressure
pipe connection and service
valves are considerably cold
compared with areas near
expansion valve outlet or
evaporator.

I

Plates are sometimes cov-
ered with frost.

I

Excessive liquid refrigerant
on low-pressure side

I

Excessive refrigerant dis-
charge flow

I

Expansion valve is open a
little compared with the
specification.

"

q

1

Improper expansion valve
installation

q

2

Improper expansion valve
adjustment

Replace expansion valve.

DIAGNOSES — Overall System

Performance Test Diagnoses (Cont’d)

HA-33

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

High-pressure side is too high
and low-pressure side is too low.

AC360A

Upper side of condenser and
high-pressure side are hot,
however, liquid tank is not so
hot.

High-pressure tube or parts
located between compressor
and condenser are clogged or
crushed.

I

Check and repair or replace
malfunctioning parts.

I

Check compressor oil for
contamination.

High-pressure side is too low
and low-pressure side is too
high.

AC356A

High- and low-pressure sides
become equal soon after com-
pressor operation stops.

Compressor pressure opera-
tion is improper.

"

Damages inside compressor
packings

Replace compressor.

No temperature difference
between high- and low-pres-
sure sides

Compressor discharge capac-
ity does not change. (Com-
pressor stroke is set at maxi-
mum.)

Replace compressor.

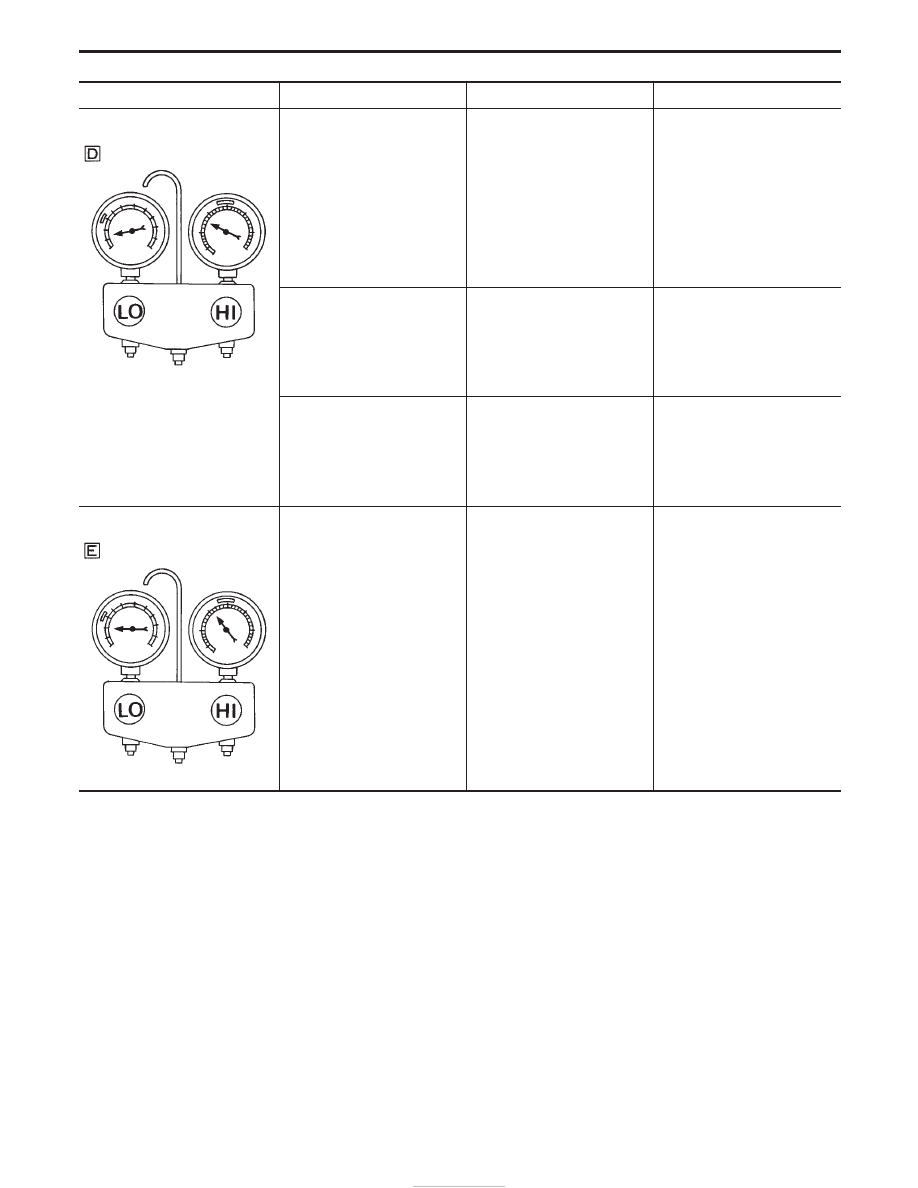

Both high- and low-pressure
sides are too low.

AC353A

I

There is a big temperature
difference between liquid
tank outlet and inlet. Outlet
temperature is extremely
low.

I

Liquid tank inlet and expan-
sion valve are frosted.

Liquid tank inside is clogged a
little.

I

Replace liquid tank

I

Check compressor oil for
contamination.

I

Temperature of expansion
valve inlet is extremely low
as compared with areas near
liquid tank.

I

Expansion valve inlet may
be frosted.

I

Temperature difference
occurs somewhere in high-
pressure side

High-pressure pipe located
between liquid tank and
expansion valve is clogged.

I

Check and repair malfunc-
tioning parts.

I

Check compressor oil for
contamination.

DIAGNOSES — Overall System

Performance Test Diagnoses (Cont’d)

HA-34

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure
sides are too low.

AC353A

There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted.

Expansion valve closes a little
compared with the specifica-
tion.

"

q

1

Improper expansion valve
adjustment

q

2

Malfunctioning expansion
valve

q

3

Outlet and inlet may be
clogged.

I

Remove foreign particles by
using compressed air.

I

Check compressor oil for
contamination.

I

Replace expansion valve.

Areas near low-pressure pipe
connection and service valve
are extremely cold as com-
pared with areas near expan-
sion valve outlet and evapora-
tor.

Low-pressure pipe is clogged
or crushed.

I

Check and repair malfunc-
tioning parts.

I

Check compressor oil for
contamination.

Air flow volume is not enough
or is too low.

Evaporator is frozen.

"

Compressor discharge capac-
ity does not change. (Com-
pressor stroke is set at maxi-
mum length.)

Replace compressor.

Low-pressure side sometimes
becomes negative.

AC354A

I

Air conditioning system does
not function and does not
cyclically cool the compart-
ment air.

I

The system constantly func-
tions for a certain period of
time after compressor is
stopped and restarted.

Refrigerant does not discharge
cyclically.

"

Moisture is frozen at expan-
sion valve outlet and inlet.

"

Water is mixed with refrigerant.

I

Drain water from refrigerant
or replace refrigerant.

I

Replace liquid tank.

DIAGNOSES — Overall System

Performance Test Diagnoses (Cont’d)

HA-35
