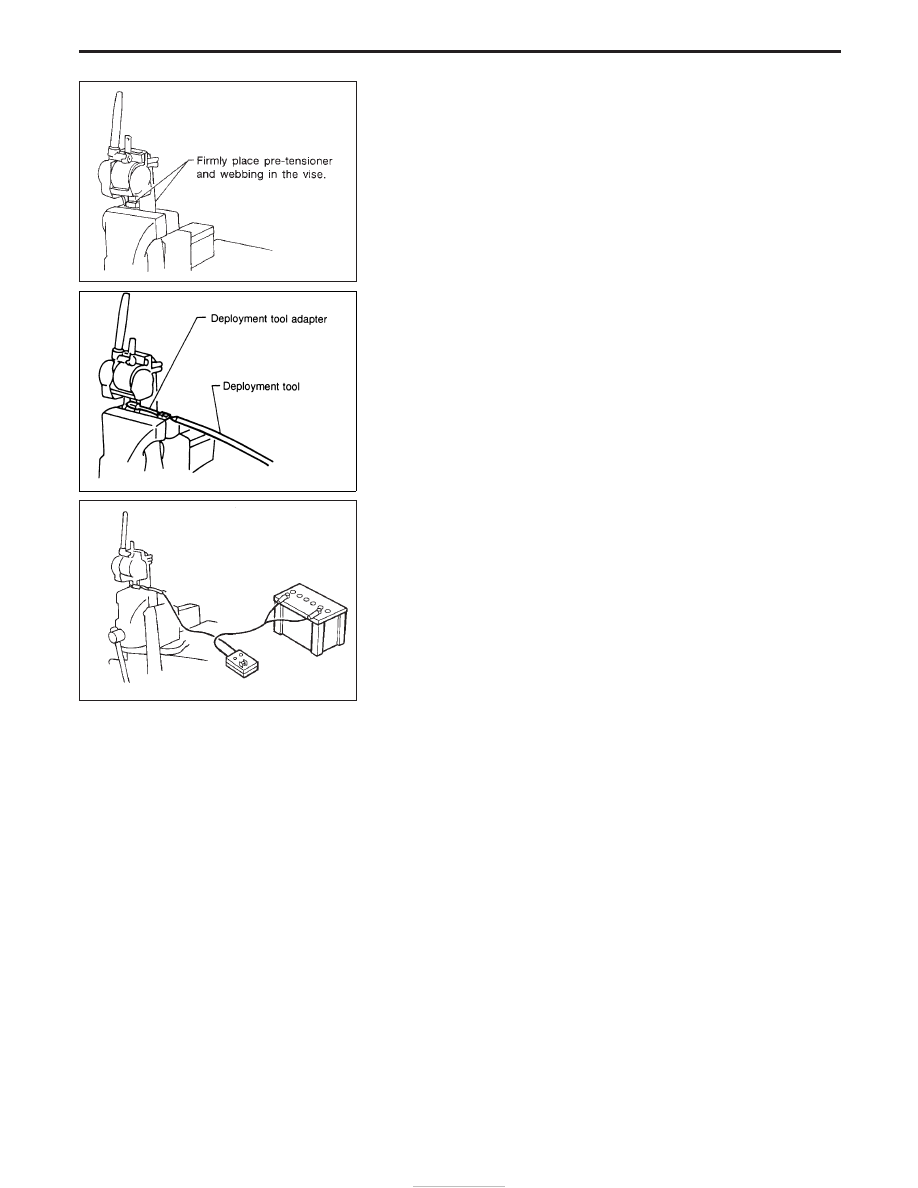

DEPLOYMENT PROCEDURES FOR SEAT BELT PRE-
TENSIONER AS A UNIT (OUTSIDE OF VEHICLE)

1. Firmly secure front seat belt pre-tensioner in a vise.

CAUTION:

Ensure bracket and webbing are placed in a vise.

2. Connect deployment tool adapter (SST: KV99109700) to

deployment tool (SST: KV99106400) connector and front seat
belt pre-tensioner connector.

3. Connect red clip of deployment tool to battery positive terminal

and black clip to negative terminal.

4. The lamp on the right side of the tool, marked “deployment tool

power”, should glow green, not red.

5. Press the button on the deployment tool. The left side lamp on

the tool, marked “seat belt pre-tensioner connector voltage”, will
illuminate and the front seat belt pre-tensioner will deploy.

CAUTION:

When deploying the front seat belt pre-tensioner, stand at
least 5 m (16 ft) away from the front seat belt pre-tensioner.

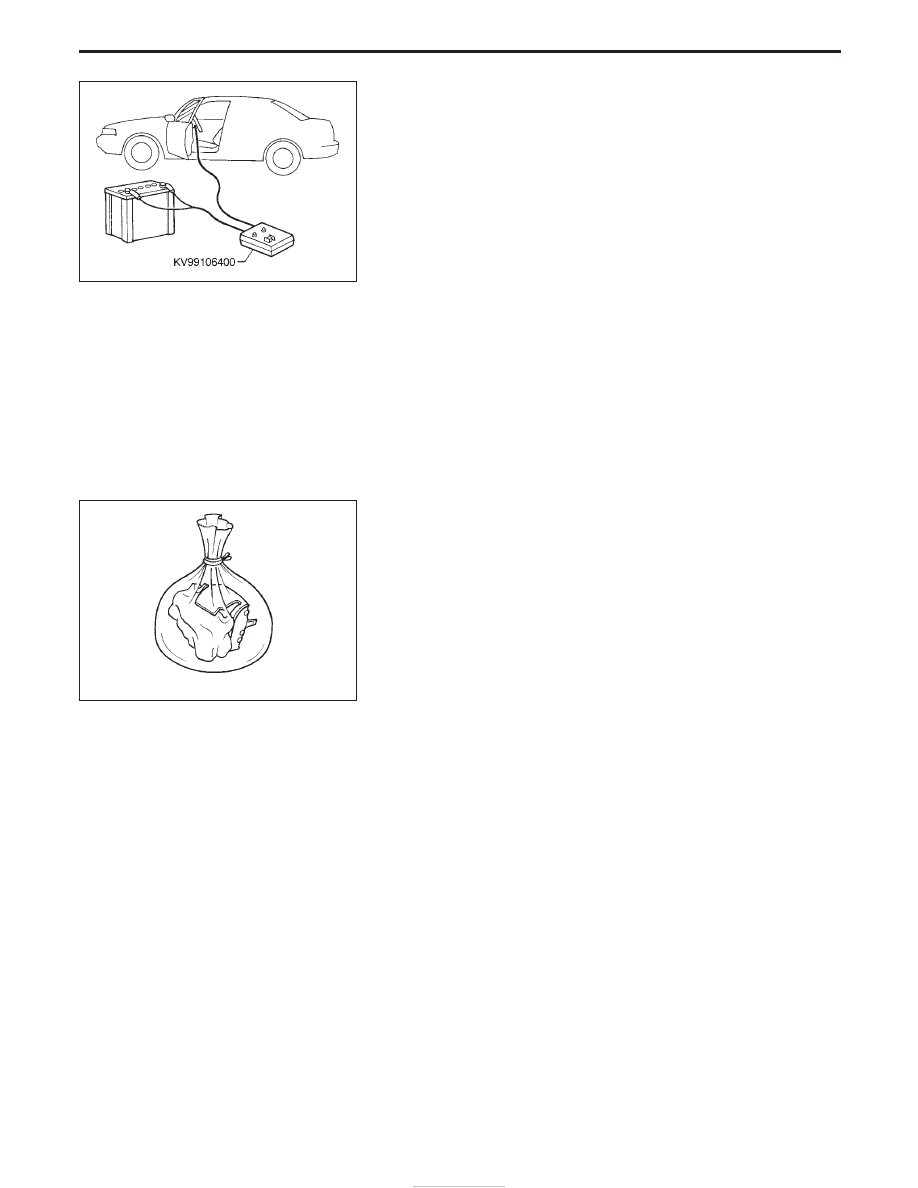

DEPLOYMENT OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER WHILE MOUNTED IN VEHICLE

When disposing of a vehicle, deploy air bag module and seat belt
pre-tensioner while they are mounted in vehicle.

CAUTION:

When deploying air bag module or seat belt pre-tensioner,
ensure vehicle is empty.
1. Disconnect both the vehicle battery cables and wait 10 minutes.
2. Disconnect air bag module and seat belt pre-tensioner connec-

tor.

3. Connect deployment tool (SST: KV99106400) to air bag mod-

ule or seat belt pre-tensioner.
For front passenger air bag module, attach deployment tool
adapter (SST: KV99108300) to the tool connector. For front
side air bag module (built-in type), attach deployment tool
adapter (SST: KV99109000). For front seat belt pre-tensioner,
attach deployment tool adapter (SST: KV99109700) to the tool
connector.

SBF272H

SBF273H

SBF274H

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Disposal of Air Bag Module and Seat Belt Pre-
tensioner (Cont’d)

RS-26

4. Connect red clip of deployment tool to battery positive terminal

and black clip to negative terminal.

5. The lamp on the right side of the tool, marked “deployment tool

power”, should glow green, not red.

6. Press the button on the deployment tool. The left side lamp on

the tool, marked “air bag connector voltage”, will illuminate and
the air bag module or seat belt pre-tensioner will deploy.

7. After deployment, remove them from vehicle and seal them up

in plastic bags, then dispose of them.

CAUTION:

Activate only one air bag module or seat belt pre-tensioner at
a time.

DISPOSING OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER

Deployed air bag module and seat belt pre-tensioner are very hot.
Before disposing of air bag module, and seat belt pre-tensioner wait
at least 30 minutes, and 10 minutes, respectively. Seal them in a
plastic bag before disposal.

CAUTION:

I

Never apply water to a deployed air bag module and seat
belt pre-tensioner.

I

Be sure to wear gloves when handling a deployed air bag
module and seat belt pre-tensioner.

I

No poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since it
irritates throat and can cause choking.

I

Do not attempt to disassemble air bag module and seat
belt pre-tensioner.

I

Air bag module and seat belt pre-tensioner cannot be
reused.

I

Wash your hands clean after finishing work.

SRS006

SBF276H

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Disposal of Air Bag Module and Seat Belt Pre-
tensioner (Cont’d)

RS-27

Trouble Diagnoses Introduction

CAUTION:

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

I

Do not attempt to repair, splice or modify the SRS wiring harness. If the harness is damaged,
replace it with a new one.

I

Keep ground portion clean.

DIAGNOSIS FUNCTION

The SRS self-diagnosis results can be read by using “AIR BAG” warning lamp and/or CONSULT-II. The read-
ing of these results is accomplished using one of two modes — “User mode” and “Diagnosis mode”.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system
malfunction through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-II are as follows:

User mode

Diagnosis mode

Display type

“AIR BAG” warning lamp

X

X

ON-OFF operation

CONSULT-II

X

Monitoring

NOTE:
Seat belt pre-tensioner malfunction is indicated by “AIR BAG” warning lamp.

DIAGNOSIS MODE FOR CONSULT-II

I

“SELF-DIAG [CURRENT]”
A current self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requiring
repairs.

I

“SELF-DIAG [PAST]”
Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The stored
results are not erased until memory erasing is executed.

I

“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be displayed
on the CONSULT-II screen.

I

“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned with its own, individual classification num-
ber (refer to the table below). This number will be displayed on the CONSULT-II screen. When replacing
the diagnosis sensor unit, refer to the part number for the compatibility. After installation, replacement with
a correct unit can be checked by confirming this classification number on the CONSULT-II screen.

For NISSAN MODEL R20, the diagnosis sensor unit classification numbers are as follows:

MODEL

ECU DISCRIMINATED NO.

Models with single air bag and seat belt pre-tensioner

A928

Models with dual air bags and seat belt pre-tensioner

A929

Models with dual air bags, side air bag and seat belt pre-tensioner

A930

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

RS-28

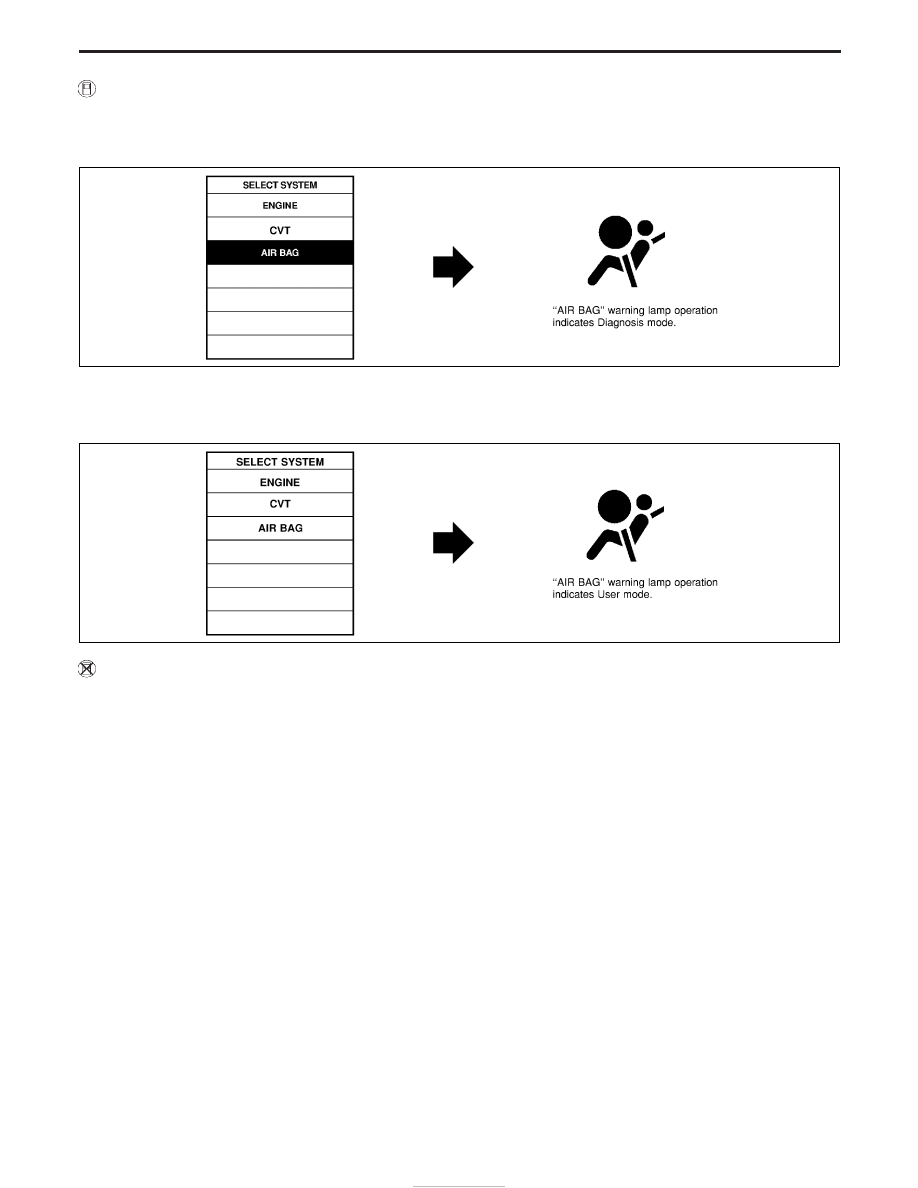

HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagno-
sis mode.

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears, Diagnosis mode automatically changes to User mode.

HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-II

From User Mode to Diagnosis Mode

When a malfunction is detected, activate the Diagnosis mode by turning the ignition switch as follows:
1) Turn ignition switch “ON”.
2) After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.
3) Wait more than 3 seconds.
4) Repeat steps 1 to 3 three times.
5) Turn ignition switch “ON”.
SRS will not enter Diagnosis mode if no malfunction is detected.

From Diagnosis Mode to User Mode

After a malfunction is repaired, switch the ignition “OFF” for at least one second, then back “ON”. Diagnosis
mode is returned to User mode.
When a malfunction is detected, switch from Diagnosis mode to User mode by turning the ignition switch as
follows:
1) Turn ignition switch “ON”.
2) After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch “OFF” within 1 second.
3) Wait more than 3 seconds.
4) Repeat steps 1 to 3 three times.
5) Turn ignition switch “ON”.

NRS115

NRS116

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses Introduction (Cont’d)

RS-29
