Nissan Terrano model r20 series 2004. Manual - part 292





Coil Spring Shock Absorber

REMOVAL AND INSTALLATION

I

Refer to Removal and Installation of REAR AXLE AND REAR
SUSPENSION, RA-12.

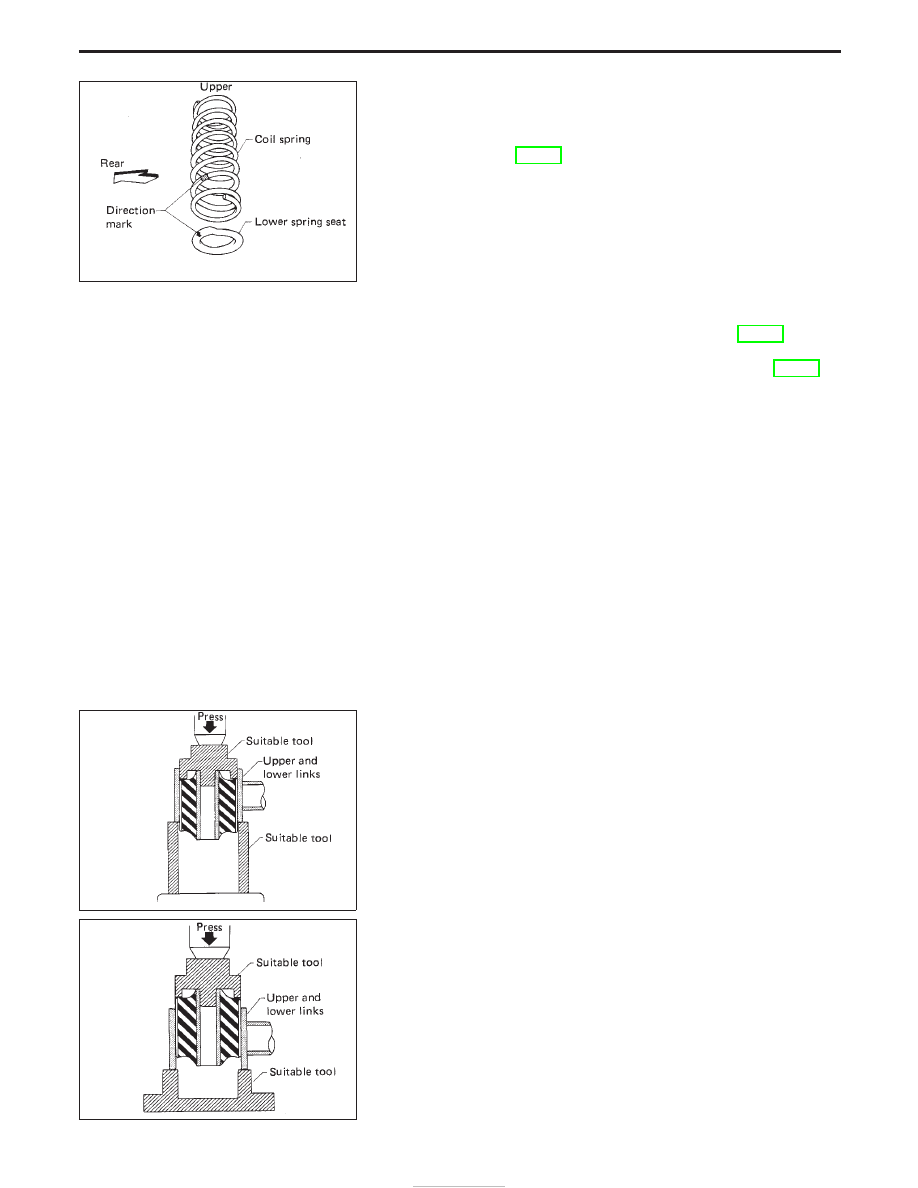

When installing coil spring and lower spring seat, pay atten-
tion to its direction.
Be sure spring rubber seat is not twisted and has not slipped
off when installing coil spring.

INSPECTION

I

Check coil spring for yield, deformation or cracks.

I

Check coil spring specifications. Refer to SDS, RA-16.

I

Check shock absorber for oil leakage, cracks or deformation.

I

Check shock absorber specifications. Refer to SDS, RA-16.

I

Check all rubber parts for wear, cracks or deformation. Replace
if necessary.

Upper Link, Lower Link and Panhard Rod

INSPECTION

Check for cracks, distortion or other damage. Replace if necessary.

BUSHING REPLACEMENT

Check for cracks or other damage. Replace with suitable tool if
necessary.

I

Remove bushing with suitable tool.

When installing bushing, apply a coating of 1% soap water to
outer wall of bushing.
Always install new bushing.
Do not tap end face of bushing directly with a hammer.

SRA910

SRA898

SRA900

REAR SUSPENSION

RA-14

INSTALLATION

When installing each link, pay attention to direction of bolts
and nuts. Refer to REAR SUSPENSION - Components, RA-13.
When installing each rubber part, final tightening must be car-
ried out under unladen condition with tires on ground.

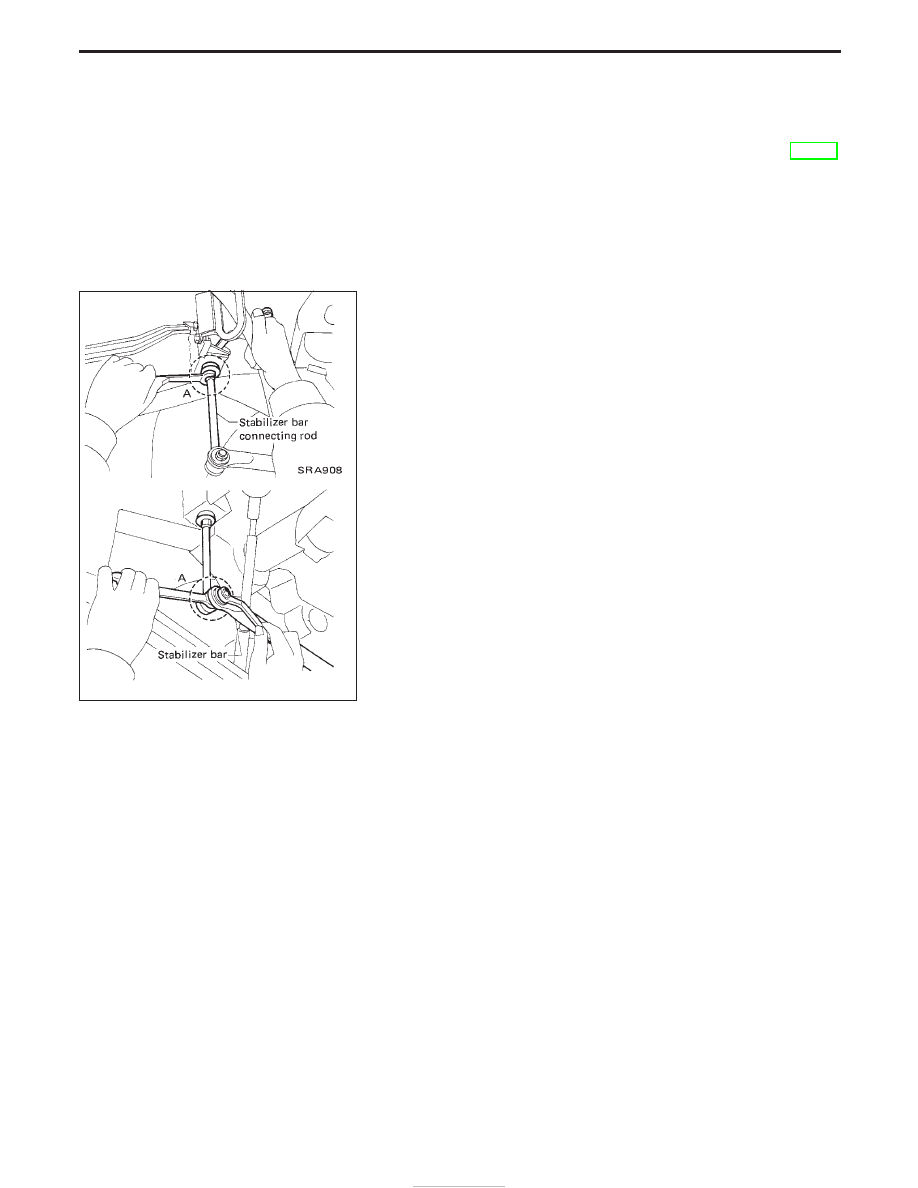

Stabilizer Bar

REMOVAL AND INSTALLATION

I

When removing and installing stabilizer bar, fix portion A.

SRA909

REAR SUSPENSION

Upper Link, Lower Link and Panhard Rod
(Cont’d)

RA-15

General Specifications

COIL SPRING AND SHOCK ABSORBER

Model

Hardtop

Wagon

Coil spring

Wire diameter

mm (in)

13.0 (0.512)

13.5 (0.531)

Free length

mm (in)

400 (15.75)

417 (16.42)

Spring constant

N/mm (kg/mm, lb/in)

25.5 (2.6, 146)

29 (3.0, 168)

Shock absorber

Shock absorber type

Non-adjustable (hydraulic)

Maximum length mm (in)

586 (23.07)

596 (23.46)

Minimum length mm (in)

350 (13.78)

356 (14.02)

Damping force
[at 0.3 m (1.0 ft)/sec.]

N (kg, lb)

Expansion

990 - 1,330

(101 - 136,

223 - 229)

1,169 - 1,563

(119 - 159,

223 - 351)

Compression

346 - 524

(35.3 - 53.4,

77.8 - 117.8)

301 - 461

(30.7 - 47.0,

67.7 - 103.6)

RA260

STABILIZER BAR

Model

Hardtop

Wagon

Diameter

mm (in)

23 (0.91)

24 (0.94)

Spring constant

N/mm (kg/mm, lb/in)

24.5 (2.5, 140)

29.0 (3.0, 166)

Inspection and Adjustment

WHEEL BEARING

Total end play

mm (in)

0 (0)

SERVICE DATA AND SPECIFICATIONS (SDS)

RA-16

BRAKE SYSTEM

SECTION

BR

CONTENTS

PRECAUTIONS AND PREPARATION

............................3

Supplement Restraint System (SRS)

AIR BAG

and

SEAT BELT PRE-TENSIONER

.........................3

Precautions ..................................................................3
Preparation ..................................................................4

CHECK AND ADJUSTMENT

..........................................5

Checking Brake Fluid Level.........................................5
Checking Brake Line ...................................................5
Changing Brake Fluid ..................................................5
Brake Burnishing Procedure........................................5

BRAKE HYDRAULIC LINE

.............................................6

Bleeding Brake System ...............................................8
Removal.......................................................................9
Inspection.....................................................................9
Installation....................................................................9

LOAD SENSING VALVE

...............................................10

Removal and Installation ...........................................10
Removal..................................................................... 11
Installation.................................................................. 11
Inspection and Adjustment ........................................12

BRAKE PEDAL AND BRACKET

..................................14

Removal and Installation ...........................................14
Removal.....................................................................15
Installation..................................................................15
Inspection...................................................................15
Adjustment .................................................................16

MASTER CYLINDER

.....................................................17

Removal.....................................................................17
Installation..................................................................17

BRAKE BOOSTER

........................................................18

Removal and Installation ...........................................18
Inspection...................................................................18
Installation..................................................................19

VACUUM HOSE

.............................................................20

Removal and Installation ...........................................20
Inspection...................................................................22

VACUUM PUMP (TD27Ti engine model)

....................24

Removal and Installation ...........................................24
Inspection...................................................................24

VACUUM PUMP (ZD30DDTi engine model)

...............26

Removal and Installation ...........................................26

FRONT DISC BRAKE

...................................................27

Pad Replacement ......................................................27
Removal.....................................................................28
Disassembly...............................................................28
Inspection...................................................................28
Assembly ...................................................................29
Inspection...................................................................29
Installation..................................................................31

REAR DRUM BRAKE

...................................................32

Removal.....................................................................33
Shoe Replacement ....................................................34
Inspection...................................................................34
Installation..................................................................34

PARKING BRAKE CONTROL

......................................36

Removal and Installation ...........................................36
Inspection...................................................................36
Adjustment .................................................................36

ANTI-LOCK BRAKE SYSTEM

......................................38

Purpose......................................................................38
Operation ...................................................................38
ABS Hydraulic Circuit ................................................38
System Description....................................................39
Removal and Installation ...........................................43

TROUBLE DIAGNOSES

...............................................48

How to Perform Trouble Diagnoses for Quick
and Accurate Repair
..................................................48
Component Parts and Harness Connector
Location
.....................................................................49
Circuit Diagram for Quick Pinpoint Check.................50
Wiring Diagram - ABS - .............................................51
CONSULT-II ...............................................................59
CONSULT-II Inspection Procedure............................60
Preliminary Check......................................................66
Ground Circuit Check ................................................67
Diagnostic Procedure 1 (Not self-diagnostic item)....68
Diagnostic Procedure 2 (Warning lamp stays on
when ignition switch is turned ON)
............................70
