Removal and Installation

I

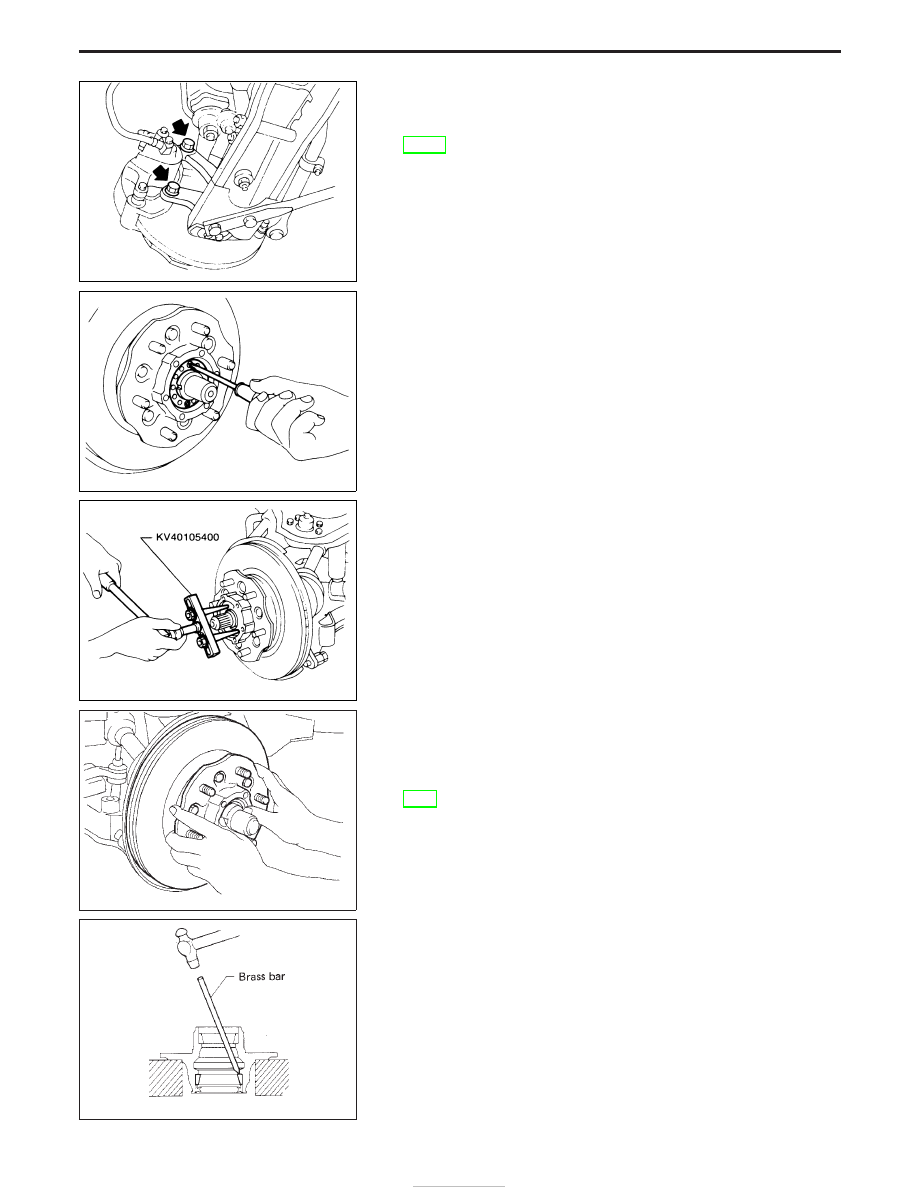

Remove free-running hub assembly.
Refer to “FRONT AXLE — Auto-Lock Free-running Hub”,
FA-14.

I

Remove brake caliper assembly.

Brake hose does not need to be disconnected from brake
caliper.
Be careful not to depress brake pedal, or piston will pop out.
Make sure brake hose is not twisted.

I

Remove lock washer.

I

Remove wheel bearing lock nut with Tool.

Tool: KV40105400

I

Remove wheel hub and wheel bearing.

Be careful not to drop outer bearing.

I

After installing wheel hub and wheel bearing, adjust wheel
bearing preload.
Refer to “PRELOAD ADJUSTMENT”, “Front Wheel Bearing”,
FA-6.

Disassembly

I

Drive bearing outer races with suitable brass bar.

SFA926

NFA006

NFA007

SFA832

FA858

FRONT AXLE — Wheel Hub and Rotor Disc

FA-18

Inspection

Thoroughly clean wheel bearing and wheel hub.

WHEEL BEARING

I

Make sure wheel bearing rolls freely and is free from noise,
crack, pitting or wear.

WHEEL HUB

I

Check wheel hub for cracks by using a magnetic exploration or
dyeing test.

Assembly

I

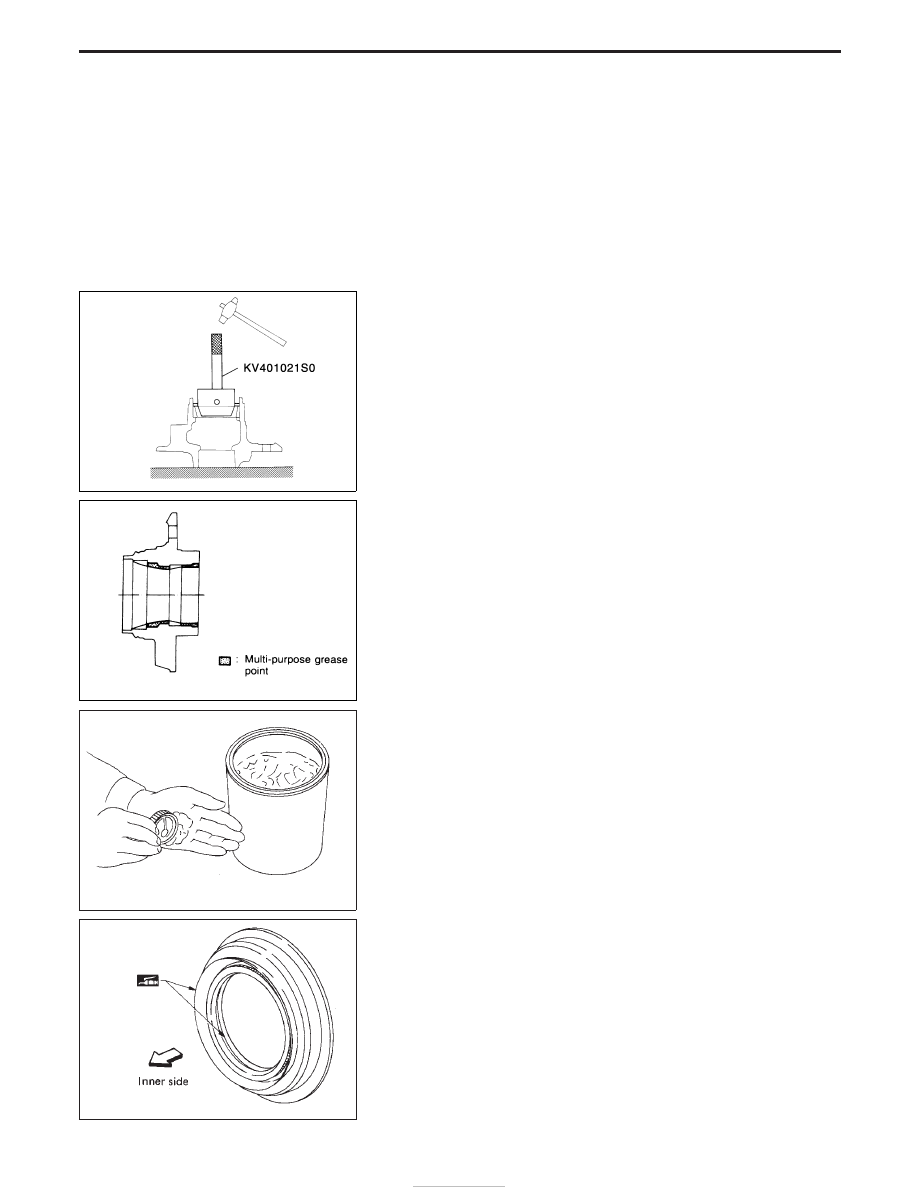

Install bearing outer race with Tool until it seats in hub.

I

Pack multi-purpose grease to hub and hub cap.

I

Apply multi-purpose grease to each bearing cone.

I

Pack grease seal lip with multi-purpose grease, then install it
into wheel hub with suitable drift.

YFA010

EFA008

FA781

SFA747

FRONT AXLE — Wheel Hub and Rotor Disc

FA-19

Removal

I

Remove free-running hub assembly.
Refer to “FRONT AXLE — Auto-lock Free-running Hub”, FA-14.

I

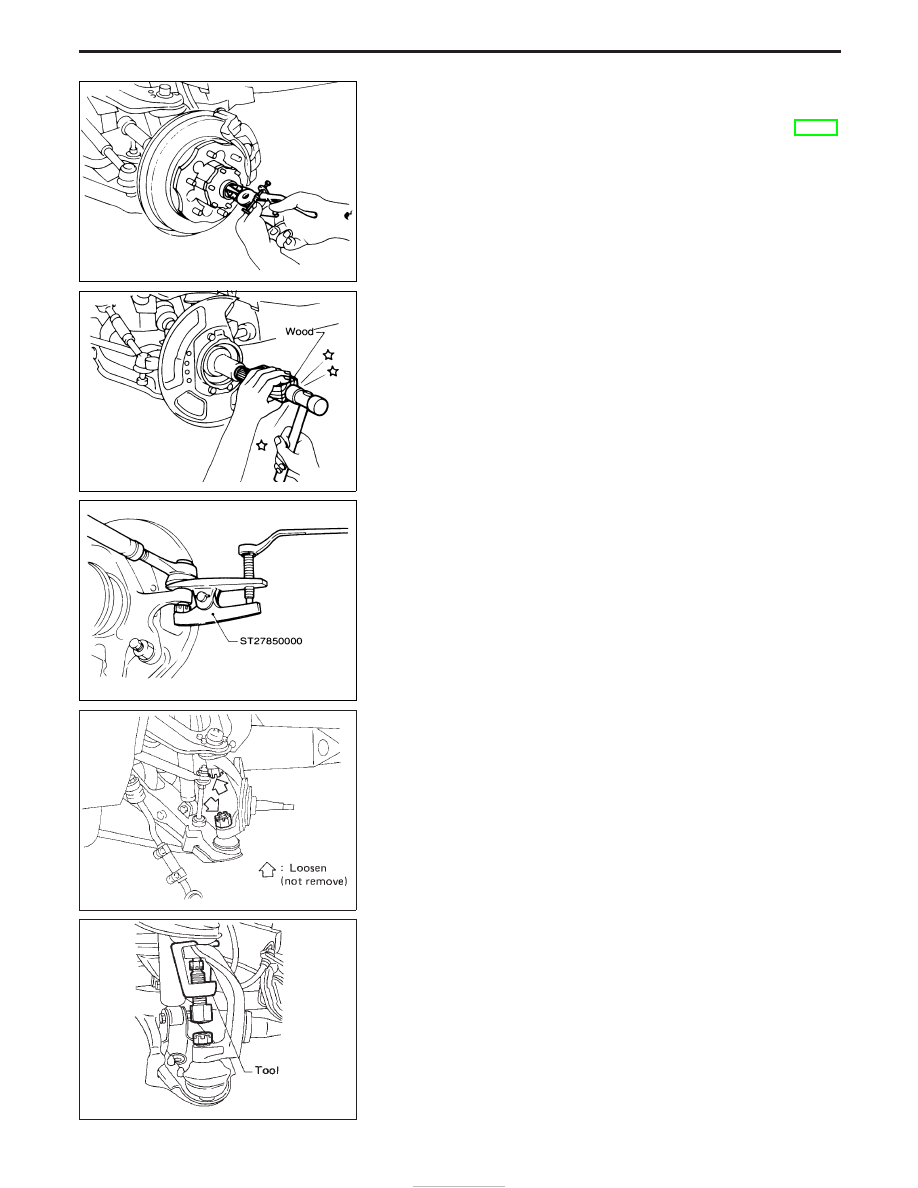

Separate drive shaft from knuckle spindle by slightly tapping
drive shaft end.

I

Separate tie-rod from knuckle spindle with Tool.

Install stud nut conversely on stud bolt so as not to damage
stud bolt.

I

Separate knuckle spindle from ball joints.

(1) Loosen (not remove) upper and lower ball joint tightening nuts.

(2) Separate upper and lower ball joints to knuckle spindle with

Tool.

During above operation, never remove ball joint nuts which
are loosened in step (1) above.

Tool: HT72520000

NFA008

NFA009

NFA010

SFA927

SFA079

FRONT AXLE — Knuckle Spindle

FA-20

(3) Remove ball joint tightening nuts.
Support lower link with jack.
(4) Separate knuckle spindle from upper and lower links.

Inspection

KNUCKLE SPINDLE

I

Check knuckle spindle for deformation, cracks or other damage
by using a magnetic exploration or dyeing test.

NEEDLE BEARING

I

Check needle bearing for wear, scratches, pitting, flaking and
burn marks.

Installation

I

Install needle bearing into knuckle spindle.

Make sure that needle bearing is facing in proper direction.
Apply multi-purpose grease.

I

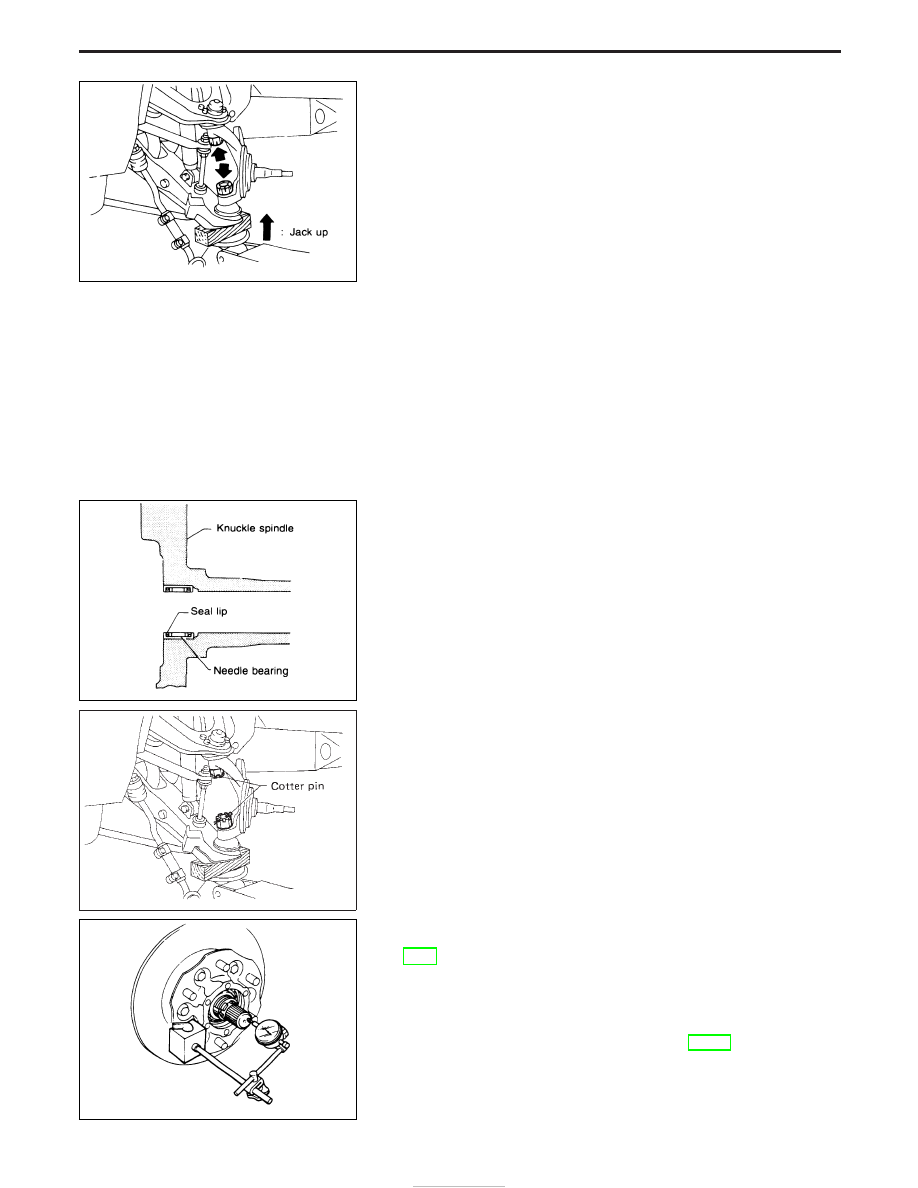

Install knuckle spindle to upper and lower ball joints with lower
link jacked up.

CAUTION:

Make sure that oil or grease does not come into contact with
tapered areas of ball joint and knuckle spindle and threads of
ball joint.

I

After installing knuckle spindle, adjust wheel bearing preload.
Refer to “PRELOAD ADJUSTMENT”, “Front Wheel Bearing”,
FA-6.

I

After installing drive shaft, check drive shaft axial end play.

Do not reuse snap ring once it has been removed.
Temporarily install snap ring at same thickness as it was
installed before removal.

Refer to “FRONT AXLE — Drive Shaft”, FA-22.

NFA011

NFA012

SFA929

NFA013

FRONT AXLE — Knuckle Spindle

Removal (Cont’d)

FA-21
