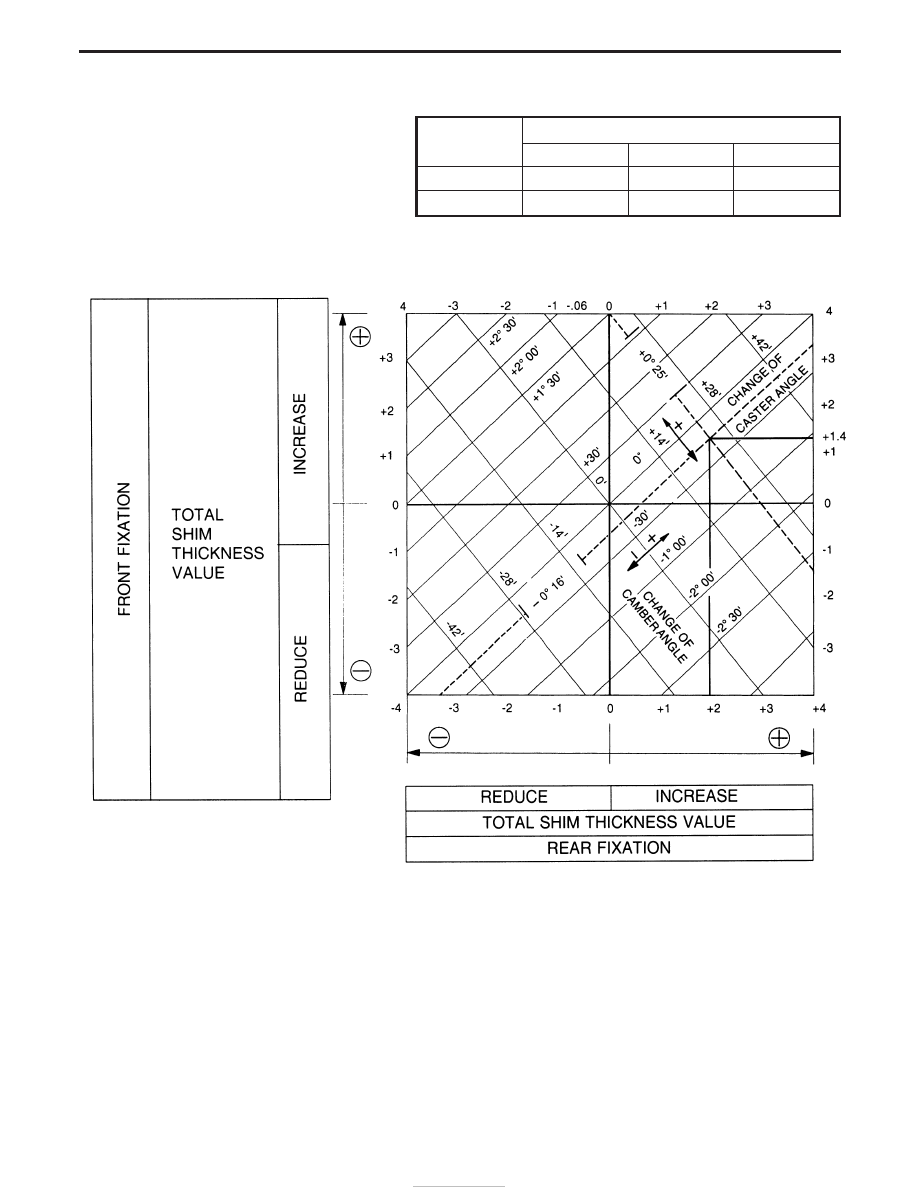

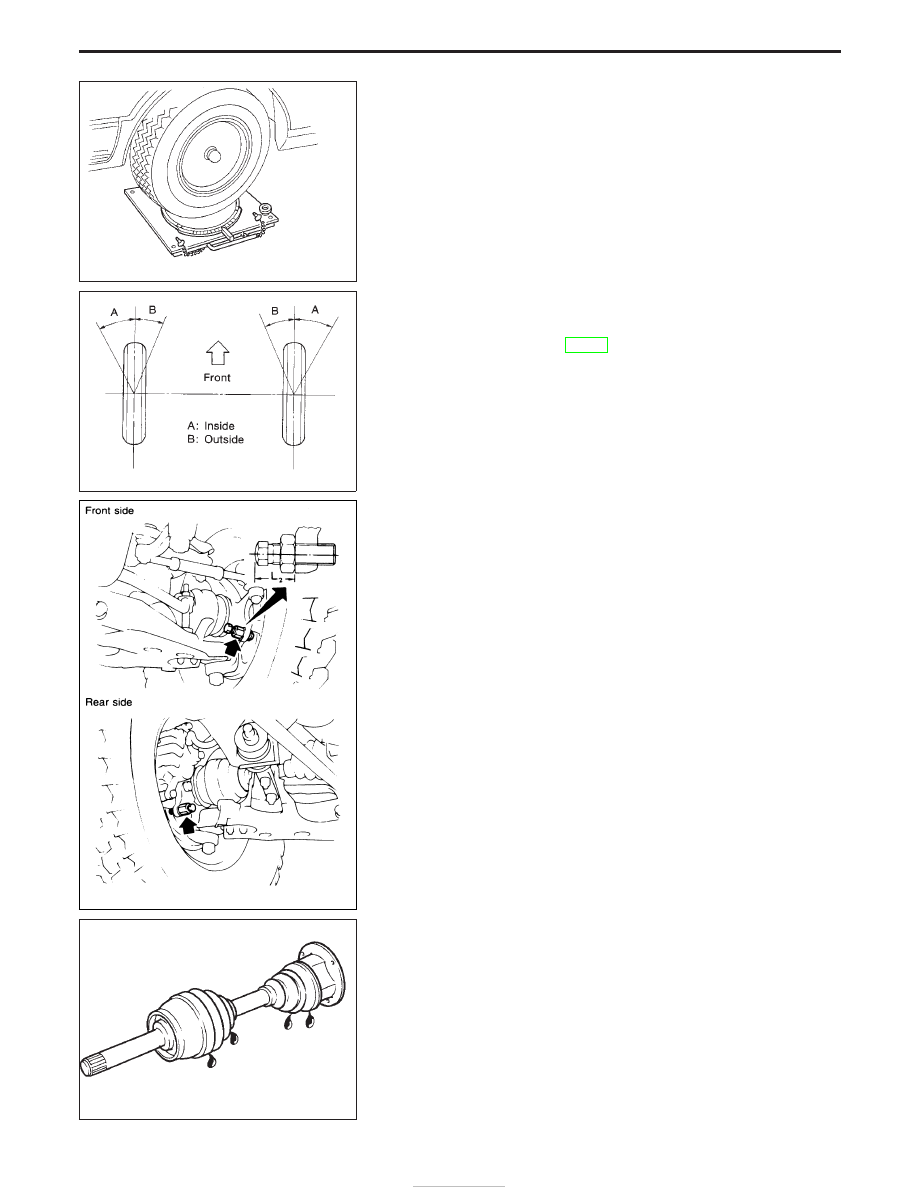

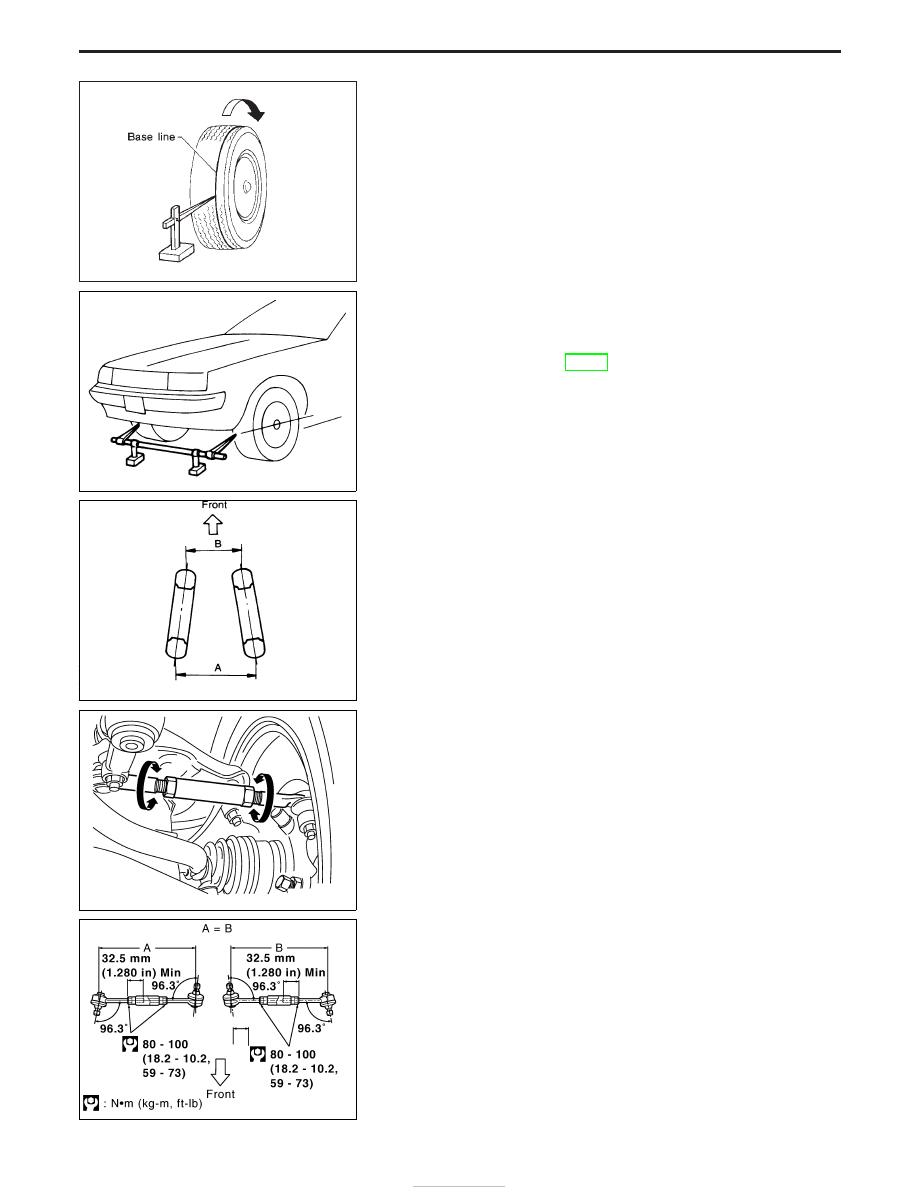

[Example] Angle Specified value Measured Change Camber angle 0°30 ′ 0°5 ′ +0°25 ′ Caster angle 1°54 ′ 2°10 ′ −0°16 ′ The above values relate to the graph below: Shim thickness selection graph (2) Obtain intersection point of lines in accordance with the graph. Front: 1.4 mm (3) Choose shims which are nearest to the values found in the graph: Front: 1.6 mm (4) If shim thicknesses as calculated appear not to be available, combinations of different shims should be used to meet the EFA015 CHECK AND ADJUSTMENT Front Wheel Alignment (Cont’d) FA-10 |
