2. Measure thickness of each disc and plate.

Total thickness “B”:

19.24 - 20.26 mm (0.7575 - 0.7976 in)

No. of discs and plates (One side):

Friction disc

5

Friction plate

6

Spring disc

1

Spring plate

1

3. Measure values of “C”.

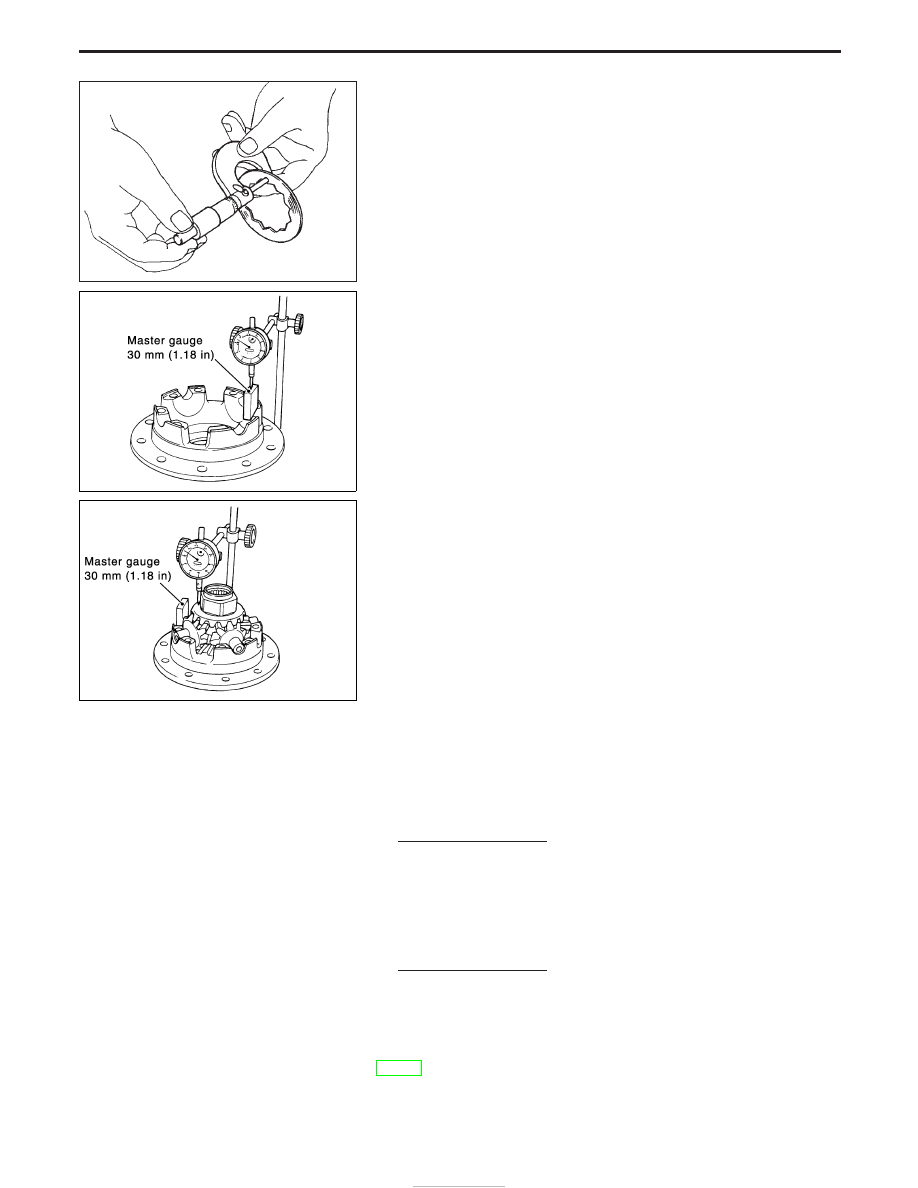

(1) Attach a dial indicator to the base plate.
(2) Place differential case B on the base plate, and install a mas-

ter gauge on case B.

Then adjust the dial indicator scale to zero with its tip on the
master gauge.

(3) Install pinion mate gears, side gears and pinion mate shaft in

differential case B.

(4) Set dial indicator

s tip on the side gear, and read the indication.

Example:

E = A − D

= A − (B + C)

= 0.05 to 0.15 mm

,

Specified range

A = 49.52 mm

B = 19.45 mm

C = 29.7 mm

D = B + C

B .............19.45

+ C .............29.7

49.15

E = A − D

A .............49.52

− D .............49.15

0.37

From the above equation, end play of 0.37 mm exceeds the speci-
fied range of 0.05 to 0.15 mm.
Select suitable discs and plates to adjust correctly. (Refer to
PD-57.)

SPD420

YPD007

YPD008

LIMITED SLIP DIFFERENTIAL (C200)

Adjustment (Cont’d)

PD-46

Assembly

Prior to assembling discs and plates, properly lubricate them by
dipping them in limited slip differential oil.

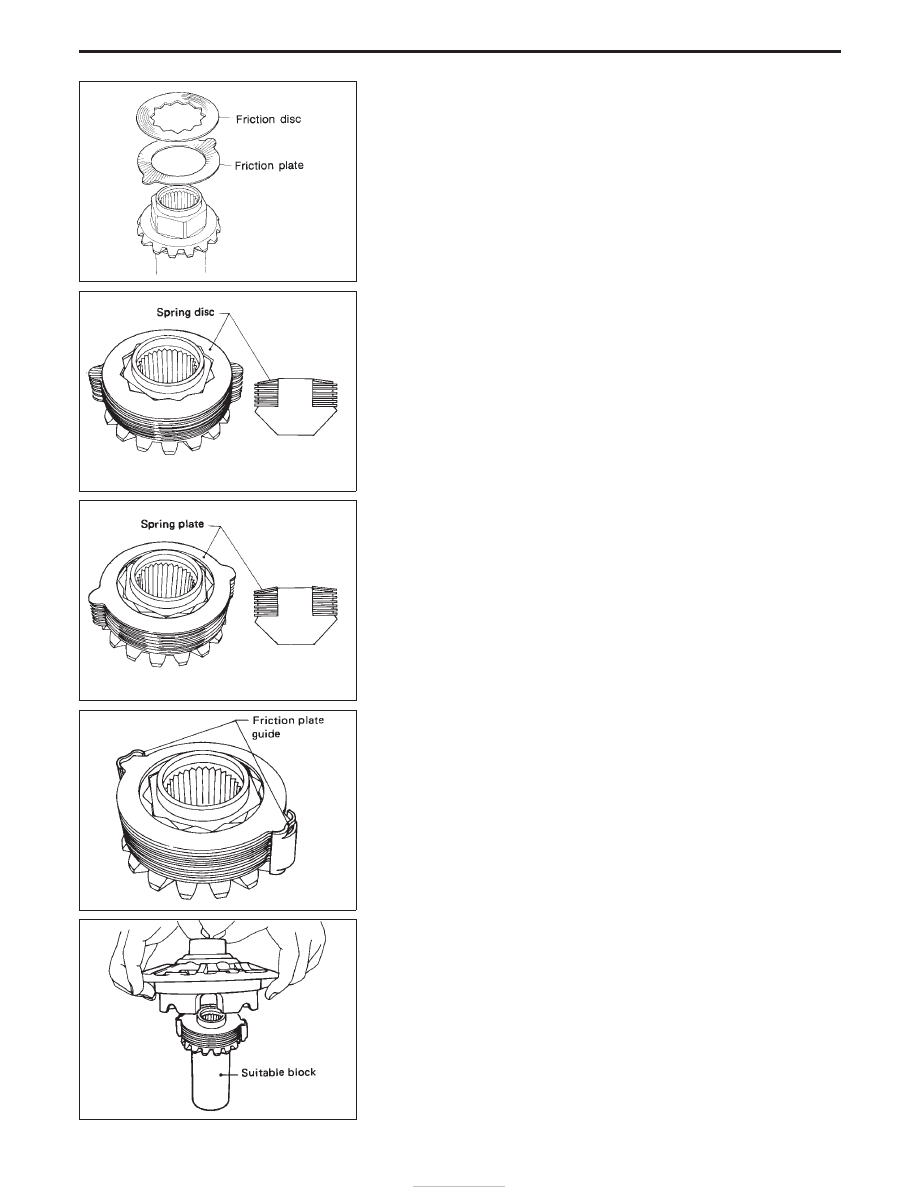

1. Alternately position specified number of friction plates and fric-

tion discs on rear of side gear.

Always position a friction plate first on rear of side gear.

2. Install spring disc.
Align the twelve angular holes in spring disc with the hexago-
nal area of the side gear.

3. Install spring plate.

4. Install friction plate guides.
Correctly align the raised portions of friction plates, and apply
grease to inner surfaces of friction plate guides to prevent
them from falling.

5. Install differential case B over side gear, discs, plates and fric-

tion plate guide assembly.

I

Install differential case B while supporting friction plate
guides with your middle finger inserted through oil hole in
differential case.

I

Be careful not to detach spring disc from the hexagonal
part of the side gear.

SPD421

SPD422

SPD423

SPD424

SPD425

LIMITED SLIP DIFFERENTIAL (C200)

PD-47

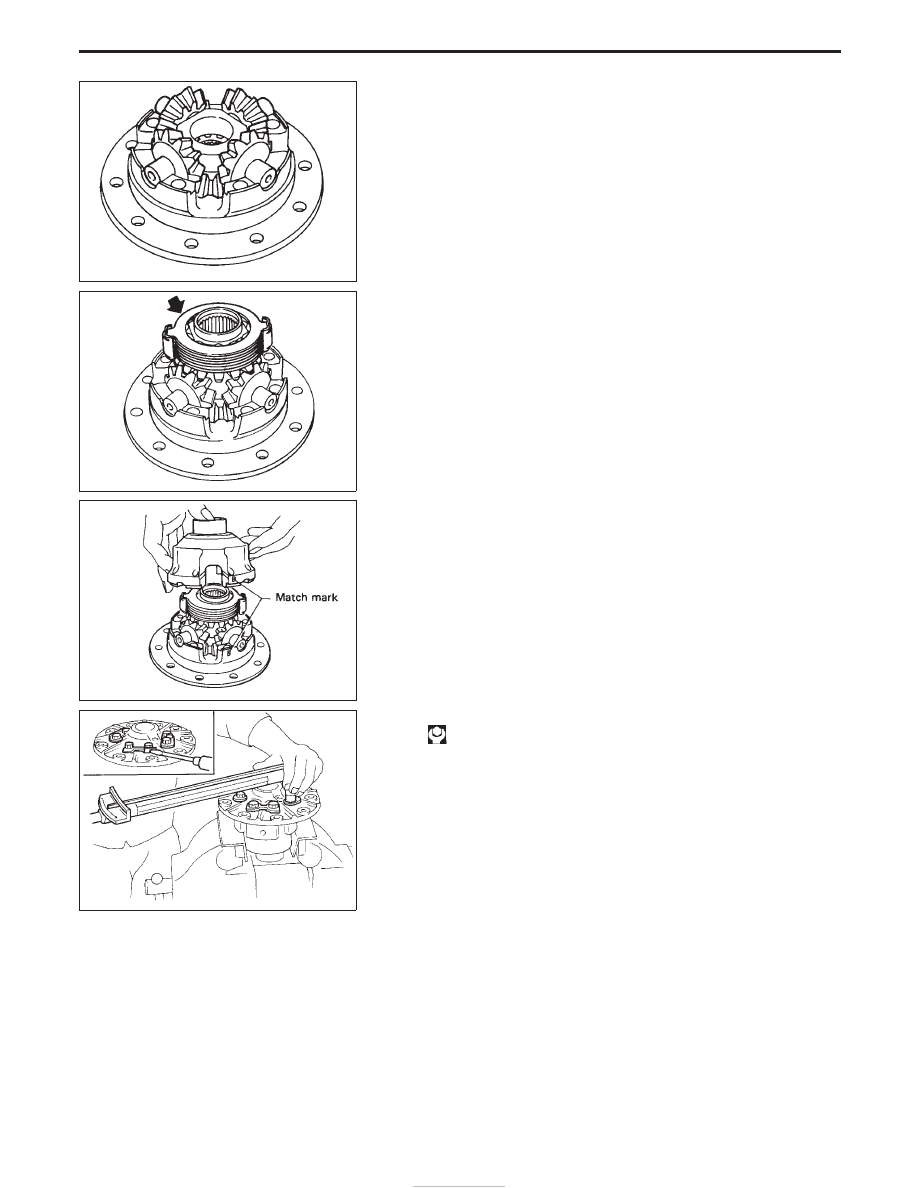

6. Install pinion mate gears and pinion shaft to differential case B.

7. Install side gear to pinion mate gears.
8. Install each disc and plate.
Use same procedures as outlined in steps 1. through 4. above.

9. Install differential case A.
Position differential cases A and B by correctly aligning marks
stamped on cases.

10. Tighten differential case bolts.

: 64 - 69 N

m (6.5 - 7.0 kg-m, 47 - 51 ft-lb)

11. Place ring gear on differential case and install new lock straps

and bolts.

Tighten bolts in a criss-cross fashion, lightly tapping bolt head
with a hammer.
Then bend up lock straps to lock the bolts in place.
12. Install side bearing inner cone.
13. Check differential torque.

SPD426

SPD429

SPD430

SPD288

LIMITED SLIP DIFFERENTIAL (C200)

Assembly (Cont’d)

PD-48

To avoid confusion while calculating bearing shims, it is absolutely
necessary to stay with the metric system. If you measure anything
in inches, the results MUST be converted to the metric system.

Drive Pinion Height

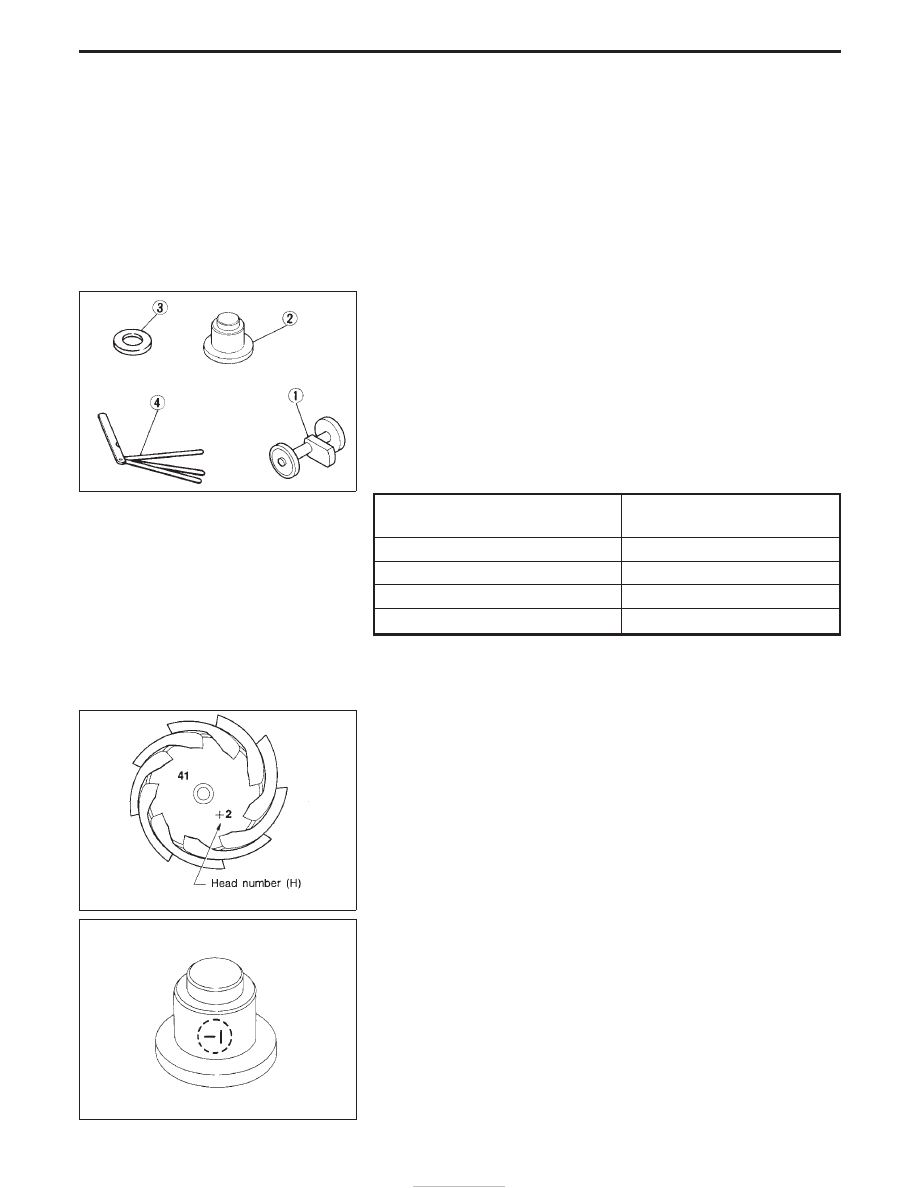

1. First prepare Tools for pinion height adjustment.

Assembly

q

1

q

2

:

ST3125500

q

1

Height Gauge (ST31251000)

q

2

Dummy Shaft (ST31181001)

q

3

Spacer [thickness: 2.50 mm (0.0984 in)]

q

4

Feeler Gauge

2. To simplify the job, make a chart, like the one below, to orga-

nize your calculations.

LETTERS

HUNDREDTHS OF

A MILLIMETER

H:

Head number

D

:

Figure marked on dummy shaft

S:

Figure marked on height gauge

N:

Measuring clearance

3. Write the following numbers down in the chart.

H: Head number

D

: Figure marked on dummy shaft

SPD758

SPD542

SPD759

ADJUSTMENT (C200)

PD-49
