Nissan Terrano model r20 series 2004. Manual - part 266

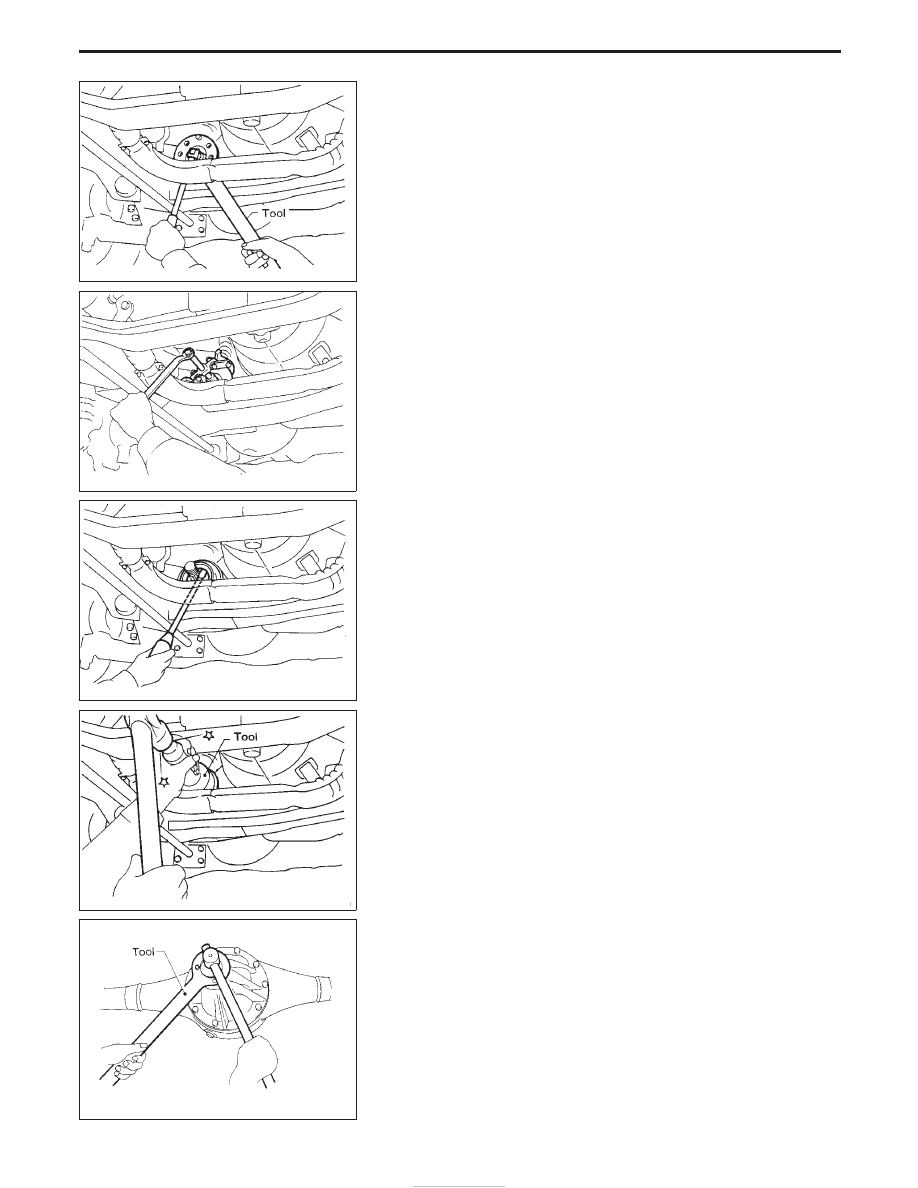

Front Oil Seal Replacement
(Front final drive: R180A)

1. Remove front propeller shaft.
2. Loosen drive pinion nut.

Tool number: ST38060002

3. Remove companion flange.

4. Remove front oil seal.

5. Apply multi-purpose grease to cavity at sealing lips of oil seal.

Press front oil seal into carrier.

6. Install companion flange and drive pinion nut.
7. Install propeller shaft.

Tool number:

ST30720000

Front Oil Seal Replacement
(Rear final drive: C200)

1. Remove rear propeller shaft.
2. Loosen drive pinion nut.

Tool number:

KV38104700

SPD733

SPD734

SPD735

SPD736

PD237

ON-VEHICLE SERVICE

PD-10

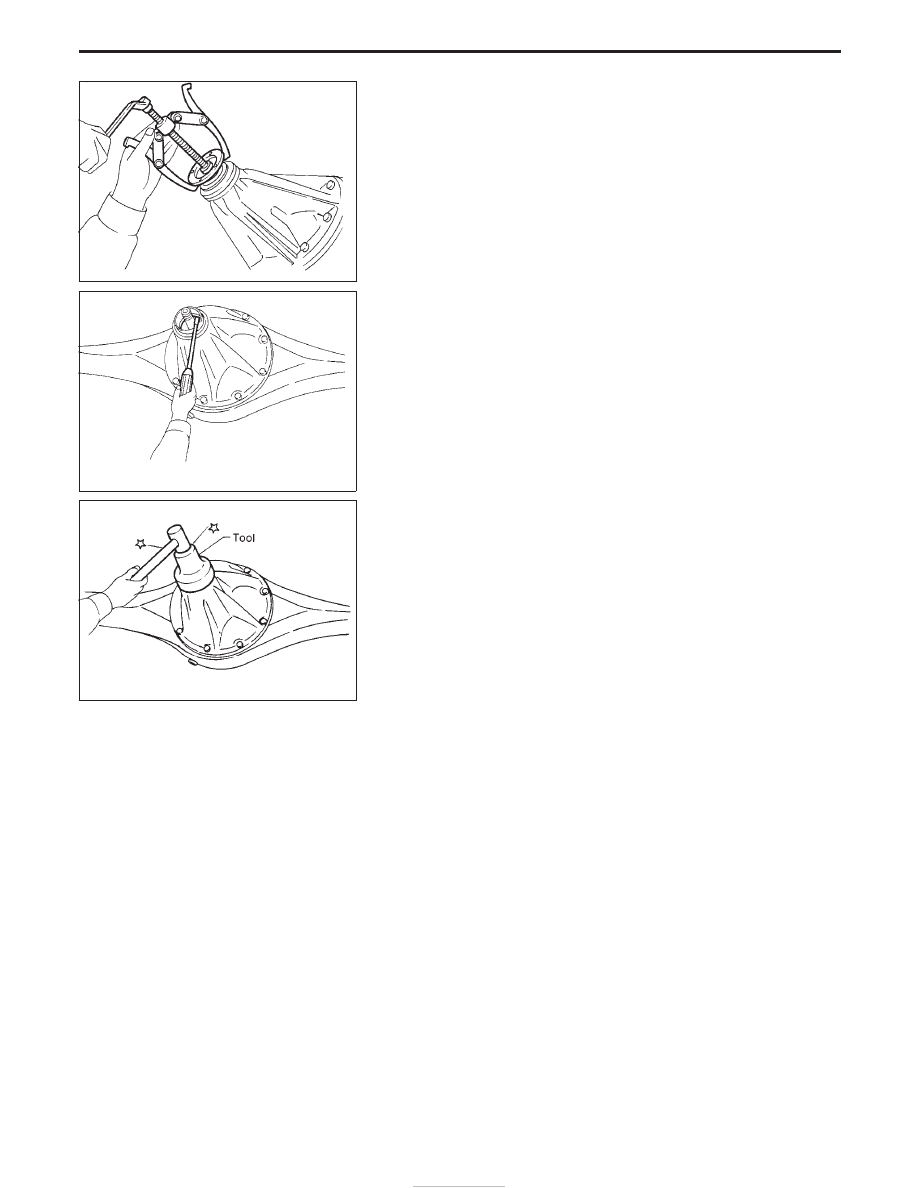

3. Remove companion flange.

4. Remove front oil seal.

5. Apply multi-purpose grease to cavity at sealing lips of oil seal.

Press front oil seal into carrier.

6. Install companion flange and drive pinion nut in.
7. Install rear propeller shaft.

Tool number:

KV381025S0

SPD737

SPD738

SPD739

ON-VEHICLE SERVICE

Front Oil Seal Replacement
(Rear final drive: C200) (Cont’d)

PD-11

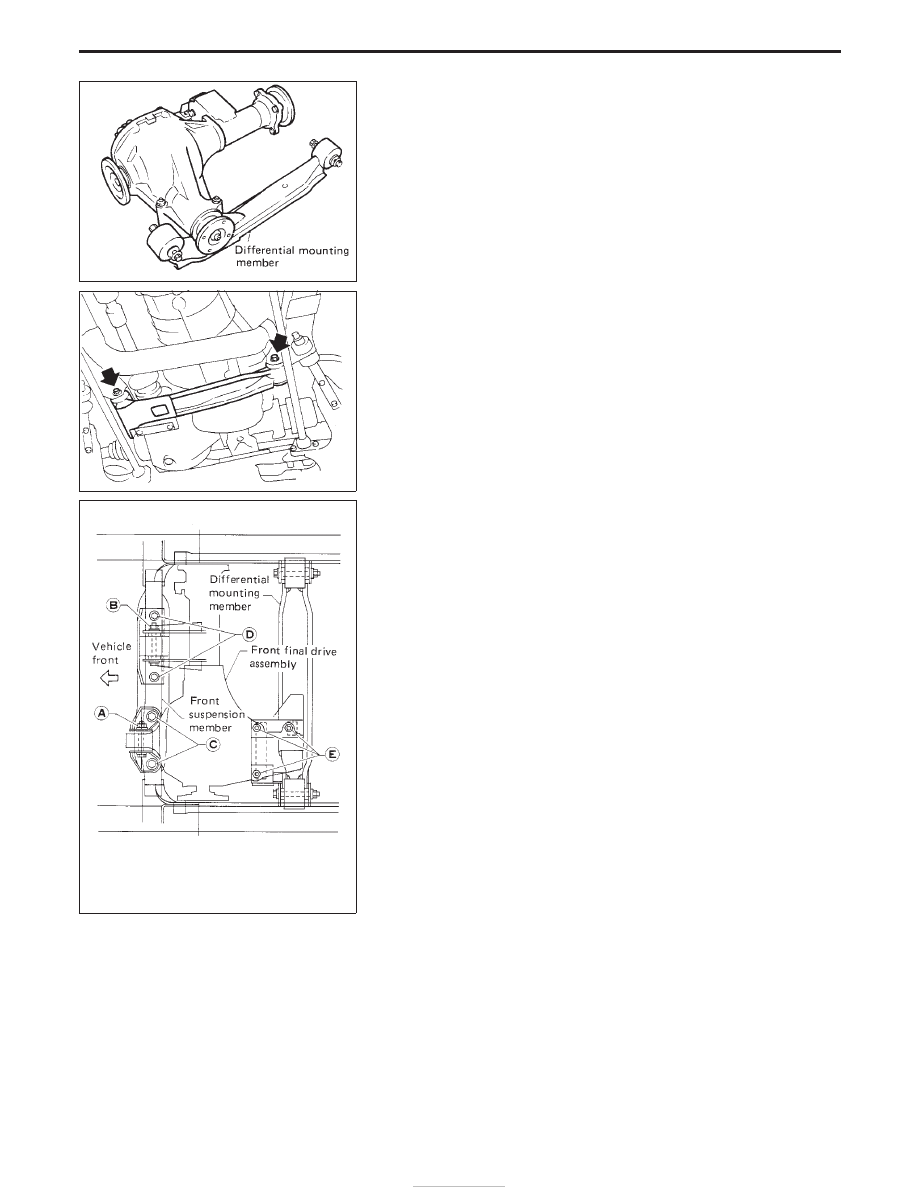

Removal

1. Remove front propeller shaft.
2. Remove drive shaft. Refer to FA section.
3. Remove engine mounting bolts and raise up engine.
4. Remove front final drive together with differential mounting

member.

Installation

1. Install front final drive assembly together with differential

mounting member.

2. Tighten the front final drive securing bolts and nuts following the

procedures below to prevent drive train vibration.

(1) Temporarily tighten nut

q

A

.

(2) Temporarily tighten nut

q

B

.

(3) Tighten bolts

q

C

to the torque of 68 to 87 N

m (6.9 to 8.9 kg-m,

50 to 64 ft-lb).

(4) Tighten bolts

q

D

to the torque of 68 to 87 N

m (6.9 to 8.9 kg-m,

50 to 64 ft-lb).

(5) Tighten nut

q

A

to the torque of 68 to 87 N

m (6.9 to 8.9 kg-m,

50 to 64 ft-lb).

(6) Tighten nut

q

B

to the torque of 68 to 87 N

m (6.9 to 8.9 kg-m,

50 to 64 ft-lb).

(7) Tighten nuts

q

E

to the torque of 68 to 87 N

m (6.9 to 8.9 kg-m,

50 to 64 ft-lb).

3. Install drive shaft. Refer to FA section.
4. Install front propeller shaft.

SPD741

SPD742

SPD743

REMOVAL AND INSTALLATION (Front final drive — R180A)

PD-12

Removal

I

Remove propeller shaft.

Insert plug into transfer or transmission after removing pro-
peller shaft.

I

Remove axle shaft. Refer to RA section.

CAUTION:

I

Be careful not to damage spline, sleeve yoke and front oil
seal when removing propeller shaft.

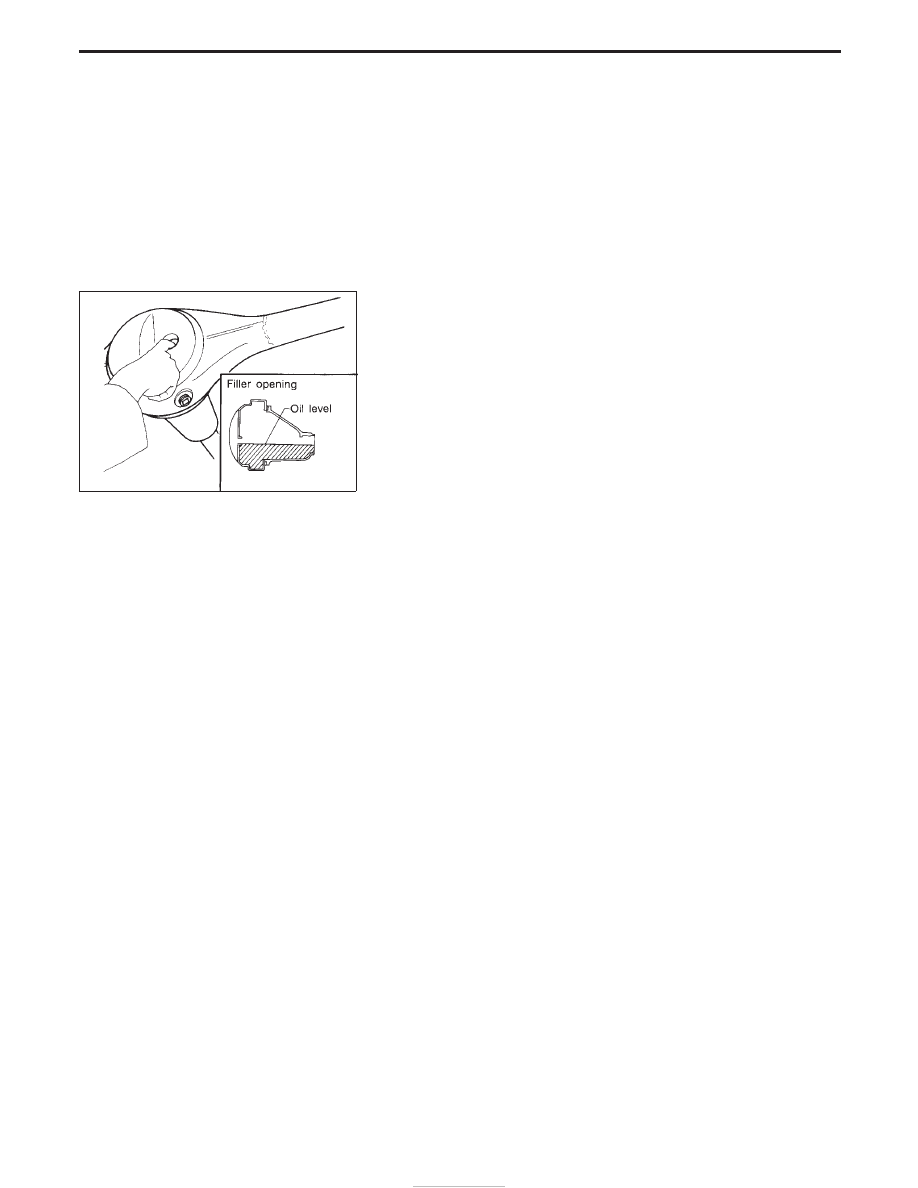

Installation

I

Fill final drive with recommended gear oil.

SPD123

REMOVAL AND INSTALLATION (Rear final drive — C200)

PD-13
