Nissan Terrano model r20 series 2004. Manual - part 106





3

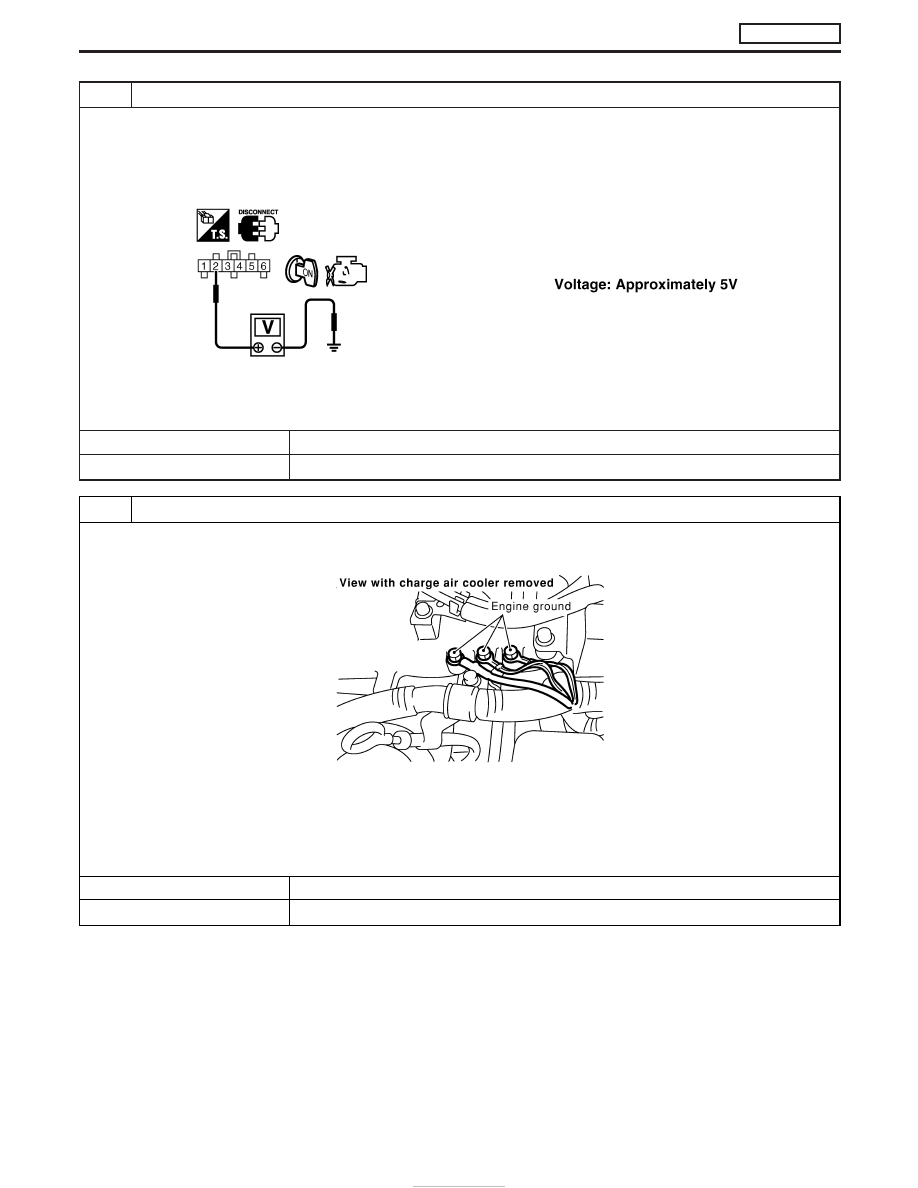

CHECK ACCELERATOR POSITION SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect accelerator work unit harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between accelerator work unit terminal 2 and ground with CONSULT-II or tester.

YEC706A

OK or NG

OK

E

GO TO 4.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK ACCELERATOR POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screw.

MEC994D

3. Check harness continuity between accelerator work unit terminal 3 and engine ground. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 5.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

DTC 0403 ACCEL POS SENSOR

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-146

5

CHECK ACCELERATOR POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 23 and accelerator work unit terminal 4. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK (with CONSULT-II)

E

GO TO 6.

OK (without CONSULT-II)

E

GO TO 7.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

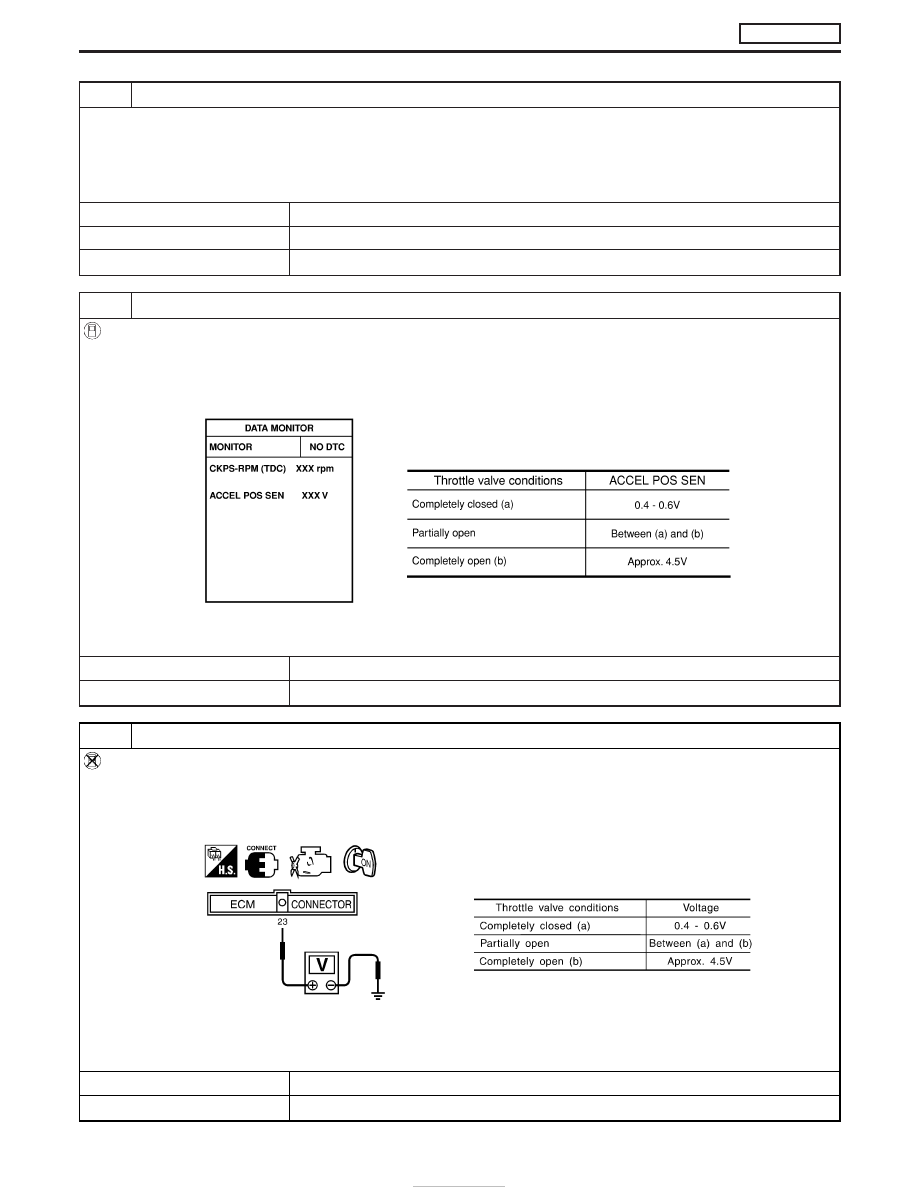

6

CHECK ACCELERATOR POSITION SENSOR

With CONSULT-II

1. Reconnect all disconnected harness connectors.
2. Turn ignition switch “ON”.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Check the indication of “ACCEL POS SEN” under the following conditions.

SEF818Y

OK or NG

OK

E

GO TO 8.

NG

E

Replace accelerator pedal assembly.

7

CHECK ACCELERATOR POSITION SENSOR

Without CONSULT-II

1. Reconnect all disconnected harness connectors.
2. Turn ignition switch “ON”.
3. Check voltage between ECM terminal 23 and ground under the following conditions.

SEF407Y

OK or NG

OK

E

GO TO 9.

NG

E

Replace accelerator pedal assembly.

DTC 0403 ACCEL POS SENSOR

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-147

8

RESET ACCELERATOR POSITION SENSOR IDLE POSITION MEMORY

With CONSULT-II

1. Turn ignition switch “ON”.
2. Select “OFF ACCEL PO SIG” in “ACTIVE TEST” mode with CONSULT-II.
3. Touch “CLEAR”.

E

GO TO 10.

9

RESET ACCELERATOR POSITION SENSOR IDLE POSITION MEMORY

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Let engine idle for 10 minutes.

E

GO TO 10.

10

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

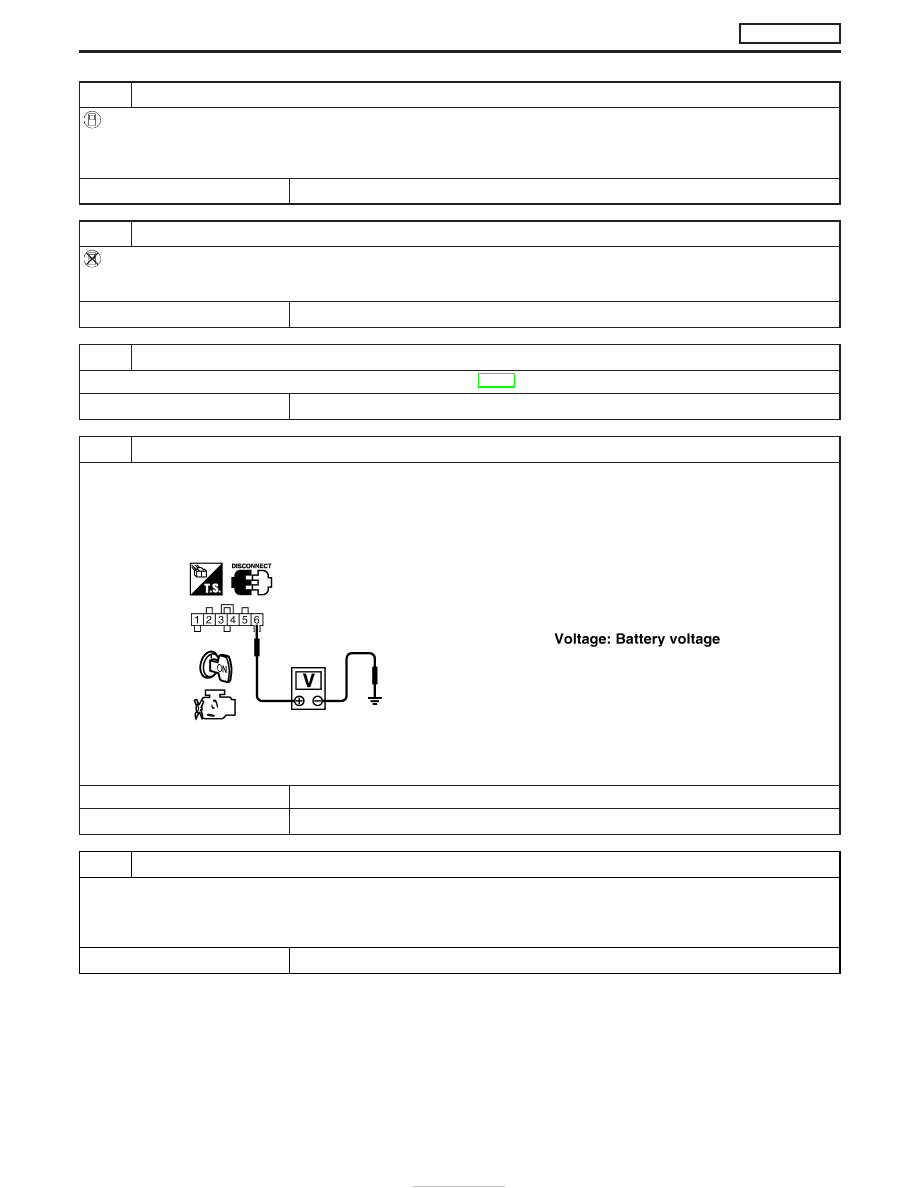

11

CHECK ACCELERATOR POSITION SWITCH POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect accelerator work unit harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between accelerator work unit terminal 6 and ground with CONSULT-II or tester.

YEC707A

OK or NG

OK

E

GO TO 13.

NG

E

GO TO 12.

12

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M787, F6 (LHD models)

I

Harness for open or short between accelerator work unit and ECM relay

I

Harness for open or short between accelerator work unit and ECM

E

Repair harness or connectors.

DTC 0403 ACCEL POS SENSOR

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-148

13

CHECK ACCELERATOR POSITION SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between accelerator work unit terminal 5 and ECM terminal 31. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

E

GO TO 14.

NG

E

Repair open circuit or short to ground or short to power in harness or connectors.

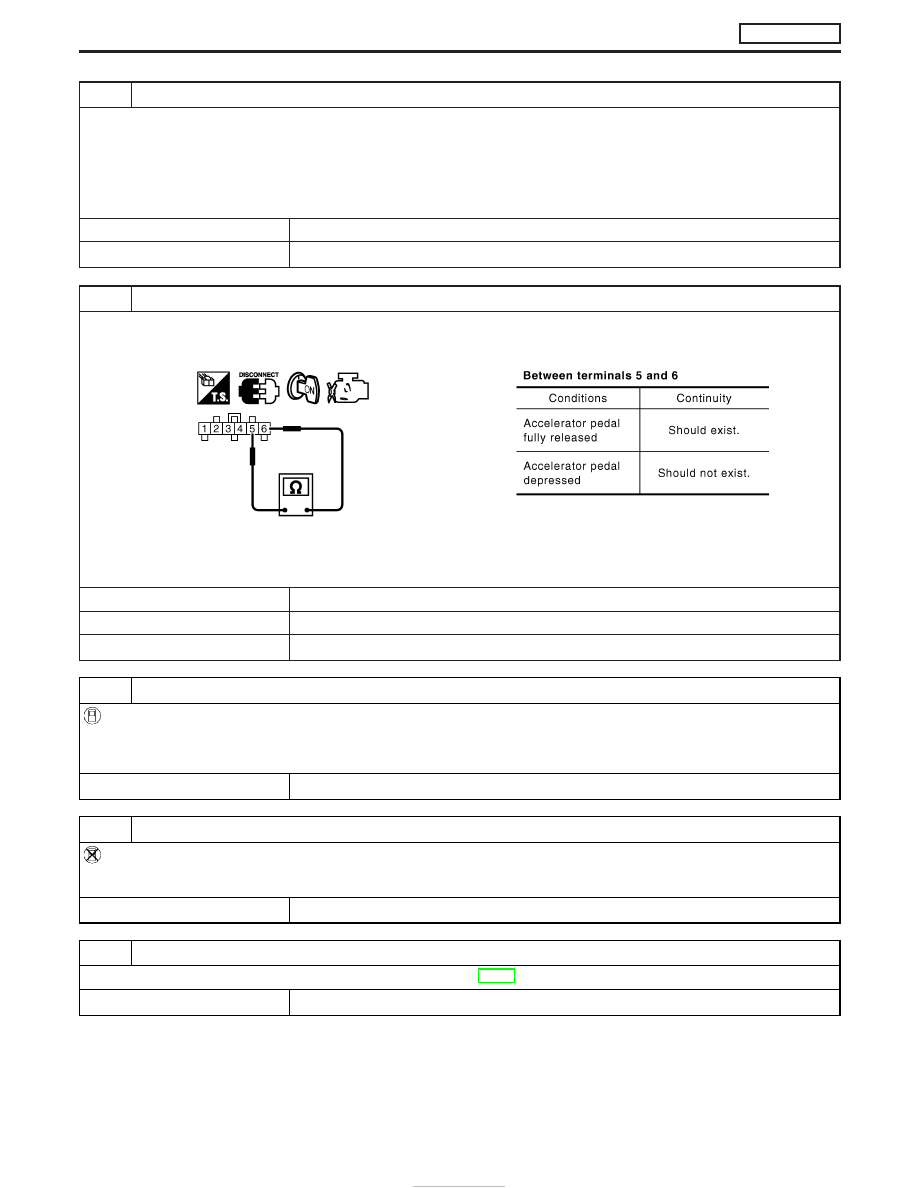

14

CHECK ACCELERATOR POSITION SWITCH

Check continuity between accelerator work unit terminals 5 and 6 under the following conditions.

YEC708A

OK or NG

OK (With CONSULT-II)

E

GO TO 15.

OK (Without CONSULT-II)

E

GO TO 16.

NG

E

Replace accelerator pedal assembly.

15

RESET ACCELERATOR POSITION SENSOR IDLE POSITION MEMORY

With CONSULT-II

1. Turn ignition switch “ON”.
2. Select “OFF ACCEL PO SIG” in “ACTIVE TEST” mode with CONSULT-II.
3. Touch “CLEAR”.

E

GO TO 18.

16

RESET ACCELERATOR POSITION SENSOR IDLE POSITION MEMORY

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Let engine idle for 10 minutes.

E

GO TO 18.

17

CHECK INTERMITTENT INCIDENT

Refer to “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-78.

E

INSPECTION END

DTC 0403 ACCEL POS SENSOR

ZD30DDTi

Diagnostic Procedure (Cont’d)

EC-149
