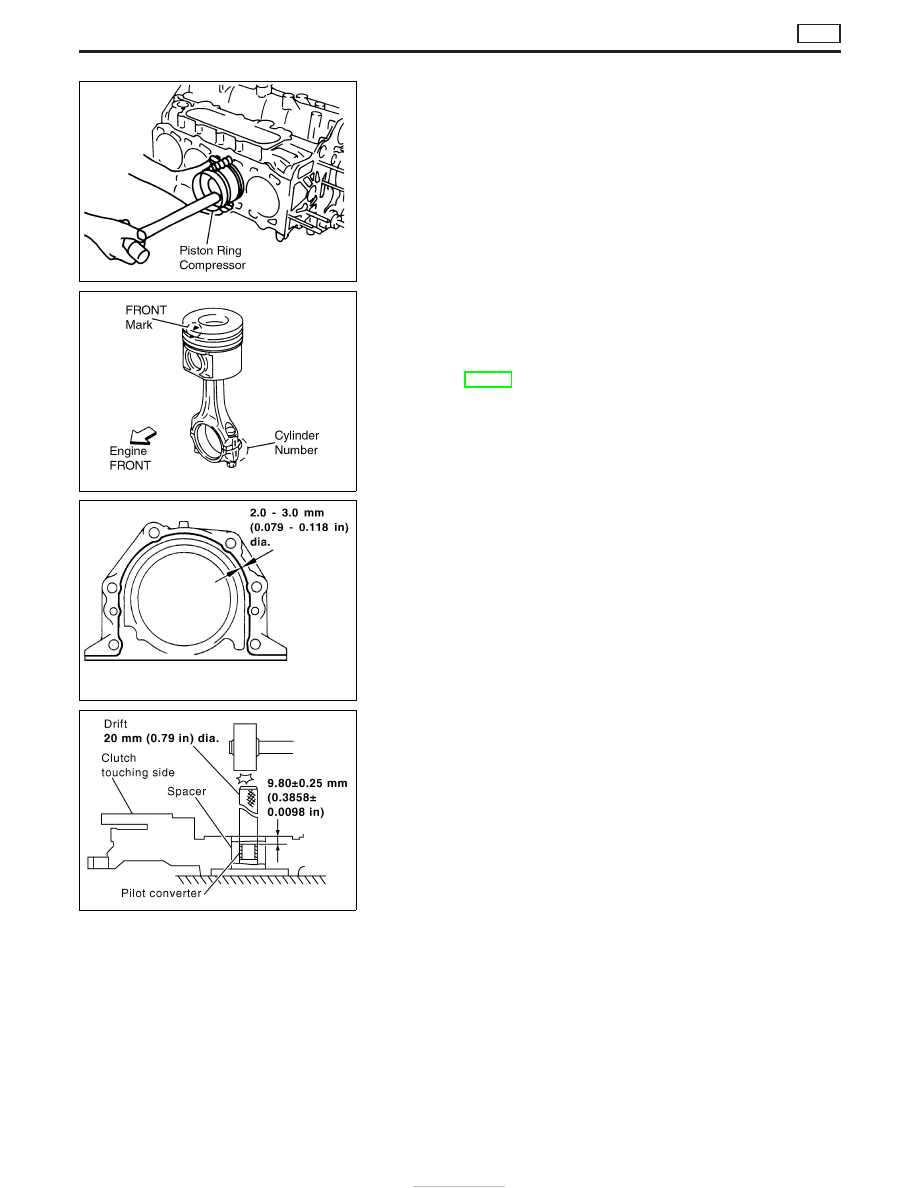

10. Install piston and connecting rod assembly to crankshaft.

I

Move crankshaft pin to be removed to BDC.

I

Align cylinder position with cylinder No. on connecting rod to
install piston and connecting rod assembly.

I

Using piston ring compressor (multi-purpose tool), install piston
and connecting rod assembly with front mark on piston crown
facing toward the front side of engine.

CAUTION:

When installing piston and connecting rod assembly, prevent
the big end of connecting rod from interfering with oil jet.

11. Install connecting rod caps and mounting nuts.

I

Align cylinder No. stamped on connecting rod with that on cap
to install connecting rod cap.

I

After tightening nuts, check crankshaft for smooth rotation.

I

Check connecting rod side clearance.
Refer to EM-71, “CONNECTING ROD SIDE CLEARANCE”.

12. Install rear oil seal and retainer assembly.

I

Apply a continuous bead of liquid gasket to rear oil seal and
retainer assembly as shown in the figure.

13. Press fit pilot bushing into flywheel (M/T model).
1) Using drift with outer diameter of 35 mm, press fit spacer until

it is in contact with the flywheel to prevent displacement at
removal.

2) Using drift with outer diameter of 20 mm, press fit pilot bushing

by the length shown in the figure.

14. Install rear plate.
15. Install removed parts to engine in the reverse order of disas-

sembly.

16. Remove engine from engine stand.

FEM134

FEM131

FEM053

SEM366G

CYLINDER BLOCK

ZD

Assembly (Cont’d)

EM-82

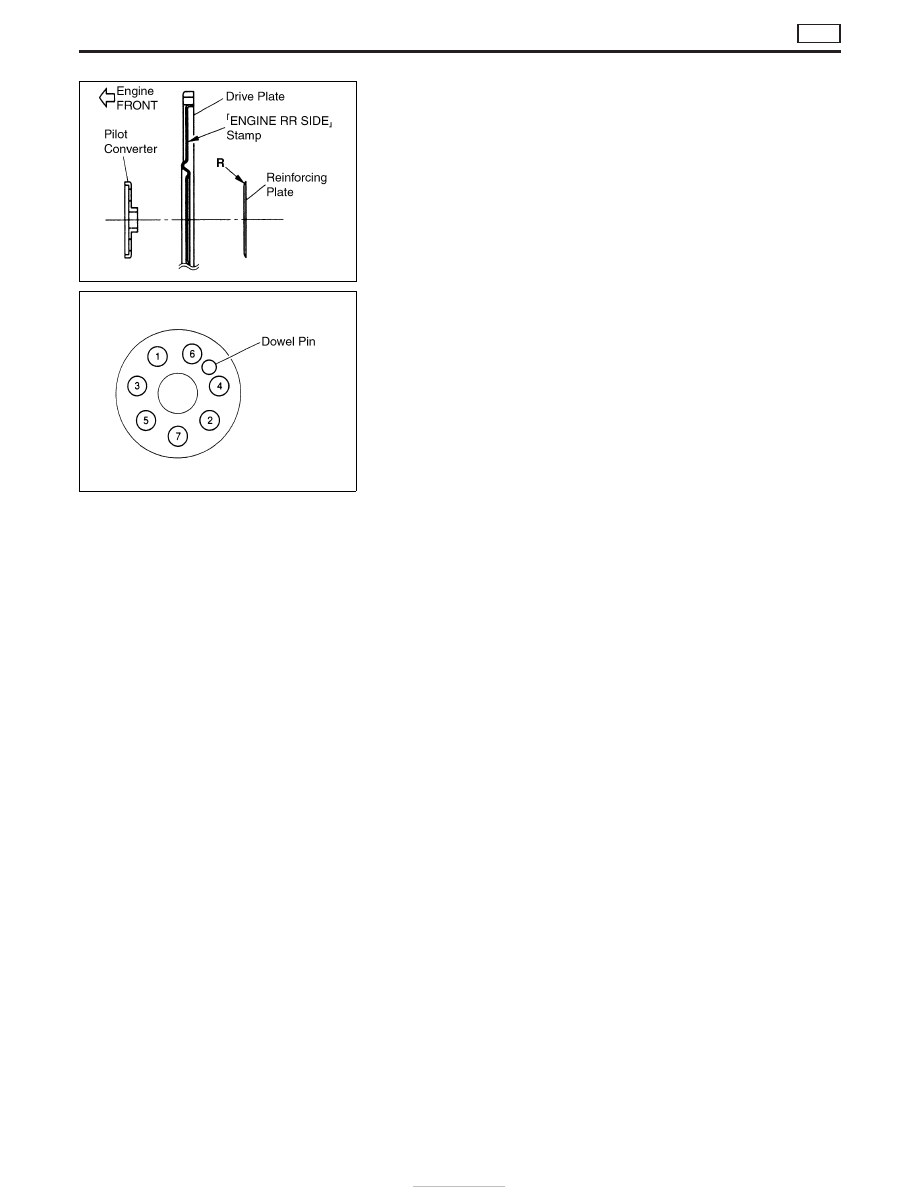

17. Install flywheel (M/T model) or drive plate (A/T model).

I

Install pilot converter, drive plate, and reinforcing plate in direc-
tion shown in the figure.

I

Using the same method as disassembly, secure crankshaft and
tighten mounting bolts.

I

Tighten mounting bolts for flywheel or drive plate in order
shown in the figure.

FEM137

FEM138

CYLINDER BLOCK

ZD

Assembly (Cont’d)

EM-83

General Specifications

Cylinder arrangement

In-line 4

Displacement

cm

3

(cu in)

2,953 (180.19)

Bore and stroke

mm (in)

96 x 102 (3.78 x 4.02)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

17.9

Compression Pressure

Unit: kPa (bar, kg/cm

2

, psi)/200 rpm

Compression pressure

Standard

2,942 (29.42, 30.0, 427)

Minimum

2,452 (24.52, 25.0, 356)

Differential limit between cylinders

294 (2.94, 3.0, 43)

Cylinder Head

Unit: mm (in)

Standard

Limit

Head surface distortion

Less than 0.05 (0.0020)

0.2 (0.008)

SEM368G

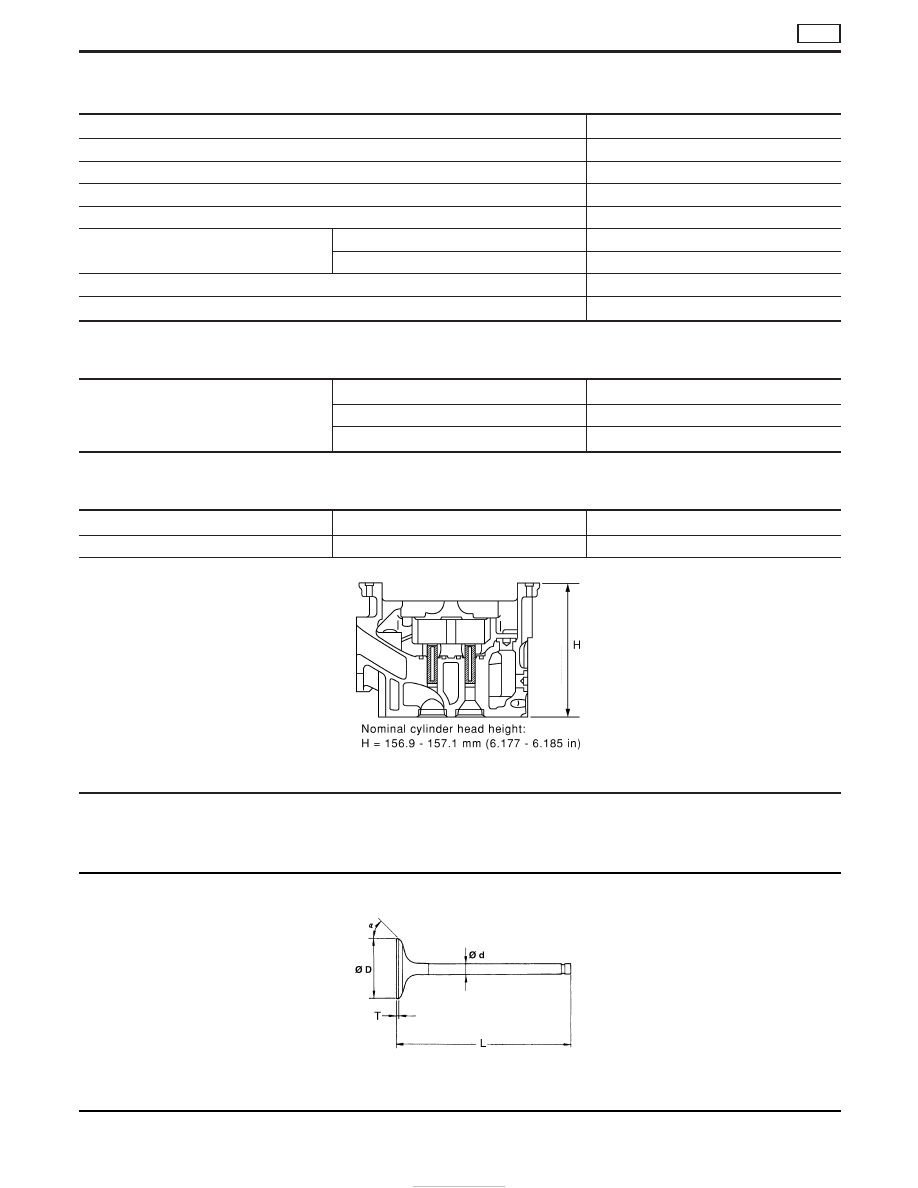

Valve

VALVE

Unit: mm (in)

FEM067

SERVICE DATA AND SPECIFICATIONS (SDS)

ZD

EM-84

Valve head diameter “D”

Intake

31.9 - 32.1 (1.256 - 1.264)

Exhaust

29.9 - 30.1 (1.177 - 1.185)

Valve length “L”

Intake

113.5 (4.4685)

Exhaust

113.5 (4.4685)

Valve stem diameter “d”

Intake

6.962 - 6.977 (0.2741 - 0.2747)

Exhaust

6.945 - 6.960 (0.2734 - 0.2740)

Valve seat angle “

α

Intake

45°00

- 45°30

Exhaust

Valve margin “T”

Intake

1.5 (0.059)

Exhaust

1.5 (0.059)

Valve stem end surface grinding limit

Less than 0.2 (0.008)

VALVE CLEARANCE

Unit: mm (in)

Cold

Intake

0.30 - 0.40 (0.0118 - 0.0157)

Exhaust

0.30 - 0.40 (0.0118 - 0.0157)

*: Approximately 80°C (176°F)

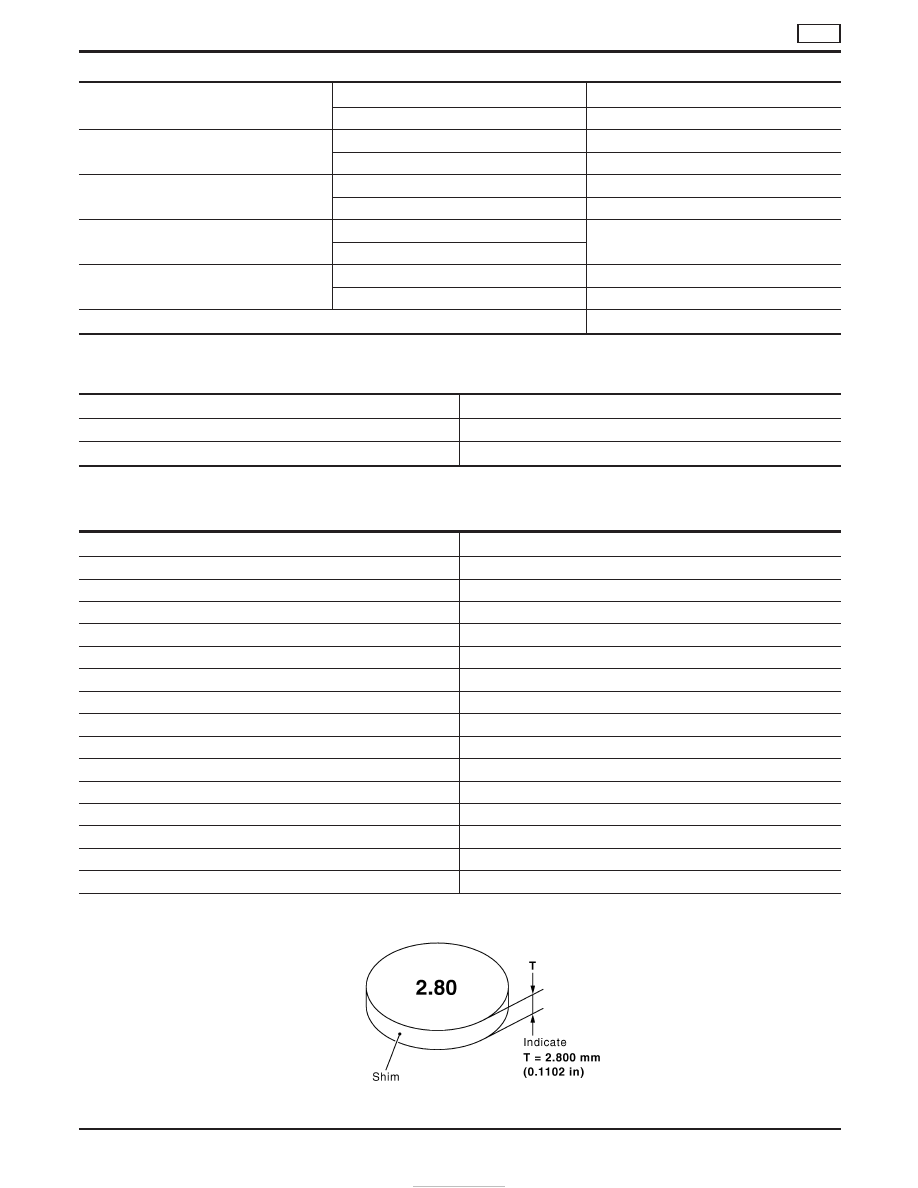

AVAILABLE SHIMS

Thickness mm (in)

Identification mark

2.35 (0.0925)

2.35

2.40 (0.0945)

2.40

2.45 (0.0965)

2.45

2.50 (0.0984)

2.50

2.55 (0.1004)

2.55

2.60 (0.1024)

2.60

2.65 (0.1043)

2.65

2.70 (0.1063)

2.70

2.75 (0.1083)

2.75

2.80 (0.1102)

2.80

2.85 (0.1122)

2.85

2.90 (0.1142)

2.90

2.95 (0.1161)

2.95

3.00 (0.1181)

3.00

3.05 (0.1201)

3.05

SEM252G

SERVICE DATA AND SPECIFICATIONS (SDS)

ZD

Valve (Cont’d)

EM-85
