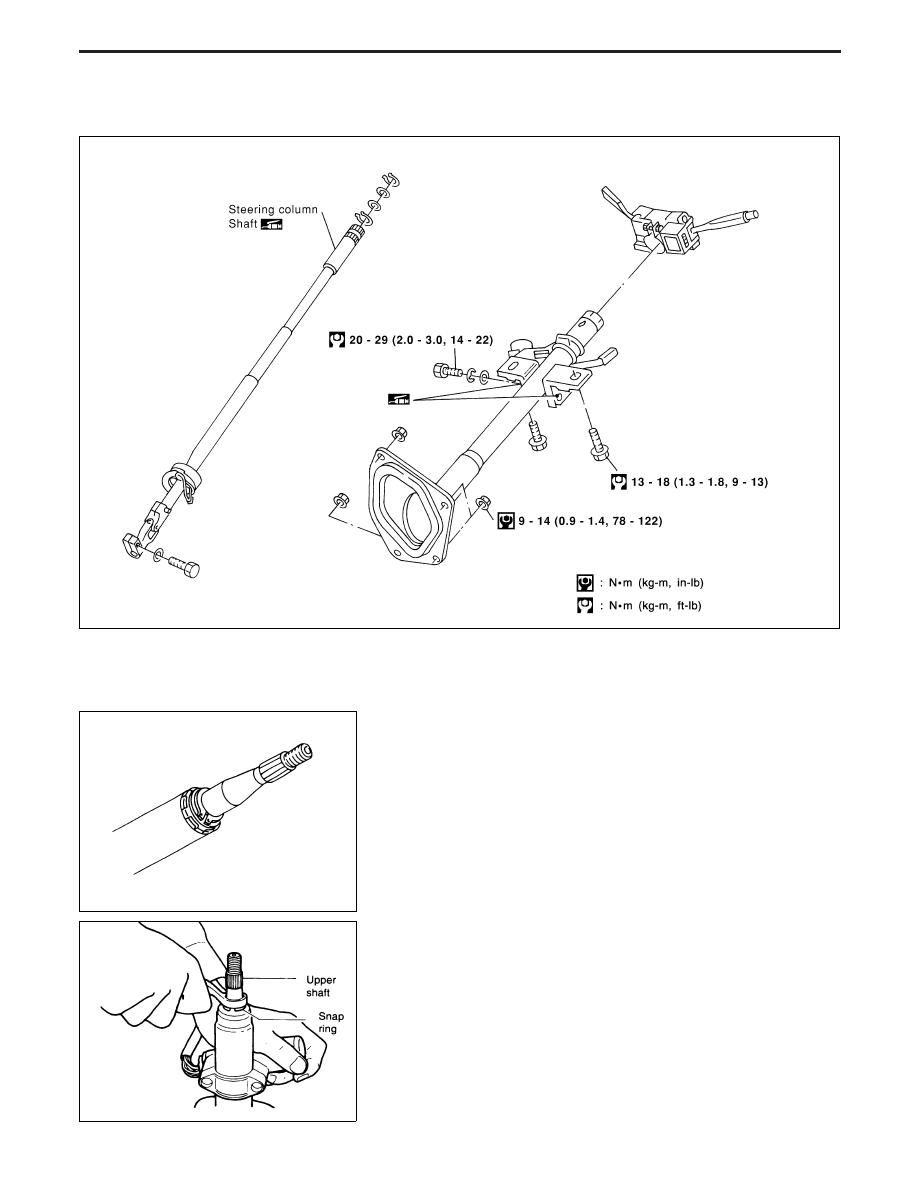

Disassembly and Assembly

L.H.D., R.H.D.

I

When disassembling and assembling, unlock steering lock with
key.

I

Install snap ring on upper shaft with box wrench.

YST018

NST007

SST628A

STEERING WHEEL AND STEERING COLUMN

ST-10

I

After installing steering column, check tilt mechanism opera-
tion.

L

1

: 8 - 12 mm (0.32 - 0.47 in)

L

2

: 18 - 22 mm (0.71 - 0.87 in)

I

Steering lock

a. Break self-shear type screws with a drill or other appropriate

tool.

b. Install self-shear type screws until self-shear type screw heads

are cut off.

I

When disassembling and assembling, unlock steering lock with
key.

I

Ensure that rounded surface of snap ring faces towards bear-
ing when snap ring is installed.

Inspection

I

When steering wheel can not be rotated smoothly, check the
steering column for the following matters and replace damaged
parts:

a. Check column bearings for damage or unevenness. Lubricate

with recommended multi-purpose grease or replace steering
column as an assembly, if necessary.

b. Check jacket tube for deformation or breakage. Replace if nec-

essary.

I

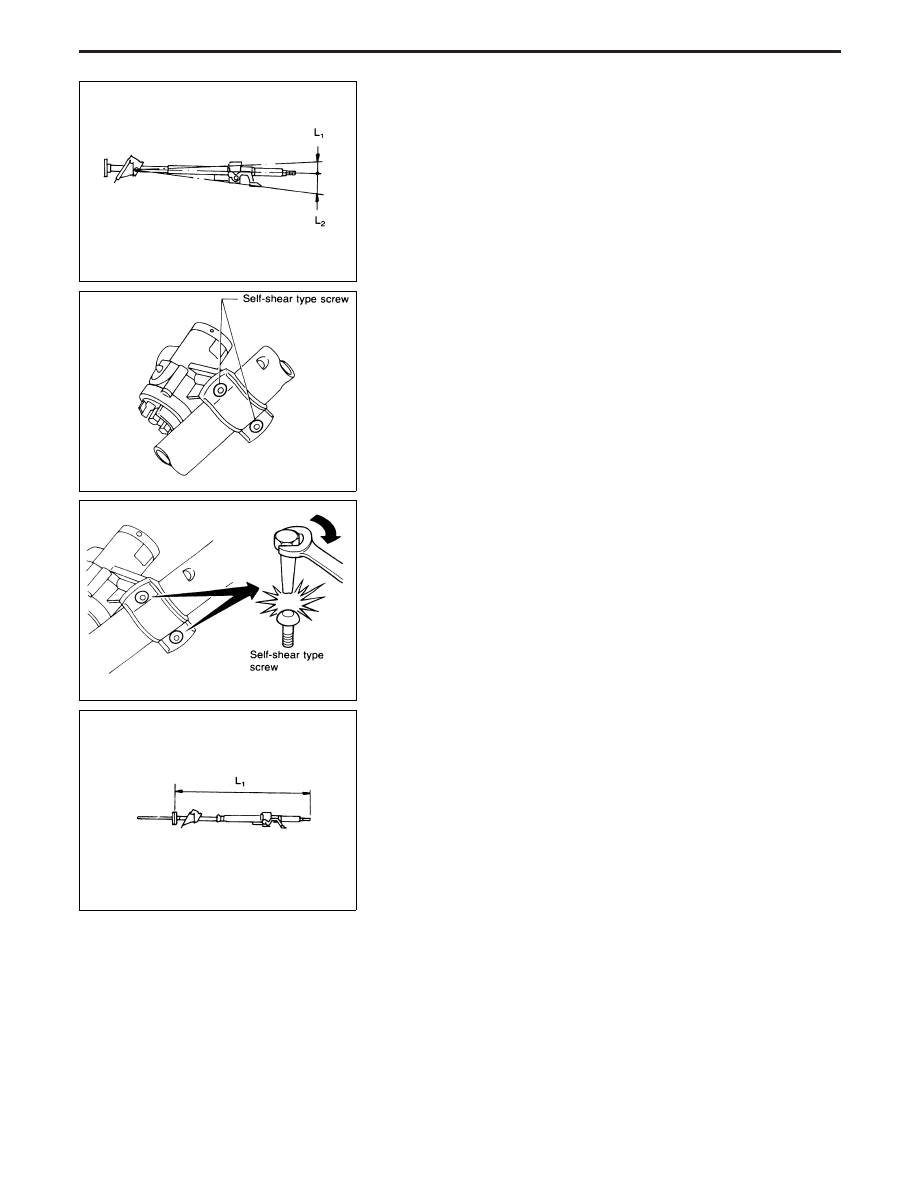

When the vehicle is involved in a light collision, check column
length “L”. If it is not within specifications, replace steering col-
umn assembly “L

1

”.

Column length:

“L

1

”: 830.5 - 832.7 mm (32.697 - 32.783 in)

EST006

SST300A

SST301A

EST007

STEERING WHEEL AND STEERING COLUMN

Disassembly and Assembly (Cont’d)

ST-11

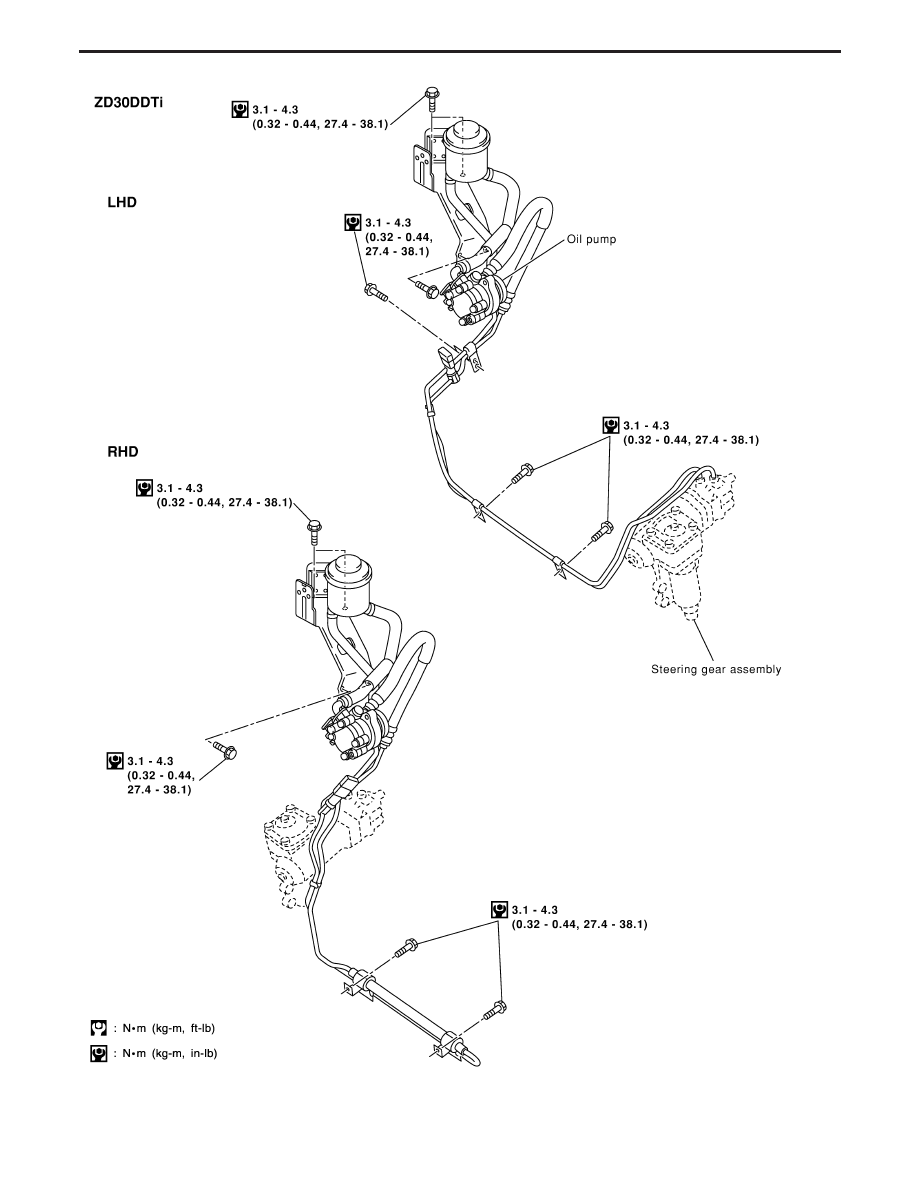

Description

NST028

POWER STEERING GEAR

ST-12

YST021

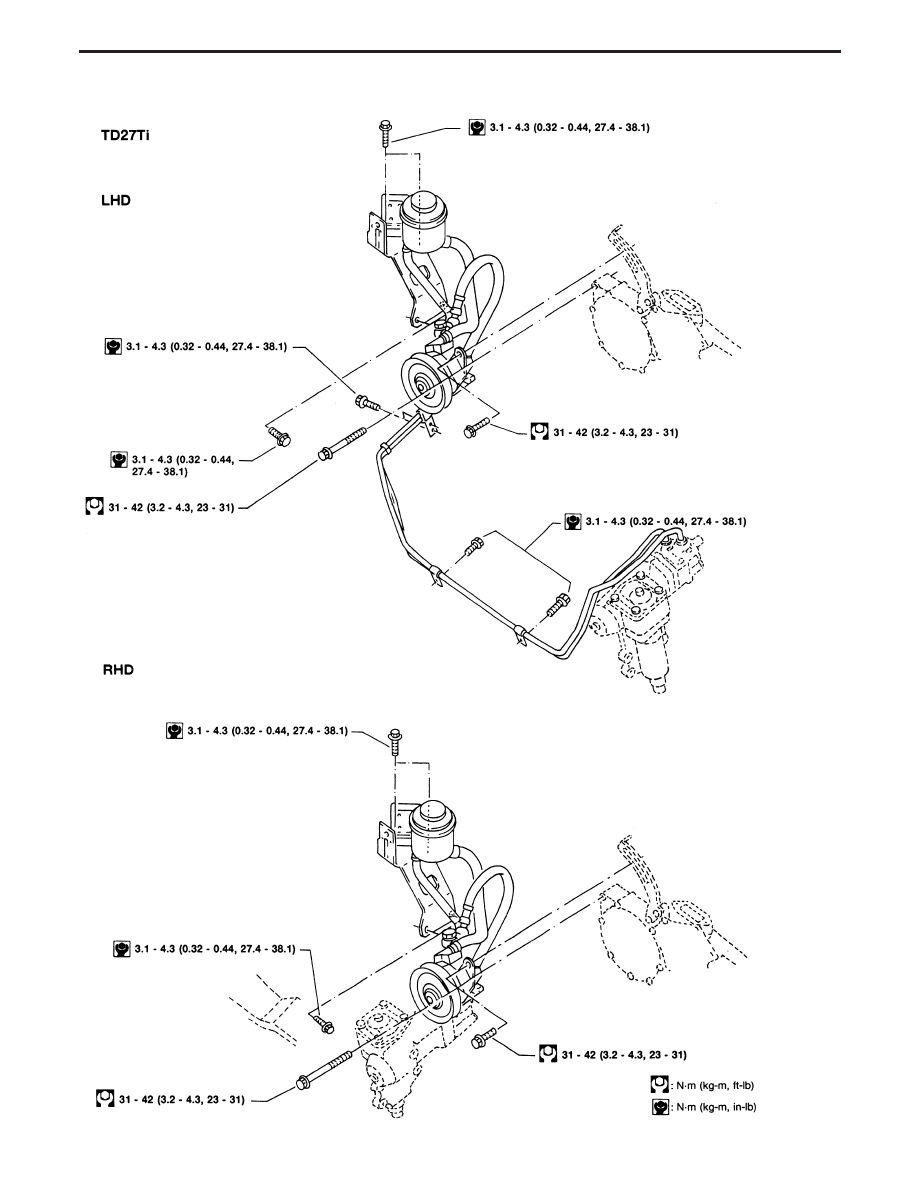

POWER STEERING GEAR

Description (Cont’d)

ST-13
