Nissan Terrano r20e. Manual - part 432

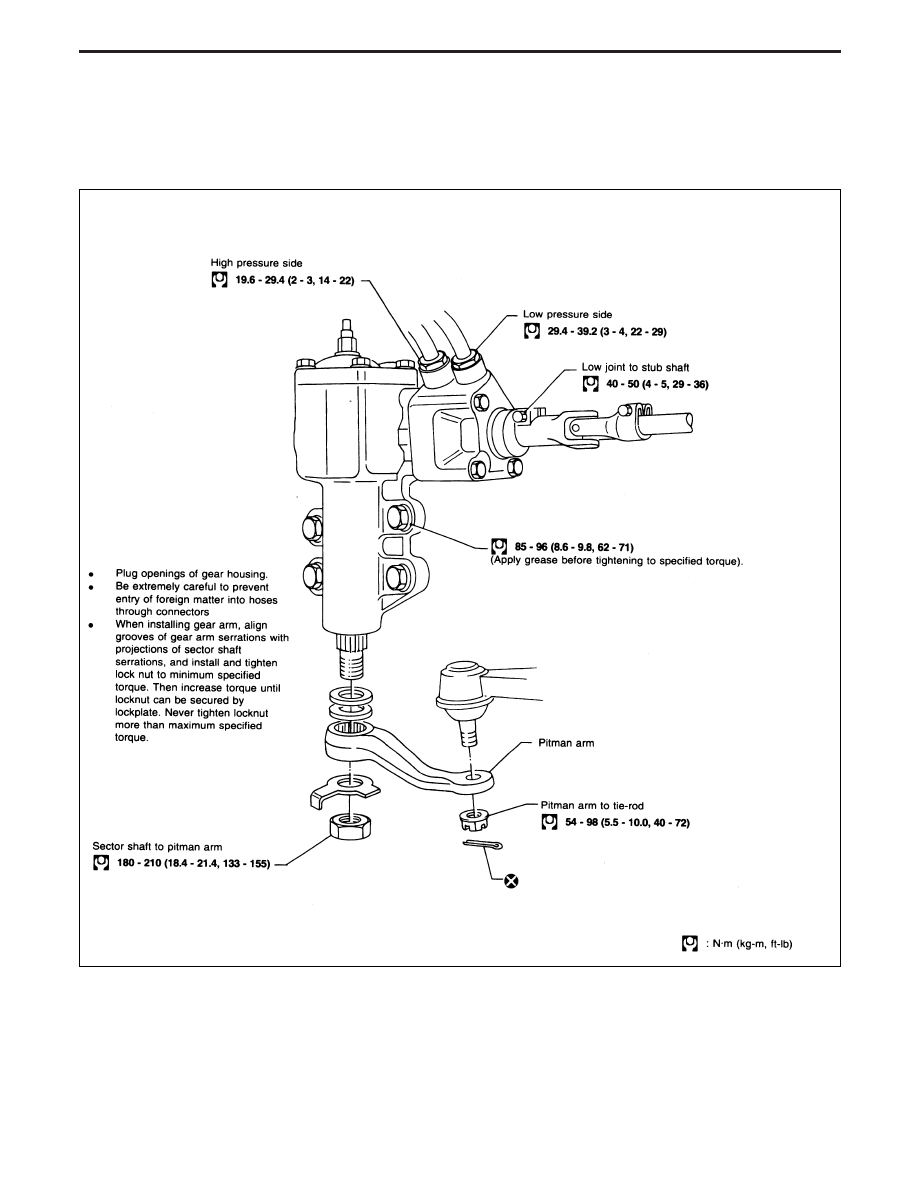

Removal and Installation

Before removing, clean exteriors of gear housing and oil pump
with steam and dry with compressed air.

STEERING GEAR

I

The steering gear must not be disassembled. Replace as an
assembly.

I

Remove only the parts shown in the illustration.

NST008

POWER STEERING GEAR

ST-14

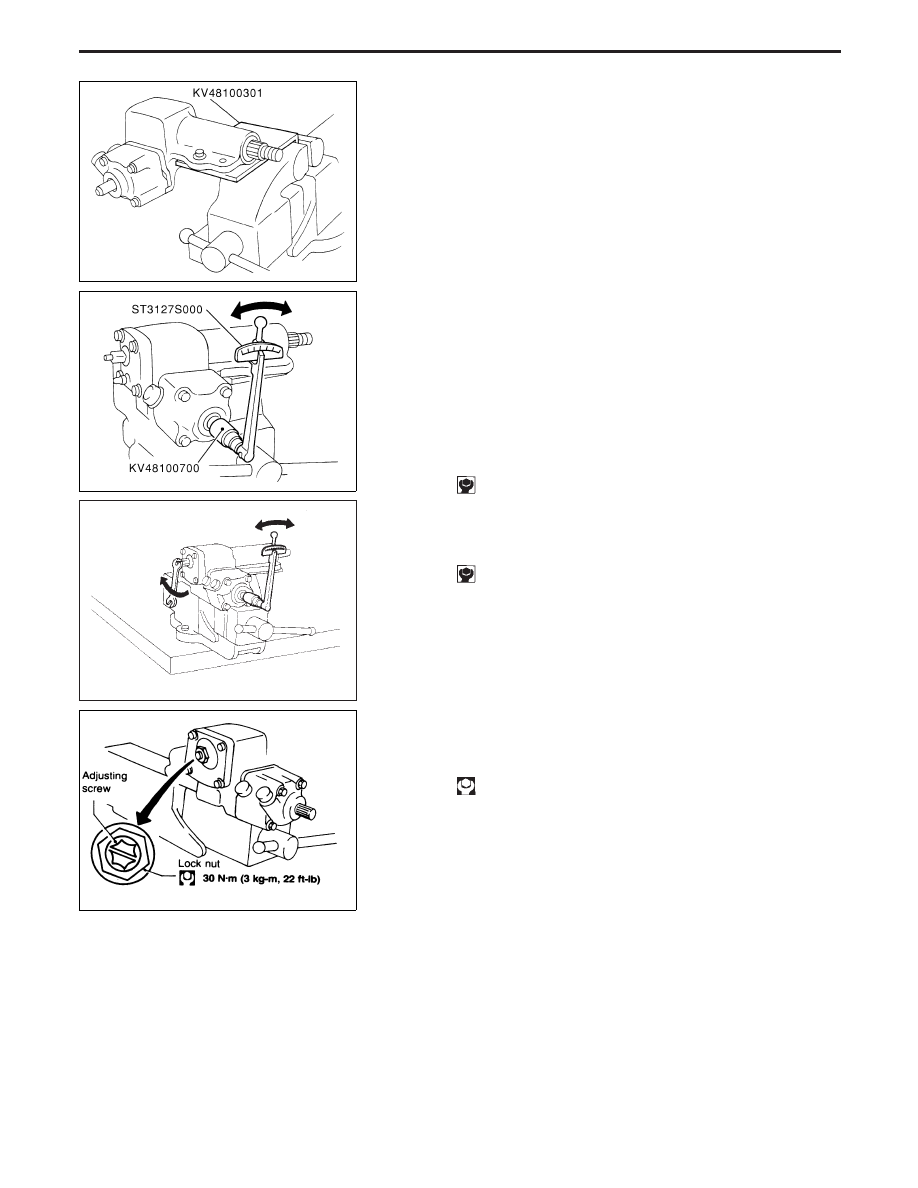

Inspection and Adjustment

STEERING GEAR PRELOAD

Measure preload in worm gear.
1. Mount steering gear to Tool (KV48100301) and place it in a

vise, as shown in the illustration.

2. Turn worm gear several times by hand completely to the left

and right (full lock to lock).

3. Measure preload at ±360° from straight-ahead position.
a. Turn worm gear counterclockwise until full lock position.

Then turn clockwise more than two turns until the straight-
ahead position.
Straight-ahead position is the position where the two mat-
ing marks are in line (approx. 765° from full lock position).

b. Turn worm gear one full turn (360°) clockwise and measure

total preload at this position.

c. Turn worm gear two full turns (720°) counterclockwise and

measure total preload.

Total preload at ±360° from straight-ahead position:

: 0.4 - 1.2 N

m (0.04 - 0.12 kg-m, in-lb)

4. Measure total preload at straight-ahead position.
a. Place worm gear in straight-ahead position. See step 3.a.
b. Measure total preload in straight-ahead position.

Total preload at straight-ahead position:

: 0.6 - 1.6 N

m (0.06 - 0.16 kg-m, 5 - 14 in-lb)

5. If either one of the above measured values are not within

specifications, adjust total preload by turning sector shaft
adjusting screw. Tighten adjusting screw lock nut with tools.

Lock nut:

: 30 N

m (3 kg-m, 22 ft-lb)

YST022

YST023

SST653A

EST011

POWER STEERING GEAR

ST-15

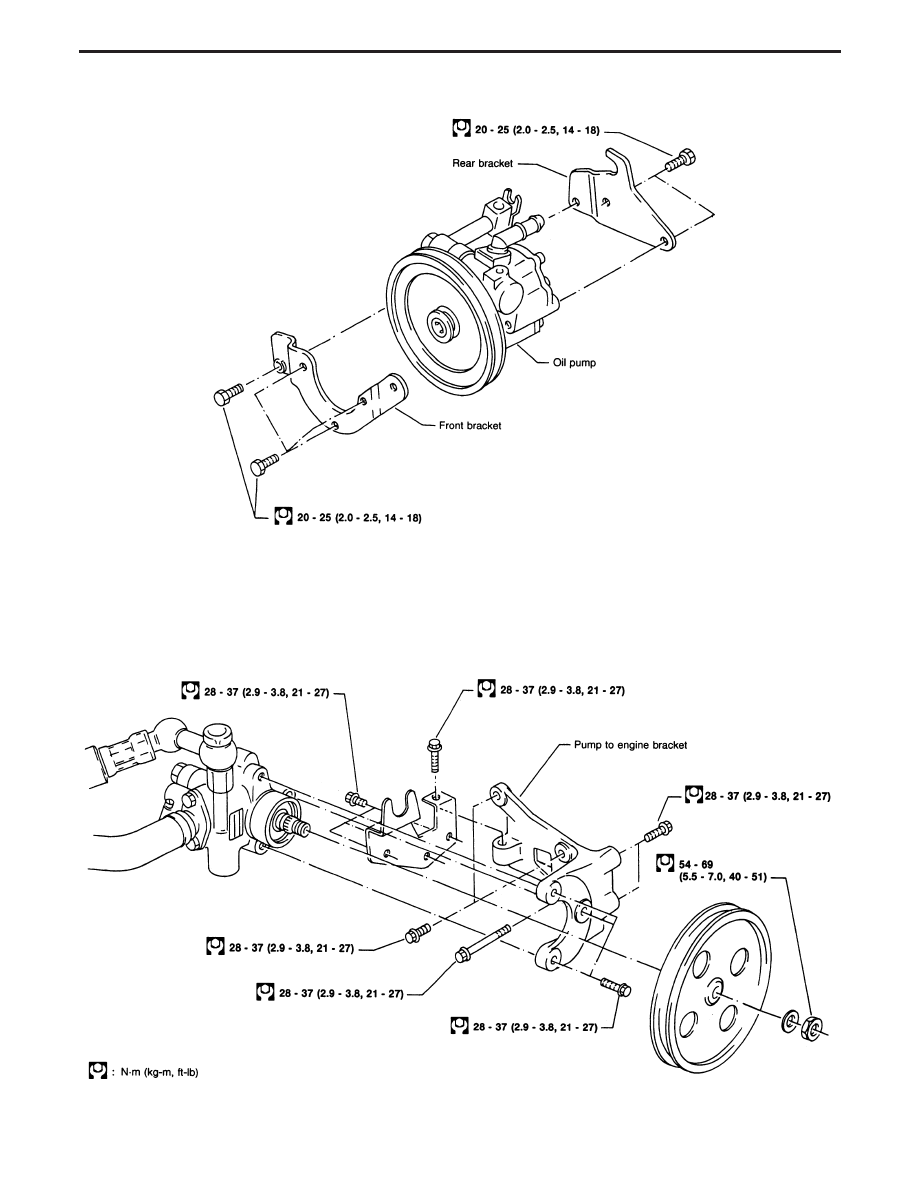

Removal and Installation

NST027

POWER STEERING OIL PUMP

ST-16

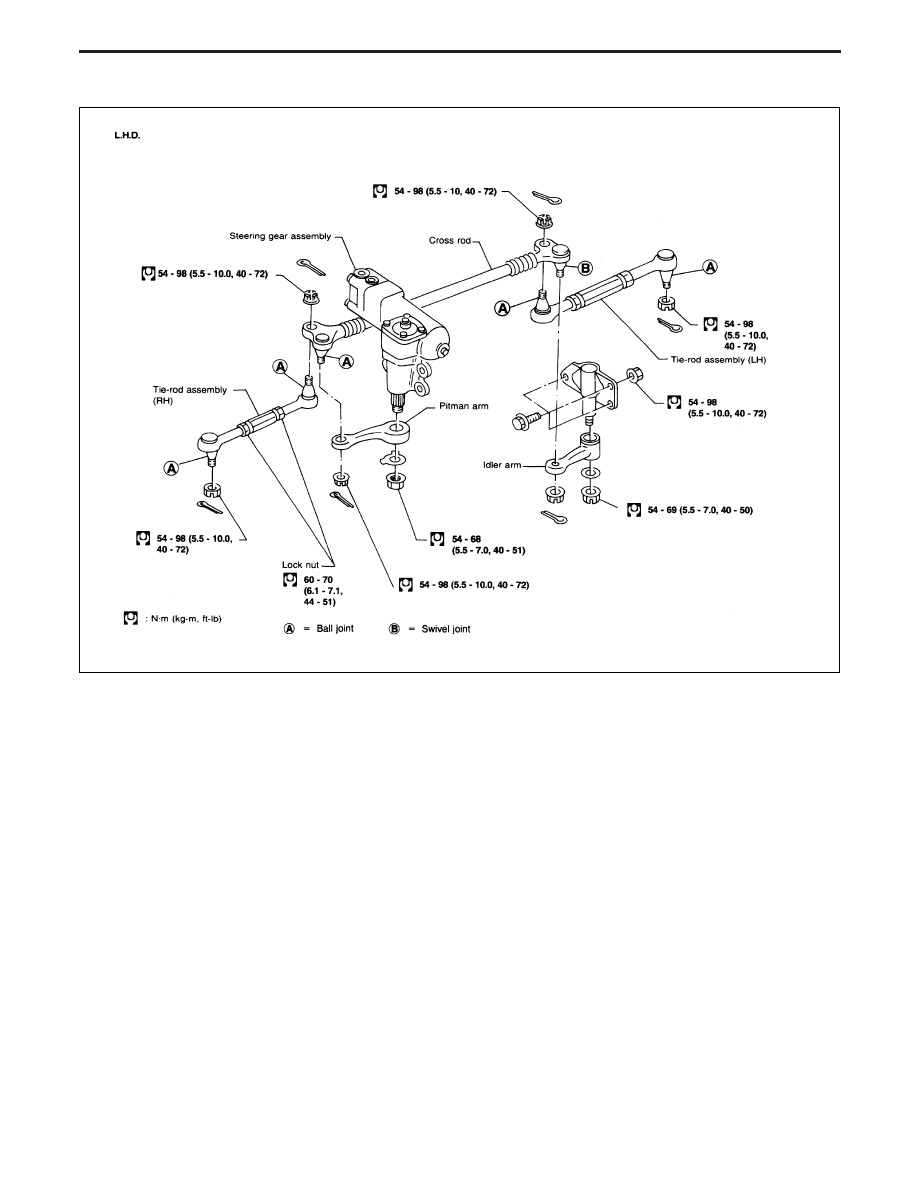

Removal and Installation

NST010

STEERING LINKAGE

ST-17
