Compressor Clutch

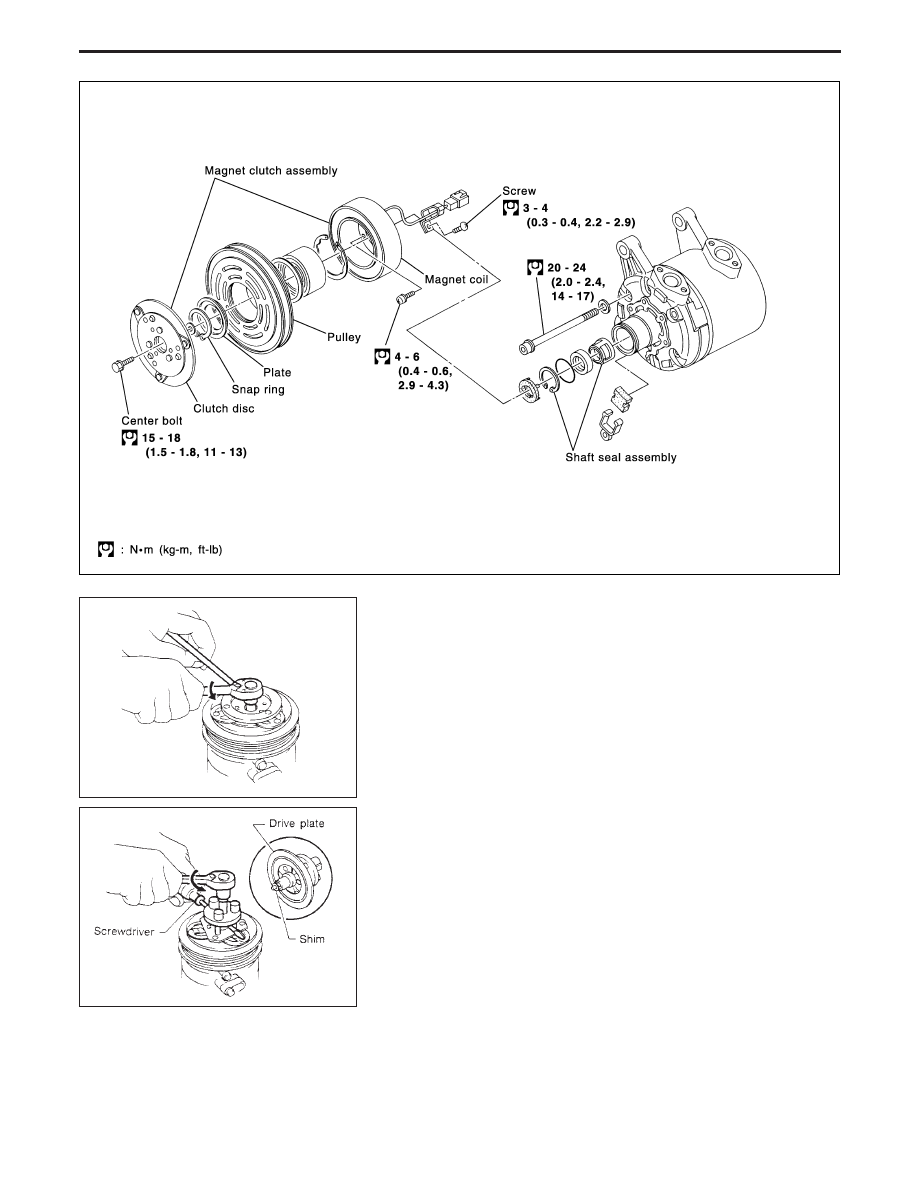

REMOVAL

I

When removing center bolt, hold clutch disc with clutch disc
wrench.

I

Remove the drive plate using the drive plate puller.
Insert the holder’s three pins into the holes in the drive plate,
and rotate the holder clockwise to hook it onto the plate. Then,
tighten the center bolt to remove the drive plate.
When tightening the center bolt, insert a round bar (screwdriver,
etc.) between two of the pins (as shown in the left-hand figure)
to prevent drive plate rotation. After removing the drive plate,
remove the shims from either the drive shaft or the drive plate.

YHA403

RHA070C

RHA071C

COMPRESSOR — Model DKV-14C (ZEXEL make)

HA-24

I

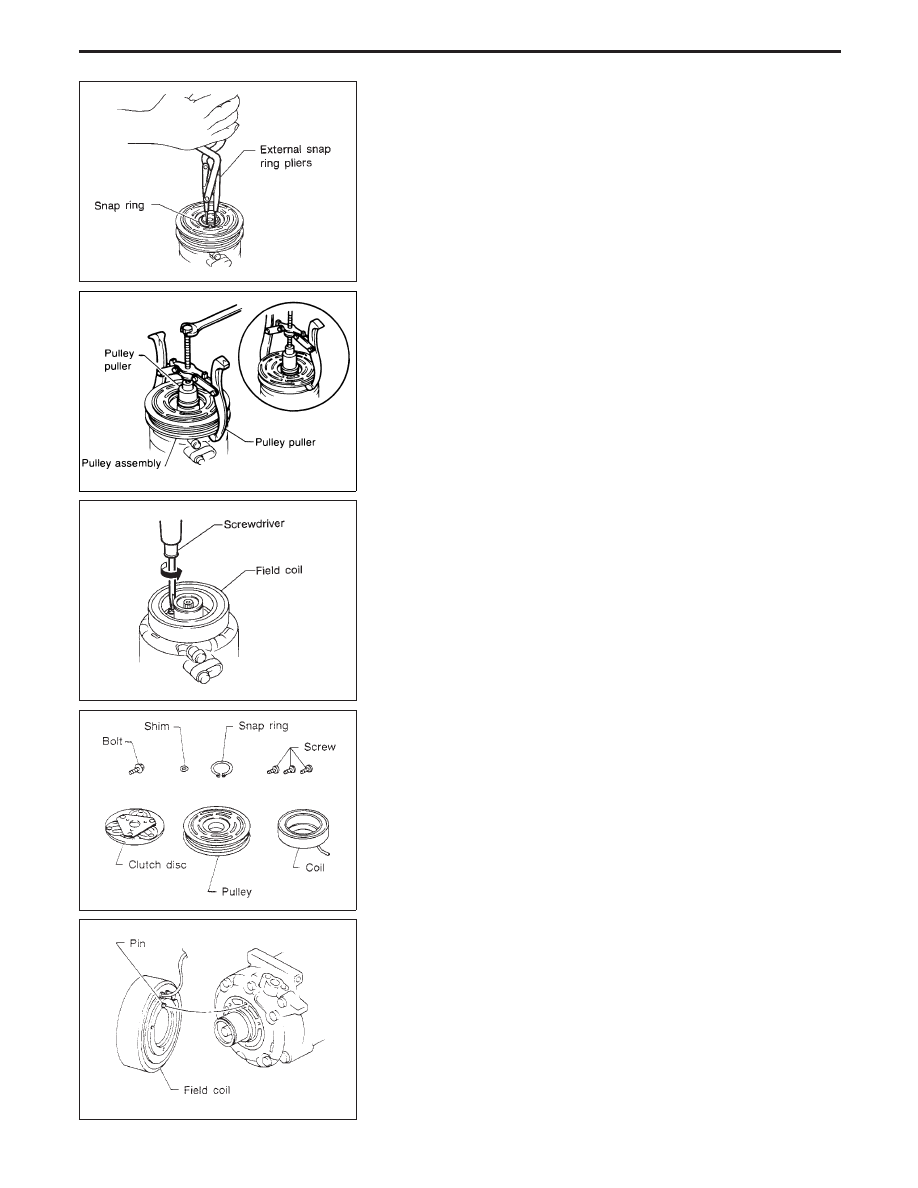

Remove the snap ring using external snap ring pliers.

I

Pulley removal
Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially avail-
able pulley puller.
For pressed pulleys:
To prevent deformation of the pulley groove, the puller
claws should be hooked into (not under) the pulley groove.
For machine latched pulleys:
Align the pulley puller groove with the pulley groove, and
then remove the pulley assembly.

I

Remove the field coil harness clip using a screwdriver.

I

Remove the three field coil fixing screws and remove the field
coil.

INSPECTION

Clutch disc: If the contact surface shows signs of damage due to
excessive heat, the clutch disc and pulley should be replaced.
Pulley: Check the appearance of the pulley assembly. If the con-
tact surface of the pulley shows signs of excessive grooving due
to slippage, both the pulley and clutch disc should be replaced. The
contact surfaces of the pulley assembly should be cleaned with a
suitable solvent before reinstallation.
Coil: Check coil for loose connection or cracked insulation.

INSTALLATION

I

Install the field coil.

Be sure to align the coil’s pin with the hole in the compres-
sor’s front head.

I

Install the field coil harness clip using a screwdriver.

RHA072C

RHA073C

RHA074C

RHA075C

RHA076C

COMPRESSOR — Model DKV-14C (ZEXEL make)

Compressor Clutch (Cont’d)

HA-25

I

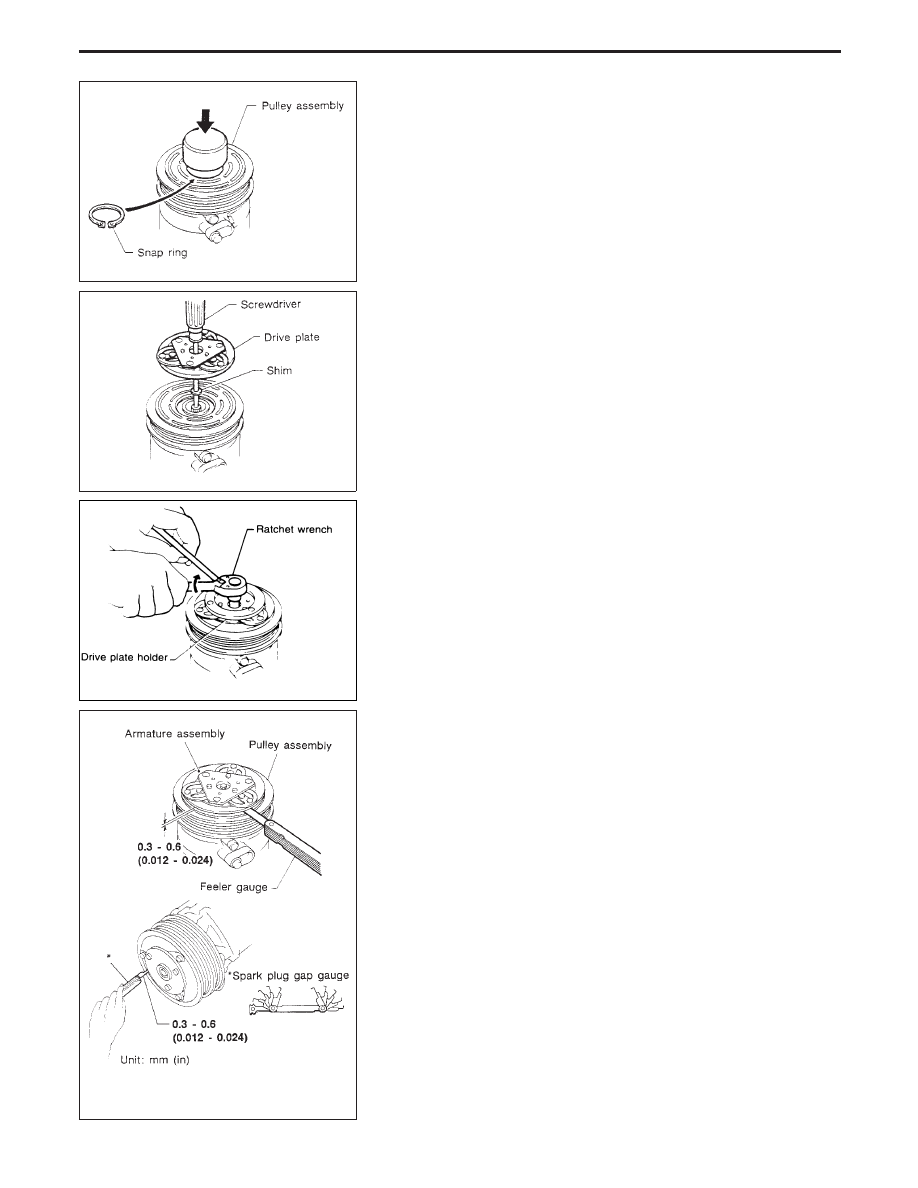

Install the pulley assembly using the installer and a hand press,
and then install the snap ring using snap ring pliers.

I

Install the drive plate on the drive shaft, together with the origi-
nal shim(s). Press the drive plate down by hand.

I

Using the holder to prevent drive plate rotation, tighten the bolt
to 12 to 15 N

m (1.2 to 1.5 kg-m, 9 to 11 ft-lb) torque.

After tightening the bolt, check that the pulley rotates
smoothly.

I

Check clearance around the entire periphery of clutch disc.

Disc-to-pulley clearance:

0.3 - 0.6 mm (0.012 - 0.024 in)

If the specified clearance is not obtained, replace adjusting
spacer and readjust.

BREAK-IN OPERATION

When replacing compressor clutch assembly, do not forget break-in
operation, accomplished by engaging and disengaging the clutch
about thirty times. Break-in operation raises the level of transmit-
ted torque.

RHA077C

RHA078C

RHA079C

RHA080C

COMPRESSOR — Model DKV-14C (ZEXEL make)

Compressor Clutch (Cont’d)

HA-26

How to Perform Trouble Diagnoses for Quick
and Accurate Repair

WORK FLOW

CHECK IN

F

Reference item

LISTEN TO CUSTOMER COMPLAINT AND CON-
FIRM BY PERFORMING OPERATIONAL CHECK.

Can be
confirmed

Cannot be
confirmed

EDUCATE CUSTOMER ON
CORRECT OPERATION OF
SYSTEM.

LISTEN TO CUSTOMER COMPLAINTS AND
CONFIRM.

F

Symptom Chart
(See page HA-36.)

INVESTIGATE ITEMS YOU SHOULD CARRY
OUT RELATED TO EACH SYMPTOM.

F

Symptom Chart
(See page HA-36.)

E

ELIMINATE GOOD SYSTEM(S)/PART(S).

F

Preliminary Check
(See pages HA-37.)

CHECK MAIN POWER SUPPLY AND GROUND
CIRCUITS.

F

Main Power Supply and Ground Circuit
Check
(See page HA-51.)

Diagnostic
Procedure(s)
(See pages HA-52 -
54.)

E

ELIMINATE GOOD PART(S)/HARNESS(ES)/
CONNECTOR(S) ELECTRICALLY.

F

Harness Layout for A/C System
(See page HA-39.)

Malfunctioning
harness(es)/
connector(s)

Malfunctioning
part(s)

INSPECT EACH
COMPONENT.

F

Electrical Components Inspection
(See page HA-60.)

REPAIR.

H

REPAIR/REPLACE.

NG

FINAL CHECK

OK

CHECK OUT

H

H

H

H

H

H

H

H

H

H

H

H

DIAGNOSES — Overall System

HA-27
