Nissan Terrano r20e. Manual - part 337

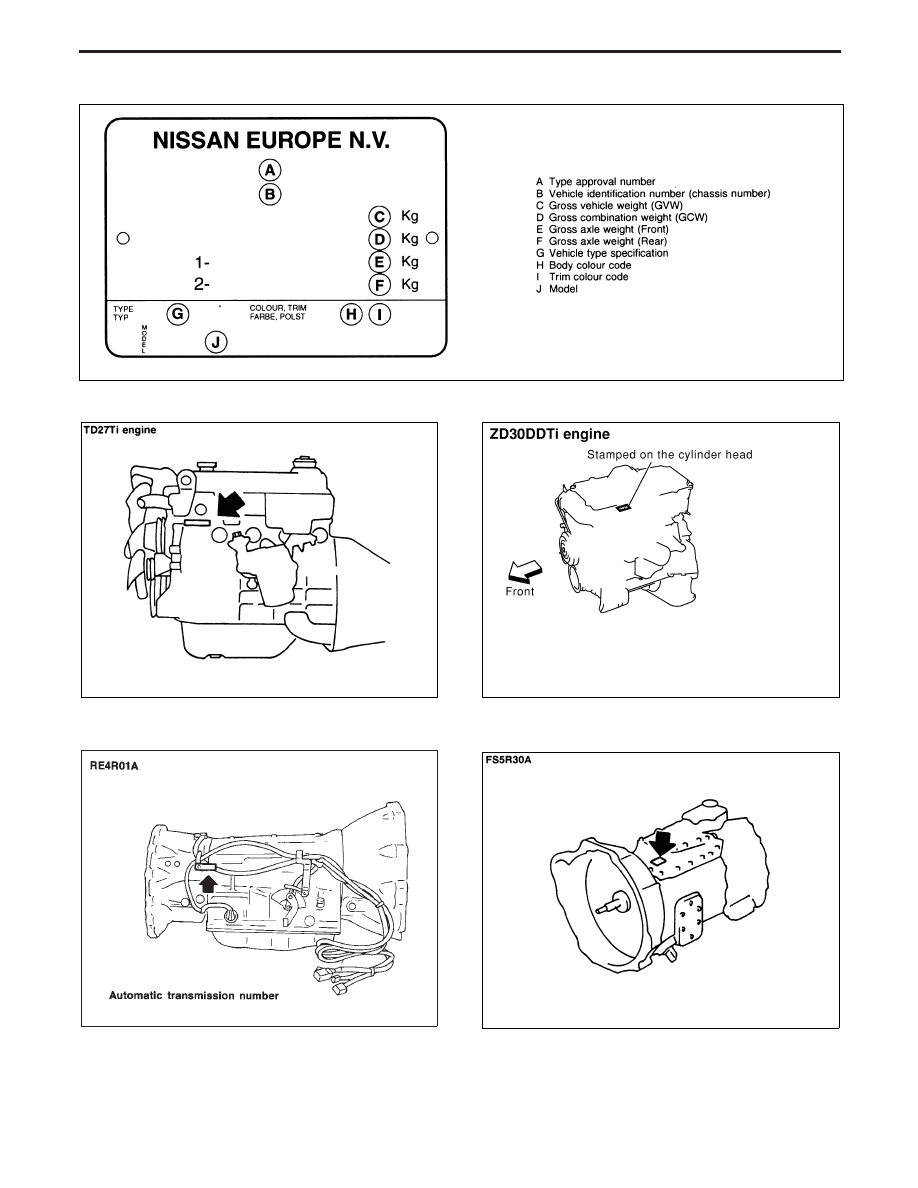

IDENTIFICATION PLATE

ENGINE SERIAL NUMBER

AUTOMATIC TRANSMISSION NUMBER

MANUAL TRANSMISSION NUMBER

NGI011

NGI012

SGI137A

SGI760-A

NGI014

IDENTIFICATION INFORMATION

Identification Number (Cont’d)

GI-30

Dimensions

Unit: mm (in)

Hardtop

Wagon

Overall length

4,242 (167.0)

4,722 (185.9)

Overall width (*)

1,755 (69.1)

1,755 (69.1)

Overall height

1,805 (71.1)

1,810 (71.3)

Front tread

1,455 (57.3)

1,455 (57.3)

Rear tread

1,430 (56.3)

1,430 (56.3)

Wheelbase

2,450 (96.5)

2,650 (104.3)

Ground clearance

210 (8.3)

205 (8.1)

Front overhang

837 (33.0)

837 (33.0)

Rear overhang

bumper

835 (32.9)

1,115 (43.9)

spare wheel

955 (37.6)

1,235 (48.6)

(*): without mirrors

Wheels and Tires

Road wheel size

16 x 7J

Offset

[mm (in)]

25 (0.98)

Tire size

235/70 R16

IDENTIFICATION INFORMATION

GI-31

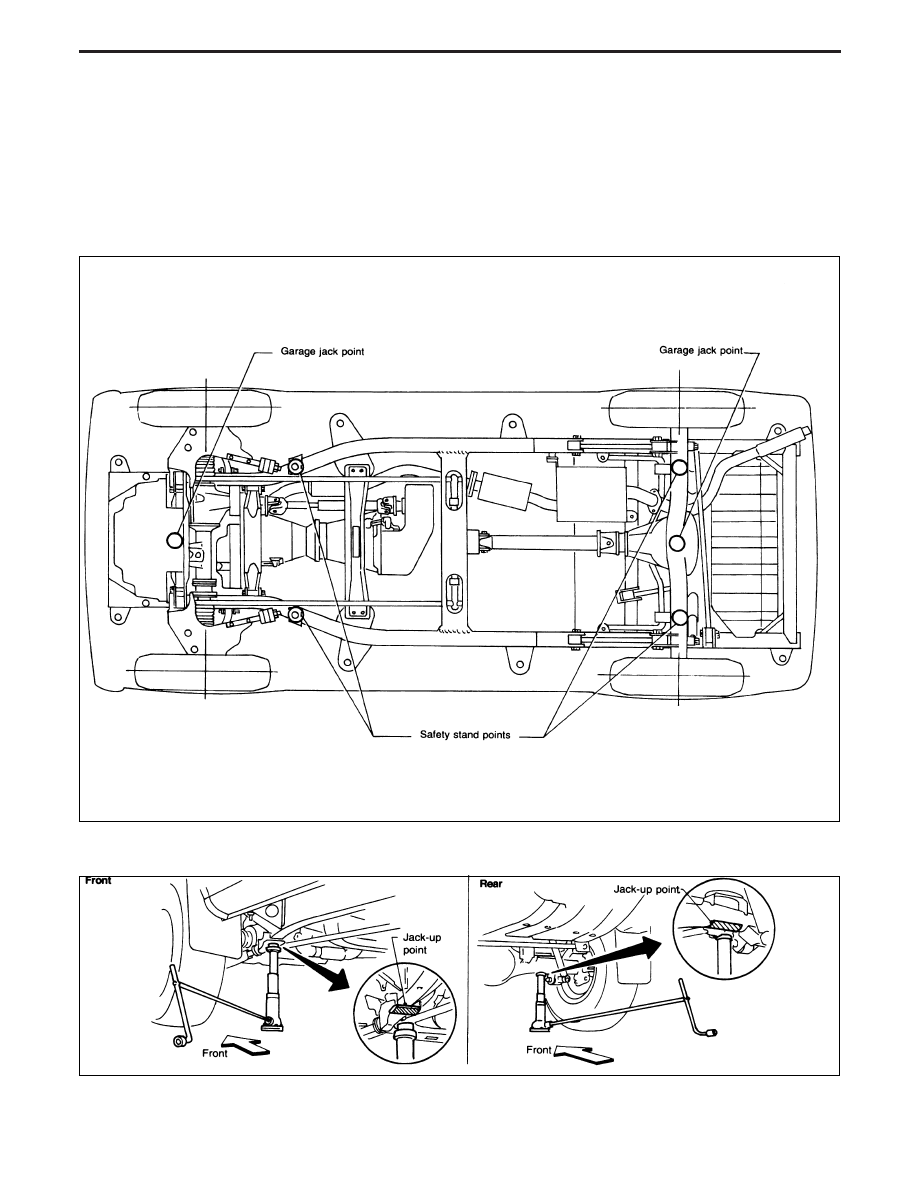

Garage Jack and Safety Stand

WARNING:

I

Never get under the vehicle while it is supported only by
the jack. Always use safety stands when you have to get
under the vehicle.

I

Place wheel chocks at both front and back of the wheels
on the ground, and apply handbrake where appropriate.

I

Do not start the engine while the vehicle is supported only
by the jack.

Screw Jack

EGI016

EGI017

LIFTING POINTS AND TOW TRUCK TOWING

GI-32

4-pole Lift

WARNING:

Do not use a 2-pole lift.
Due to weight balance of the vehicle and shape of underbody,
lift arms can not be attached in a safe way. Therefore it is rec-
ommended to use a 4-pole lift only.

Tow Truck Towing

CAUTION:

I

All applicable local laws regarding the towing operation
must be obeyed.

I

It is necessary to use proper towing equipment to avoid
possible damage to the vehicle during a towing operation.

I

Attach safety chains for all towing.

I

When towing, make sure that the transmission, steering
system and power train are in good order. If any unit is
damaged, a dolly must be used.

I

When towing with the front wheels on the ground:
Move both the gearshift and transfer levers to neutral (“N”
position).
Turn the ignition key to the “OFF” position and secure the
steering wheel in a straightahead position with a rope or
similar device. Never place the ignition key in the “LOCK”
position. This will result in damage to the steering lock
mechanism.

I

When towing with the rear wheels on the ground, release
the parking brake and move both the gearshift and trans-
fer levers to neutral (“N” position).

I

Never tow vehicle from the rear (i.e., backward) with four
wheels on the ground as this may cause serious and
expensive damage to the transmission.

LIFTING POINTS AND TOW TRUCK TOWING

GI-33
