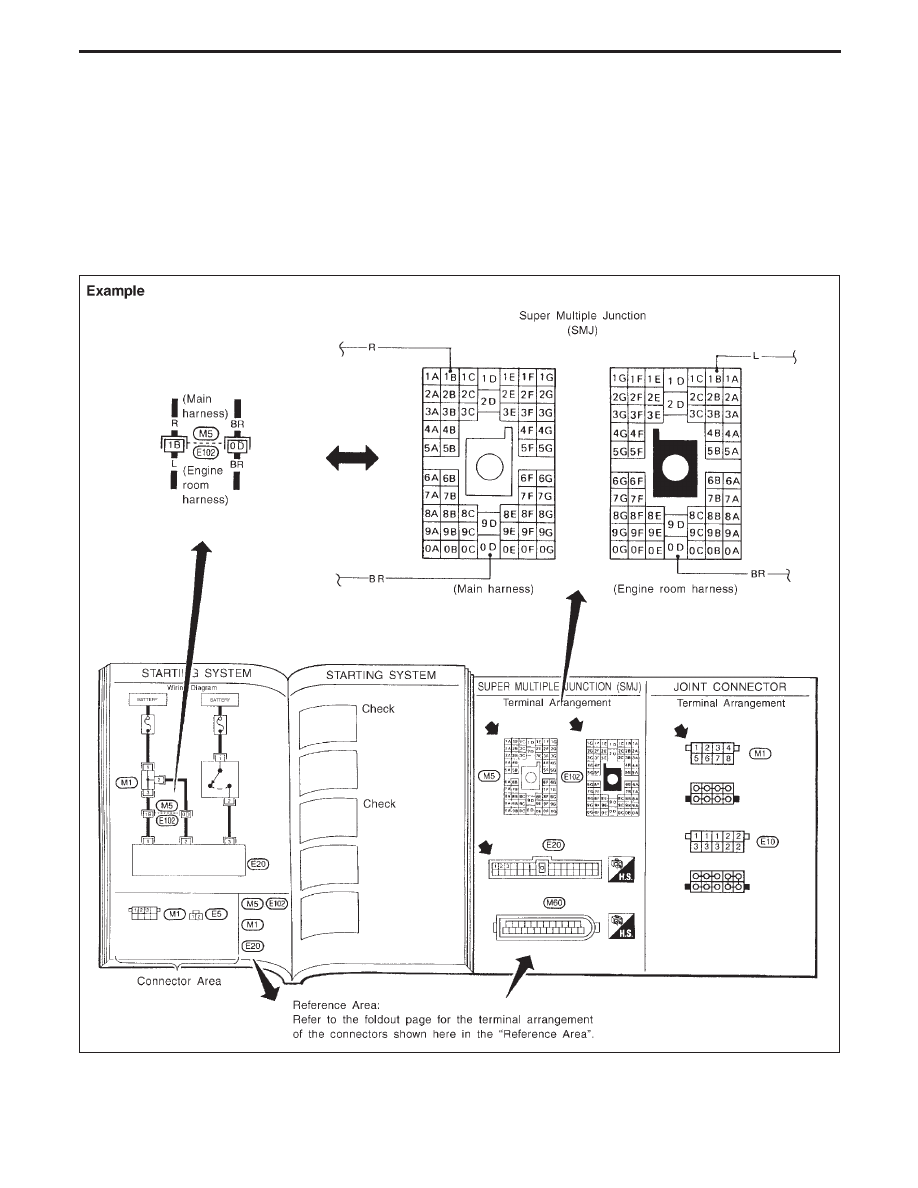

FOLDOUT PAGE

The foldout page should be opened when reading wiring diagram.

Super multiple junction (SMJ)

In wiring diagram, connectors consisting of terminals having terminal numbers with an alphabet (1B, 0D, etc.)
are SMJ connectors.
If connector numbers are shown in Reference Area, these connector symbols are not shown in Connector
Area. For terminal arrangement of these connectors, refer to the foldout page at the end of this manual.

Joint connector

Joint connector symbols are shown in Connector Area in the wiring diagram concerned. Foldout page also
carries inside wiring layout together with such joint connector symbols.

SGI943

HOW TO READ WIRING DIAGRAMS

Description (Cont’d)

GI-18

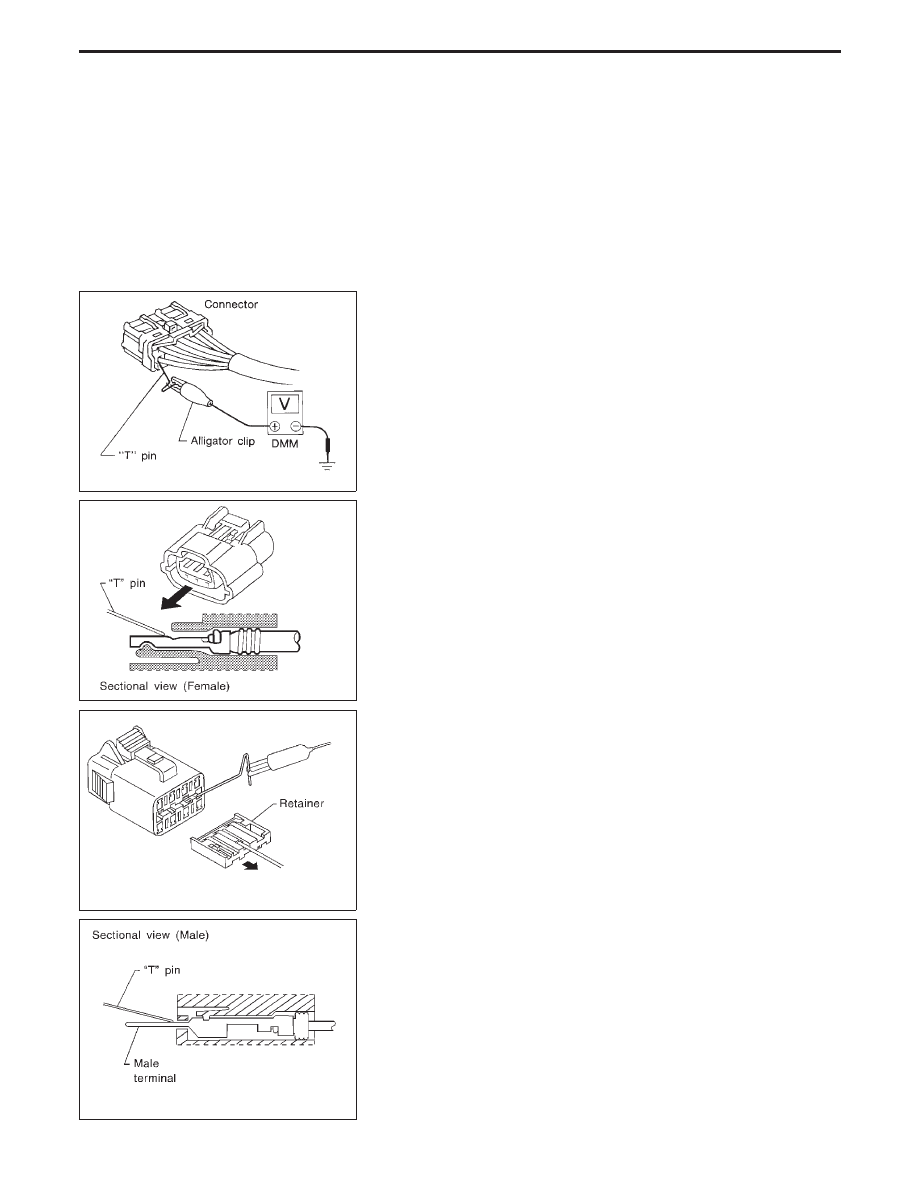

How to Probe Connectors

Connector damage and an intermittent connection can result from
improperly probing of the connector during circuit checks.
The probe of a digital multimeter (DMM) may not correctly fit the
connector cavity. To correctly probe the connector, follow the pro-
cedures below using a “T” pin. For the best contact grasp the “T”
pin using an alligator clip.

PROBING FROM HARNESS SIDE

Standard type (not waterproof type) connector should be probed
from harness side with “T” pin.

I

If the connector has a rear cover such as a ECM connector,
remove the rear cover before probing the terminal.

I

Do not probe waterproof connector from harness side.
Damage to the seal between wire and connector may
result.

PROBING FROM TERMINAL SIDE

Female terminal

I

There is a small notch above each female terminal. Probe each
terminal with the “T” pin through the notch.

Do not insert any object other than the same type male termi-
nal into female terminal.

I

Some connectors do not have a notch above each terminal. To
probe each terminal, remove the connector retainer to make
contact space for probing.

Male terminal

Carefully probe the contact surface of each terminal using a “T” pin.
Do not bend terminal.

SGI841

SEL265V

SEL266V

SEL267V

HOW TO CHECK TERMINAL

GI-19

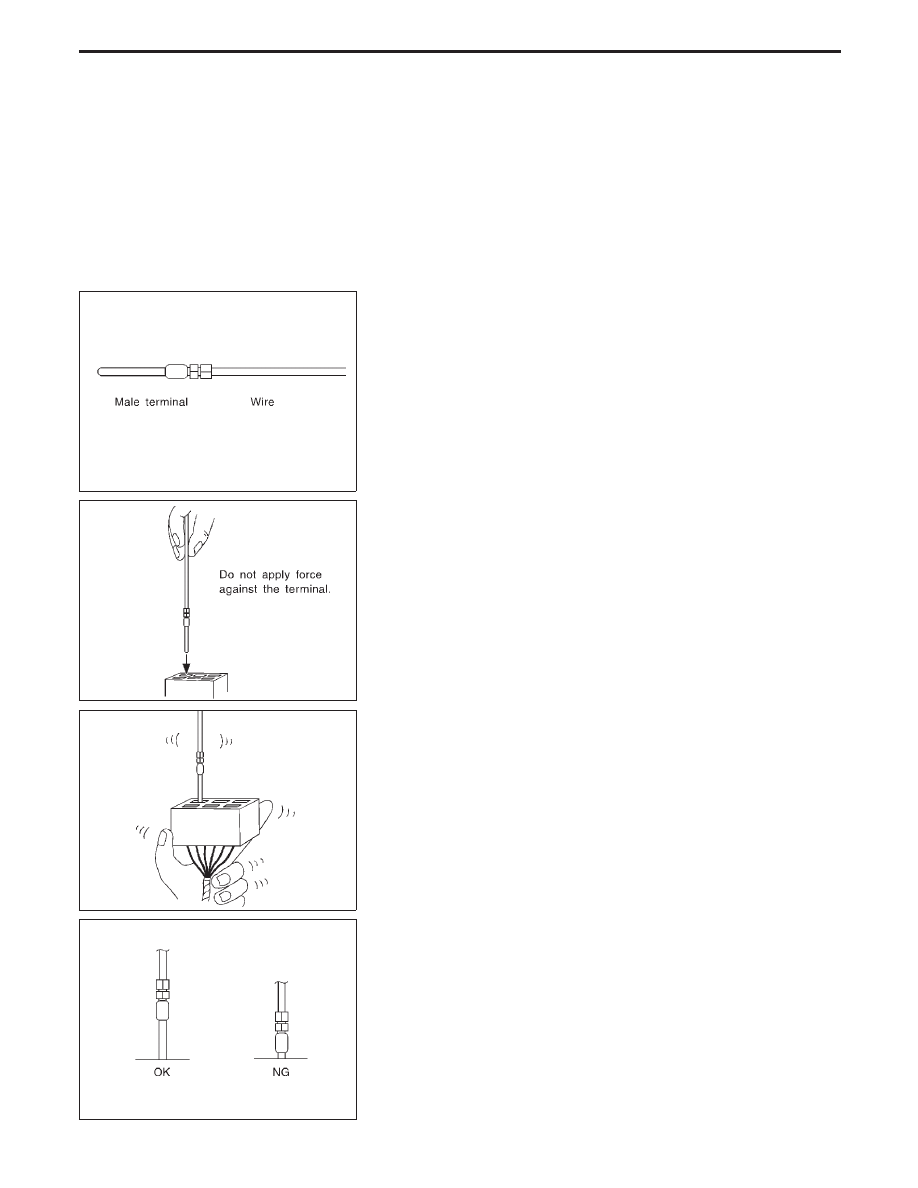

How to Check Enlarged Contact Spring of
Terminal

An enlarged contact spring of a terminal may create intermittent
signals in the circuit.
If the intermittent open circuit occurs, follow the procedure below to
inspect for open wires and enlarged contact spring of female ter-
minal.

1. Assemble a male terminal and approx. 10 cm (3.9 in) of wire.
Use a male terminal which matches the female terminal.
2. Disconnect the suspected faulty connector and hold it terminal

side up.

3. While holding the wire of the male terminal, try to insert the

male terminal into the female terminal.

Do not force the male terminal into the female terminal with
your hands.

4. While moving the connector, check whether the male terminal

can be easily inserted or not.

I

If the male terminal can be easily inserted into the female
terminal, replace the female terminal.

SEL270V

SEL271V

SEL272V

SEL273V

HOW TO CHECK TERMINAL

GI-20

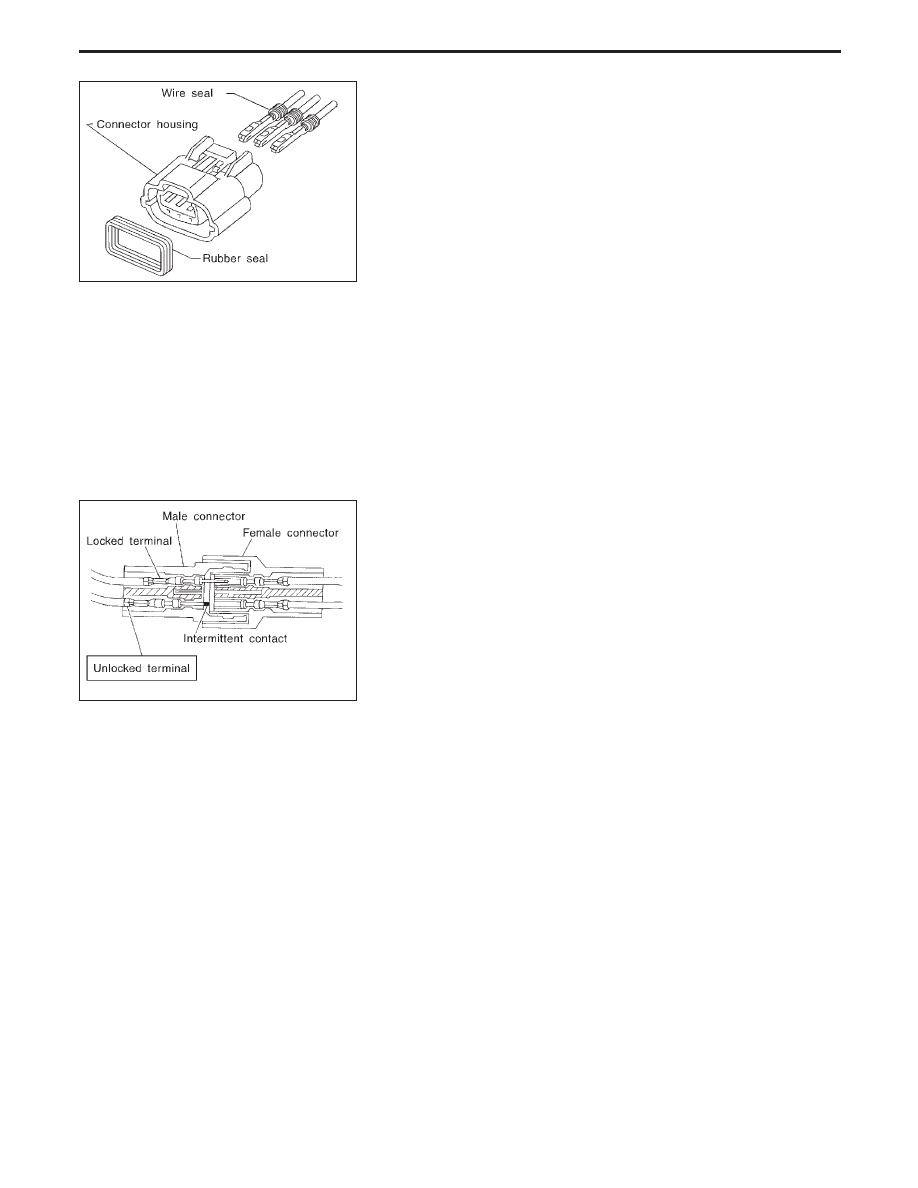

Waterproof Connector Inspection

If water enters the connector, it can short interior circuits. This may
lead to intermittent problems.
Check the following items to maintain the original waterproof char-
acteristics.

RUBBER SEAL INSPECTION

I

Most waterproof connectors are provided with a rubber seal
between the male and female connectors. If the seal is missing,
the waterproof performance may not meet specifications.

I

The rubber seal may come off when connectors are discon-
nected. Whenever connectors are reconnected, make sure the
rubber seal is properly installed on either side of male or female
connector.

WIRE SEAL INSPECTION

The wire seal must be installed on the wire insertion area of a
waterproof connector. Be sure that the seal is installed properly.

Terminal Lock Inspection

Check for unlocked terminals by pulling wire at the end of connec-
tor. An unlocked terminal may create intermittent signals in the cir-
cuit.

SEL275V

SEL330V

HOW TO CHECK TERMINAL

GI-21
