FRONT AXLE & FRONT SUSPENSION

SECTION

FA

CONTENTS

PRECAUTIONS

...............................................................2

PREPARATION

................................................................3

FRONT AXLE AND FRONT SUSPENSION

...................4

CHECK AND ADJUSTMENT

..........................................5

Front Axle and Front Suspension Parts ......................5
Front Wheel Bearing....................................................6
Front Wheel Alignment ................................................8
Drive Shaft .................................................................12

FRONT AXLE

................................................................13

FRONT AXLE - Auto-lock Free-running Hub

.............14

Removal and Installation ...........................................14
Inspection...................................................................14
Trouble-shooting ........................................................15

FRONT AXLE - Wheel Hub and Rotor Disc

...............18

Removal and Installation ...........................................18
Disassembly...............................................................18
Inspection...................................................................19
Assembly ...................................................................19

FRONT AXLE - Knuckle Spindle

.................................20

Removal.....................................................................20

Inspection...................................................................21
Installation..................................................................21

FRONT AXLE - Drive Shaft

..........................................22

Removal and Installation ...........................................22
Removal.....................................................................22
Disassembly...............................................................24
Inspection...................................................................25
Assembly ...................................................................25
Installation..................................................................28

FRONT SUSPENSION

..................................................29

Shock Absorber .........................................................30
Torsion Bar.................................................................30
Stabilizer Bar .............................................................33
Upper Link .................................................................33
Compression Rod ......................................................35
Lower Link .................................................................35
Upper Ball Joint and Lower Ball Joint .......................36

SERVICE DATA AND SPECIFICATIONS (SDS)

..........38

General Specifications...............................................38
Inspection and Adjustment ........................................39

(1) When installing each rubber part, final tightening must be car-

ried out under unladen condition * with tires on ground.
* Fuel, radiator coolant and engine oil full. Spare tire, jack,

hand tools and mats in designated positions.

(2) When removing each suspension part, check wheel alignment

and adjust if necessary.

(3) Use Tool when removing or installing brake tubes.

SBR820B

PRECAUTIONS

FA-2

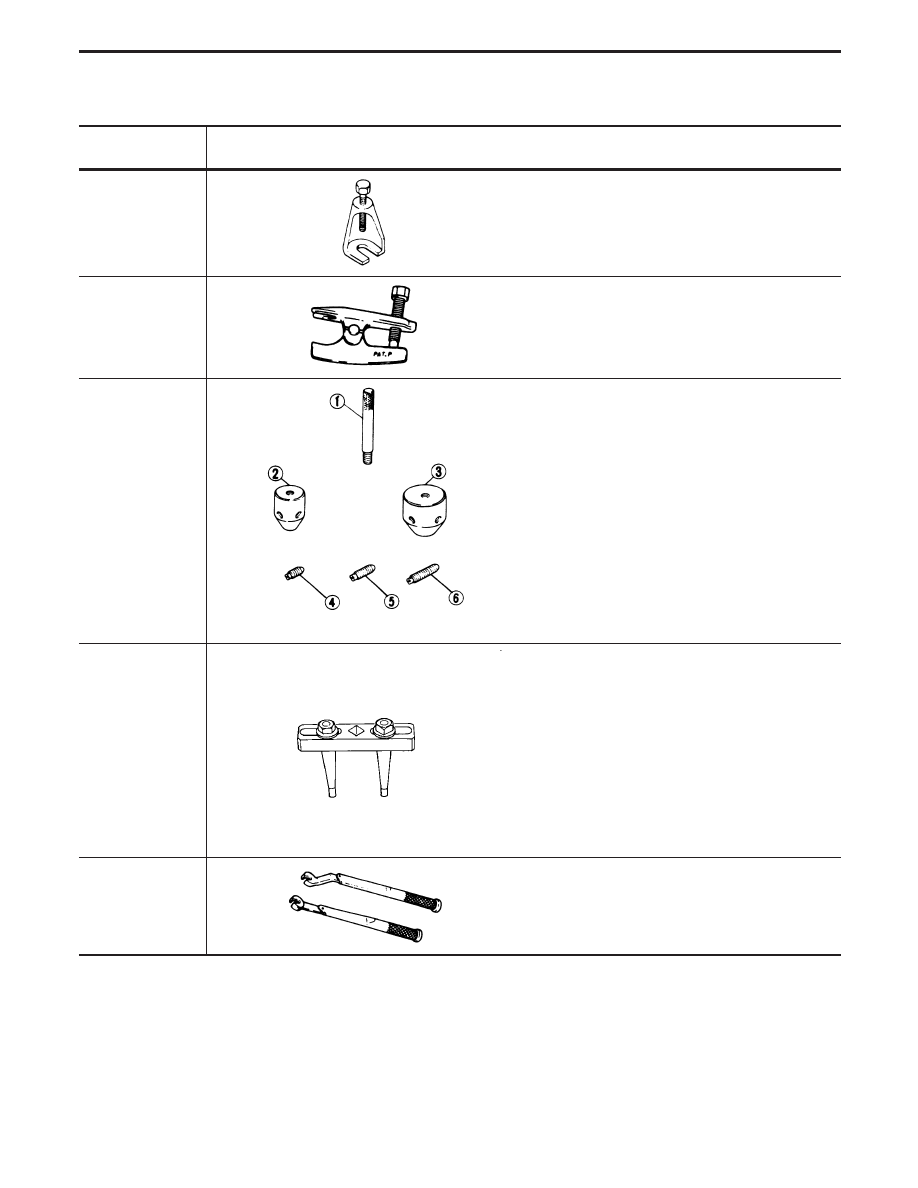

SPECIAL SERVICE TOOLS

*: Special tool or commercial equivalent

Tool number
Tool name

Description

ST29020001*
Gear arm puller

Removing ball joint for knuckle spindle

ST27850000
Ball joint remover

Removing tie-rod outer end

KV401021S0*
Bearing outer race
drift

q

1

ST35325000*

Drift bar

q

2

KV40102110*

Drift (A)

q

3

KV40102120*

Drift (B)

q

4

KV40102130*

Screw (A)

q

5

KV40102140*

Screw (B)

q

6

KV40102150*

Screw (C)

Installing wheel bearing outer race

KV40105400
Wheel bearing lock
nut wrench

Removing or installing wheel bearing lock nut

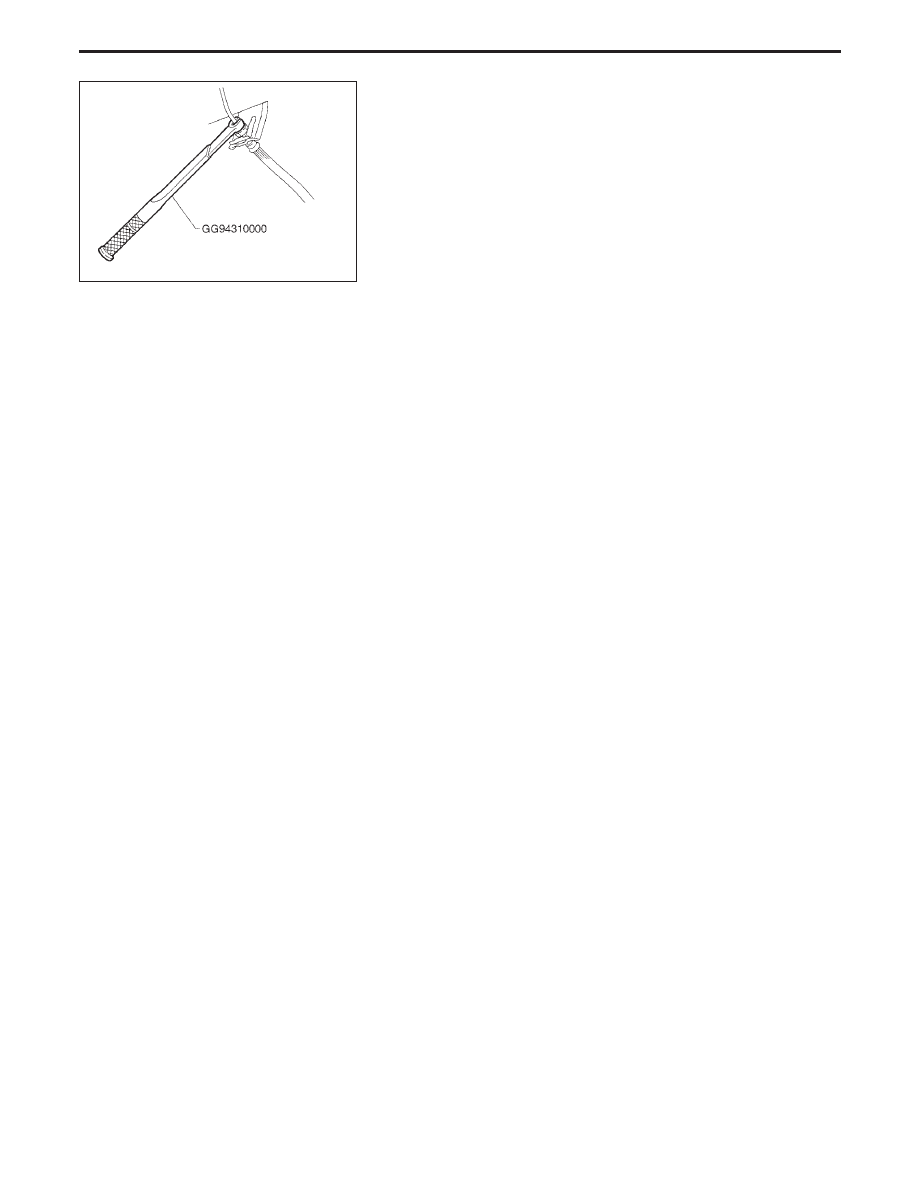

GG94310000*
Flare nut torque
wrench

Removing and installing brake piping

PREPARATION

FA-3

YFA003

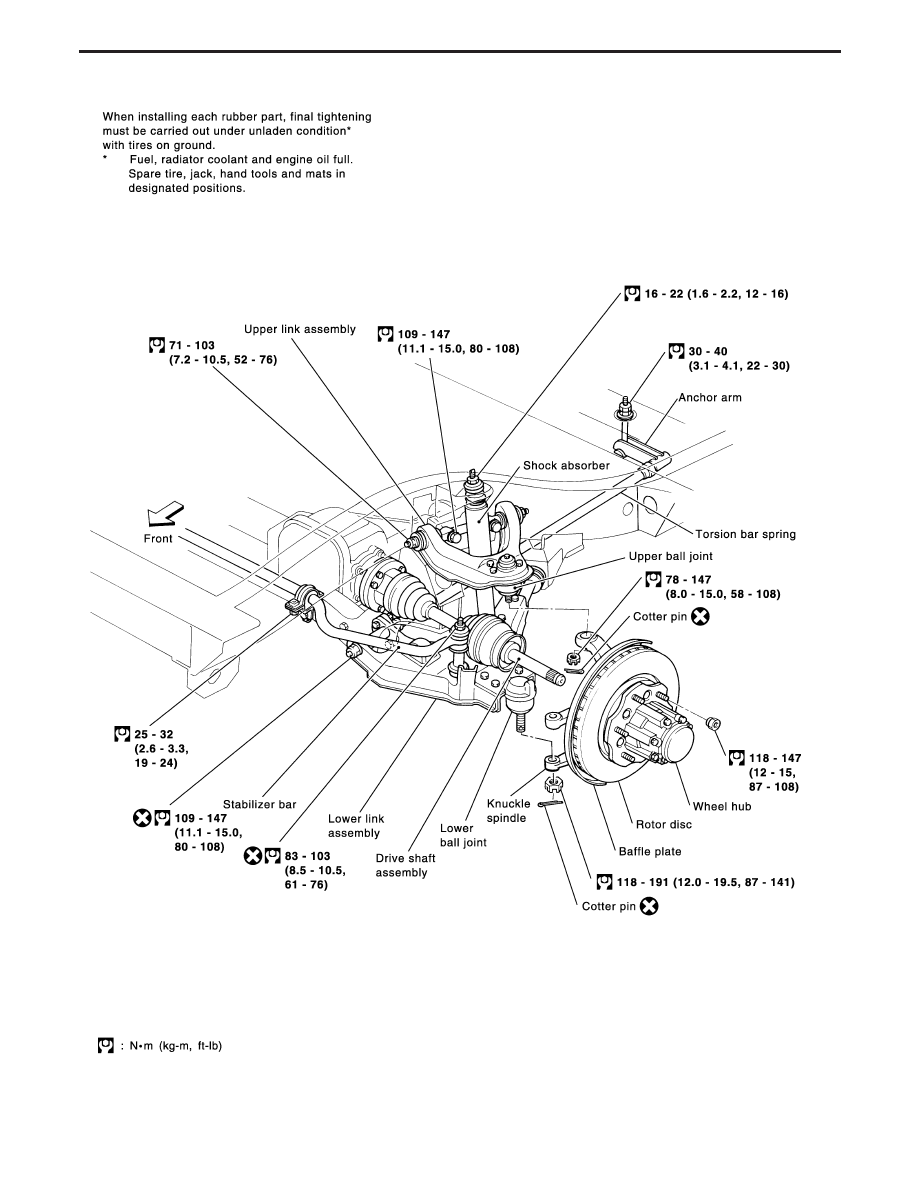

FRONT AXLE AND FRONT SUSPENSION

FA-4
